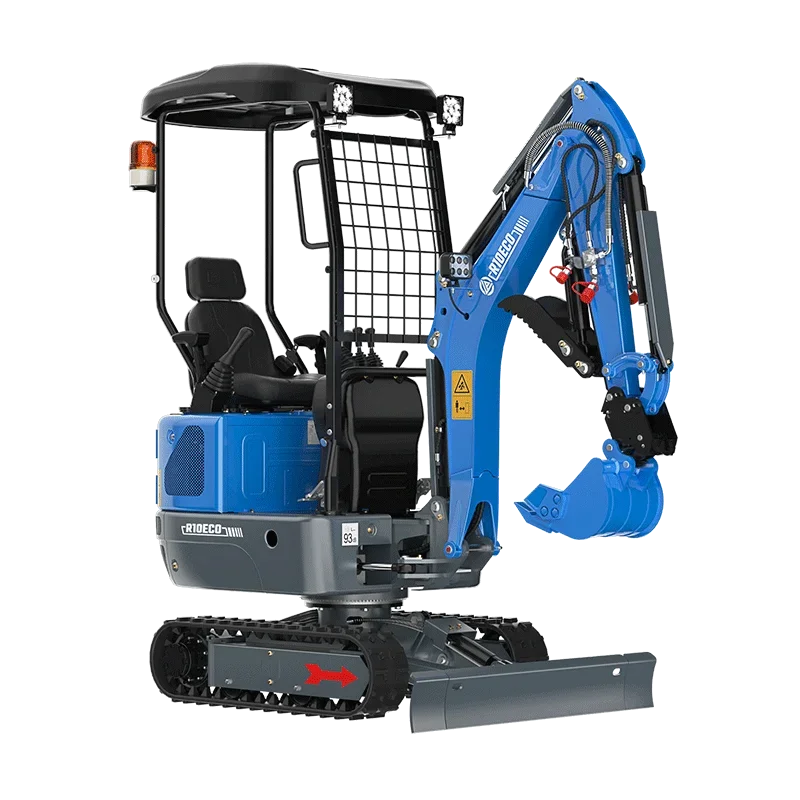

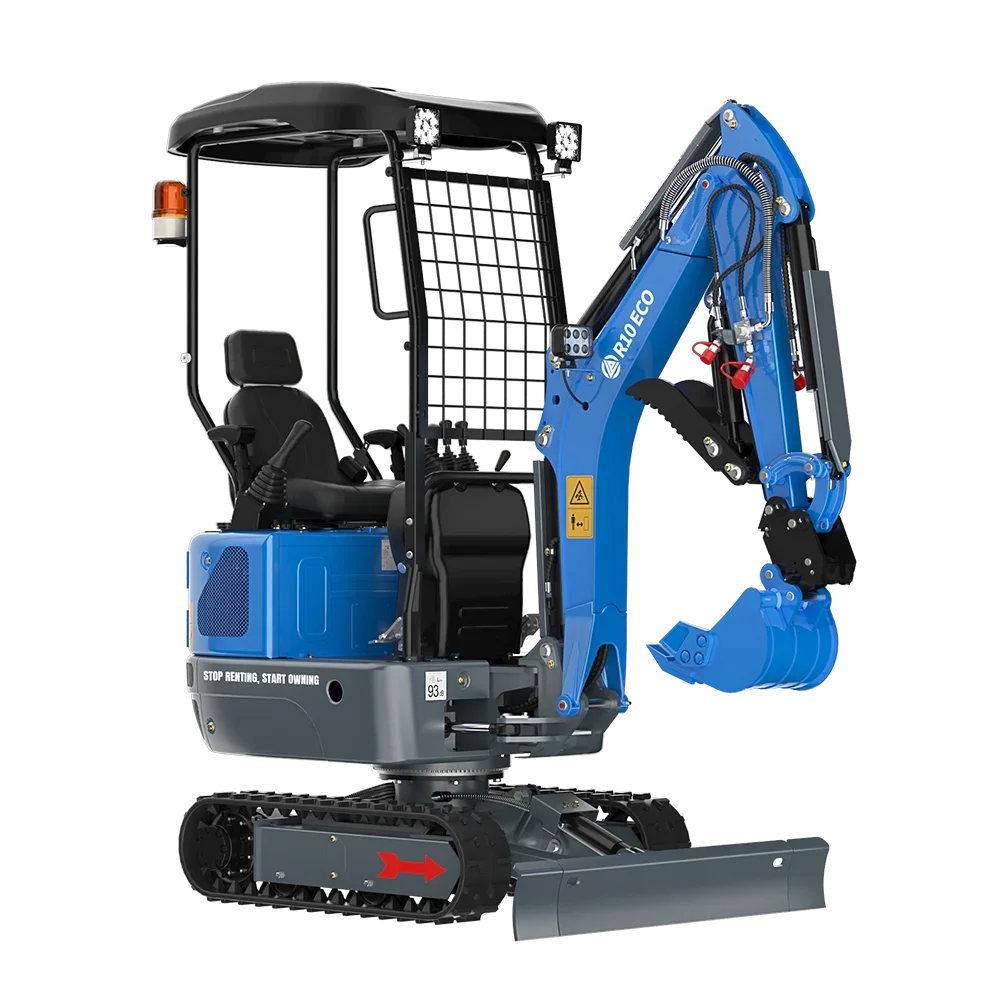

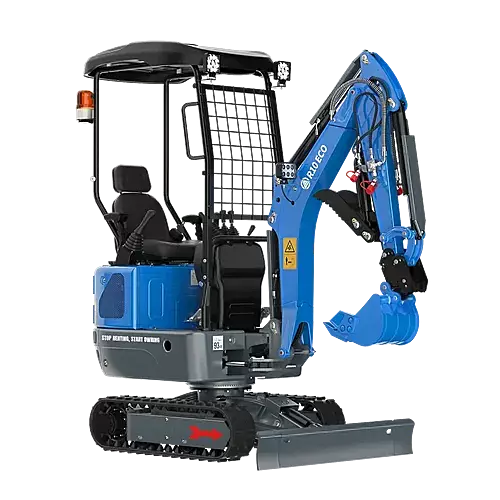

Rippa R10-6 Mini excavator
Call for price- Its much lower - we are required to follow Rippa’s MAP Pricing
NOTE: above price could change due to tariffs and shipping.
NOTE: if you buy a machine from us, you will receive 50% off the prices below on attachments, whether you buy them with the machine or down the road.
Key Features:
Powered by a Kubota Z482 diesel engine producing 8.2 kW (11.23 hp).
Adjustable chassis: widens and narrows from 36” to 48”.
Hydraulic thumb that lies flat against the boom when you don’t need it.
Boom-mounted work light.
Swing boom: without moving the tracks, the boom swings 45 degrees to the right and 74 degrees to the left.
Drive motors are covered on the inside of the tracks for protection.
2-year factory parts warranty. Kubota honors the engine warranty at your local Kubota service center for engine-related repairs.

An optional GPS tracker can be installed by our team for $125. There is a $12.95 monthly fee payable to Land Air Sea, who we partnered with. 30 second updates. (Rippa USA Sales Exclusive)
Compact Power That Fits Through the Door
The Rippa R10-6 is the smallest excavator in the lineup and is made for backyards, basements, gated yards and any job where a larger machine will not fit. A Kubota Z482 two-cylinder diesel supplies 11 hp, and the hydraulically adjustable chassis lets you narrow the machine for tight access, then widen it for stability once you are digging.
Adjustable Track Gauge
A single lever hydraulically narrows the track gauge to 35.9 in (912 mm) in seconds so the R10 can pass through most doorways and into buildings. Move the lever the other way and the tracks widen to 47.7 in (1,212 mm) for a stable work platform.
- Quick-fold dozer blade: adjusts to size instantly with the simple pull of a pin (34.8 in blade width).
- Transport size: 35.9 in wide, 95.7 in long and 86.7 in high with the track gauge narrowed.
- Low ground pressure: 3.7 psi and 30% gradeability.


Big Digging Range for a Small Machine
The R10 digs surprisingly far and deep for its size, and the large-capacity bucket moves more material with every pass. The strong, durable bucket helps keep work efficient.
- Maximum digging depth: 72.2 in (about 6 ft)
- Maximum digging radius: 127.3 in
- Maximum digging height: 118.9 in
- Maximum unloading height: 88.5 in
- Maximum digging force: 2,068 lbf
- Bucket: 11.8 in wide, 0.49 cu ft

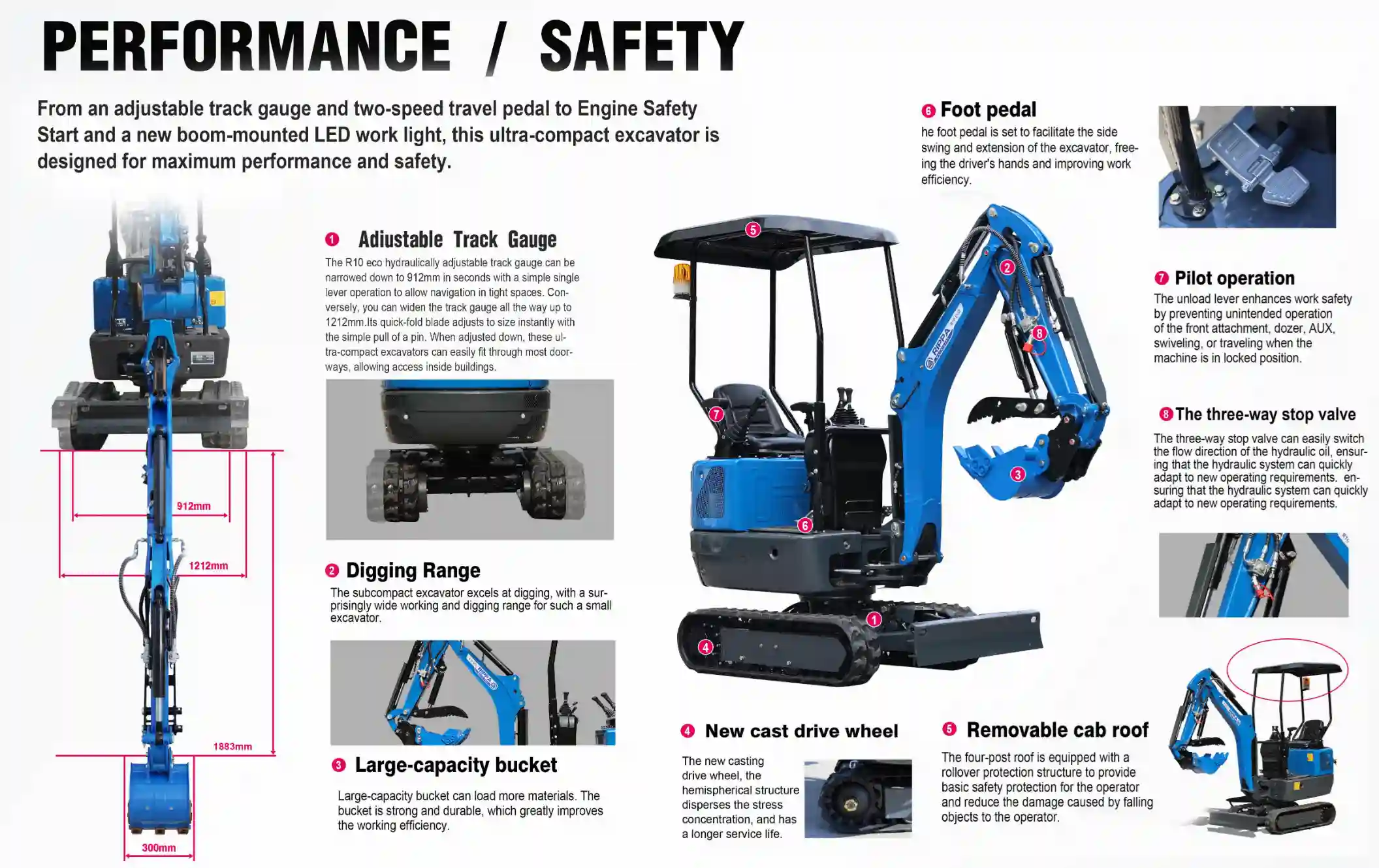

Performance and Safety
Foot pedal
Side swing and extension are handled by a foot pedal, which frees the operator's hands and improves work efficiency.
Pilot operation
The unload lever prevents unintended movement of the front attachment, dozer, AUX, swiveling or traveling when the machine is in the locked position.
Three-way stop valve
Easily switch the direction of hydraulic oil flow so the system adapts quickly to new operating requirements.
Cast drive wheel
The new casting drive wheel has a hemispherical structure that spreads out stress concentration for a longer service life.
Removable cab roof
The four-post roof has a rollover protection structure that gives the operator basic protection from falling objects.
Warning lights
An alarm light prompts the operator to check the machine right away for hydraulic, engine or oil pressure problems.

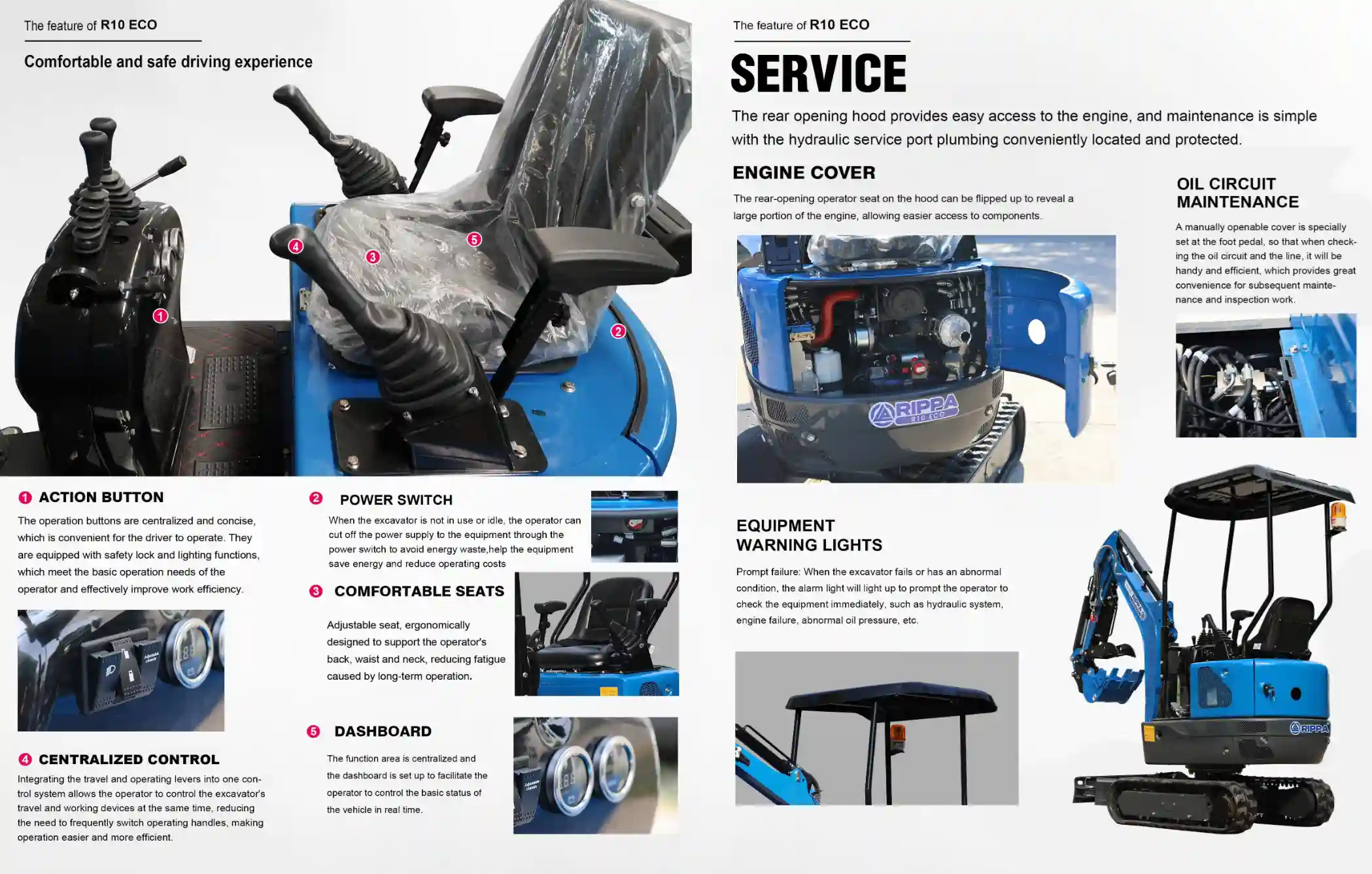

Comfort and Controls

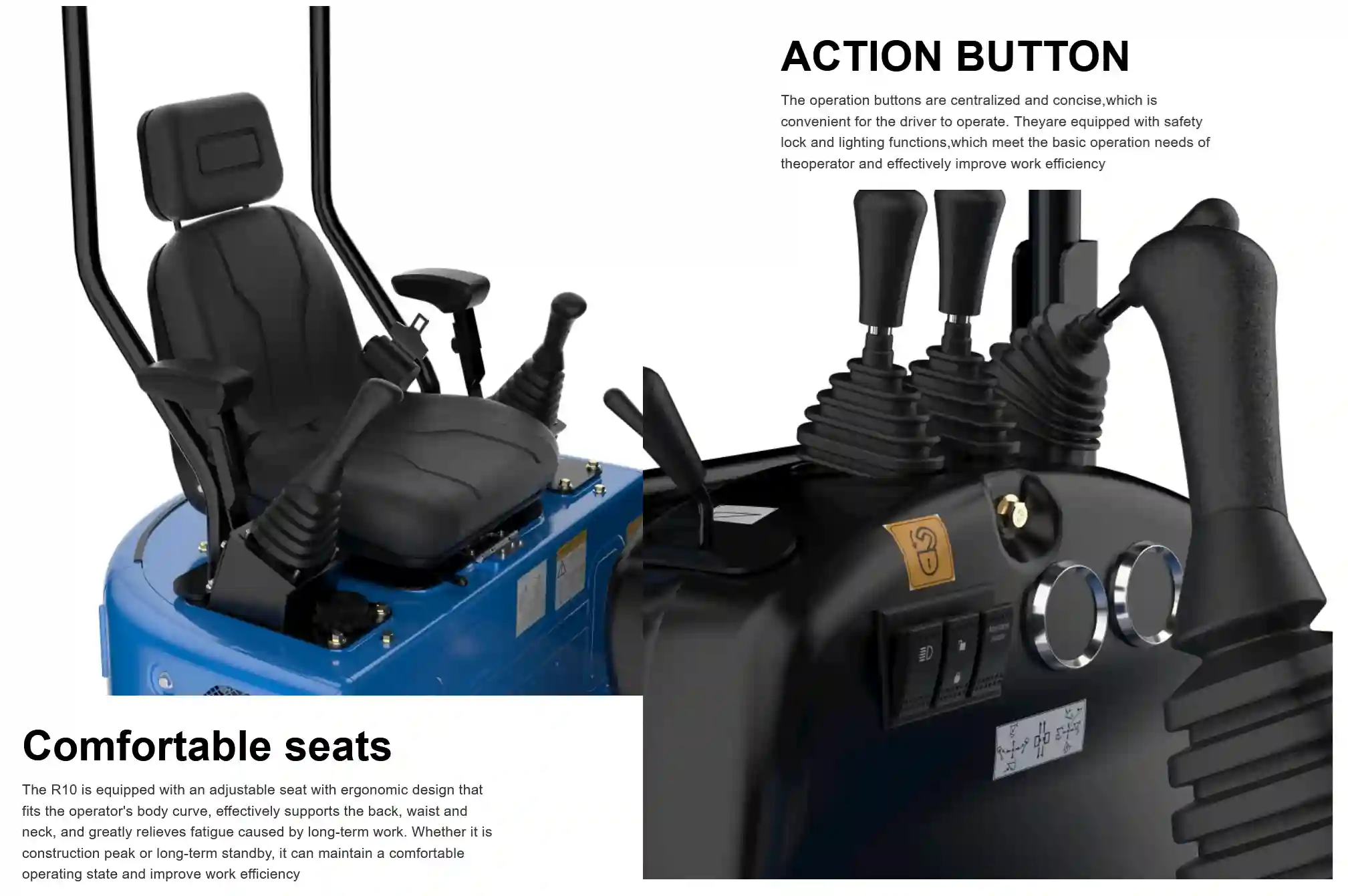

Comfortable seat
The adjustable seat has an ergonomic design that supports the back, waist and neck and relieves fatigue during long days, whether the work is busy or steady.
Action buttons
Operation buttons are centralized and concise, with safety lock and lighting functions that meet the operator's basic needs.
Centralized control
Travel and operating levers are integrated into one system, so you can control travel and work devices together without constantly switching handles.
Power switch
When the machine is idle, the operator can cut off the power supply to the equipment to avoid wasting energy and reduce noise.
Dashboard
The function area is centralized and the dashboard shows the basic status of the machine in real time.
Easy Service Access
Daily maintenance is simple because the engine and hydraulic service points are easy to reach.
- Engine cover: the rear-opening hood and flip-up operator seat reveal a large part of the engine, and the hydraulic service port plumbing is conveniently located and protected.
- Oil circuit maintenance: a manually openable cover at the foot pedal makes checking the oil circuit and lines quick and efficient.

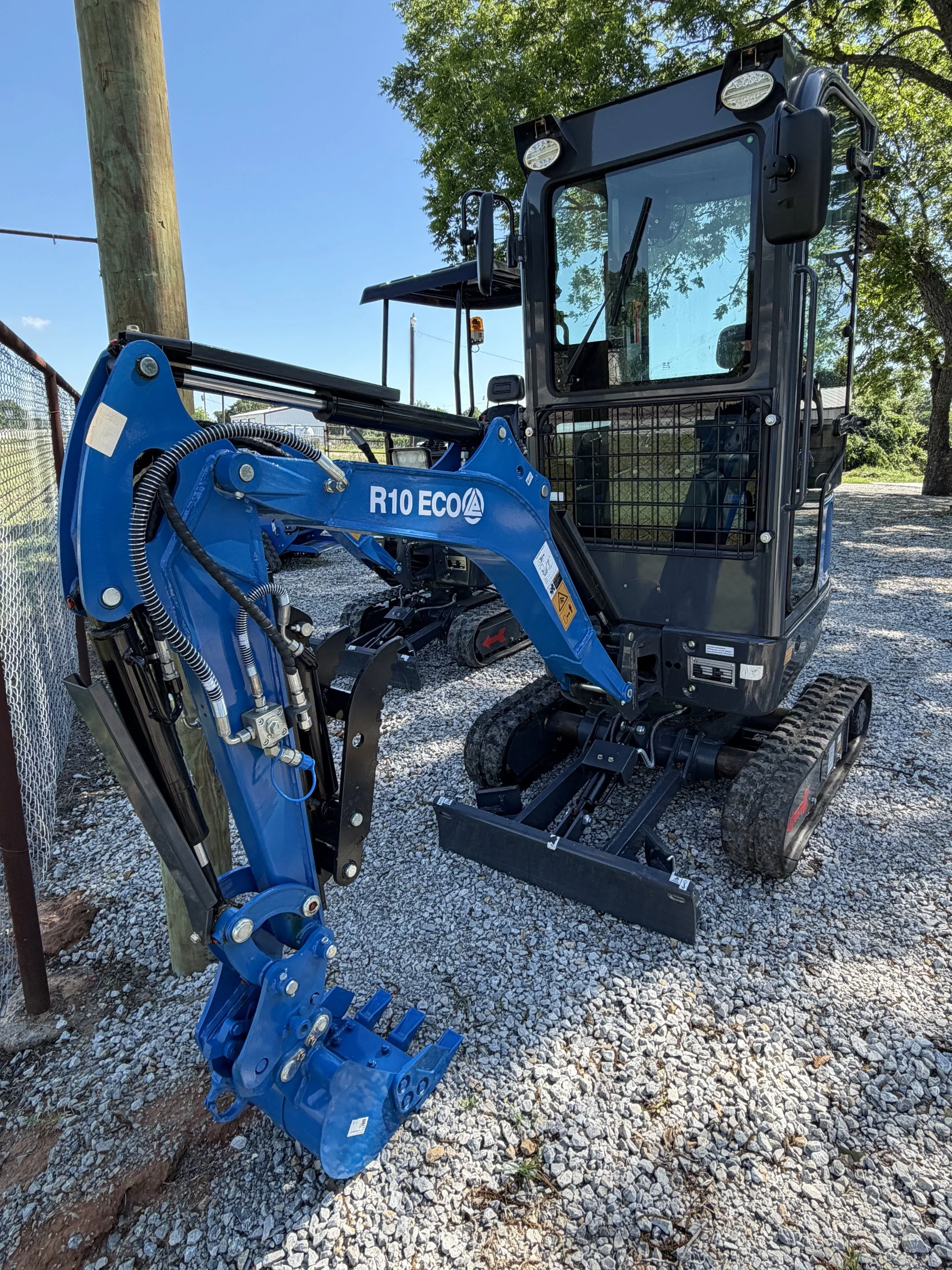

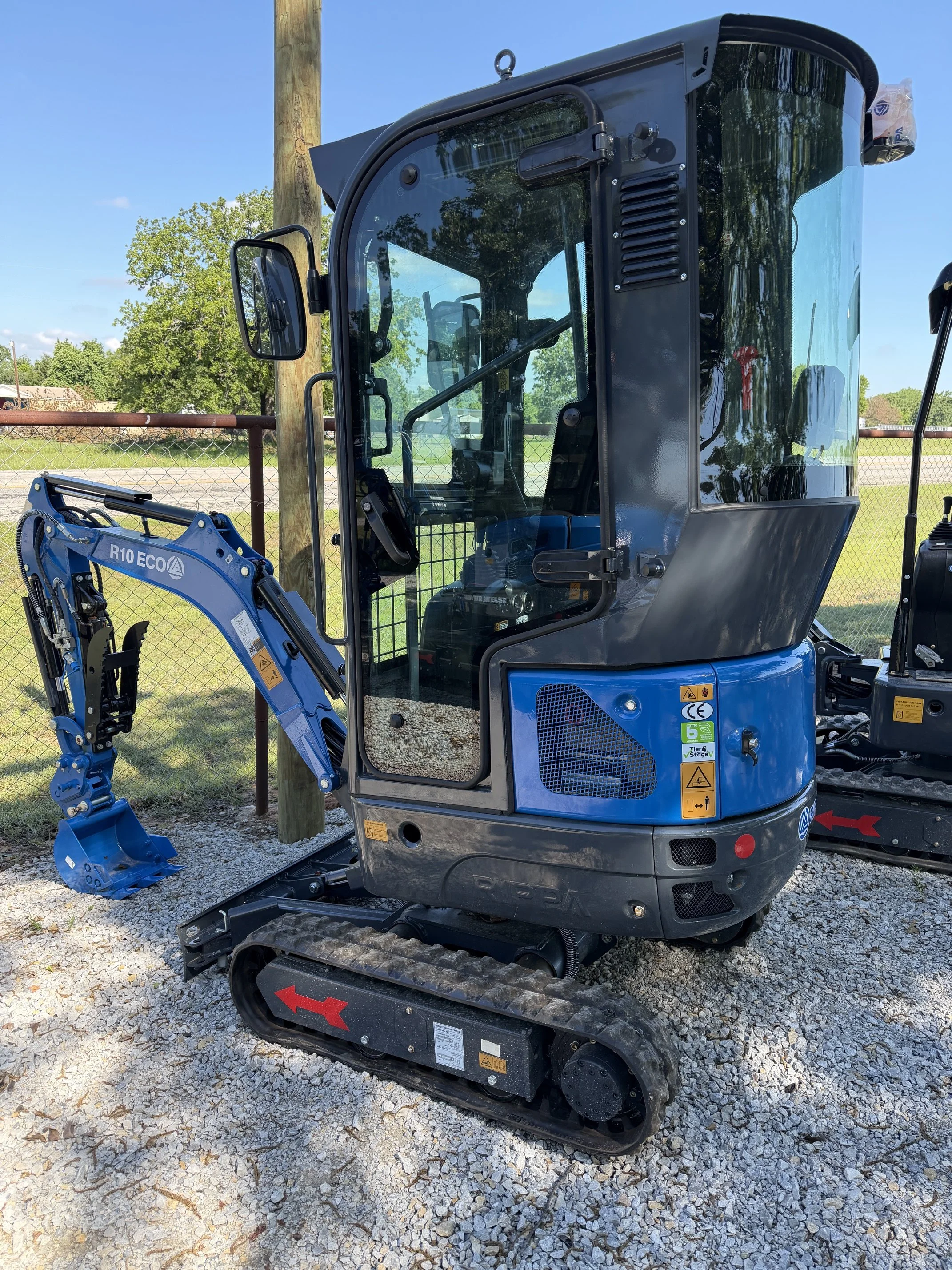

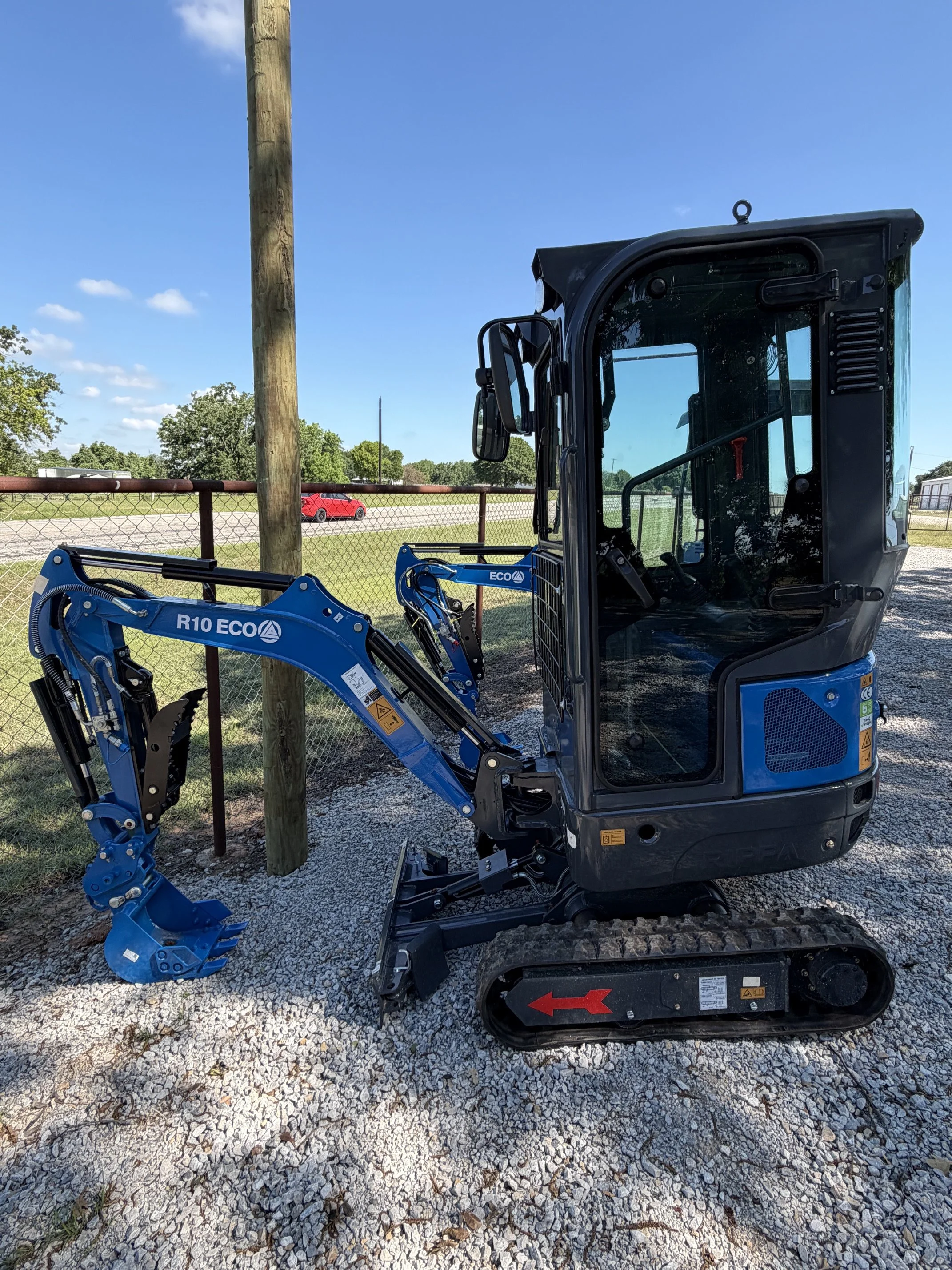

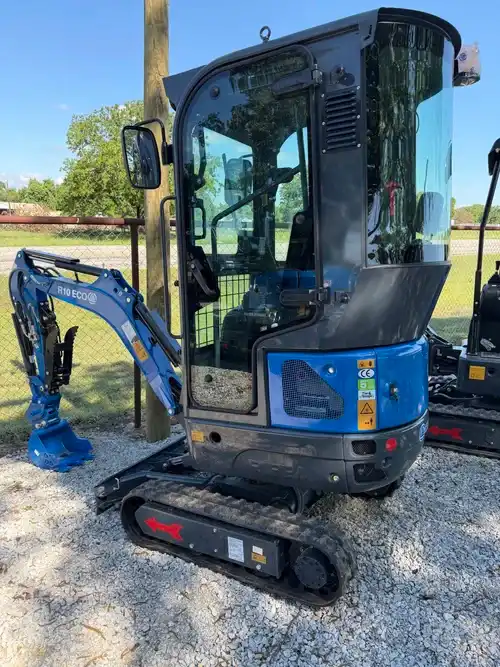

Also Available With an Enclosed Cab
Need protection from the weather? The R10-6 Eco is offered with an enclosed cab (cab without AC) for $10,650.



| Brand Model | R10-6 | R13-4 | R15-5 ECO | R18-5 PRO | R22-4 PRO | R32-5 PRO | R57-2 | |
| Engine | Engine Model | Kubota Z482 | Kubota D722 | Kubota D722 | Kubota D902 | Kubota D1105 | Kubota V1505 | Kubota V2607 |
| # of Cylinders | 2 | 3 | 3 | 3 | 3 | 4 | 4 | |
| Rated Power | 10.98HP | 13.68HP | 13.68HP | 15.8HP | 24.37HP | 24.37HP | 68.4HP | |
| Main Pump | Number of Main Pump Types | Gear Pump x 1 | Gear Pump x 3 | Gear Pump x 3 | Variable Displacement Piston Pump x 1 | Variable Displacement Piston Pump x 1 | Variable Displacement Piston Pump x 1 | Variable Displacement Piston Pump x 1 |
| Max Flow Rate | 4.76gpm | 5.71gpm | 5.71gpm | 10.94gpm | 17.74gpm | 26.15gpm | 39.5gpm | |
| Operating System | Compound Motion | N/A | N/A | N/A | 1 | 1 | 1 | 1 |
| Pilot System | N/A | 4 Way Pilot Operated + 4 Way Mechanically Operated | 4 Way Pilot Operated + 4 Way Mechanically Operated | 10 Way Pilot Operated | 9 Way Pilot Operated | 9 Way Pilot Operated | 9 Way Pilot Operated | |
| Valve Info | Valve Type | Mechanical Control Valve | Hydraulic & Mechanical | Hydraulic & Mechanical | Load Sensitive Control Valve | Load Sensitive Control Valve | Load Sensitive Control Valve | Load Sensitive Control Valve |
| Hydraulic Motor Type | Travel Motor Speed | Single Speed | Dual Speed | Dual Speed | Dual Speed | Dual Speed | Dual Speed | Dual Speed |
| Motor Type | Cyclodial | Cyclodial | Cyclodial | Plunger | Plunger | Plunger | Plunger | |
| Swing Motor Type | Cyclodial | Cyclodial | Cyclodial | Cyclodial w/ Cushioning | Cyclodial w/ Cushioning | Cyclodial w/ Cushioning | Cyclodial w/ Cushioning | |
| Basic Parameters | Total Weight | 2151.8 lbs. | 2904 lbs. | 3307 lbs. | 4074 lbs. | 5223.85 lbs. | 7082 lbs. | 12,705 lbs |
| Bucket Size | 11.8" | 15.7" | 15.7" | 15.7" | 15.7" | 23.54" | 23.54" | |
| Max Digging Depth | 72.2" / ~6' | 72.5" / ~6' | 71.2" / ~6' | 95.3" / 7.5' | 90.4" / 8.5' | 111.3" / 10' | 144.8" / 12.4' | |
| Narrowest Transport Width | 35.91" | 33.4" | 38.74" | 38.94" | 51.18" | 61.02" | 74" | |
| Tail Type | Conventional | Zero Tail | Zero Tail | Zero Tail | Zero Tail | Zero Tail | Zero Tail | |
| Total Track Length | 104.84" | 116.14" | 116.14" | 139.3" | 55.47" | 73.62" | 100" | |
| Specs | Smart Display | N/A | N/A | Standard Across All Models | ||||
| Bucket Capacity | .494 cu ft. | .494 cu ft. | .64 cu ft. | 1.59 cu ft. | 1.9 cu ft. | 2.83 cu ft. | 3.2-6.2cu ft. | |
| Hydraulic Oil Cooler | Standard Across All Models | |||||||
| Boom Length | 58.1" | 57.1" | 58.1" | 71.9" | 72.1" | 87.4" | 118.1" | |
| Arm Length | 31.5" | 35.4" | 37.4" | 70.1" | 49.2" | 63.8" | 63" | |
| Track Specs Width x Pitch x # of Links | 7.09"x2.83"x37L | 7.09"x2.83"x41L | 7.09"x2.83"x41L | 9.06"x1.89"x74L | 9.84"x1.85"x84L | 11.81"x2.07"x84L | 15.75"x5.31"x40L | |
| Track Type | Rubber Track | Steel Track /w Rubber Inserts | Rubber Track | Rubber Track | Rubber Track | Rubber Track | Rubber Track | |
| Warranty Term | 2 Years | 2 Years | 2 Years | 3 Years | 3 Years | 3 Years | 3 Years | |
| Cab Options | Cab without AC | Cab without AC | Cab without AC | Cab without AC | Cab w/AC or No Cab | Cab w/AC or No Cab | Cab w/AC or No Cab | |

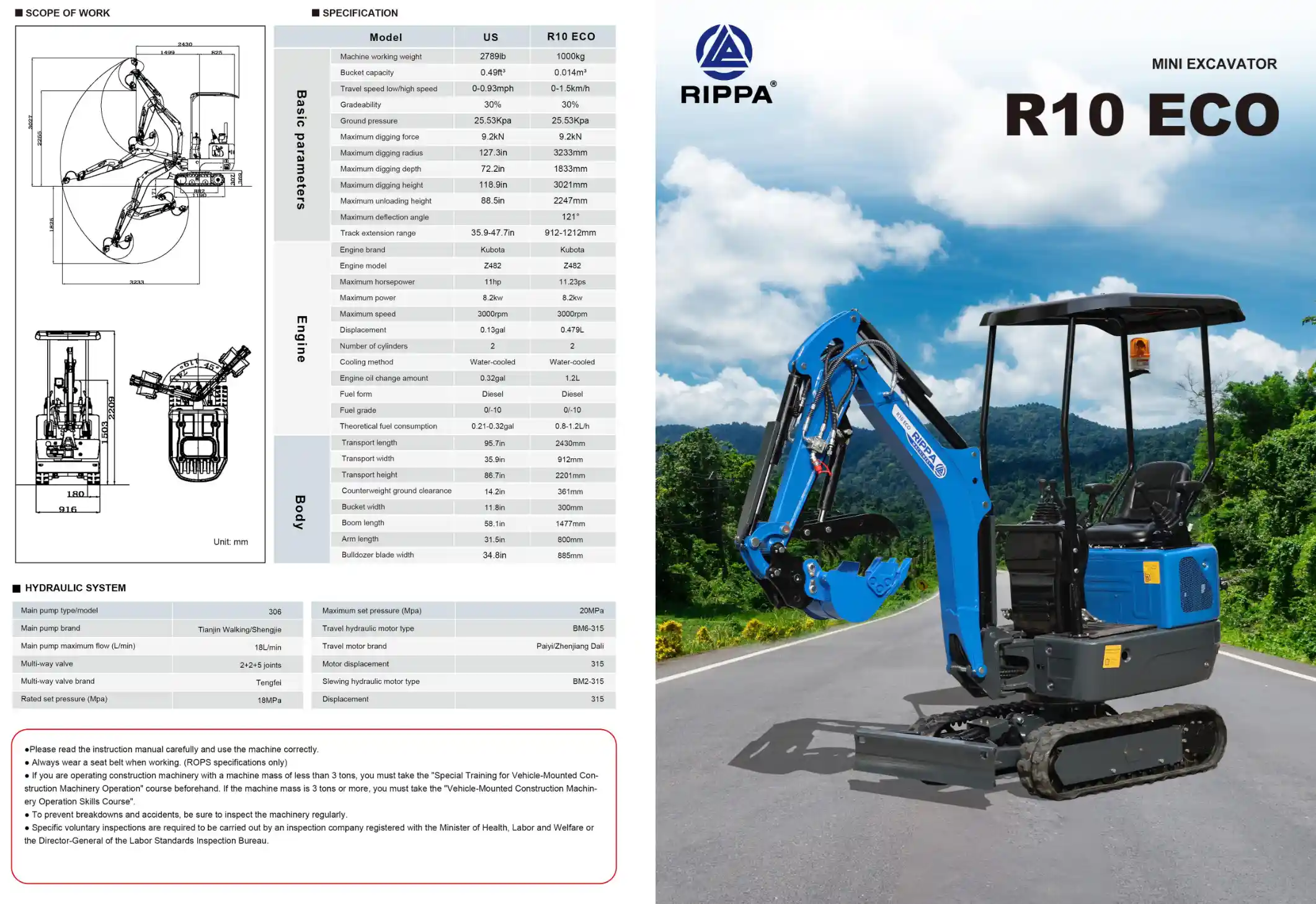

Rippa R10 Eco Technical Specifications
All specifications are shown in imperial units. Metric figures on the manufacturer sheet have been converted.
| Basic Parameters | |
|---|---|
| Machine Working Weight | 2,151.8 lbs |
| Bucket Capacity | 0.49 cu ft |
| Travel Speed Low / High | 0-0.93 mph |
| Gradeability | 30% |
| Ground Pressure | 3.7 psi |
| Maximum Digging Force | 2,068 lbf |
| Maximum Digging Radius | 127.3" |
| Maximum Digging Depth | 72.2" |
| Maximum Digging Height | 118.9" |
| Maximum Unloading Height | 88.5" |
| Maximum Deflection Angle | 121 degrees |
| Track Extension Range | 35.9"-47.7" |
| Engine | |
|---|---|
| Engine Brand | Kubota |
| Engine Model | Z482 |
| Maximum Horsepower | 11 hp |
| Maximum Speed | 3000 rpm |
| Displacement | 0.13 gal |
| Number of Cylinders | 2 |
| Cooling Method | Water-cooled |
| Engine Oil Change Amount | 0.32 gal |
| Fuel Form | Diesel |
| Fuel Grade | 0/-10 |
| Theoretical Fuel Consumption | 0.21-0.32 gal/h |
| Body | |
|---|---|
| Transport Length | 95.7" |
| Transport Width | 35.9" |
| Transport Height | 86.7" |
| Counterweight Ground Clearance | 14.2" |
| Bucket Width | 11.8" |
| Boom Length | 58.1" |
| Arm Length | 31.5" |
| Bulldozer Blade Width | 34.8" |
| Hydraulic System | |
|---|---|
| Main Pump Type/Model | 306 |
| Main Pump Brand | Tianjin Walking/Shengjie |
| Main Pump Maximum Flow | 4.76 gpm |
| Multi-Way Valve | 2+2+5 joints |
| Multi-Way Valve Brand | Tengfei |
| Rated Set Pressure | 2,611 psi |
| Maximum Set Pressure | 2,901 psi |
| Travel Hydraulic Motor Type | BM6-315 |
| Travel Motor Brand | Paiyi/Zhenjiang Dali |
| Travel Motor Displacement | 315 (unit not shown on sheet) |
| Slewing Hydraulic Motor Type | BM2-315 |
| Slewing Motor Displacement | 315 (unit not shown on sheet) |
| Additional Specs | |
|---|---|
| Pump Type | Gear Pump x 1 |
| Valve Type | Mechanical Control Valve |
| Travel Motor Speed | Single Speed |
| Motor Type | Cycloidal |
| Swing Motor Type | Cycloidal |
| Tail Type | Conventional |
| Total Track Length | 104.84" |
| Hydraulic Oil Cooler | Standard |
| Track Specs Width x Pitch x # of Links | 7.09" x 2.83" x 37 links |
| Track Type | Rubber Track |
| Warranty Term | 2 Years |
| Cab Options | Cab without AC |
Rippa R10 Excavator demo.

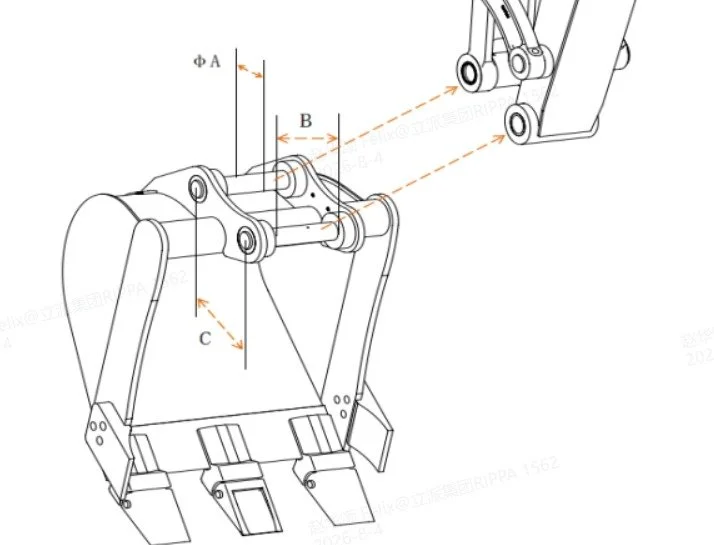

Want to know if other attachments will fit? Make sure they align with this:
| Machine | A | B | C |
|---|---|---|---|
| R10/R13/R15 | 25 | 92 | 90 |
