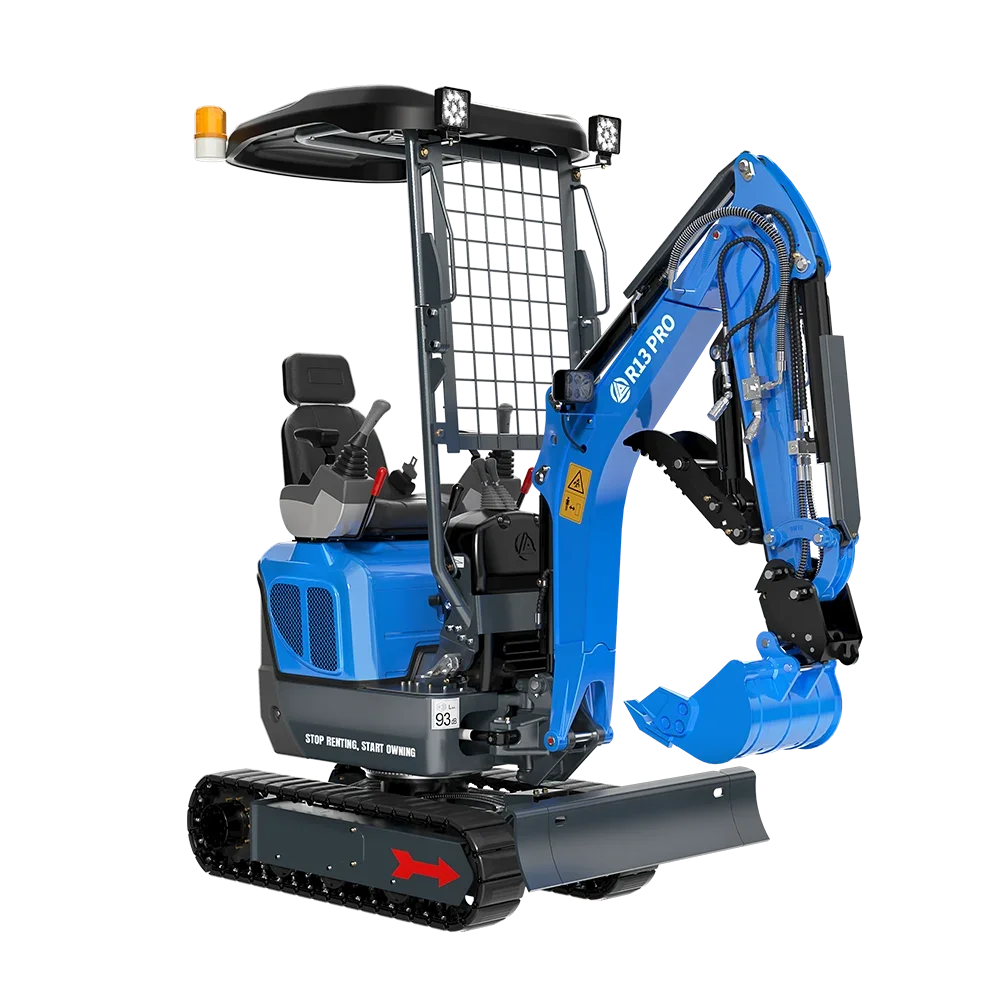

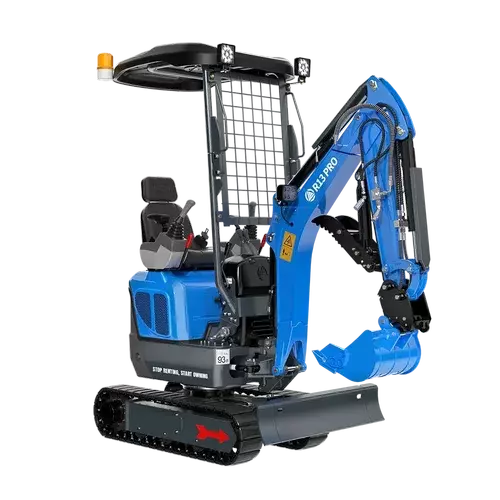

Rippa R13-4 MINI EXCAVATOR
Call for price- Its much lower - we are required to follow Rippa’s MAP Pricing
NOTE: above price could change due to tariffs and shipping.
NOTE: if you buy a machine from us, you will receive 50% off the prices below on attachments, whether you buy them with the machine or down the road.
Key Features:
Powered by a Kubota D722 diesel engine producing 10.2 kW (13.7 hp).
Adjustable chassis: widens and narrows from 29.5” to 39”.
Hydraulic thumb that lies flat against the boom when you don’t need it.
Roof- and boom-mounted work lights.
Swing boom: without moving the tracks, the boom swings 45 degrees to the right and left.
Drive motors are covered on the inside of the tracks for protection.
3-year factory parts warranty. Kubota honors the engine warranty at your local Kubota service center for engine-related repairs.
An optional GPS tracker can be installed by our team for $125. There is a $12.95 monthly fee payable to Land Air Sea, who we partnered with. 30 second updates. (Rippa USA Sales Exclusive)
Can’t decide between the R10, R13 or R15? Watch this video: https://youtu.be/gVLV9ilHcqg

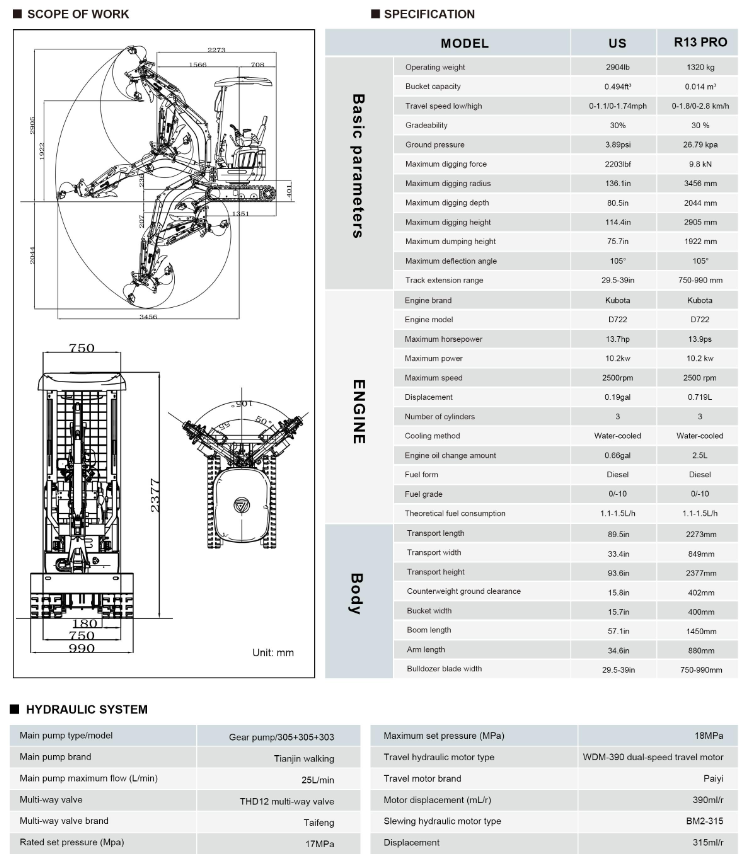

Rippa R13-4 PRO Technical Specifications
All specifications are shown in imperial units. Metric figures on the manufacturer sheet have been converted.
| Basic Parameters | |
|---|---|
| Operating Weight | 2,904 lbs |
| Bucket Capacity | 0.494 cu ft |
| Travel Speed Low / High | 1.1 mph / 1.74 mph |
| Gradeability | 30% |
| Ground Pressure | 3.89 psi |
| Maximum Digging Force | 2,203 lbf |
| Maximum Digging Radius | 136.1" |
| Maximum Digging Depth | 80.5" |
| Maximum Digging Height | 114.4" |
| Maximum Dumping Height | 75.7" |
| Maximum Deflection Angle | 105 degrees |
| Track Extension Range | 29.5"-39" |
| Engine | |
|---|---|
| Engine Brand | Kubota |
| Engine Model | D722 |
| Maximum Horsepower | 13.7 hp |
| Maximum Speed | 2500 rpm |
| Displacement | 0.19 gal |
| Number of Cylinders | 3 |
| Cooling Method | Water-cooled |
| Engine Oil Change Amount | 0.66 gal |
| Fuel Form | Diesel |
| Fuel Grade | 0/-10 |
| Theoretical Fuel Consumption | 0.29-0.40 gal/h |
| Body | |
|---|---|
| Transport Length | 89.5" |
| Transport Width | 33.4" |
| Transport Height | 93.6" |
| Counterweight Ground Clearance | 15.8" |
| Bucket Width | 15.7" |
| Boom Length | 57.1" |
| Arm Length | 34.6" |
| Bulldozer Blade Width | 29.5"-39" |
| Hydraulic System | |
|---|---|
| Main Pump Type/Model | Gear pump 305+305+303 |
| Main Pump Brand | Tianjin walking |
| Main Pump Maximum Flow | 6.6 gpm |
| Multi-Way Valve | THD12 multi-way valve |
| Multi-Way Valve Brand | Taifeng |
| Rated Set Pressure | 2,466 psi |
| Maximum Set Pressure | 2,611 psi |
| Travel Hydraulic Motor Type | WDM-390 dual-speed travel motor |
| Travel Motor Brand | Paiyi |
| Motor Displacement | 23.8 cu in/rev |
| Slewing Hydraulic Motor Type | BM2-315 |
| Slewing Motor Displacement | 19.2 cu in/rev |
| Additional Specs | |
|---|---|
| Pilot System | 4 Way Pilot Operated + 4 Way Mechanically Operated |
| Tail Type | Zero Tail |
| Total Track Length | 116.14" |
| Hydraulic Oil Cooler | Standard |
| Track Specs Width x Pitch x # of Links | 7.09" x 2.83" x 41 links |
| Track Type | Steel Track with Rubber Inserts |
| Warranty Term | 2 Years |
| Cab Options | Cab without AC |

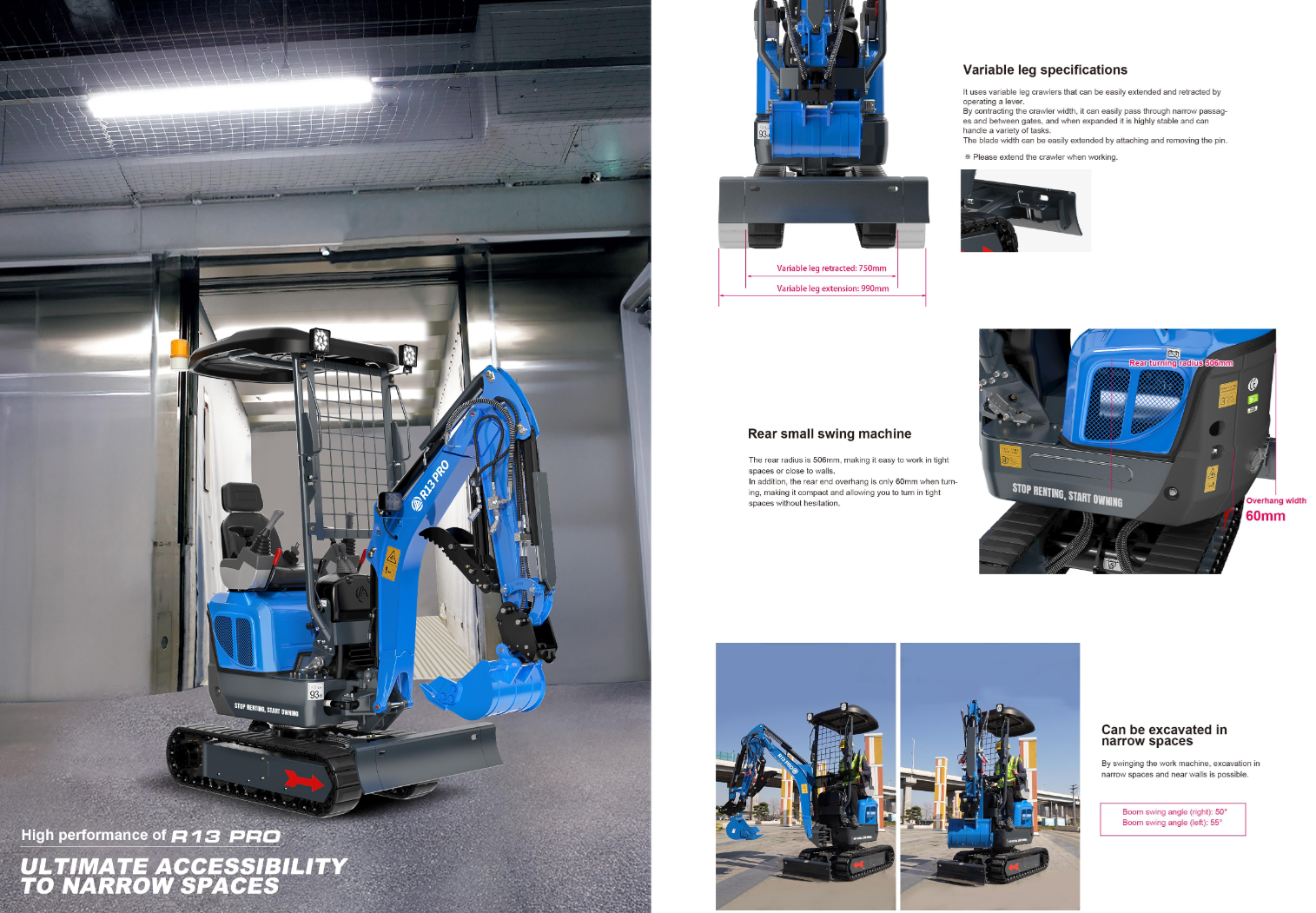

Built for Narrow Spaces and Tight Access
The Rippa R13-4 is designed to get through gates, doorways and between buildings, then spread out and work stable once it arrives. A Kubota D722 diesel supplies 13.7 hp, and the whole machine stays compact enough to work close to walls.

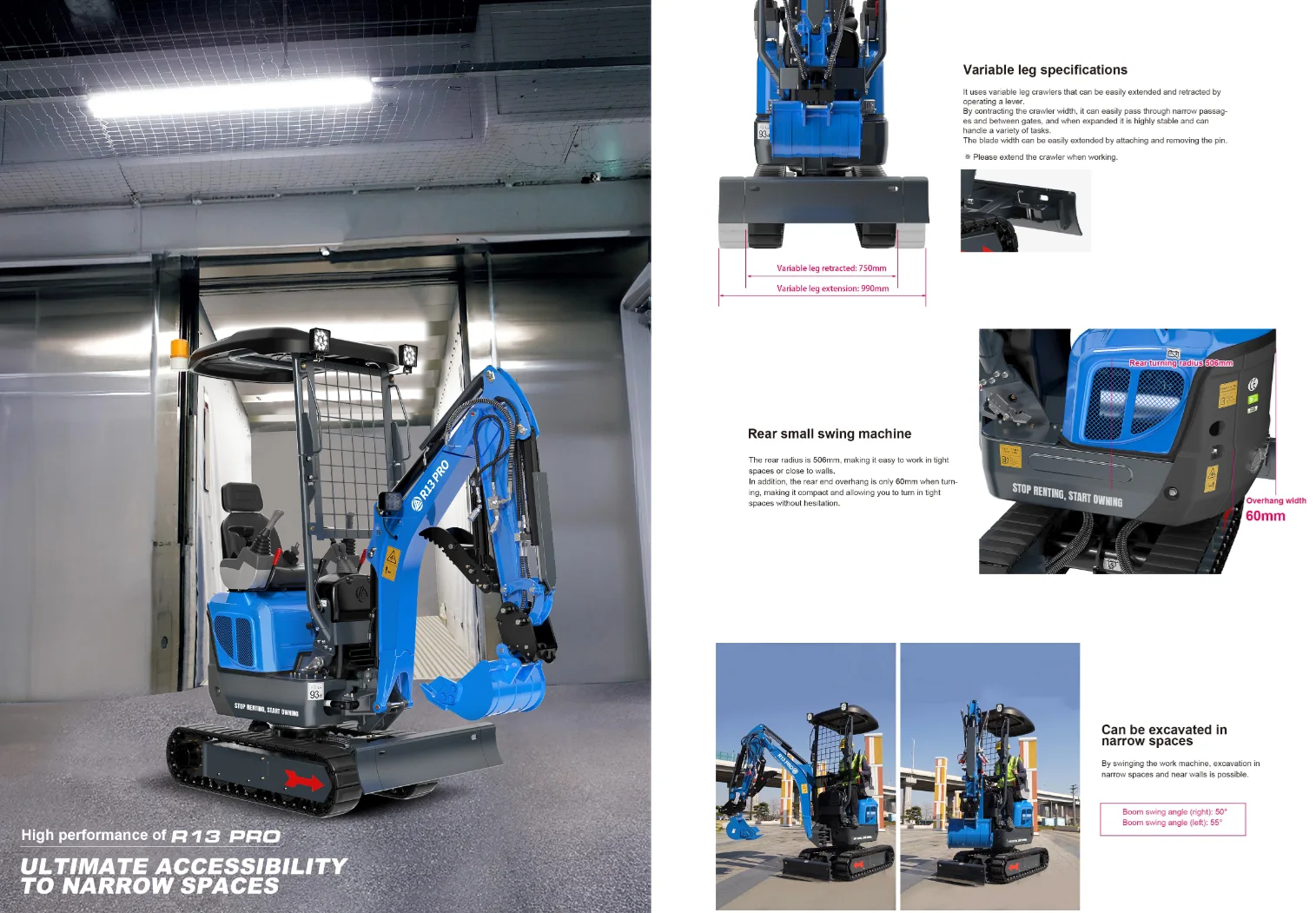

Variable Leg Chassis
The crawler legs extend and retract with a lever. Retracted, the chassis measures 29.5 in (750 mm) so the R13 passes through narrow passages and gates. Extended to 39 in (990 mm), it is much more stable for digging and handling a variety of tasks.
- Extendable dozer blade: the blade width changes by removing and attaching a pin.
- Tip: extend the crawlers when working for the best stability.
- Rear swing: the rear turning radius is 506 mm (19.9 in) and the rear overhang is only 60 mm (2.4 in), so you can turn in tight spaces without hesitation.
Dig Along Walls and Fences
By swinging the boom instead of repositioning the machine, the R13 can excavate in narrow spaces and right up against walls. Without moving the tracks, the boom swings 45 degrees to the right and left.

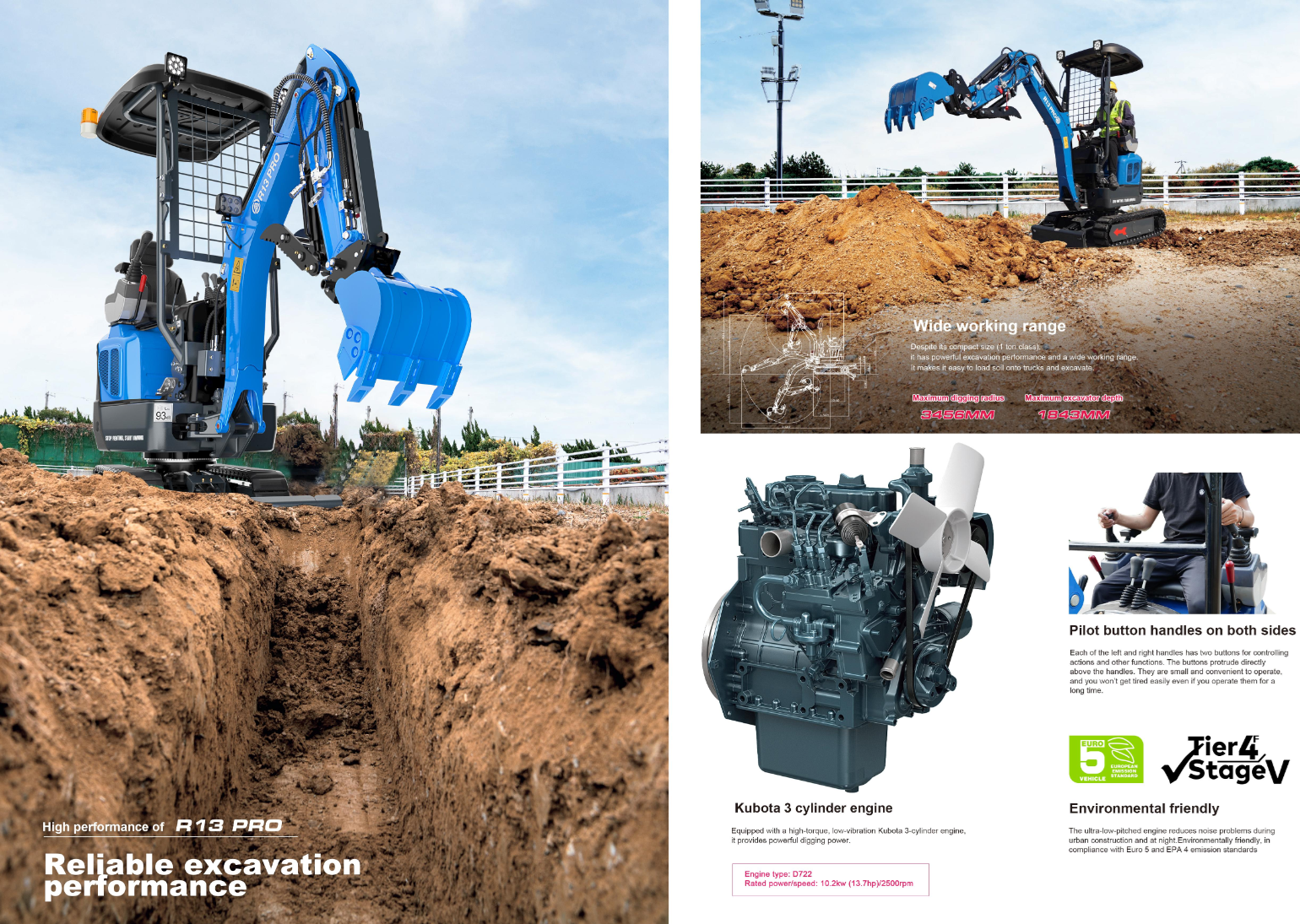

Reliable Excavation Performance
Despite its compact one-ton-class size, the R13 has real digging power and a wide working range, which makes it easy to load soil onto trucks and excavate trenches.
- Maximum digging radius: 3,456 mm (11 ft 4 in)
- Maximum digging depth: 1,843 mm (6 ft 0.5 in)
- Rear-mounted boom cylinder: scoop up large stones and concrete pieces, load a dump truck, or work with a mounted breaker without worrying about damaging the boom cylinder.


Kubota 3-Cylinder Engine
A high-torque, low-vibration Kubota 3-cylinder diesel delivers powerful digging power. The ultra-low-pitched engine reduces noise in urban construction and at night, and it complies with Euro 5 and EPA Tier 4 final (Stage V) emission standards.
Kubota honors the engine warranty at your local Kubota service center for engine-related repairs.

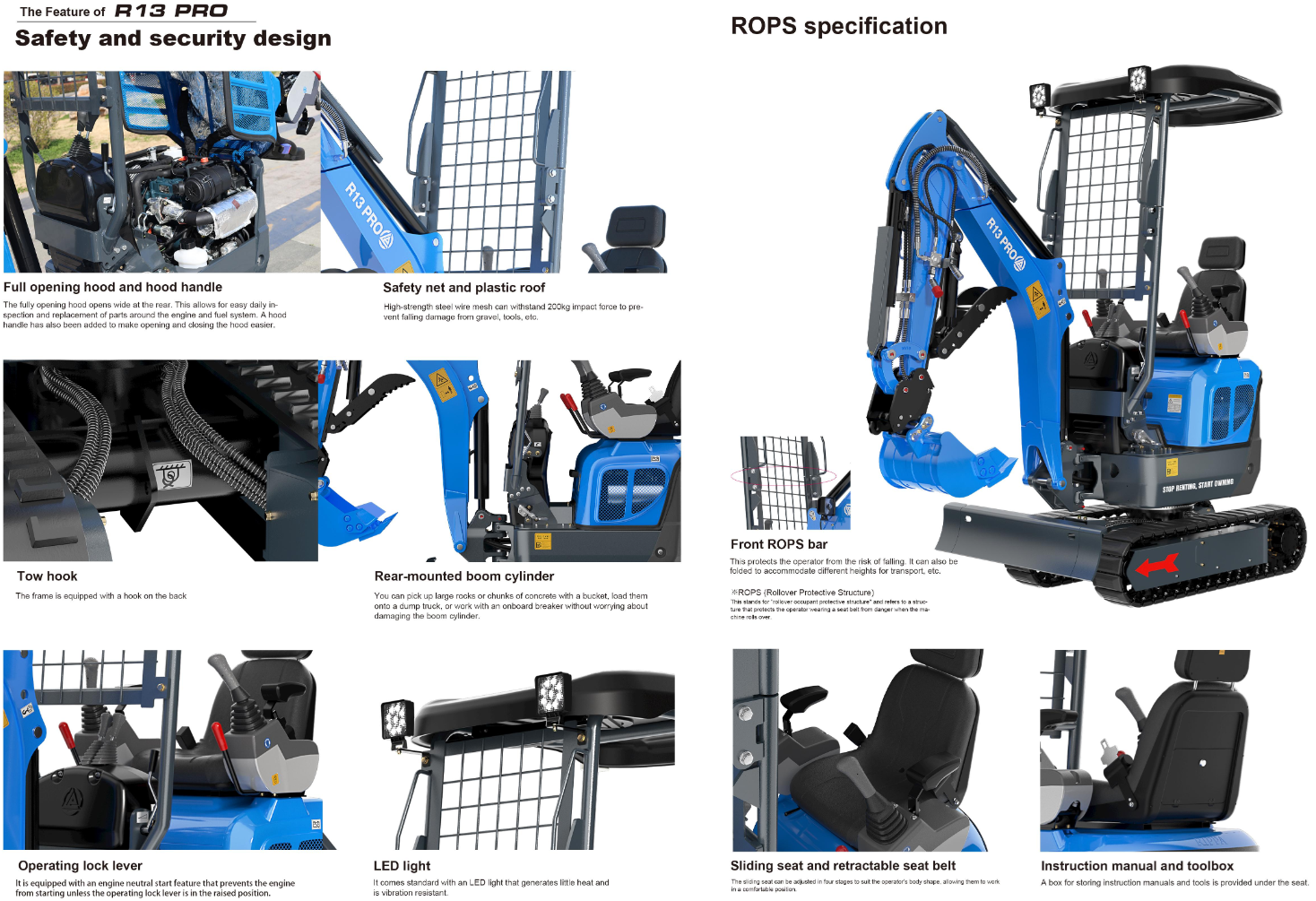

Controls, Safety and Security
Pilot button handles on both sides put the buttons directly above each handle, so they are easy to reach and you will not tire easily on long days. A front-mounted control lever leaves plenty of room for the operator's feet and legs.
Operation lock lever
An engine neutral start function prevents the engine from starting unless the operation lock lever is in the raised position.
Double-insurance rocker switch
The hydraulic quick-change rocker switch uses a mechanical double protection, which prevents accidental touches during operation.
Front ROPS bar
The rollover protective structure and a safety net with a plastic roof protect the operator from falling objects.
Sliding seat and seat belt
A sliding seat adjusts to the operator's size, and a retractable seat belt keeps the operator secure.
LED work lights
Roof and boom mounted LED lights are vibration resistant, so you can keep working in low light.
Sound-absorbing cotton
Lighter, thinner sound-absorbing cotton insulates against heat and reduces noise at the operator station.

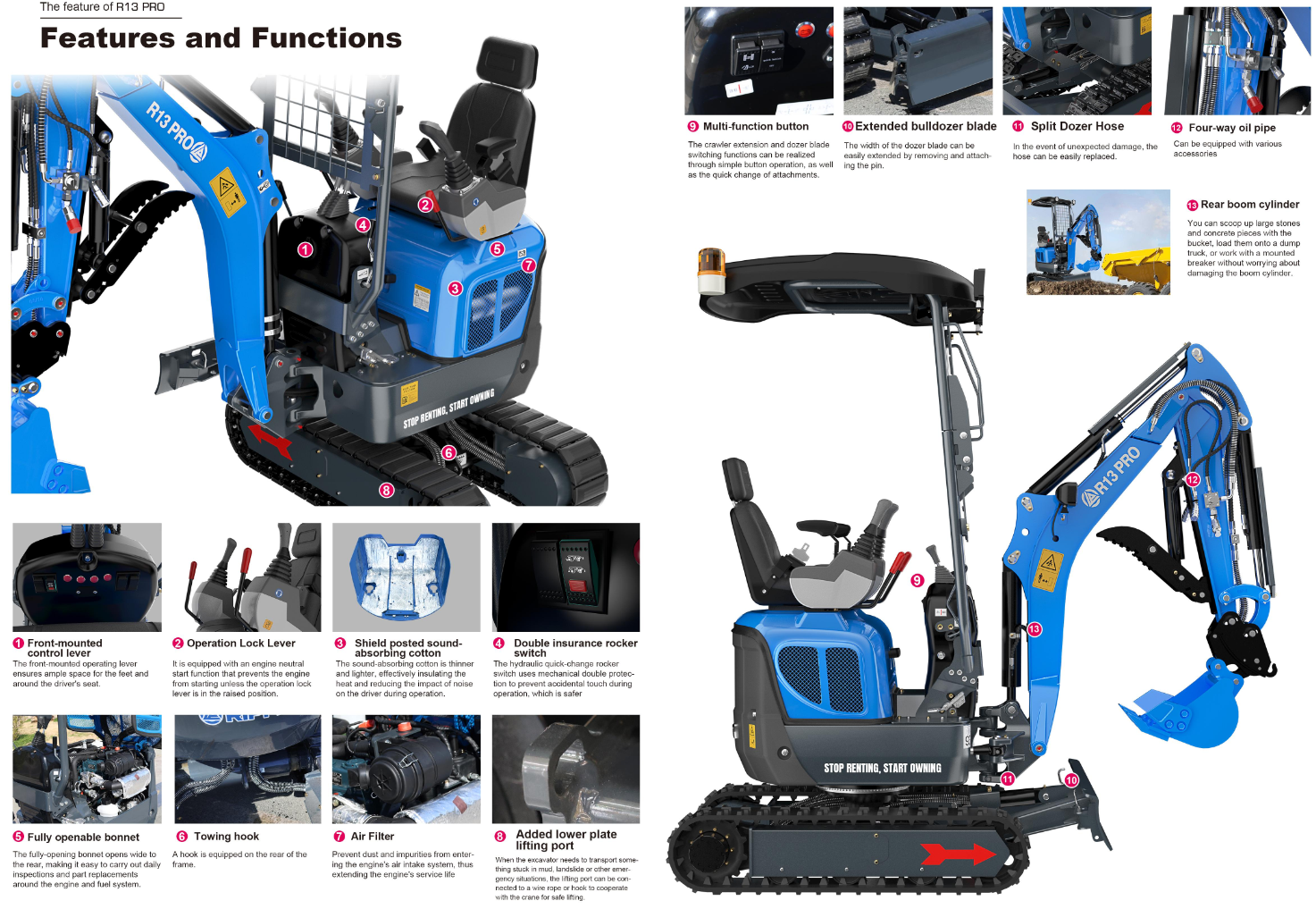

Easy Daily Service
The R13 is made to be easy to maintain and easy to repair.
- Fully openable bonnet: opens wide to the rear for daily inspections and parts replacement around the engine and fuel system.
- Air filter: keeps dust and impurities out of the engine's intake system and extends engine service life.

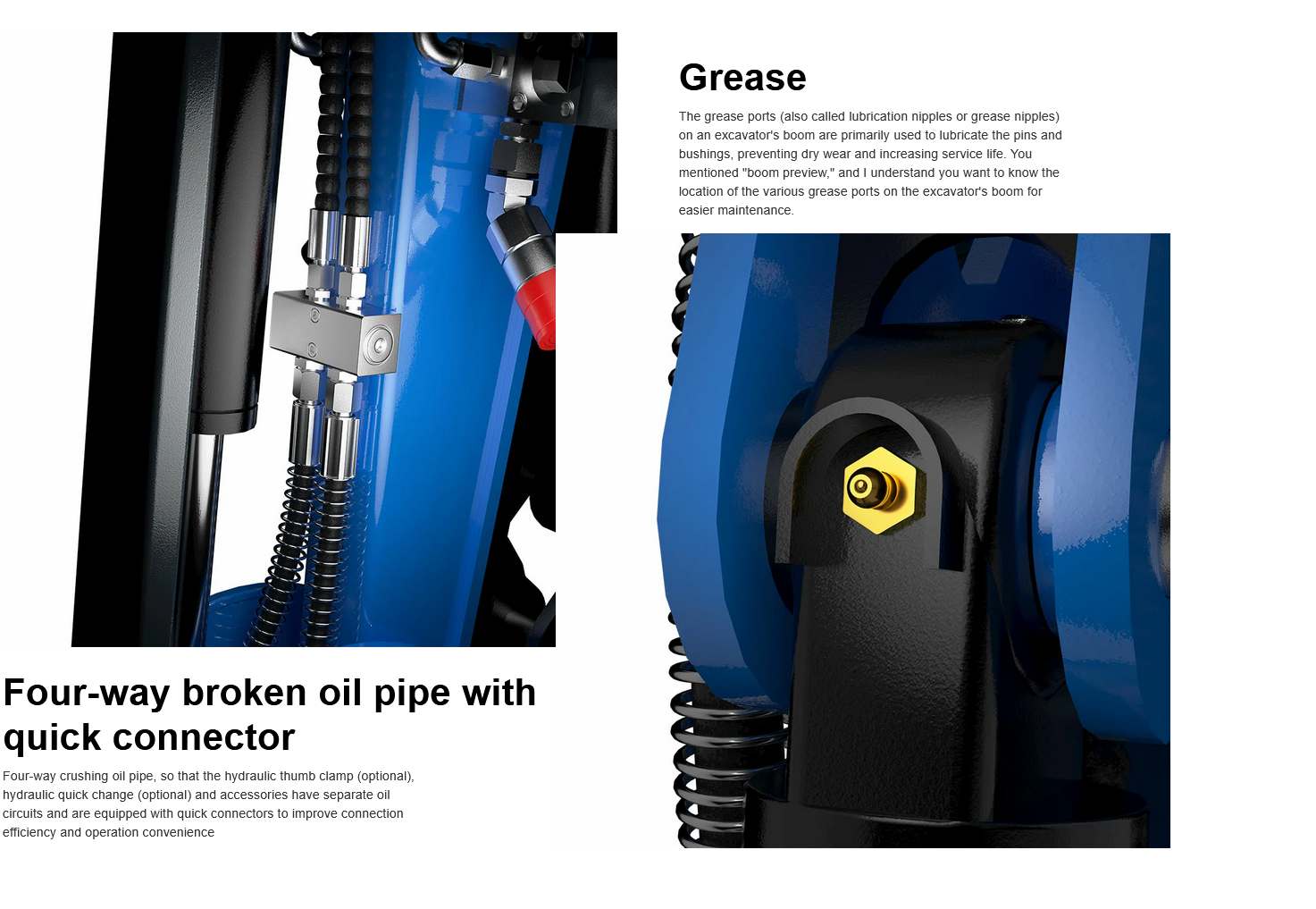

- Grease points: easy access to the pivot grease ports.
- Split dozer hose: if the hose is damaged unexpectedly, it can be replaced easily.
- Four-way oil pipe: with a quick connector, so the R13 can run a variety of attachments.
- Multi-function button: switch the crawler extension and dozer blade functions, and quick-change attachments, with a simple button.
- Lower plate lifting port: a lifting point lets you hook a rope or crane to the machine for safe lifting out of mud or a landslide.
- Towing hook: a hook on the rear of the frame.


| Brand Model | R10-6 | R13-4 | R15-5 ECO | R18-5 PRO | R22-4 PRO | R32-5 PRO | R57-2 | |
| Engine | Engine Model | Kubota Z482 | Kubota D722 | Kubota D722 | Kubota D902 | Kubota D1105 | Kubota V1505 | Kubota V2607 |
| # of Cylinders | 2 | 3 | 3 | 3 | 3 | 4 | 4 | |
| Rated Power | 10.98HP | 13.68HP | 13.68HP | 15.8HP | 24.37HP | 24.37HP | 68.4HP | |
| Main Pump | Number of Main Pump Types | Gear Pump x 1 | Gear Pump x 3 | Gear Pump x 3 | Variable Displacement Piston Pump x 1 | Variable Displacement Piston Pump x 1 | Variable Displacement Piston Pump x 1 | Variable Displacement Piston Pump x 1 |
| Max Flow Rate | 4.76gpm | 5.71gpm | 5.71gpm | 10.94gpm | 17.74gpm | 26.15gpm | 39.5gpm | |
| Operating System | Compound Motion | N/A | N/A | N/A | 1 | 1 | 1 | 1 |
| Pilot System | N/A | 4 Way Pilot Operated + 4 Way Mechanically Operated | 4 Way Pilot Operated + 4 Way Mechanically Operated | 10 Way Pilot Operated | 9 Way Pilot Operated | 9 Way Pilot Operated | 9 Way Pilot Operated | |
| Valve Info | Valve Type | Mechanical Control Valve | Hydraulic & Mechanical | Hydraulic & Mechanical | Load Sensitive Control Valve | Load Sensitive Control Valve | Load Sensitive Control Valve | Load Sensitive Control Valve |
| Hydraulic Motor Type | Travel Motor Speed | Single Speed | Dual Speed | Dual Speed | Dual Speed | Dual Speed | Dual Speed | Dual Speed |
| Motor Type | Cyclodial | Cyclodial | Cyclodial | Plunger | Plunger | Plunger | Plunger | |
| Swing Motor Type | Cyclodial | Cyclodial | Cyclodial | Cyclodial w/ Cushioning | Cyclodial w/ Cushioning | Cyclodial w/ Cushioning | Cyclodial w/ Cushioning | |
| Basic Parameters | Total Weight | 2151.8 lbs. | 2904 lbs. | 3307 lbs. | 4074 lbs. | 5223.85 lbs. | 7082 lbs. | 12,705 lbs |
| Bucket Size | 11.8" | 15.7" | 15.7" | 15.7" | 15.7" | 23.54" | 23.54" | |
| Max Digging Depth | 72.2" / ~ 6' | 72.5" / ~ 6' | 71.2" / ~ 6' | 95.3" / 7.5' | 90.4" / 8.5' | 111.3" / 10' | 144.8" / 12.4' | |
| Narrowest Transport Width | 35.91" | 33.4" | 38.74" | 38.94" | 51.18" | 61.02" | 74" | |
| Tail Type | Conventional | Zero Tail | Zero Tail | Zero Tail | Zero Tail | Zero Tail | Zero Tail | |
| Total Track Length | 104.84" | 116.14" | 116.14" | 139.3" | 55.47" | 73.62" | 100" | |
| Specs | Smart Display | N/A | N/A | Standard Across All Models | ||||
| Bucket Capacity | .494 cu ft. | .494 cu ft. | .64 cu ft. | 1.59 cu ft. | 1.9 cu ft. | 2.83 cu ft. | 3.2-6.2cu ft. | |
| Hydraulic Oil Cooler | Standard Across All Models | |||||||
| Boom Length | 58.1" | 57.1" | 58.1" | 71.9" | 72.1" | 87.4" | 118.1" | |
| Arm Length | 31.5" | 35.4" | 37.4" | 70.1" | 49.2" | 63.8" | 63" | |
| Track Specs Width x Pitch x # of Links | 7.09"x2.83"x37L | 7.09"x2.83"x41L | 7.09"x2.83"x41L | 9.06"x1.89"x74L | 9.84"x1.85"x84L | 11.81"x2.07"x84L | 15.75"x5.31"x40L | |
| Track Type | Rubber Track | Steel Track /w Rubber Inserts | Rubber Track | Rubber Track | Rubber Track | Rubber Track | Rubber Track | |
| Warranty Term | 2 Years | 2 Years | 2 Years | 3 Years | 3 Years | 3 Years | 3 Years | |
| Cab Options | Cab without AC | Cab without AC | Cab without AC | Cab without AC | Cab w/AC or No Cab | Cab w/AC or No Cab | Cab w/AC or No Cab | |

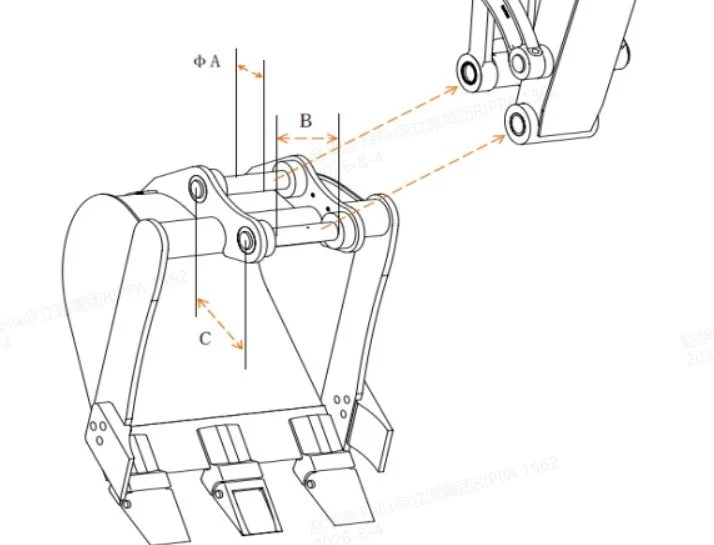

Want to know if other attachments will fit? Make sure they align with this:
| Machine | A | B | C |
|---|---|---|---|
| R10/R13/R15 | 25 | 92 | 90 |
