RIPPA R15-5 MINI EXCAVATOR

Rippa R15-5 Eco Mini Excavator
$13,999.00
Rippa R15-5 Eco Mini Excavator w/ Cab
$14,750.00

Call for price- Its much lower - we are required to follow Rippa’s MAP Pricing

NOTE: above price could change due to tariffs and shipping.

NOTE: if you buy a machine from us, you will receive 50% off the prices below on attachments, whether you buy them with the machine or down the road.

Key Features:

Powered by a Kubota D722 diesel engine producing 10.2 kW (13.68 hp).

Two-speed travel gets you to the dig faster.

Adjustable chassis: adjusts from 35.4” to 47.2” wide at the push of a button.

Pre-installed welded hydraulic thumb that lies flat against the boom.

Boom-mounted work light.

Two-speed travel motor with variable throttle.

Swing boom: moves more than 45 degrees in either direction.

2-year factory parts warranty. Kubota honors the engine warranty at your local Kubota service center for engine-related repairs.

Hydraulic quick-attach coupler included.

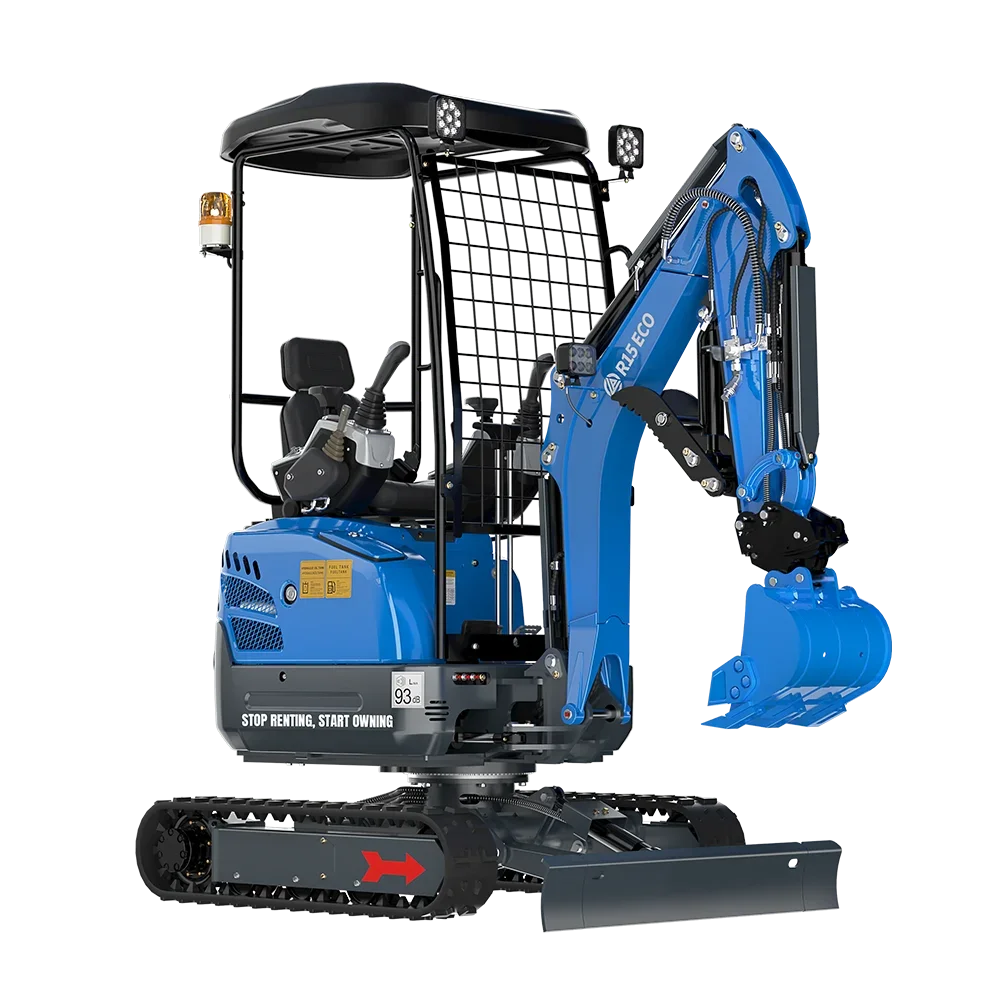

Rippa R15-5 Mini Excavator

An optional GPS tracker can be installed by our team for $125. There is a $12.95 monthly fee payable to Land Air Sea, who we partnered with. 30 second updates. (Rippa USA Sales Exclusive)

Compact, Capable and Easy to Transport

The Rippa R15-5 packs a Kubota D722 three-cylinder diesel into a zero-tail machine that fits through doorways and gates, then widens out for stable digging. Two-speed travel gets you to the work faster, and a nine-way pilot valve gives precise control.

13.7 hp10.2 kW Kubota D722 diesel
35.4–47.2 inadjustable track width
71.1 inmaximum digging depth
2 yearsfactory parts warranty

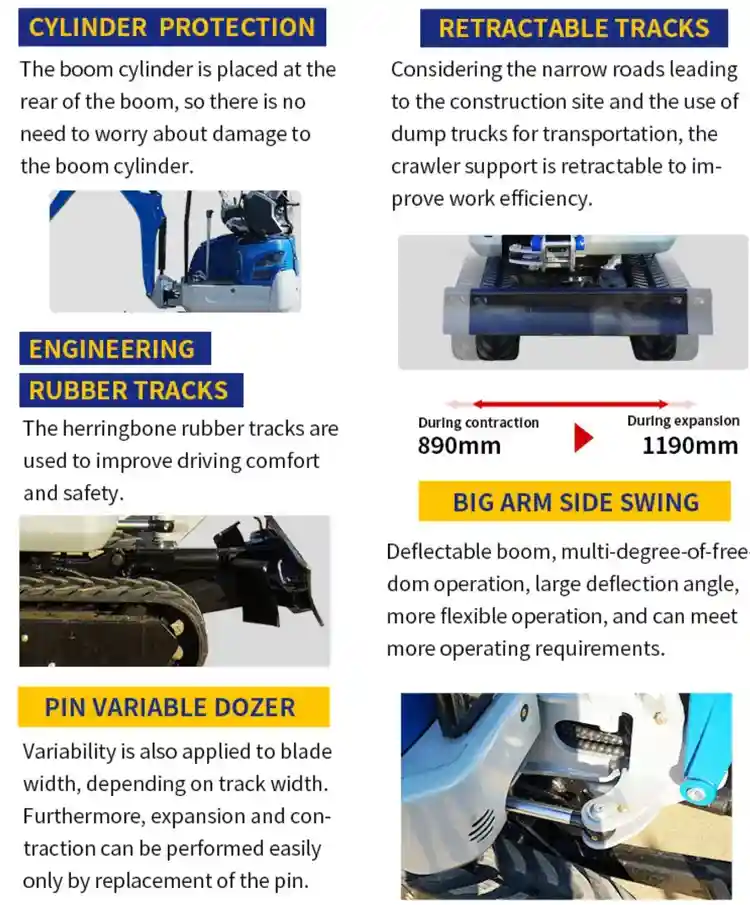

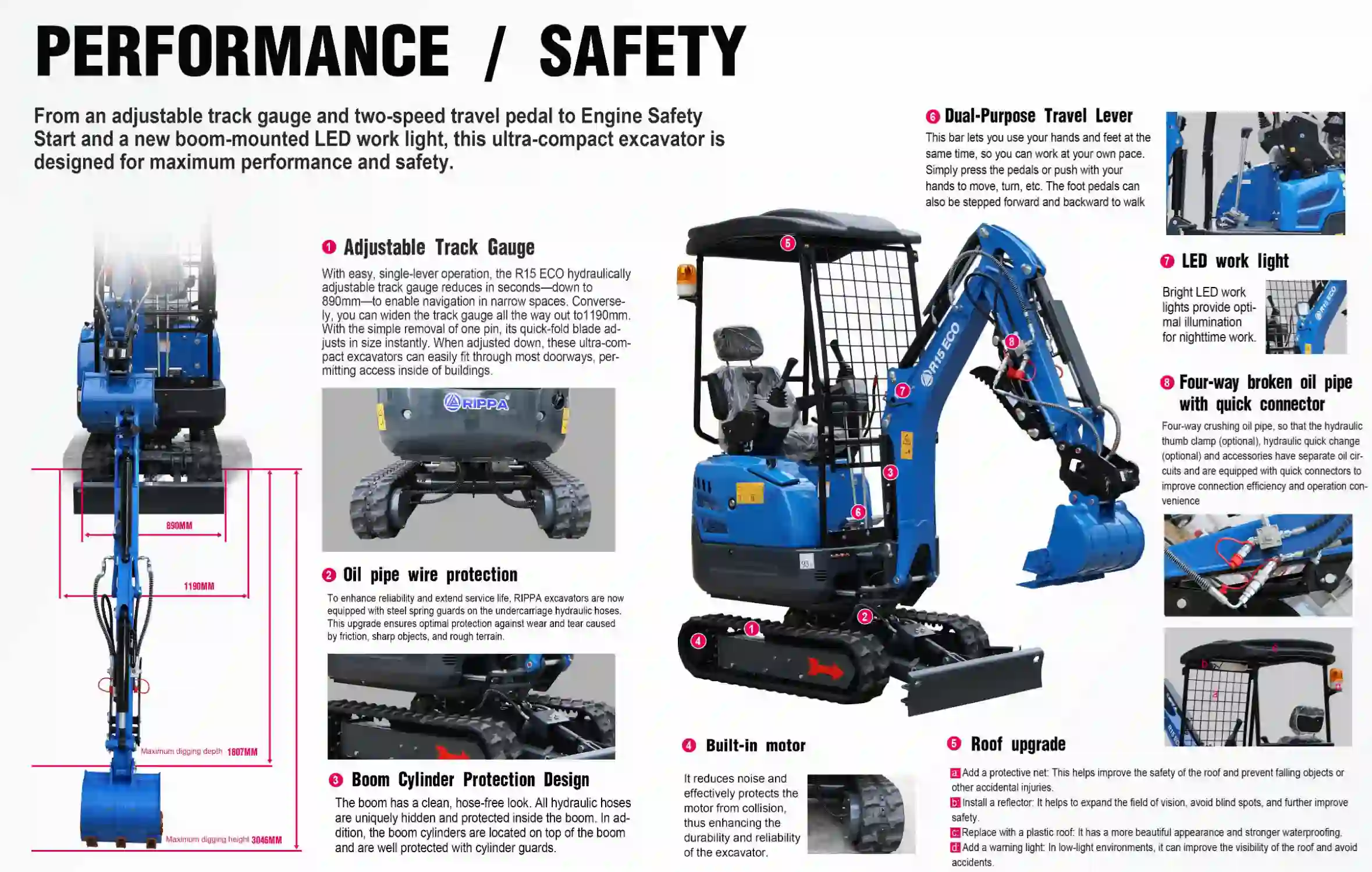

Adjustable Track Gauge

With a single lever, the hydraulically adjustable track gauge narrows in seconds to 35.4 in so the R15 can work in tight spaces and fit through most doorways. Widen it to 47.2 in when you need maximum stability.

  • Pin-variable dozer blade: remove one pin and the quick-fold blade resizes to match the track width.
  • Big arm side swing: the deflectable boom has a large deflection angle (92 degrees) for flexible operation, and swings over 45 degrees each way without moving the tracks.
  • Transport: 38.7 in wide, 91.6 in long and 88.3 in high, and the retractable crawler supports make loading on a trailer or into a dump truck easy.
Rear view of the Rippa R15 tracks adjusted to a narrow width
Hydraulically adjustable track gauge

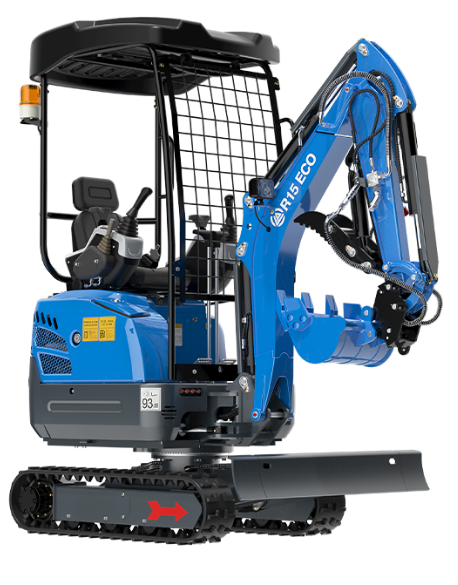

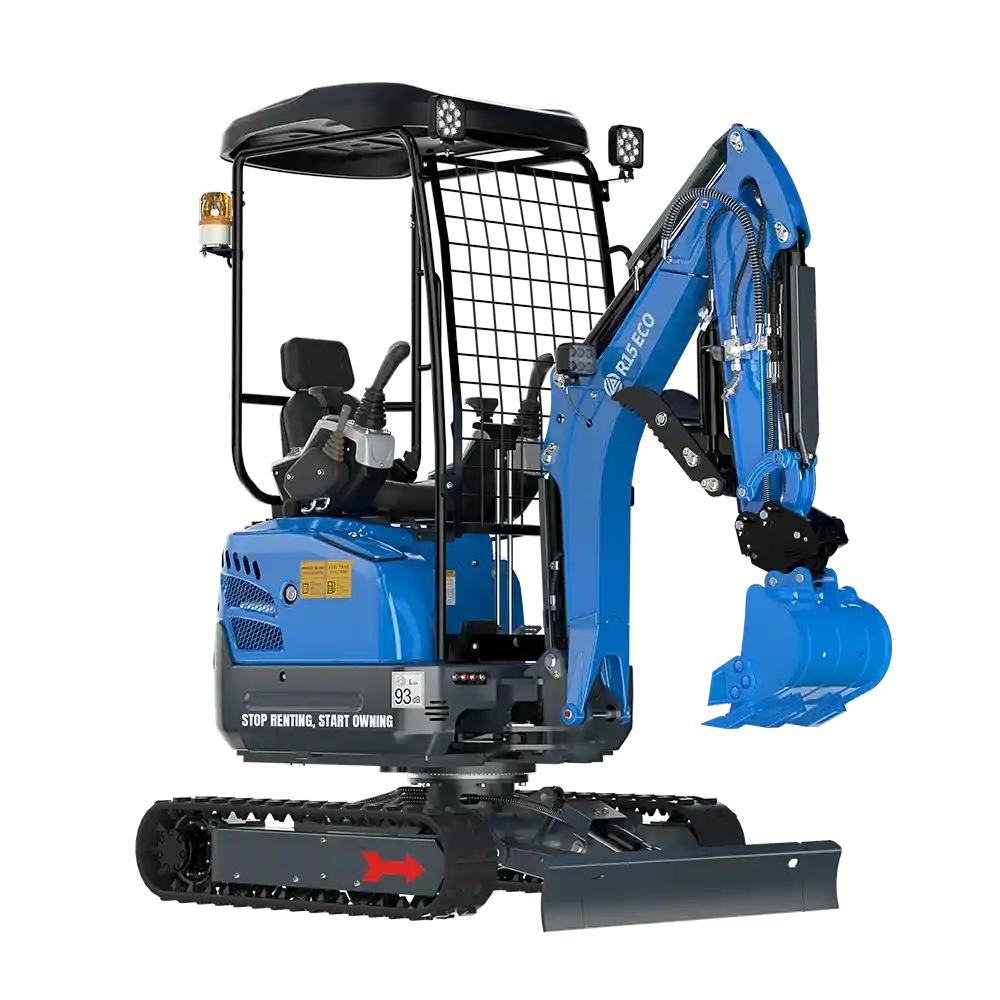

Rippa R15 mini excavator with protective canopy roof and safety net
R15 with upgraded canopy roof and safety net

Protected Where It Counts

The R15 shields its hydraulics and its operator from daily wear and tear.

  • Roof upgrade: a protective net guards against falling objects, a reflector widens the field of vision, the plastic roof is better looking and more waterproof, and a warning light improves roof visibility in low light.
  • Oil pipe wire protection: steel spring guards on the undercarriage hydraulic hoses protect against friction, sharp objects and rough terrain.
  • Boom cylinder protection: the boom has a clean, hose-free look because hoses are hidden inside, and cylinder guards protect the cylinders. The boom cylinder sits at the rear of the boom, so you never need to worry about damaging it.
  • Built-in motor: reduces noise and protects the motor from collisions.

Four-Way Oil Pipe With Quick Connectors

A four-way broken oil pipe gives the optional hydraulic thumb clamp, the optional hydraulic quick change and your other attachments their own oil circuits, all with quick connectors for faster, easier hookups.

Protected service port pipes: you will never need to replace the hydraulic service port pipes. They are hidden inside the boom to reduce the risk of damage, and the service ports sit conveniently at the end of the boom.

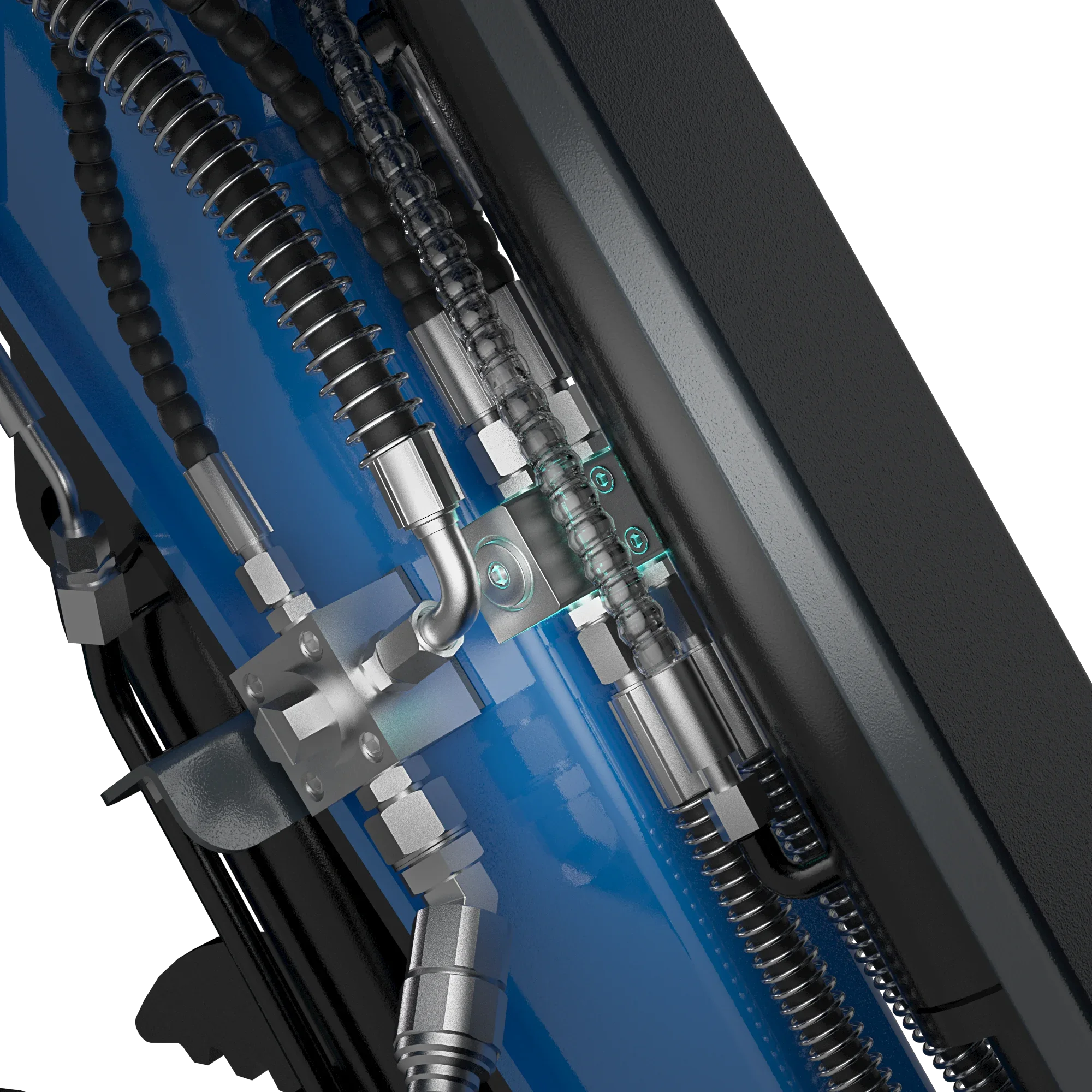

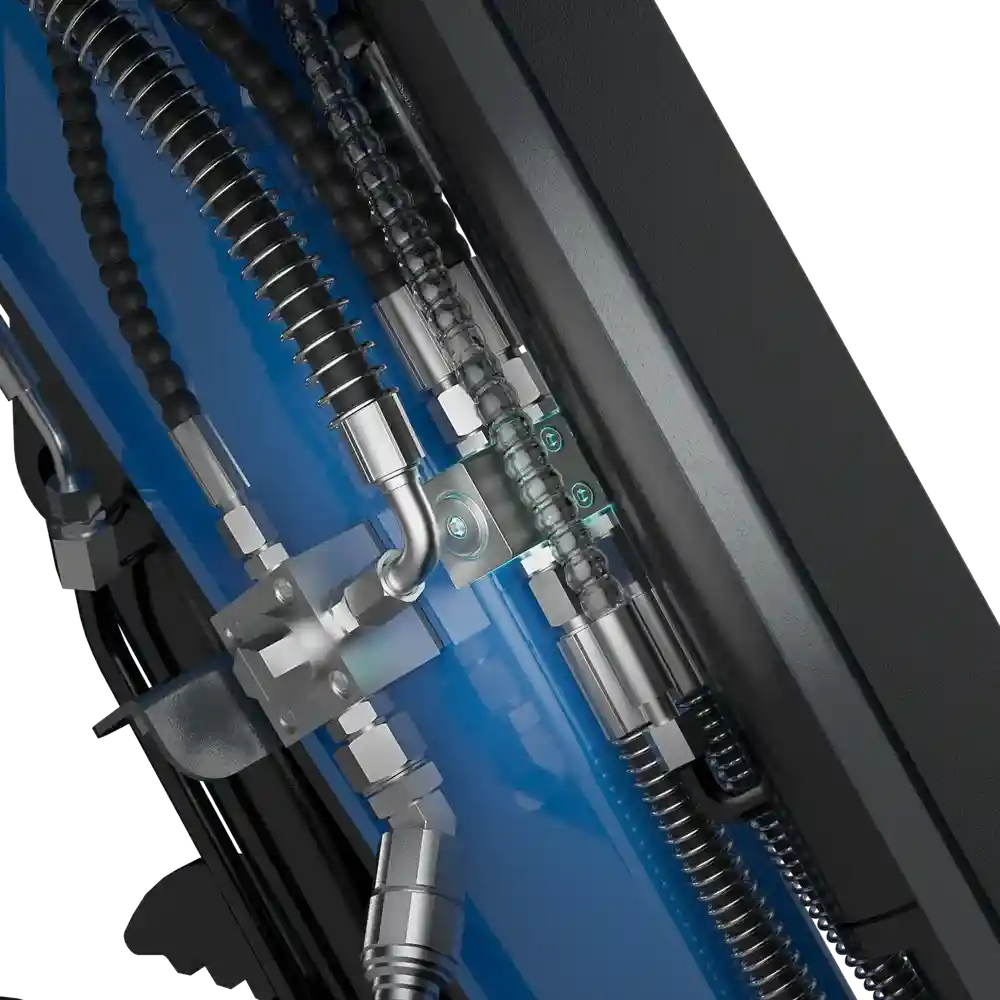

Four-way oil pipe with quick connectors on the Rippa R15 boom
Quick-connect hydraulic lines
Protected hydraulic service port pipes on the Rippa R15
Service pipes hidden in the boom

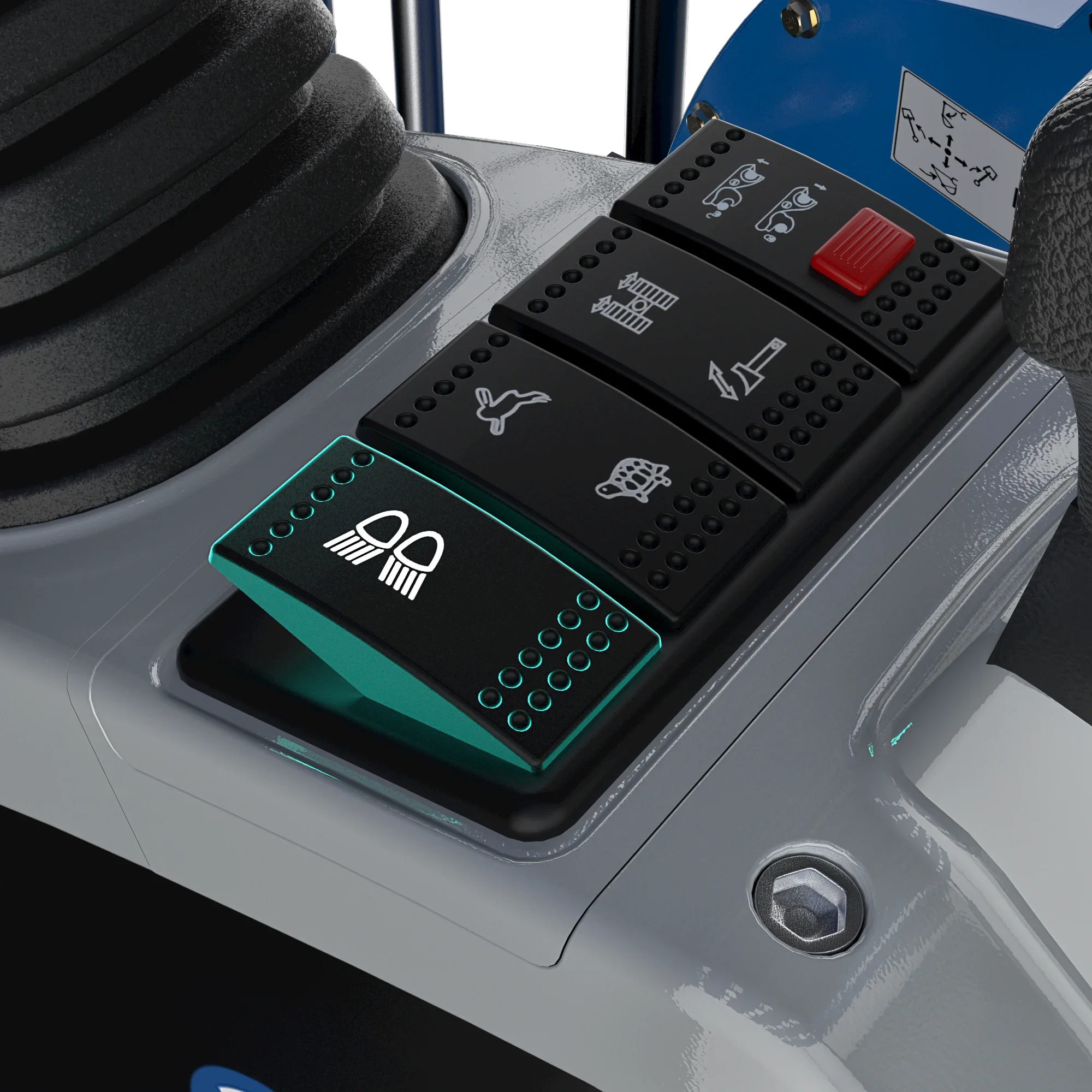

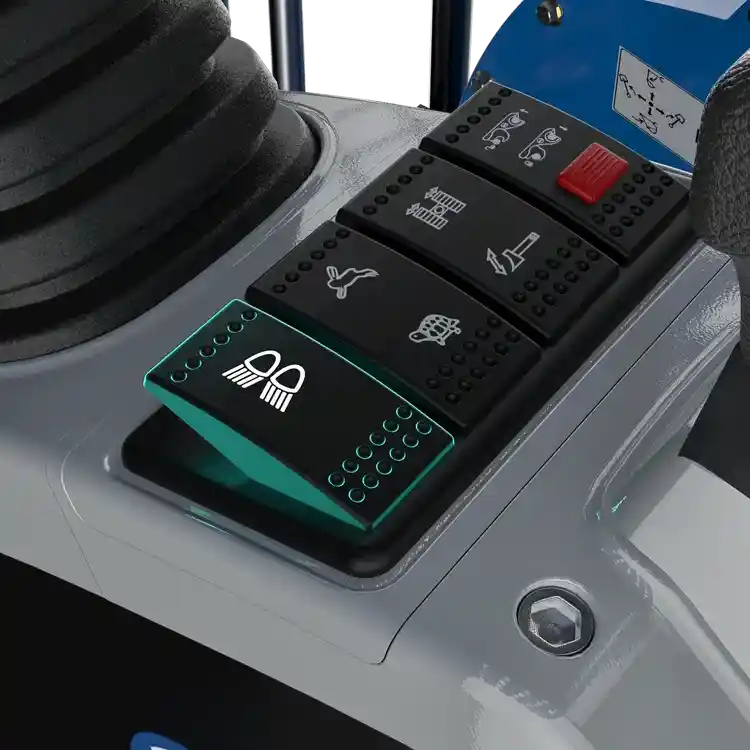

Control buttons and joystick on the Rippa R15 operator station
Control switches and joystick

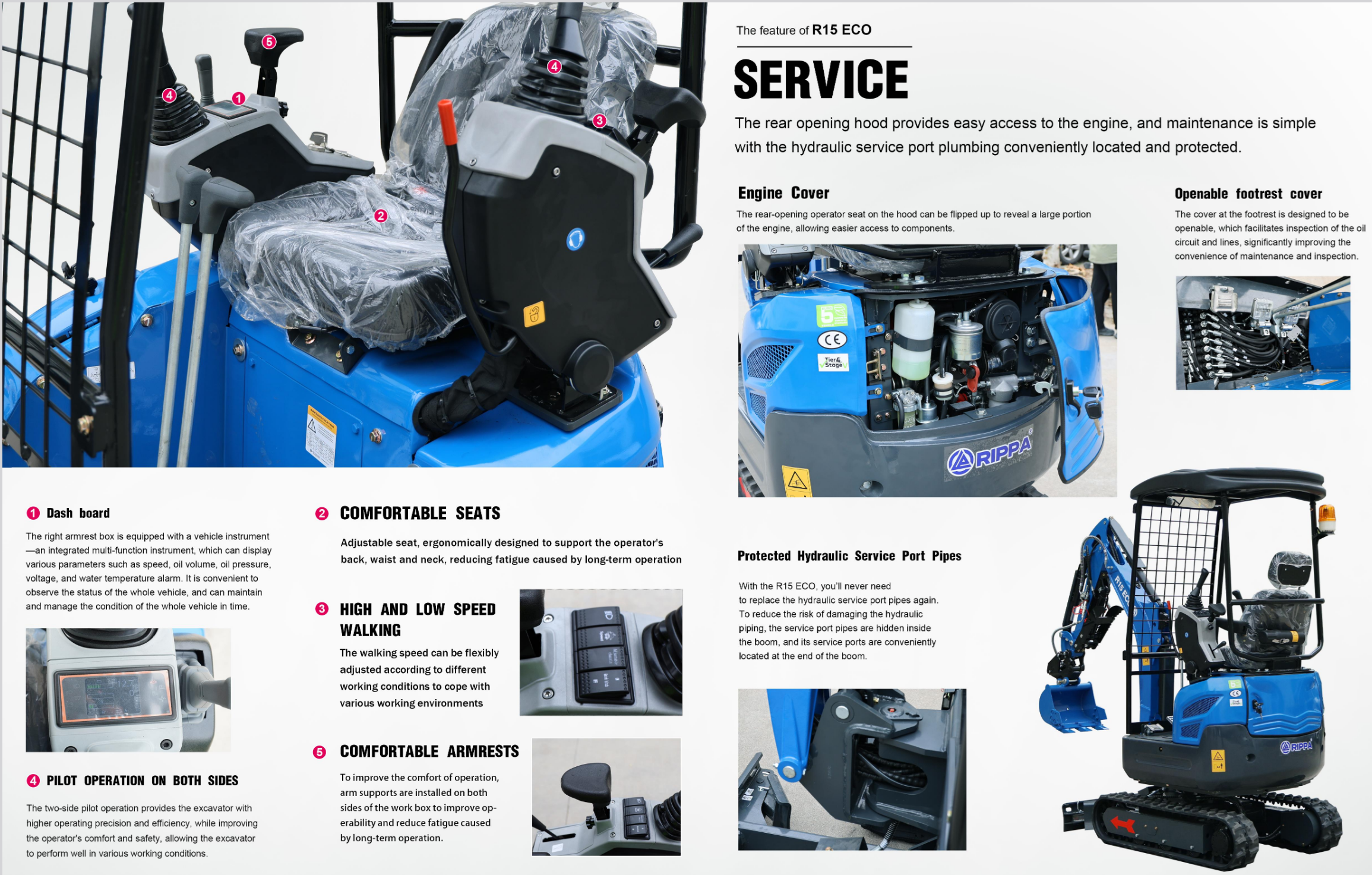

Comfortable, Precise Controls

  • Pilot operation on both sides: two-side pilot controls give higher precision and efficiency while improving operator comfort and safety.
  • Dual-purpose travel lever: use hands and feet at the same time. Press the pedals or push with your hands to move and turn, and step the pedals forward and back to walk.
  • High and low speed travel: choose the travel speed and traction that suit the job.
  • Adjustable seat and armrests: an ergonomic seat supports the back, waist and neck, and arm supports on both sides reduce fatigue.
  • Dashboard: the multi-function instrument in the right armrest box shows speed, oil volume, oil pressure, voltage and water temperature alarms.
  • LED work light: bright illumination for night work, plus a boom-mounted light.

Easy Service Access

The rear-opening hood and flip-up operator seat reveal a large part of the engine, and the hydraulic service plumbing is conveniently located and protected.

  • Openable footrest cover: makes it quick to inspect the oil circuit and lines.
  • Hidden service pipes: fewer exposed lines means less to damage and less to replace.
Open rear hood on the Rippa R15 showing the Kubota engine
Rear hood opens for engine access

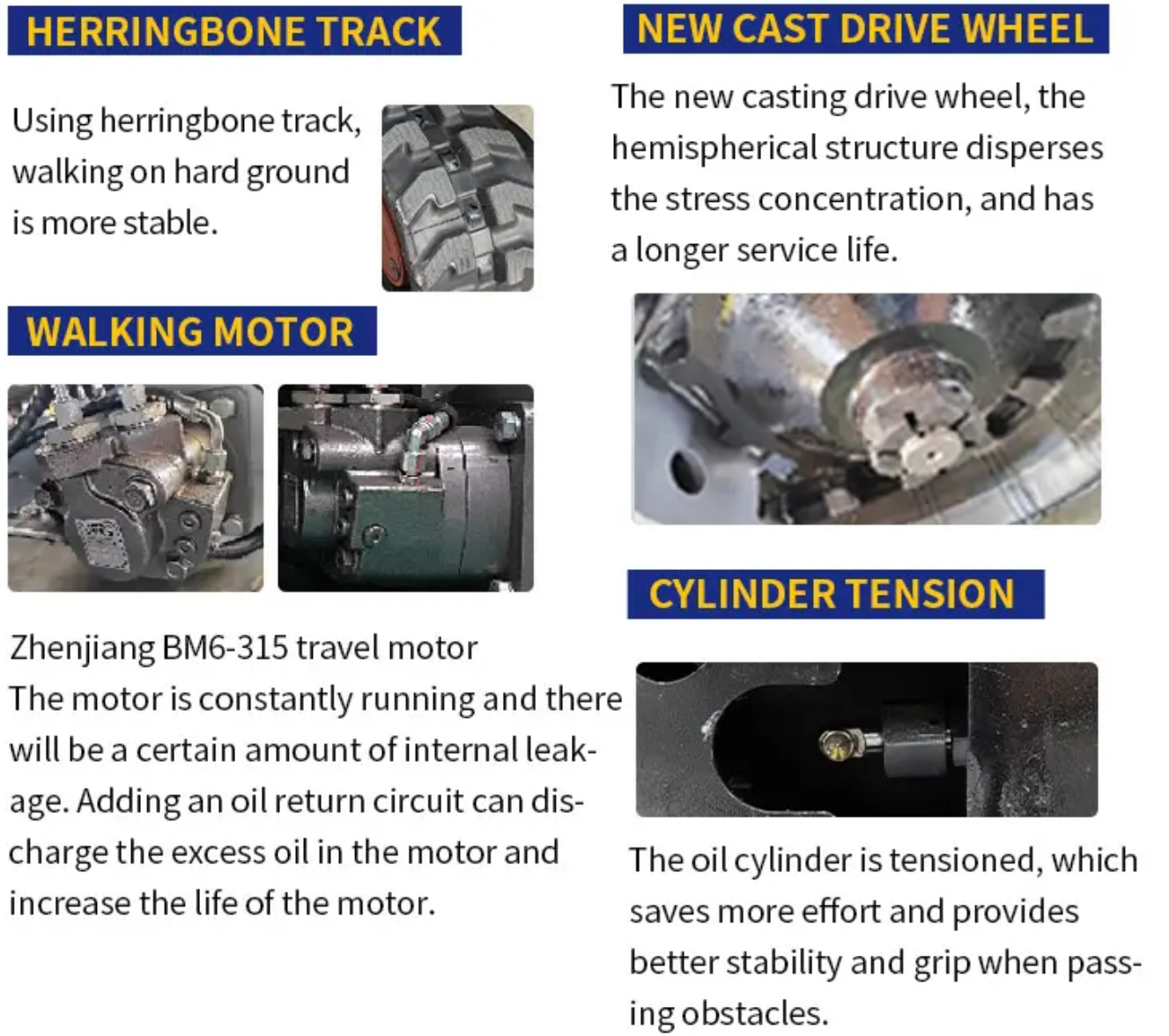

Undercarriage and Structure

Herringbone rubber tracks

Herringbone engineering rubber tracks give stable travel on hard ground and improve driving comfort and safety.

Travel motor

A Zhenjiang BM6-315 travel motor with an added oil return circuit that drains excess internal leakage, which increases motor life.

Cast drive wheel

The new casting drive wheel has a hemispherical structure that disperses stress concentration for a longer service life.

Cylinder tension

The tensioning cylinder saves effort and provides better stability and grip when crossing obstacles.

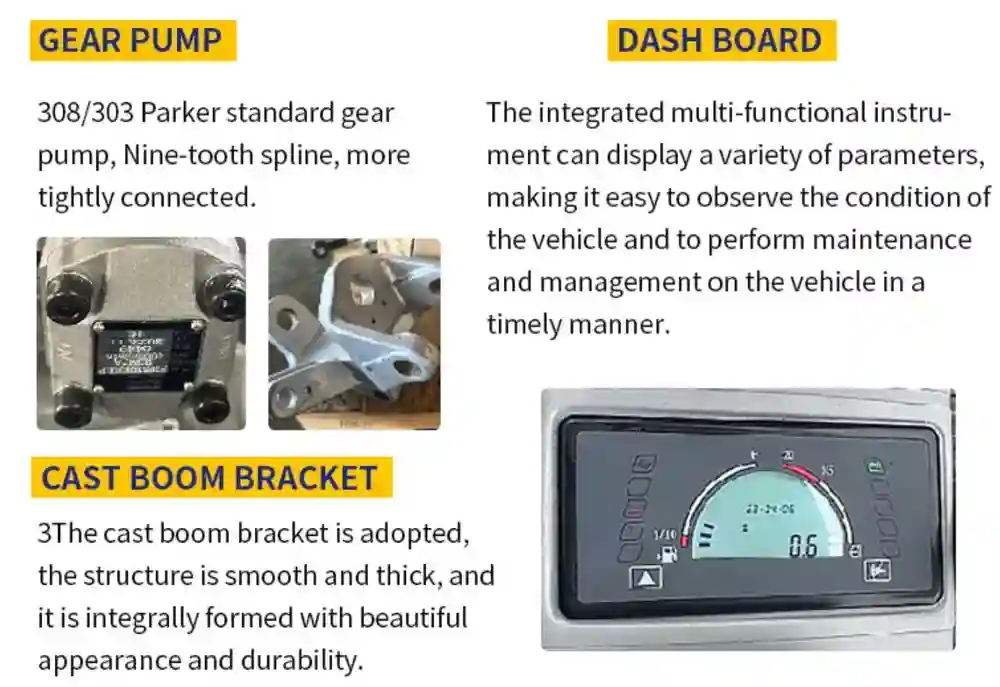

Gear pump

A 308/303 Parker standard gear pump with a nine-tooth spline for a tighter connection.

Cast boom bracket

A cast boom bracket is smooth, thick and integrally formed for durability and a clean appearance.

Brand ModelR10-6R13-4R15-5 ECOR18-5 PROR22-4 PROR32-5 PROR57-2
EngineEngine ModelKubota Z482Kubota D722Kubota D722Kubota D902Kubota D1105Kubota V1505Kubota V2607
# of Cylinders2333344
Rated Power10.98HP13.68HP13.68HP15.8HP24.37HP24.37HP68.4HP
Main PumpNumber of Main Pump TypesGear Pump x 1Gear Pump x 3Gear Pump x 3Variable Displacement Piston Pump x 1Variable Displacement Piston Pump x 1Variable Displacement Piston Pump x 1Variable Displacement Piston Pump x 1
Max Flow Rate4.76gpm5.71gpm5.71gpm10.94gpm17.74gpm26.15gpm39.5gpm
Operating SystemCompound MotionN/AN/AN/A1111
Pilot SystemN/A4 Way Pilot Operated + 4 Way Mechanically Operated4 Way Pilot Operated + 4 Way Mechanically Operated10 Way Pilot Operated9 Way Pilot Operated9 Way Pilot Operated9 Way Pilot Operated
Valve InfoValve TypeMechanical Control ValveHydraulic & MechanicalHydraulic & MechanicalLoad Sensitive Control ValveLoad Sensitive Control ValveLoad Sensitive Control ValveLoad Sensitive Control Valve
Hydraulic Motor TypeTravel Motor SpeedSingle SpeedDual SpeedDual SpeedDual SpeedDual SpeedDual SpeedDual Speed
Motor TypeCyclodialCyclodialCyclodialPlungerPlungerPlungerPlunger
Swing Motor TypeCyclodialCyclodialCyclodialCyclodial w/ CushioningCyclodial w/ CushioningCyclodial w/ CushioningCyclodial w/ Cushioning
Basic ParametersTotal Weight2151.8 lbs.2904 lbs.3307 lbs.4074 lbs.5223.85 lbs.7082 lbs.12,705 lbs
Bucket Size11.8"15.7"15.7"15.7"15.7"23.54"23.54"
Max Digging Depth72.2" / ~ 6'72.5" / ~ 6'71.2" / ~ 6'95.3" / 7.5'90.4" / 8.5'111.3" / 10'144.8" / 12.4'
Narrowest Transport Width35.91"33.4"38.74"38.94"51.18"61.02"74"
Tail TypeConventionalZero TailZero TailZero TailZero TailZero TailZero Tail
Total Track Length104.84"116.14"116.14"139.3"55.47"73.62"100"
SpecsSmart DisplayN/AN/AStandard Across All Models
Bucket Capacity.494 cu ft..494 cu ft..64 cu ft.1.59 cu ft.1.9 cu ft.2.83 cu ft.3.2-6.2cu ft.
Hydraulic Oil CoolerStandard Across All Models
Boom Length58.1"57.1"58.1"71.9"72.1"87.4"118.1"
Arm Length31.5"35.4"37.4"70.1"49.2"63.8"63"
Track Specs Width x Pitch x # of Links7.09"x2.83"x37L7.09"x2.83"x41L7.09"x2.83"x41L9.06"x1.89"x74L9.84"x1.85"x84L11.81"x2.07"x84L15.75"x5.31"x40L
Track TypeRubber TrackSteel Track /w Rubber InsertsRubber TrackRubber TrackRubber TrackRubber TrackRubber Track
Warranty Term2 Years2 Years2 Years3 Years3 Years3 Years3 Years
Cab OptionsCab without ACCab without ACCab without ACCab without ACCab w/AC or No CabCab w/AC or No CabCab w/AC or No Cab

Rippa R15 ECO Technical Specifications

All specifications are shown in imperial units. Metric figures on the manufacturer sheet have been converted.

Basic Parameters
Machine Working Weight3,307 lbs
Bucket Capacity0.64 cu ft
Travel Speed0-0.93 mph
Gradeability30%
Ground Pressure4.56 psi
Maximum Digging Force2,338 lbf
Maximum Digging Radius128.9"
Maximum Digging Depth71.1"
Maximum Digging Height119.9"
Maximum Unloading Height89.6"
Maximum Deflection Angle92 degrees
Track Extension Range35.4"-47.2"
Engine
Engine BrandKubota
Engine ModelD722
Maximum Horsepower13.7 hp
Maximum Speed2500 rpm
Displacement0.19 gal
Number of Cylinders3
Cooling MethodWater-cooled
Engine Oil Change Amount0.92 gal
Fuel FormDiesel
Fuel Grade0/-10
Theoretical Fuel Consumption0.3-0.4 gal/h
Body
Transport Length91.6"
Transport Width38.7"
Transport Height88.3"
Counterweight Ground Clearance16.7"
Bucket Width15.7"
Boom Length58.1"
Arm Length31.5"
Bulldozer Blade Width40.3"
Hydraulic System
Main Pump Type/ModelGear pump 308-303
Main Pump BrandTianjin Walking/Shengjie
Main Pump Maximum Flow5.71 gpm
Multi-Way Valve9-way pilot multi-way valve
Multi-Way Valve BrandTengfei/Shengjie
Rated Set Pressure2,611 psi
Maximum Set Pressure2,901 psi
Travel Hydraulic Motor TypeBM6-315
Travel Motor BrandPaiyi/Zhenjiang Dali
Motor Displacement315 (unit not shown on sheet)
Slewing Hydraulic Motor TypeBM2-315
Slewing Motor Displacement315 (unit not shown on sheet)
Additional Specs
Pilot System4 Way Pilot Operated + 4 Way Mechanically Operated
Tail TypeZero Tail
Total Track Length116.14"
Hydraulic Oil CoolerStandard
Smart DisplayStandard
Track Specs Width x Pitch x # of Links7.09" x 2.83" x 41 links
Track TypeRubber Track
Warranty Term2 Years
Cab OptionsCab without AC

Rippa R15 Excavator demo.

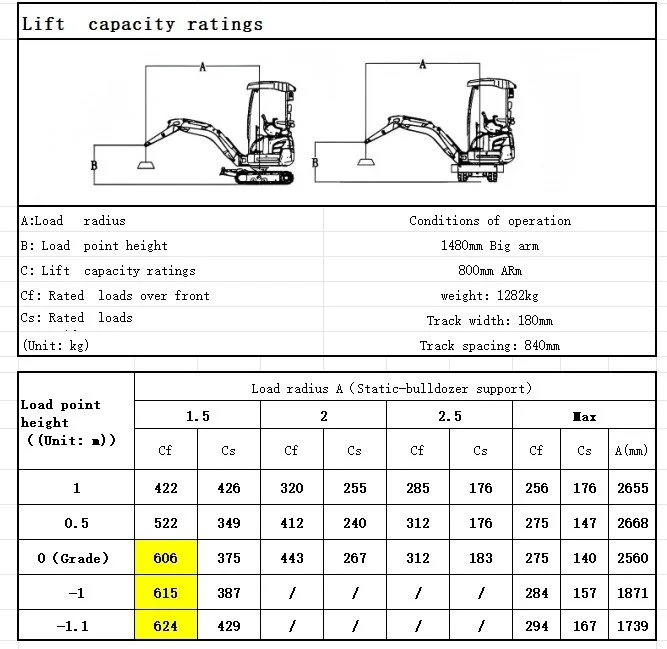

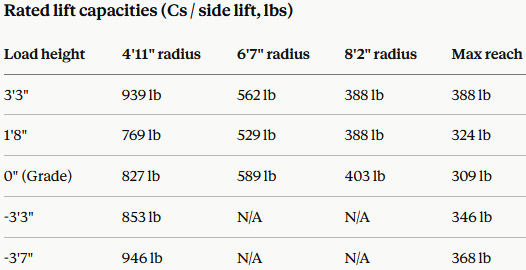

Rippa excavator lift capacity

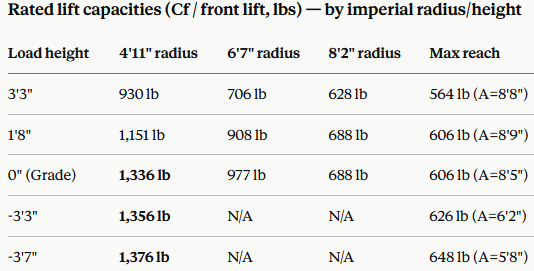

Rippa excavator lift capacity
Rippa excavator lift capacity

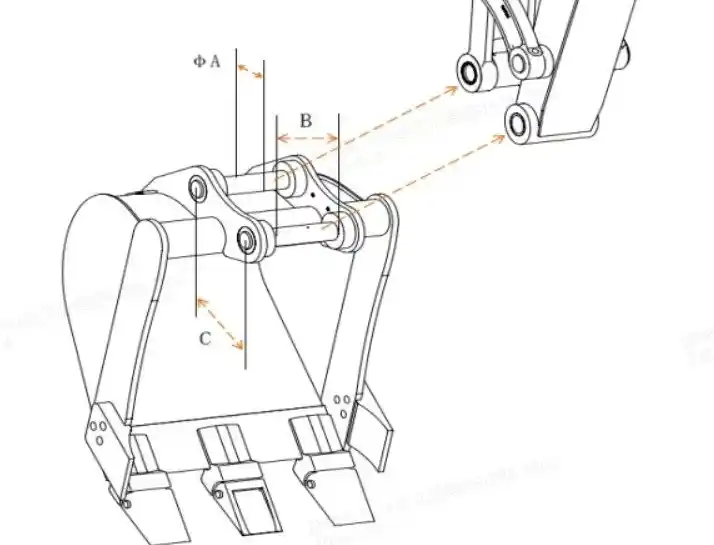

Excavator pin spacing details

Want to know if other attachments will fit? Make sure they align with this:

MachineABC
R10/R13/R15259290

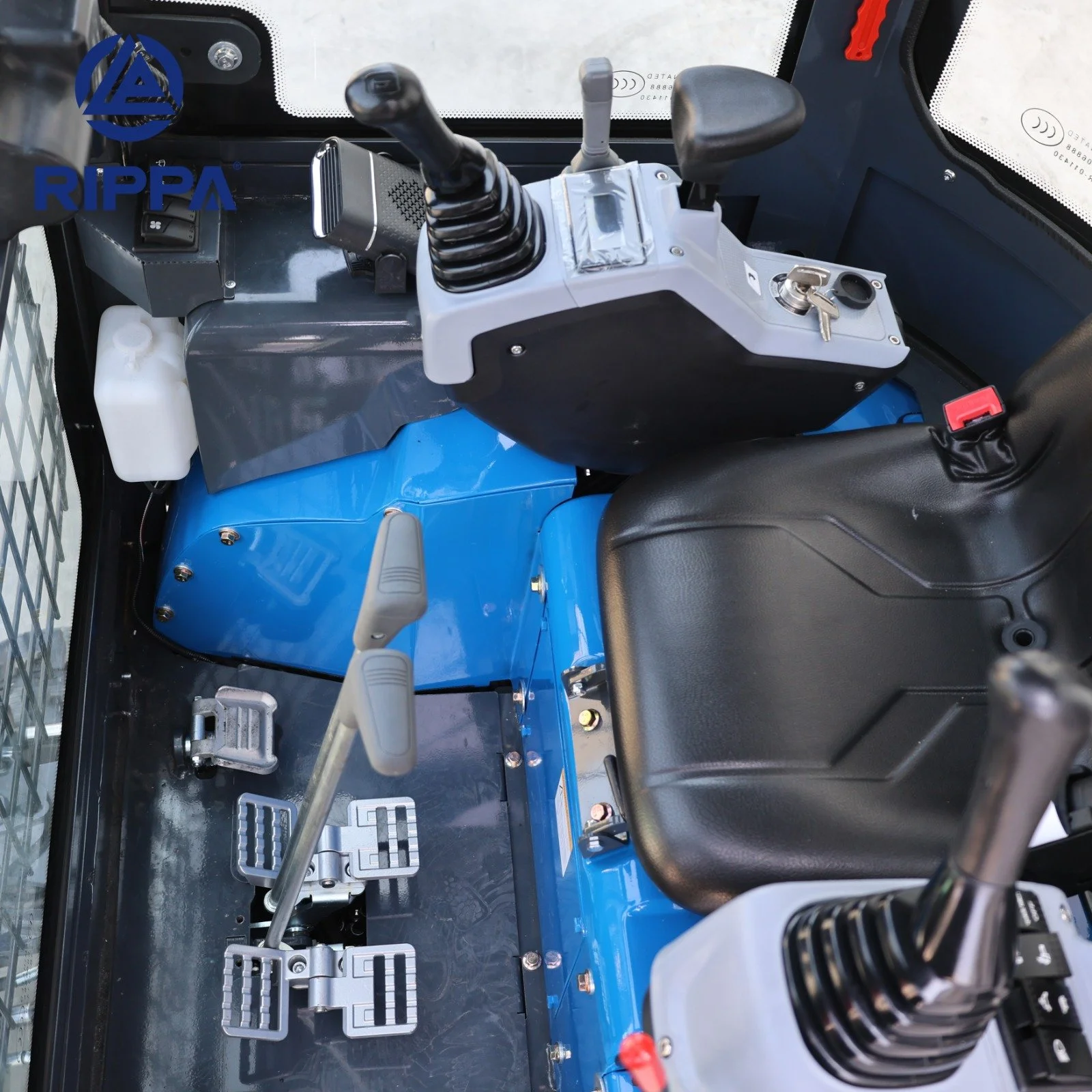

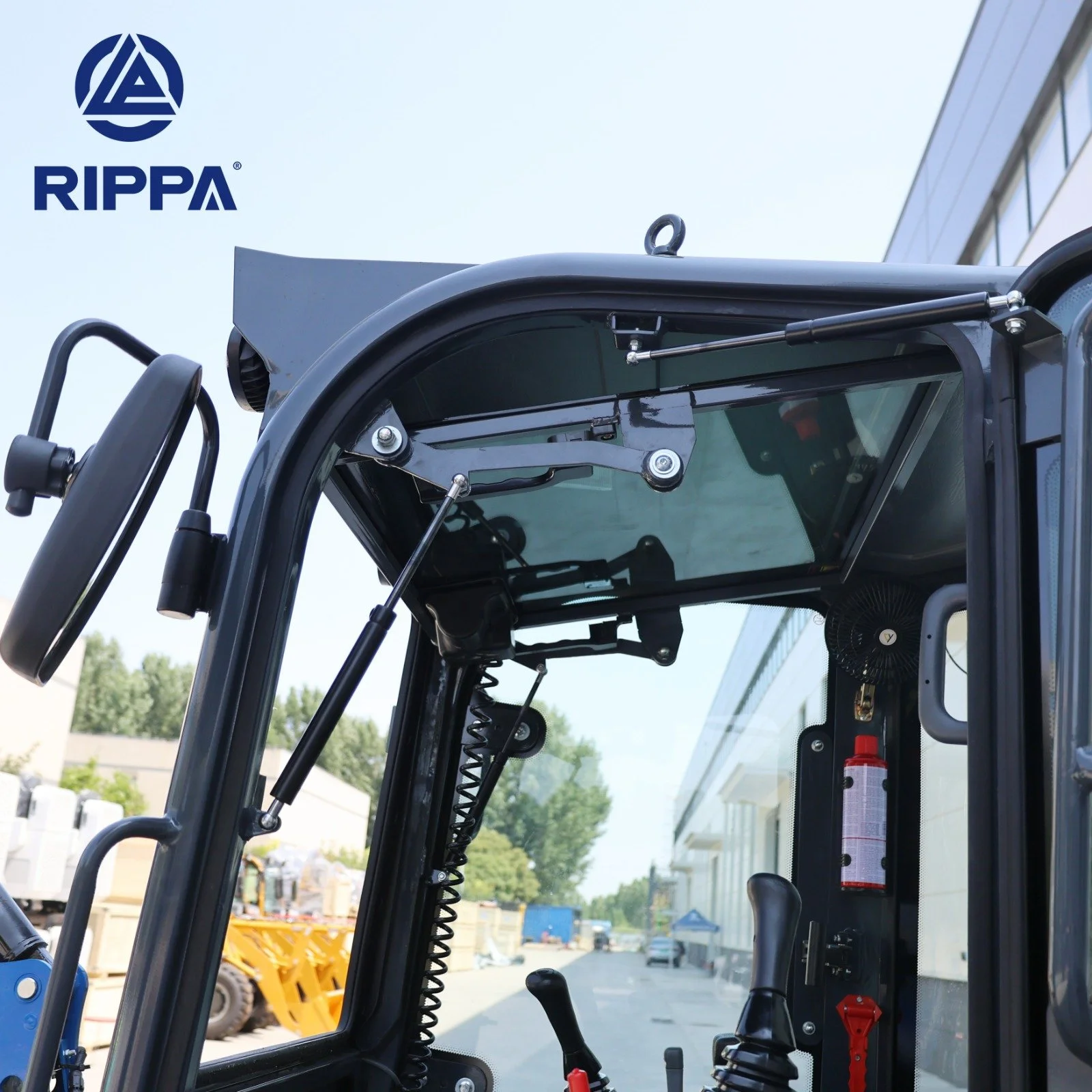

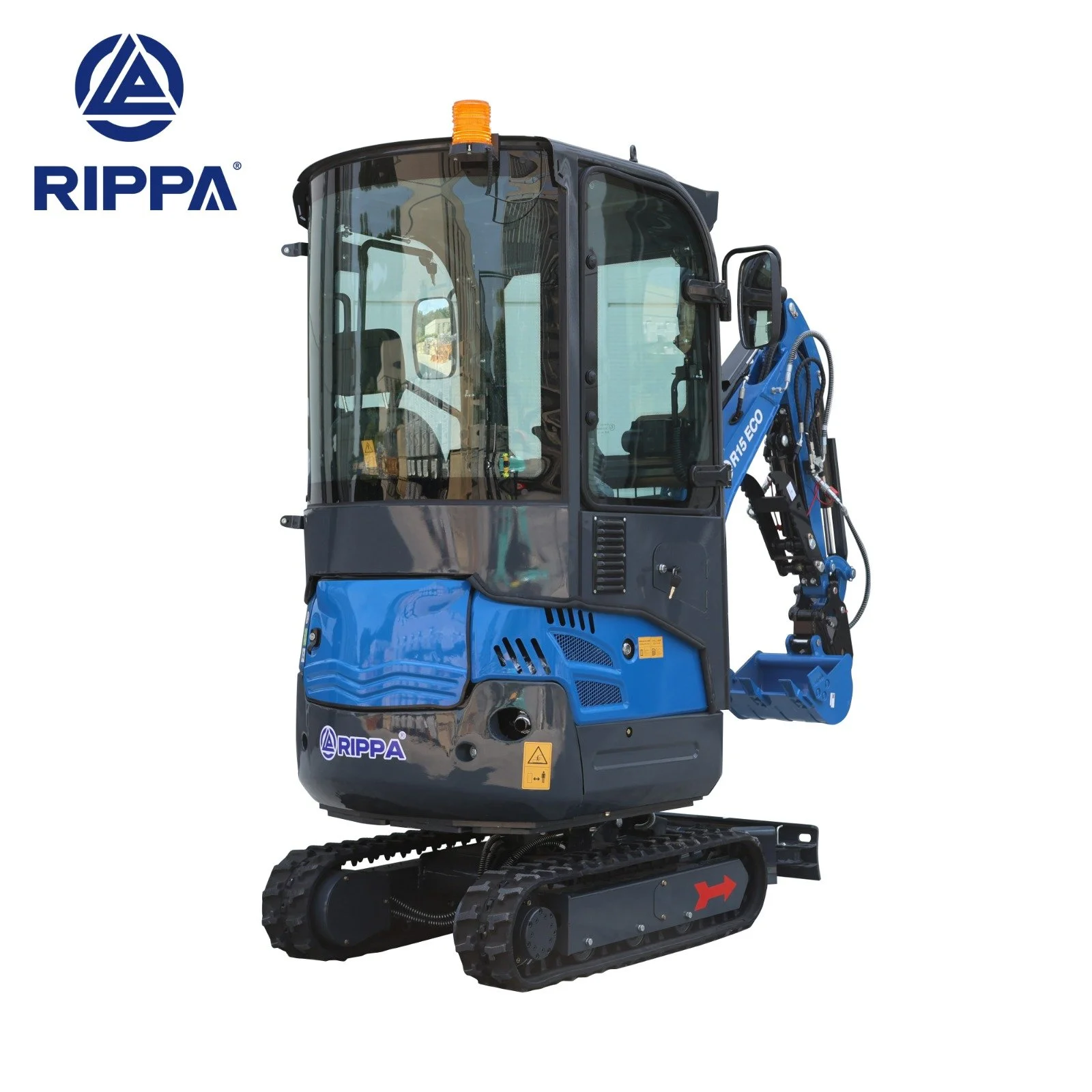

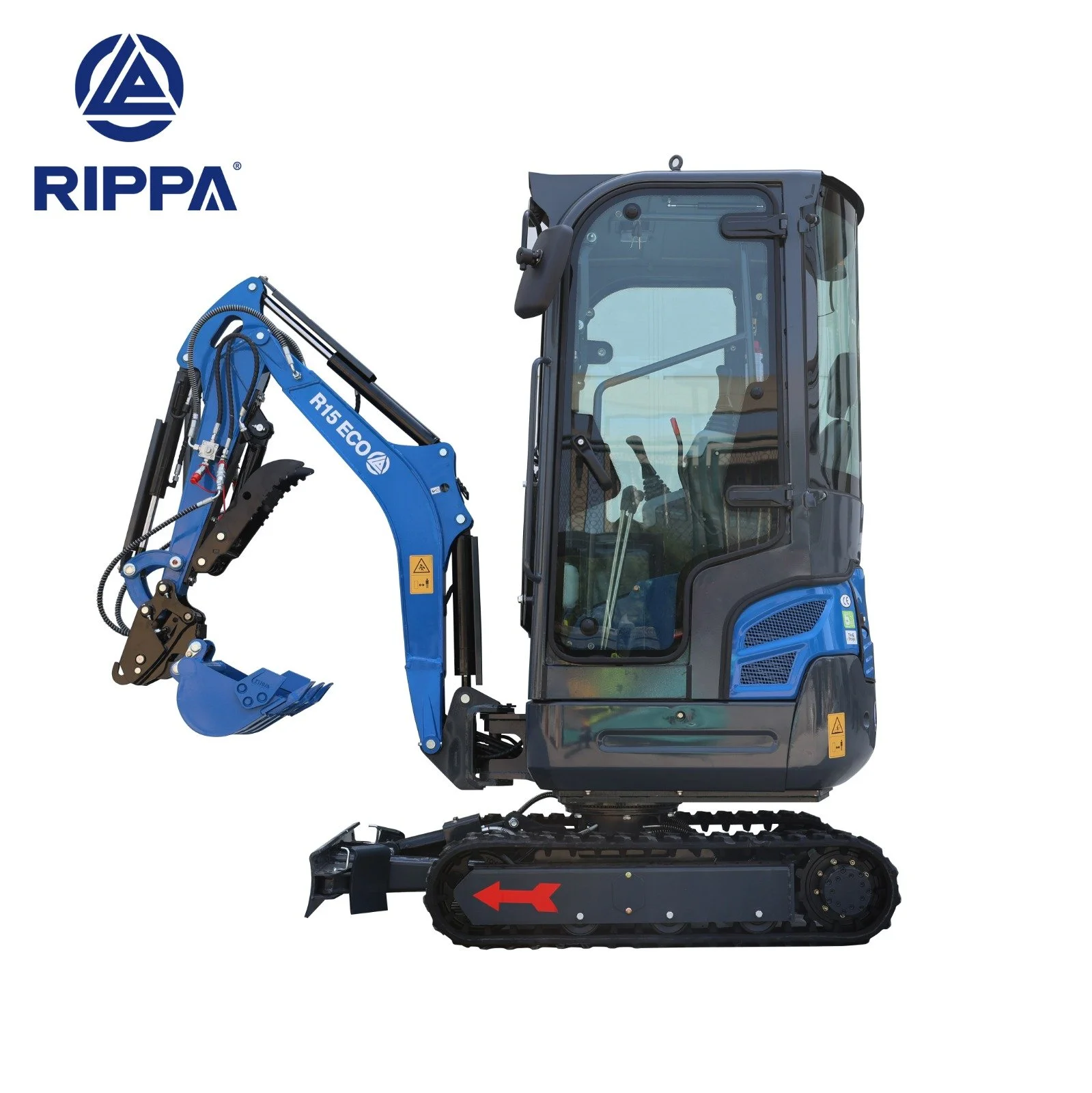

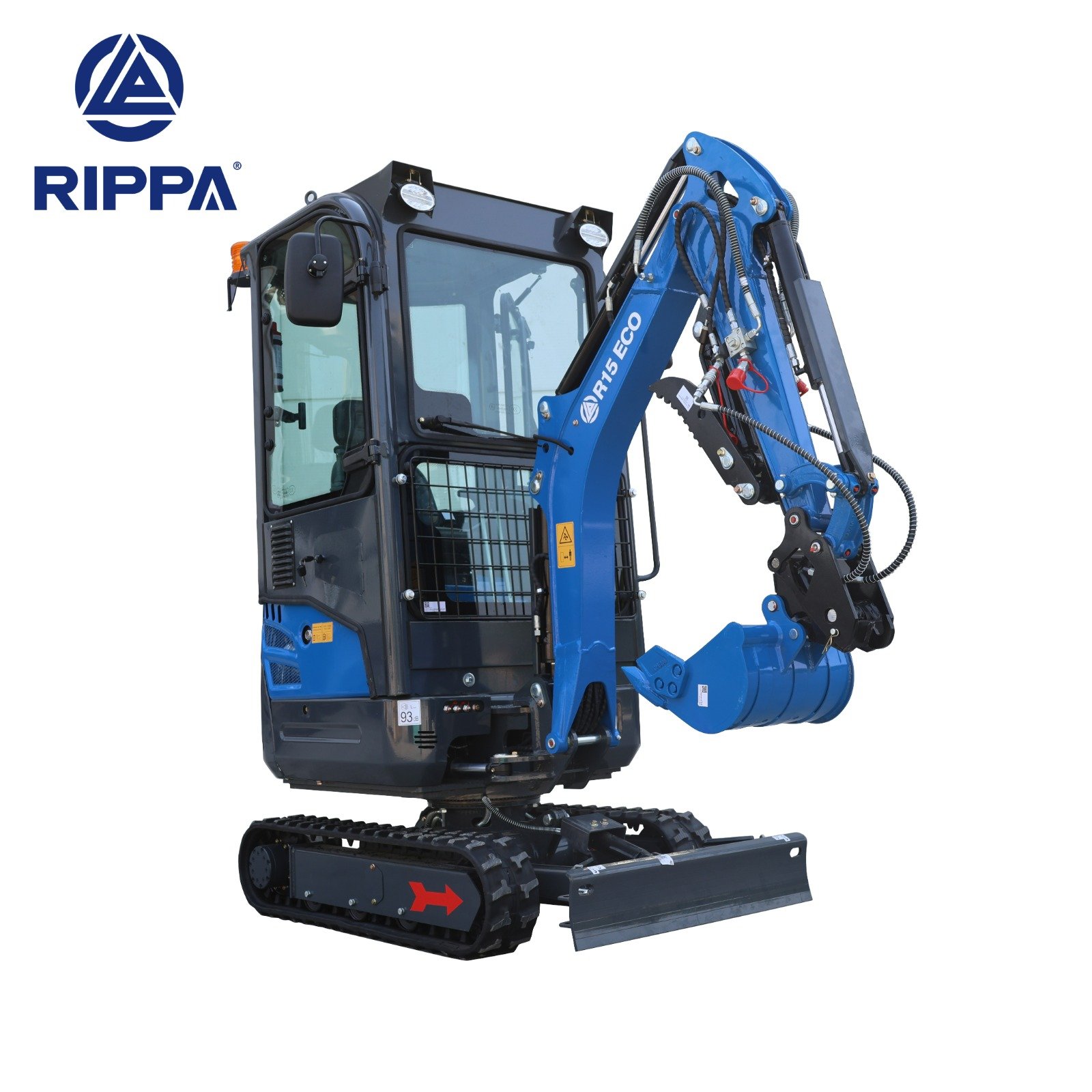

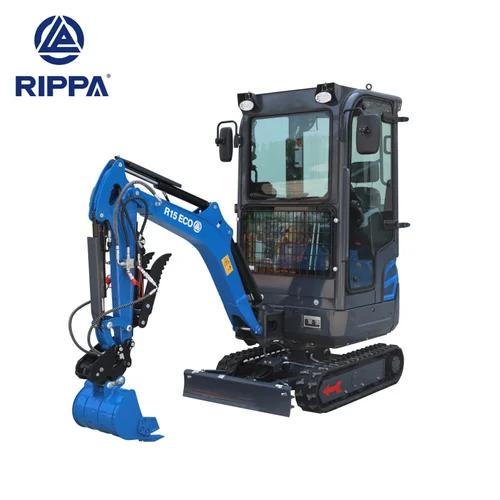

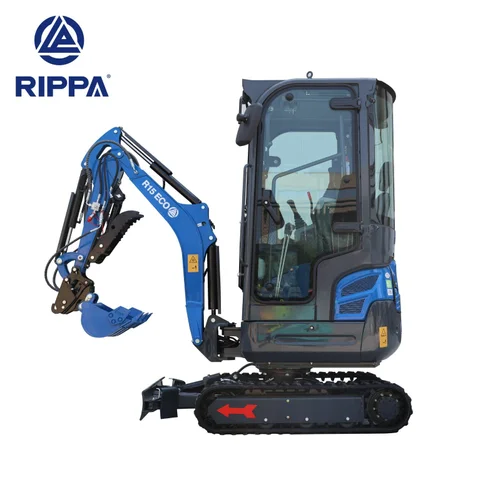

HERE ARE PICTURES OF THE NEW MY26 R15-5 CAB VERSION.
Rippa R15-5 Mini Excavator specifications 8
Rippa R15-5 Mini Excavator specifications 9
Rippa R15-5 Mini Excavator specifications 10
Rippa R15-5 Mini Excavator specifications 11
Rippa R15-5 Mini Excavator specifications 12
Rippa R15-5 Mini Excavator specifications 13
