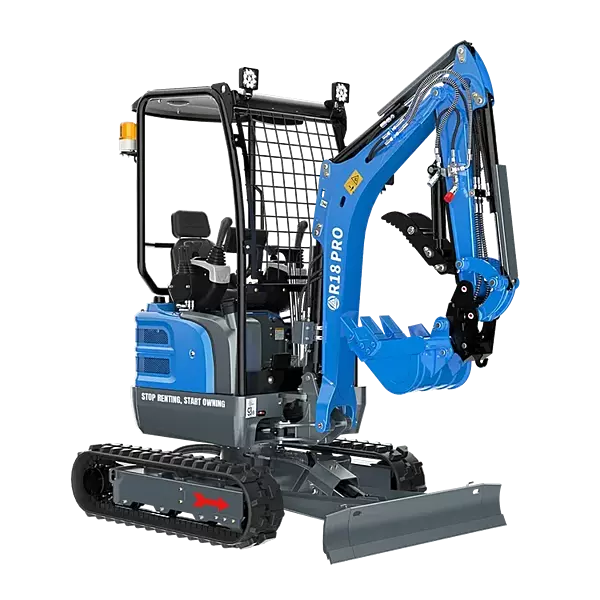

RIPPA R18-5 MINI EXCAVATOR

Rippa R18-5 Pro Mini Excavator
$21,999.00

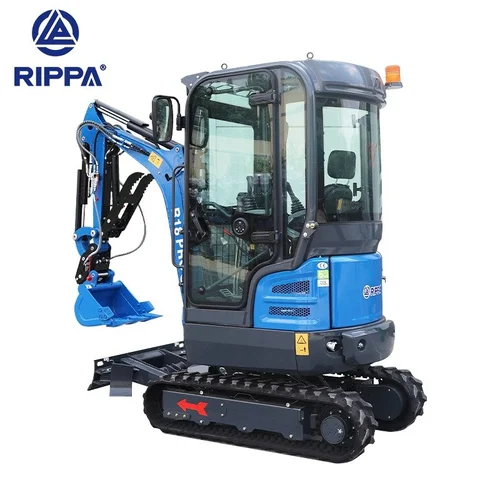

Rippa R18-5 Pro Mini Excavator w/ Cab
$22,999.00

Call for price- Its much lower - we are required to follow Rippa’s MAP Pricing

NOTE: above price could change due to tariffs and shipping.

NOTE: if you buy a machine from us, you will receive 50% off the prices below on attachments, whether you buy them with the machine or down the road.

Key Features:

Powered by a Kubota D902 diesel engine producing 11.8 kW (15.8 hp).

Adjustable chassis: tracks widen and narrow from 39” to 51.2”.

Welded hydraulic thumb that lies flat against the boom when not in use.

Swing boom: without moving the tracks, the boom swings at least 45 degrees in either direction.

Boom- and cab-mounted LED lights.

3-year factory parts warranty, which Kubota honors for engine work.

True two-speed travel motor with variable throttle.

Hydraulic quick-attach coupler included.

Back-up camera installed.

Rippa R18-5 Mini Excavator

Speakers integrated into the roof.

An optional GPS tracker can be installed by our team for $125. There is a $12.95 monthly fee payable to Land Air Sea, who we partnered with. 30 second updates. (Rippa USA Sales Exclusive)

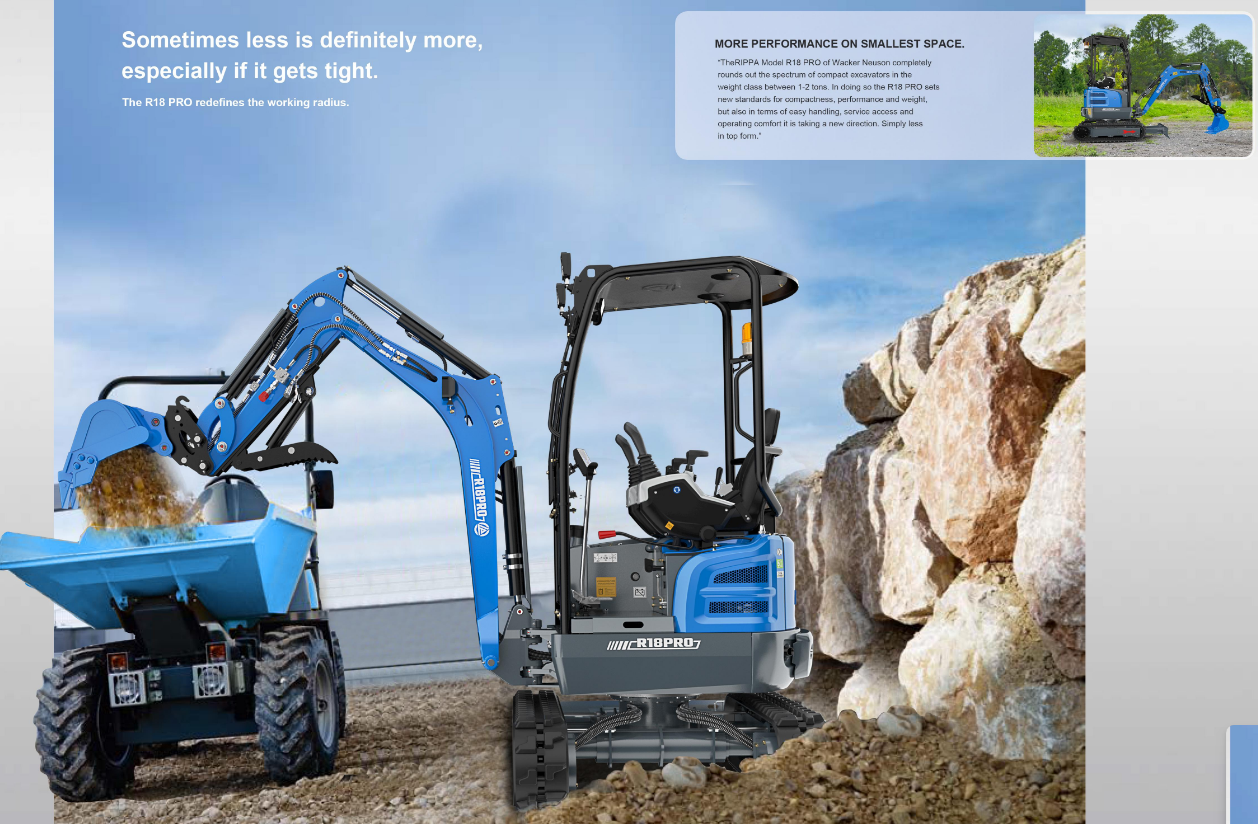

Compact Size, Large Capability

The Rippa R18-5 Pro sets a new standard for compactness, performance and weight in the 1-to-2 ton class. Its zero-tail design and compact dimensions make it extremely agile in tight work conditions, while a large-volume Kubota diesel and an efficient cooling system keep power and reserves in a very small space.

15.8 hp11.8 kW Kubota D902 diesel
39–51.2 intelescopic track width
95.3 inmaximum digging depth
3 yearsfactory parts warranty

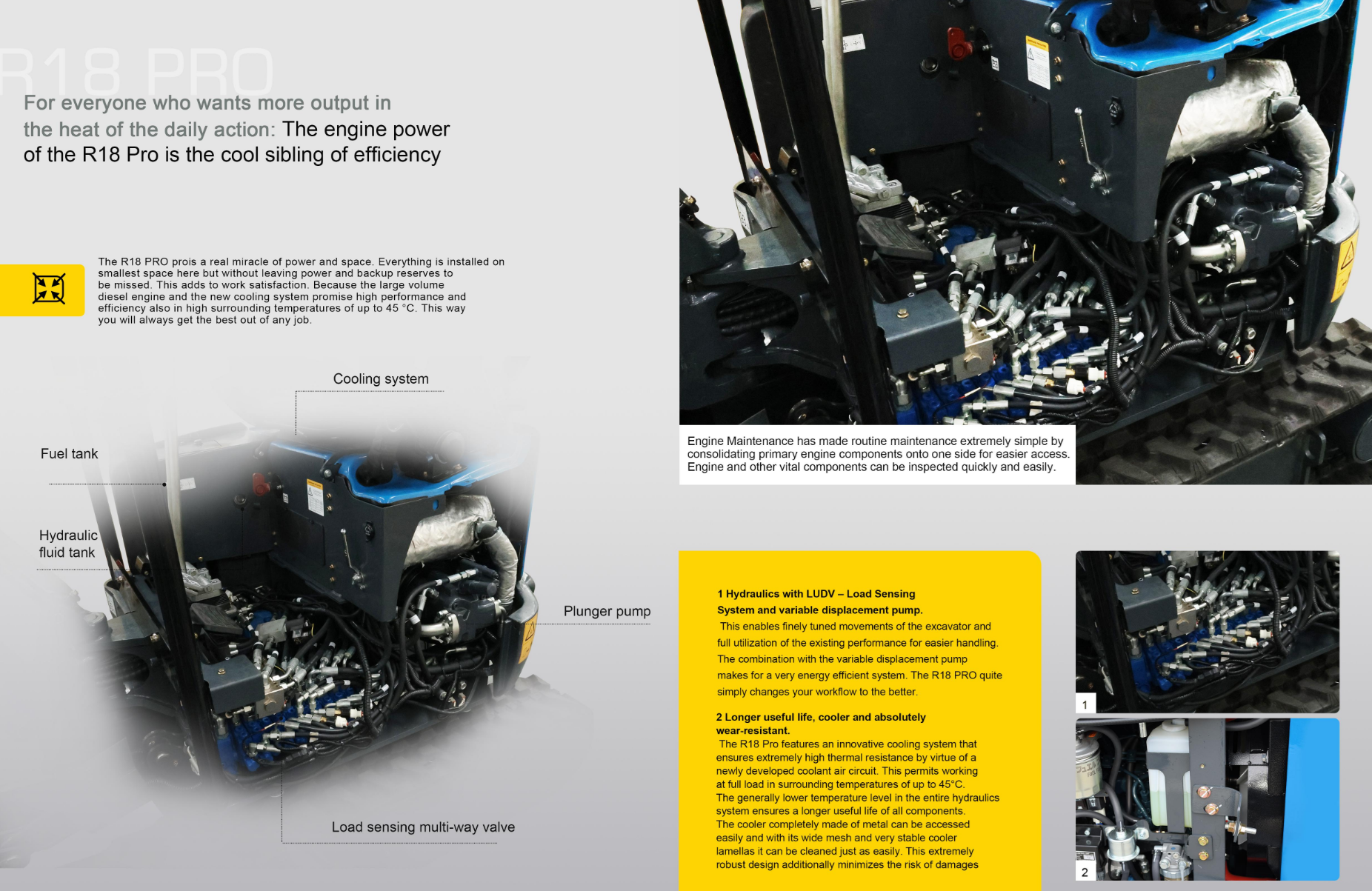

Engine compartment of the Rippa R18 showing cooling system and hydraulics
Engine, cooling system and hydraulics in one compact space

Engine Power and Cooling

Because of the large-volume diesel and a new cooling system, the R18 keeps performing in surrounding temperatures up to 113°F, so you can keep working without watching the thermometer.

  • Load-sensing hydraulics (LUDV): paired with a variable displacement pump for finely tuned movements, full use of the available performance and better energy efficiency.
  • Cooler and longer-lasting: a newly developed coolant air circuit and an all-metal cooler with wide mesh and sturdy lamellas run cooler, last longer and are easy to clean.
  • Double-acting auxiliary hydraulics: standard equipment that greatly expands the range of applications.

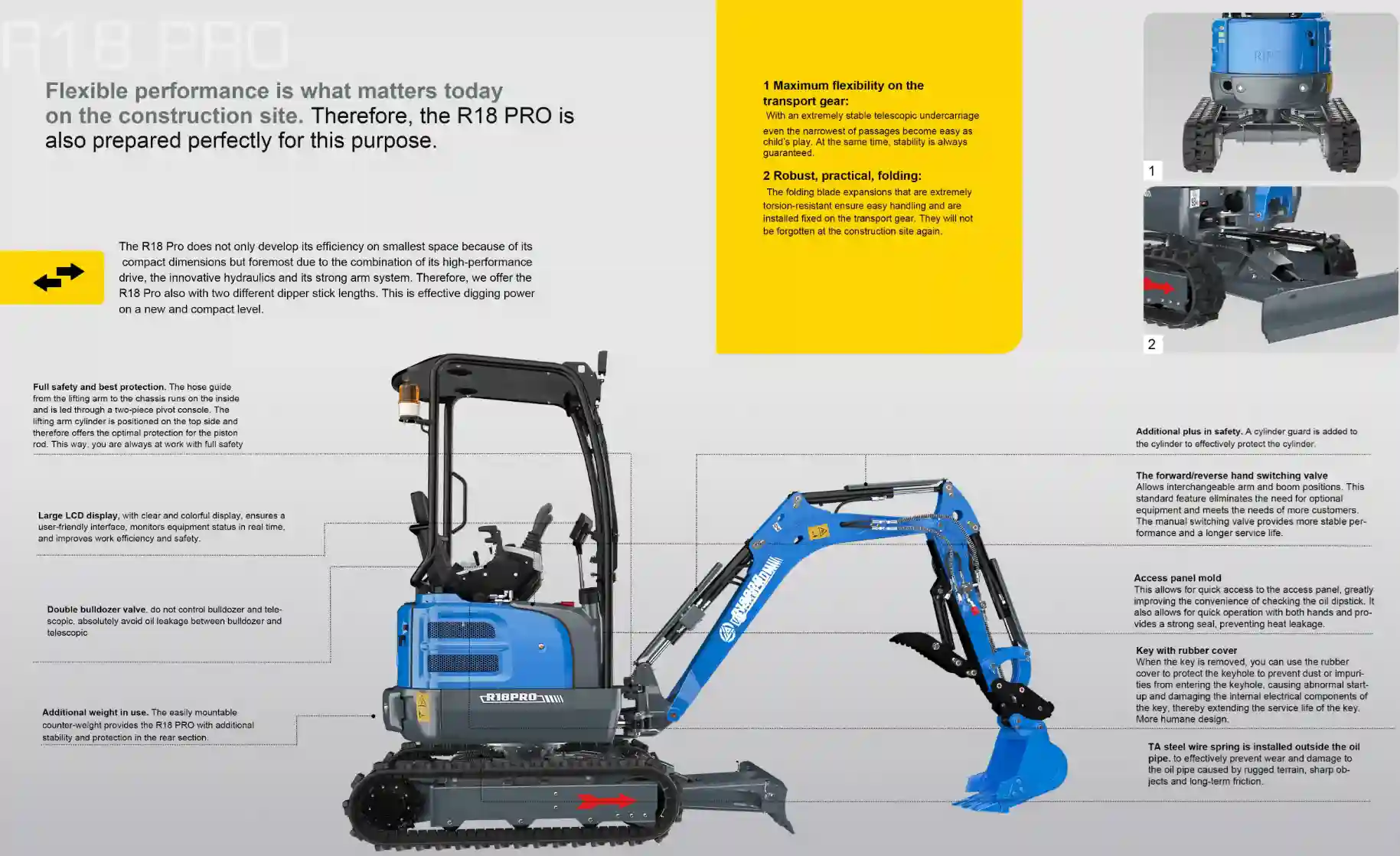

Telescopic Undercarriage and Folding Blade

An extremely stable telescopic undercarriage lets the R18 slip through the narrowest passages, then widens for stability on the job.

  • Folding blade: the torsion-resistant blade extensions are fixed to the undercarriage, so they are never forgotten on site.
  • Double bulldozer valve: separates the dozer and telescopic functions to avoid oil leakage between them.
  • Two dipper stick lengths: choose the arm length that fits the work for effective digging power at a compact size.
Rear view of the Rippa R18 telescopic undercarriage
Telescopic undercarriage
Folding dozer blade extension on the Rippa R18
Folding blade

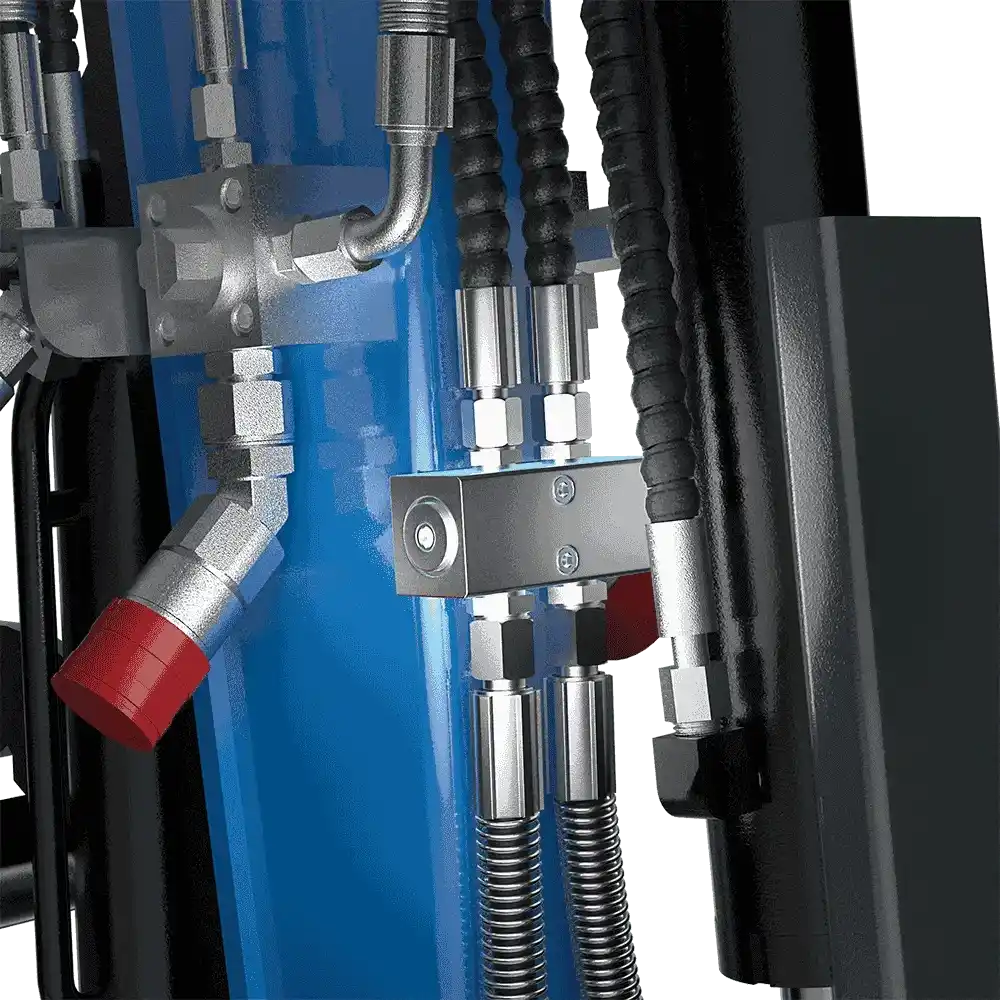

Four-way breaker hose assembly on the Rippa R18 boom
Four-way breaker hose assembly

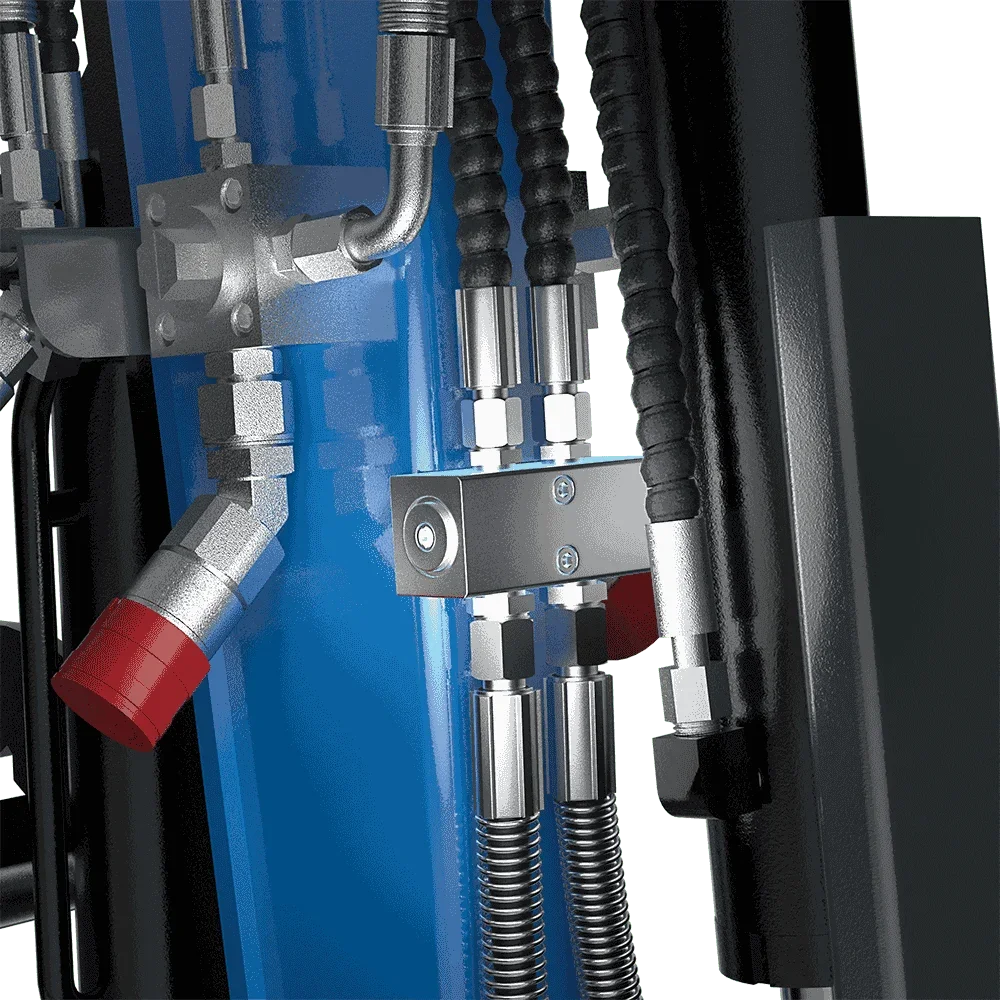

Four-Way Breaker Hose and Quick Hitch

A durable four-way breaker hydraulic hose assembly lets you hook up multiple auxiliary tools at once. Reinforced fittings and routed return ports simplify connection, keep oil flow stable and reduce heat buildup during long auxiliary use. A reserved mower return line makes it easy to add a grass-cutting attachment.

  • EASY LOCK quick hitch: ready for a new task within 30 seconds.
  • Explosion-proof valve: prevents the boom from dropping suddenly if a hose fails.
  • Different attachments: flexibility that makes work more efficient.

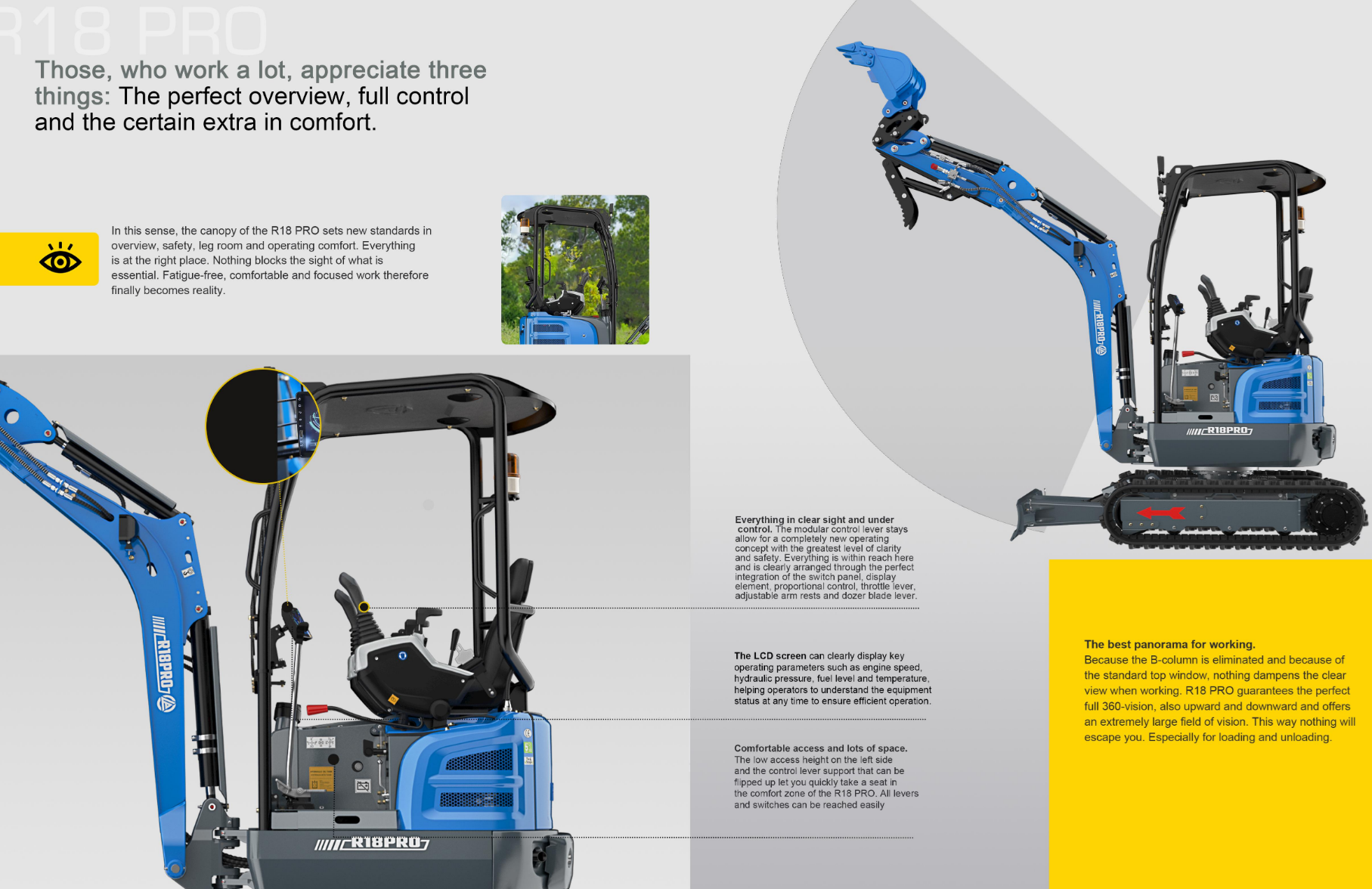

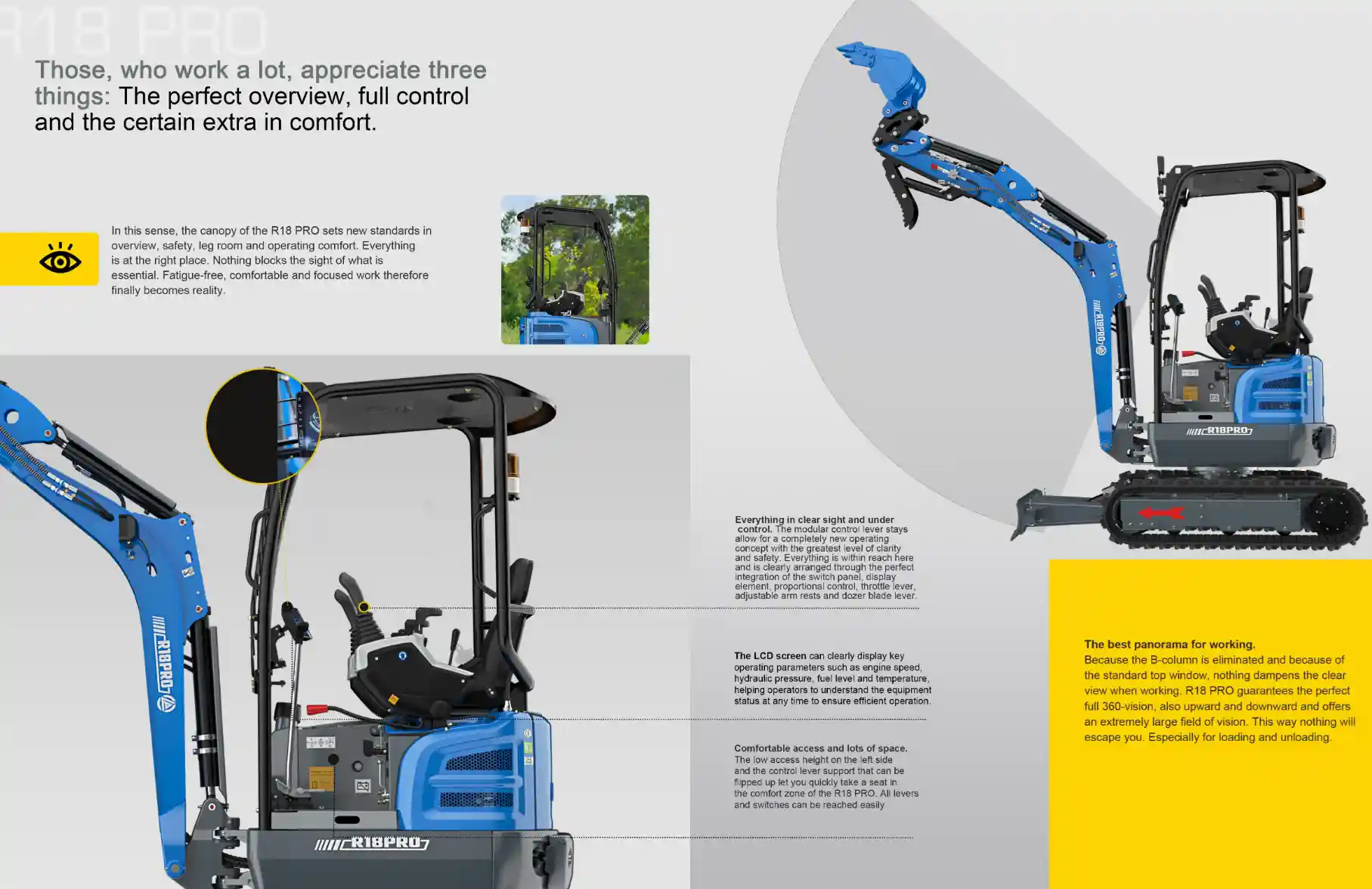

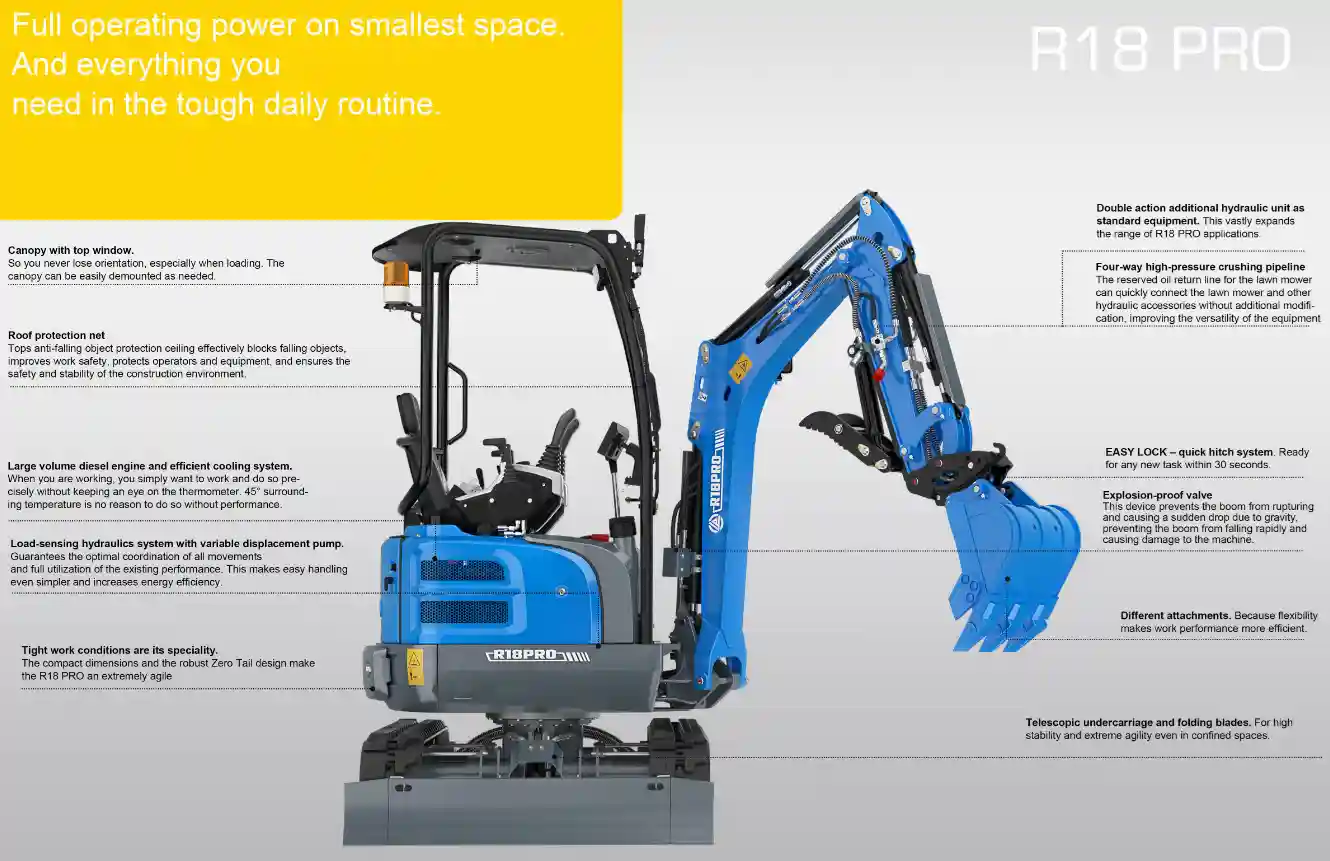

Perfect Overview, Full Control, Extra Comfort

The R18 canopy sets new standards in overview, safety, leg room and operating comfort. The B-column is eliminated and a top window is standard, so nothing blocks the view and the operator has full 360-degree vision, upward and downward.

  • Modular control lever stays: the switch panel, display, proportional control, throttle lever, adjustable armrests and dozer lever are all within reach.
  • Easy entry: a low access height on the left side and a control lever support that flips up let you take a seat quickly.

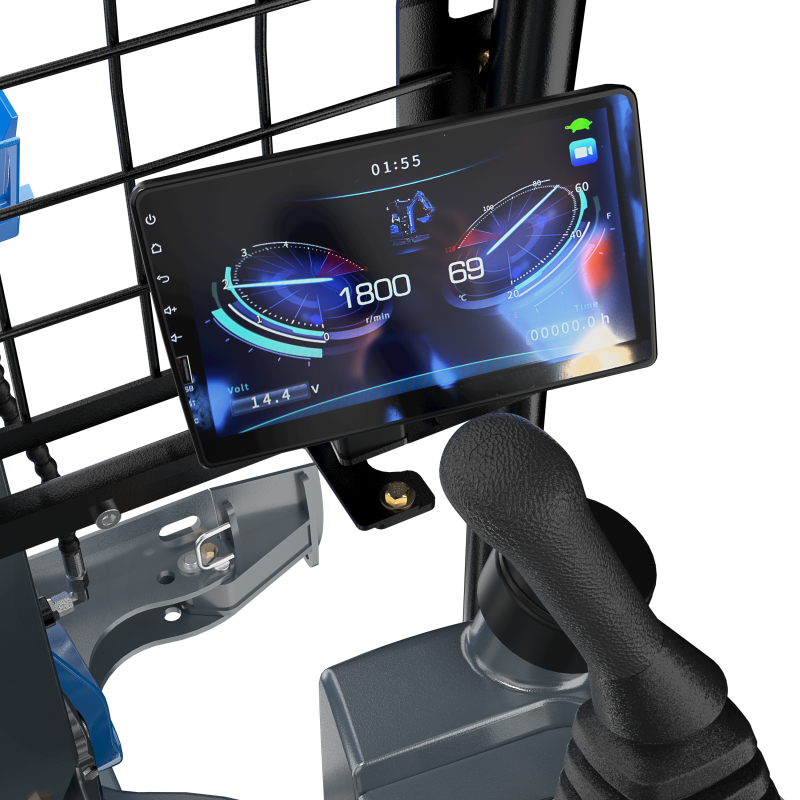

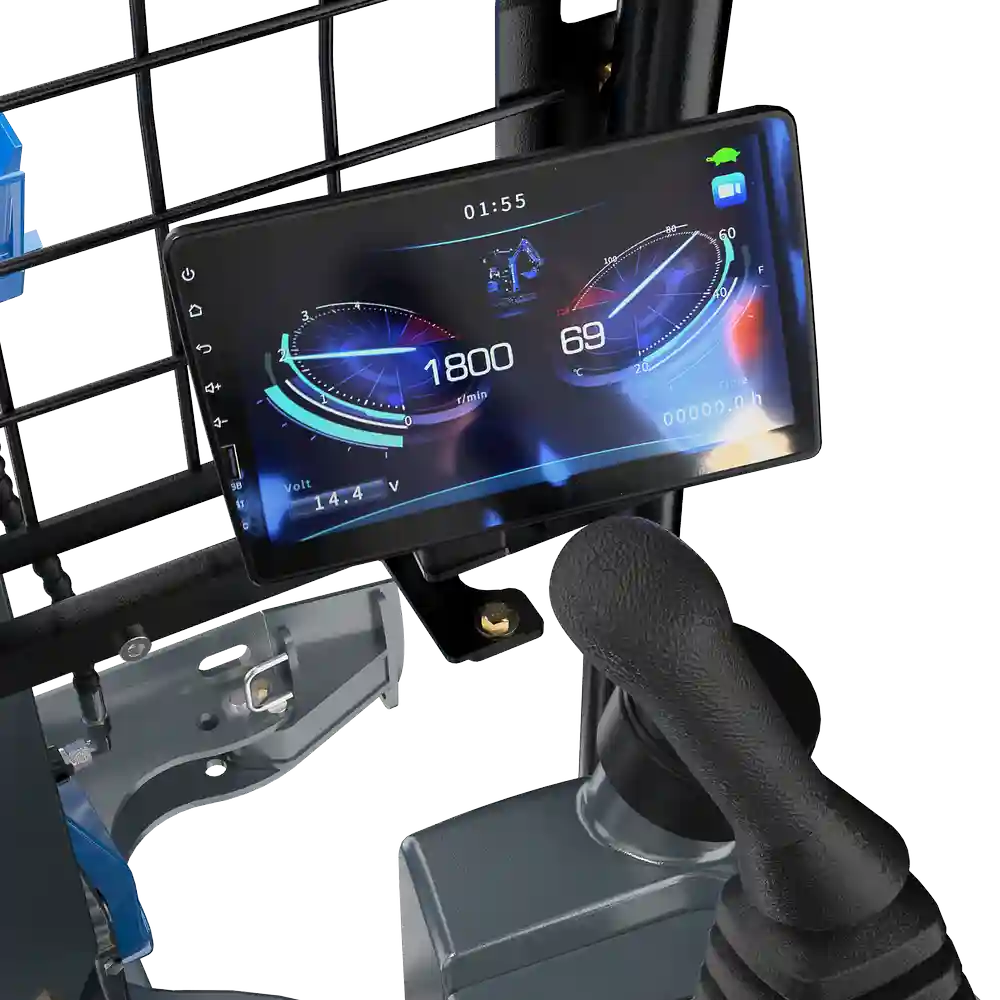

  • Large LCD display: a clear, colorful screen shows engine speed, hydraulic pressure, fuel level and temperature.
  • Forward/reverse hand switching valve: allows interchangeable arm and boom positions as a standard feature.
  • Rubber key cover: protects the keyhole from dust and extends key life.

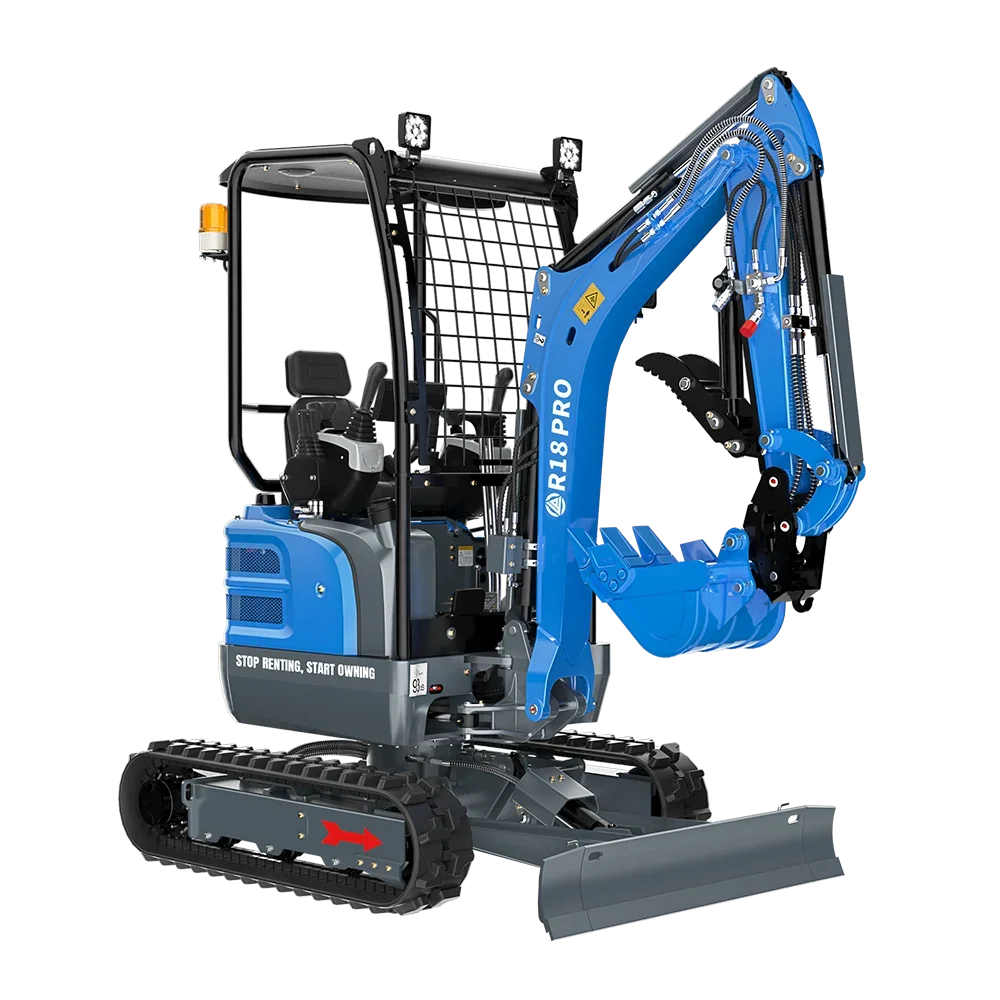

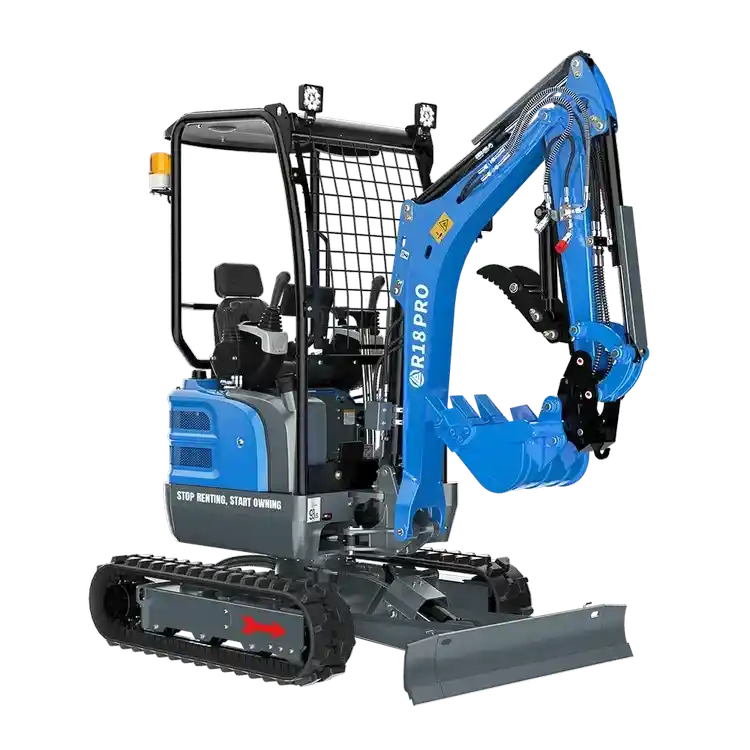

Side view of the Rippa R18 mini excavator with boom raised
The R18 with canopy and top window

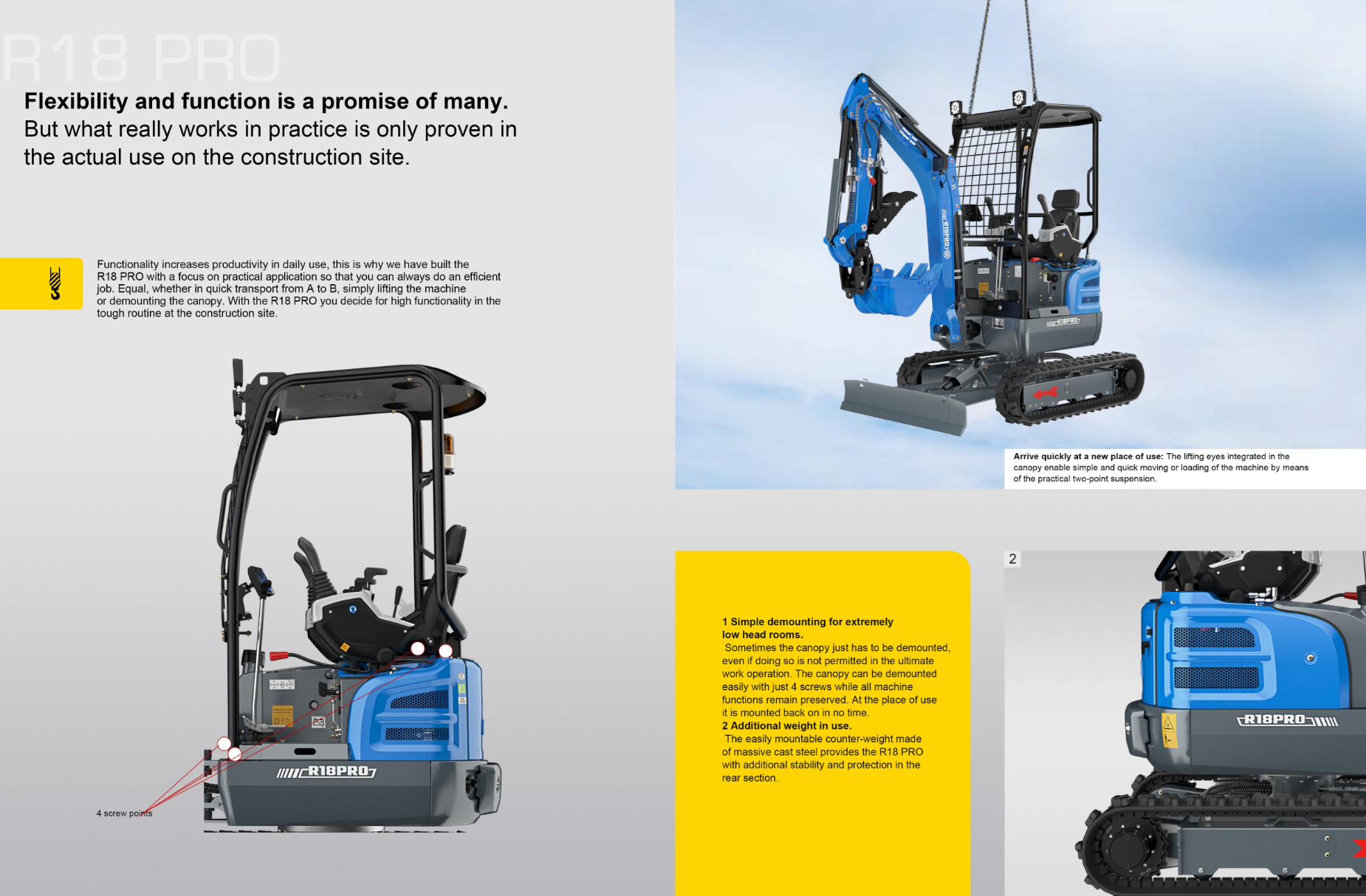

Rippa R18 mini excavator lifted by its canopy lifting eyes
Lifting eyes in the canopy for two-point suspension

Easy to Move, Easy to Protect

  • Quick moves: lifting eyes integrated in the canopy make moving or loading simple with a two-point suspension.
  • Low head rooms: the canopy removes with just 4 screws while all machine functions stay intact, then bolts back on at the work site.
  • Roof protection net: blocks falling objects and protects the operator and the machine.
  • Hoses and cylinders: the hose guide from the lifting arm to the chassis runs inside a two-piece pivot console, the lifting arm cylinder sits on top, and a cylinder guard adds protection.
  • TA steel wire spring: installed outside the oil pipe to prevent wear from rough terrain, sharp objects and long-term friction.

Added Stability

An easily mountable counterweight made of massive cast steel gives the R18 additional stability and protection in the rear section.

Cast steel rear counterweight on the Rippa R18
Cast steel counterweight

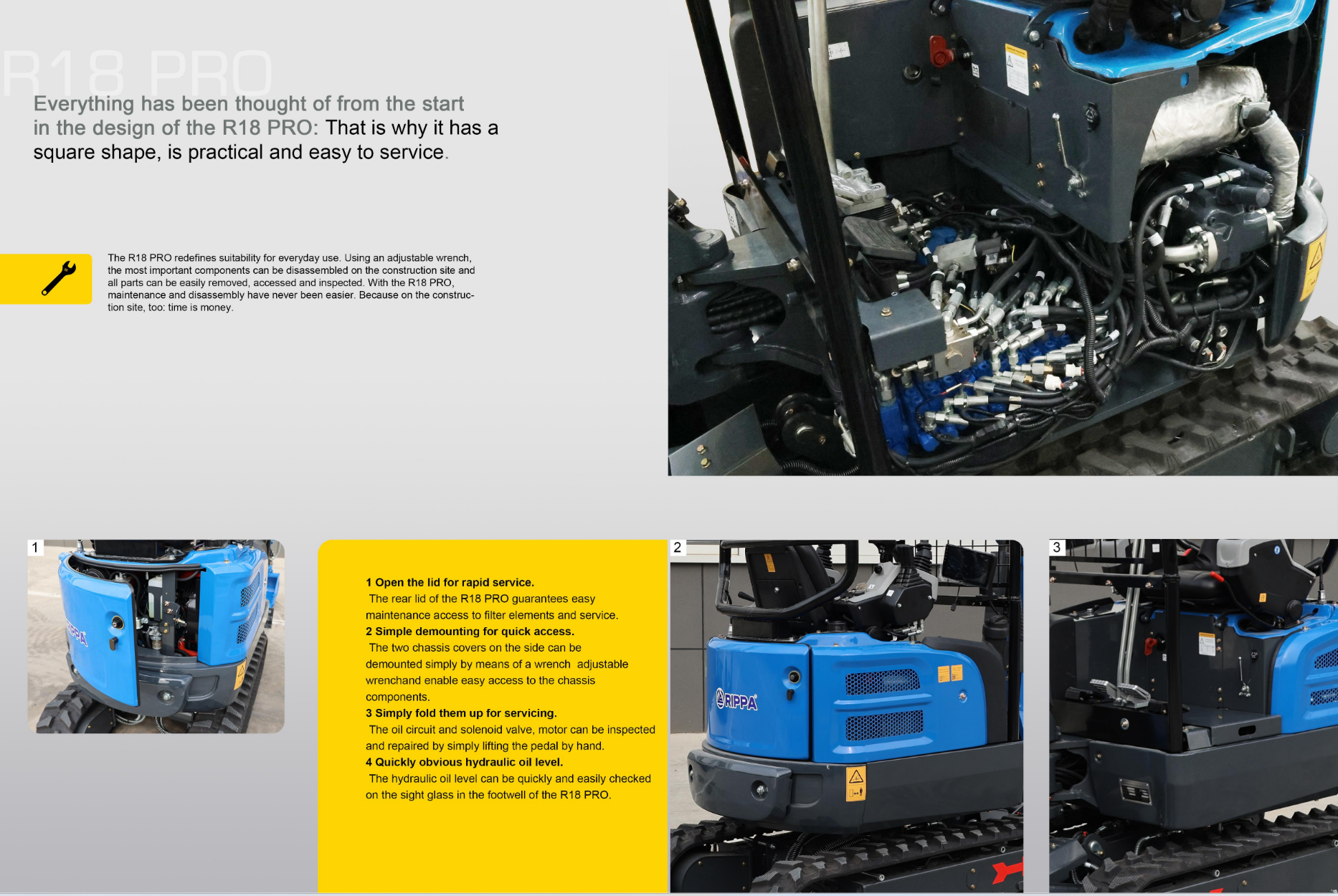

Built for Fast, Simple Service

Routine maintenance is simple because the primary engine components are consolidated on one side. On the construction site, time is money, so the most important parts come off with an adjustable wrench.

Rear lid of the Rippa R18 open for service access
Open the rear lid for rapid service
Hydraulic valve block and hoses on the Rippa R18
Hydraulic valves and service points

Rear lid

Opens for easy access to filter elements and service points.

Chassis covers

The two side chassis covers come off with an adjustable wrench for easy access to chassis components.

Fold-up pedal

Lift the pedal by hand to inspect and repair the oil circuit, solenoid valve and motor.

Sight glass

Check the hydraulic oil level quickly on the sight glass in the footwell.

Access panel

Quick access to the oil dipstick with a strong seal that prevents heat leakage.

Wrench disassembly

The most important components can be removed, accessed and inspected on site.

Brand ModelR10-6R13-4R15-5 ECOR18-5 PROR22-4 PROR32-5 PROR57-2
EngineEngine ModelKubota Z482Kubota D722Kubota D722Kubota D902Kubota D1105Kubota V1505Kubota V2607
# of Cylinders2333344
Rated Power10.98HP13.68HP13.68HP15.8HP24.37HP24.37HP68.4HP
Main PumpNumber of Main Pump TypesGear Pump x 1Gear Pump x 3Gear Pump x 3Variable Displacement Piston Pump x 1Variable Displacement Piston Pump x 1Variable Displacement Piston Pump x 1Variable Displacement Piston Pump x 1
Max Flow Rate4.76gpm5.71gpm5.71gpm10.94gpm17.74gpm26.15gpm39.5gpm
Operating SystemCompound MotionN/AN/AN/A1111
Pilot SystemN/A4 Way Pilot Operated + 4 Way Mechanically Operated4 Way Pilot Operated + 4 Way Mechanically Operated10 Way Pilot Operated9 Way Pilot Operated9 Way Pilot Operated9 Way Pilot Operated
Valve InfoValve TypeMechanical Control ValveHydraulic & MechanicalHydraulic & MechanicalLoad Sensitive Control ValveLoad Sensitive Control ValveLoad Sensitive Control ValveLoad Sensitive Control Valve
Hydraulic Motor TypeTravel Motor SpeedSingle SpeedDual SpeedDual SpeedDual SpeedDual SpeedDual SpeedDual Speed
Motor TypeCyclodialCyclodialCyclodialPlungerPlungerPlungerPlunger
Swing Motor TypeCyclodialCyclodialCyclodialCyclodial w/ CushioningCyclodial w/ CushioningCyclodial w/ CushioningCyclodial w/ Cushioning
Basic ParametersTotal Weight2151.8 lbs.2904 lbs.3307 lbs.4074 lbs.5223.85 lbs.7082 lbs.12,705 lbs
Bucket Size11.8"15.7"15.7"15.7"15.7"23.54"23.54"
Max Digging Depth72.2" / ~ 6'72.5" / ~ 6'71.2" / ~ 6'95.3" / 7.5'90.4" / 8.5'111.3" / 10'144.8" / 12.4'
Narrowest Transport Width35.91"33.4"38.74"38.94"51.18"61.02"74"
Tail TypeConventionalZero TailZero TailZero TailZero TailZero TailZero Tail
Total Track Length104.84"116.14"116.14"139.3"55.47"73.62"100"
SpecsSmart DisplayN/AN/AStandard Across All Models
Bucket Capacity.494 cu ft..494 cu ft..64 cu ft.1.59 cu ft.1.9 cu ft.2.83 cu ft.3.2-6.2cu ft.
Hydraulic Oil CoolerStandard Across All Models
Boom Length58.1"57.1"58.1"71.9"72.1"87.4"118.1"
Arm Length31.5"35.4"37.4"70.1"49.2"63.8"63"
Track Specs Width x Pitch x # of Links7.09"x2.83"x37L7.09"x2.83"x41L7.09"x2.83"x41L9.06"x1.89"x74L9.84"x1.85"x84L11.81"x2.07"x84L15.75"x5.31"x40L
Track TypeRubber TrackSteel Track /w Rubber InsertsRubber TrackRubber TrackRubber TrackRubber TrackRubber Track
Warranty Term2 Years2 Years2 Years3 Years3 Years3 Years3 Years
Cab OptionsCab without ACCab without ACCab without ACCab without ACCab w/AC or No CabCab w/AC or No CabCab w/AC or No Cab

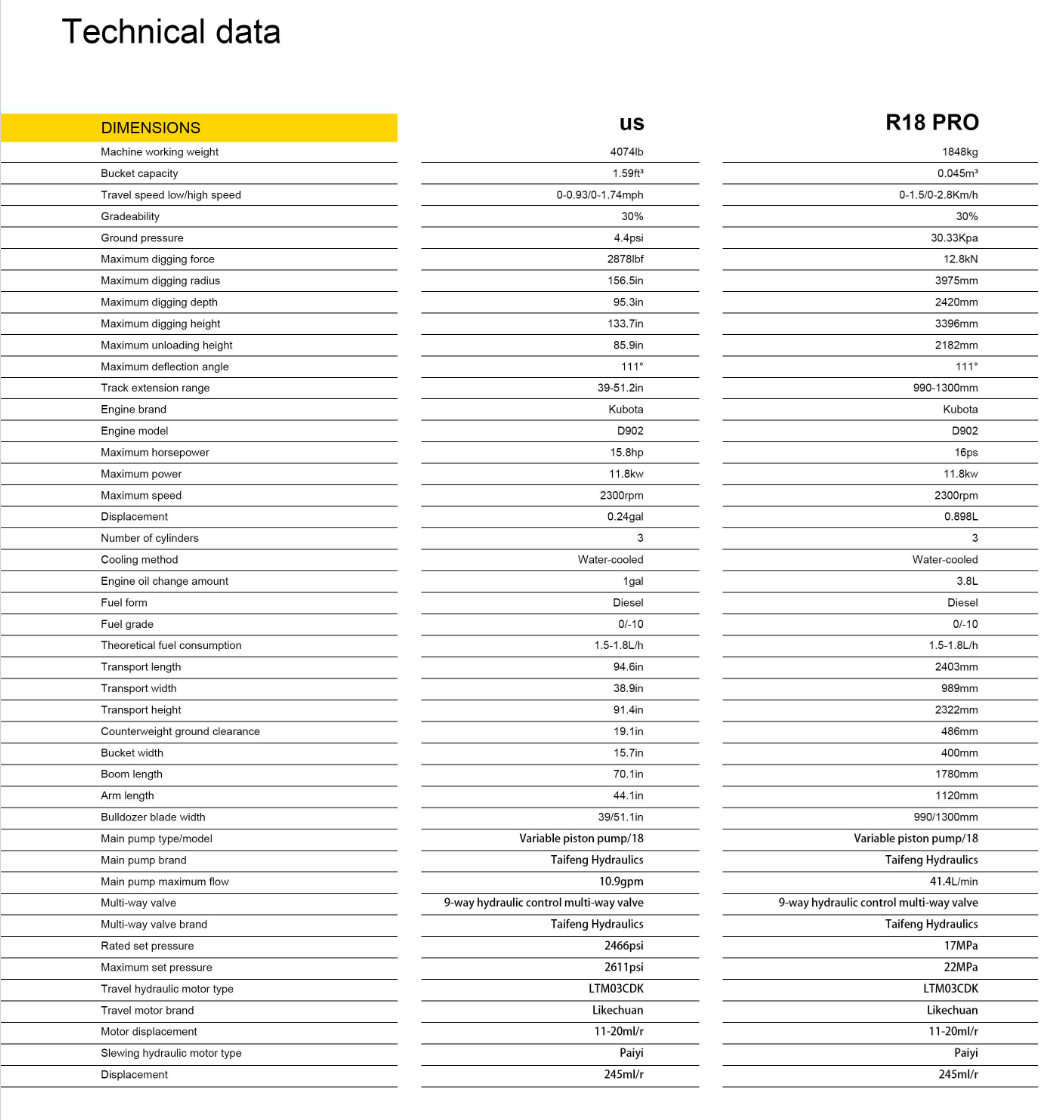

Rippa R18-5 PRO Technical Specifications

All specifications are shown in imperial units. Metric figures on the manufacturer sheet have been converted.

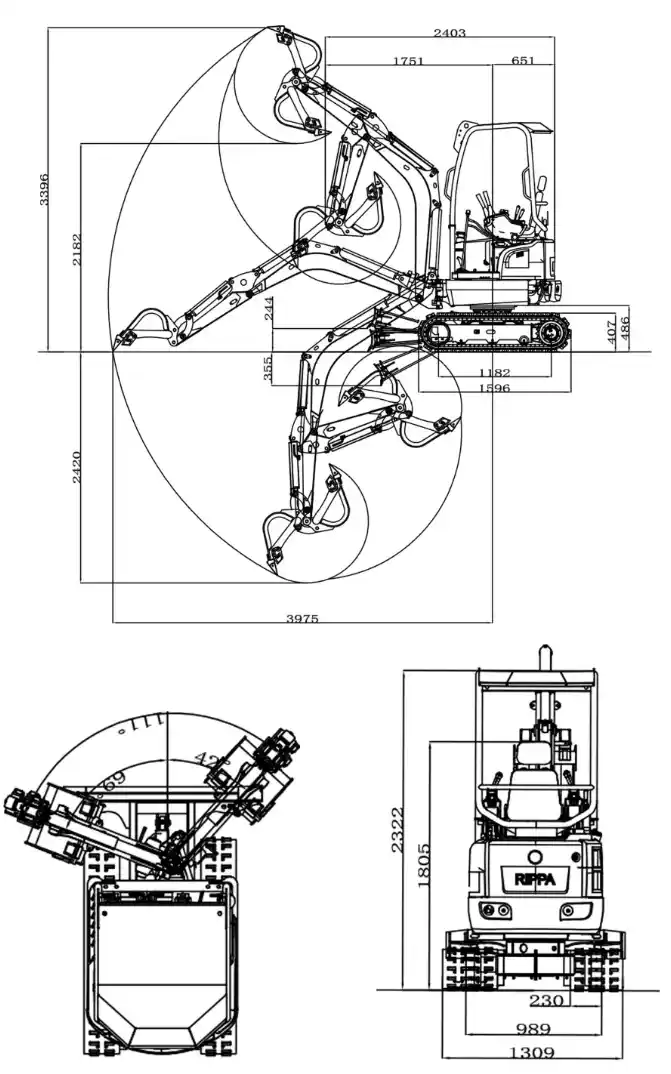

Dimensions and Basic Parameters
Machine Working Weight4,074 lbs
Bucket Capacity1.59 cu ft
Travel Speed Low / High0-0.93 mph / 0-1.74 mph
Gradeability30%
Ground Pressure4.4 psi
Maximum Digging Force2,878 lbf
Maximum Digging Radius156.5"
Maximum Digging Depth95.3"
Maximum Digging Height133.7"
Maximum Unloading Height85.9"
Maximum Deflection Angle111 degrees
Track Extension Range39"-51.2"
Engine
Engine BrandKubota
Engine ModelD902
Maximum Horsepower15.8 hp
Maximum Speed2300 rpm
Displacement0.24 gal
Number of Cylinders3
Cooling MethodWater-cooled
Engine Oil Change Amount1 gal
Fuel FormDiesel
Fuel Grade0/-10
Theoretical Fuel Consumption0.40-0.48 gal/h
Body
Transport Length94.6"
Transport Width38.9"
Transport Height91.4"
Counterweight Ground Clearance19.1"
Bucket Width15.7"
Boom Length70.1"
Arm Length44.1"
Bulldozer Blade Width39"/51.1"
Hydraulic System
Main Pump Type/ModelVariable piston pump/18
Main Pump BrandTaifeng Hydraulics
Main Pump Maximum Flow10.9 gpm
Multi-Way Valve9-way hydraulic control multi-way valve
Multi-Way Valve BrandTaifeng Hydraulics
Rated Set Pressure2,466 psi
Maximum Set Pressure2,611 psi
Travel Hydraulic Motor TypeLTM03CDK
Travel Motor BrandLikechuan
Motor Displacement11-20 ml/rev (0.67-1.22 cu in/rev)
Slewing Hydraulic Motor TypePaiyi
Slewing Motor Displacement245 ml/rev (14.95 cu in/rev)
Additional Specs
Compound MotionYes
Pilot System10 Way Pilot Operated
Valve TypeLoad Sensitive Control Valve
Swing Motor TypeCycloidal with Cushioning
Tail TypeZero Tail
Total Track Length139.3"
Hydraulic Oil CoolerStandard
Smart DisplayStandard
Track Specs Width x Pitch x # of Links9.06" x 1.89" x 74 links
Track TypeRubber Track
Warranty Term3 Years
Cab OptionsCab without AC

Rippa R18 Excavator demo.

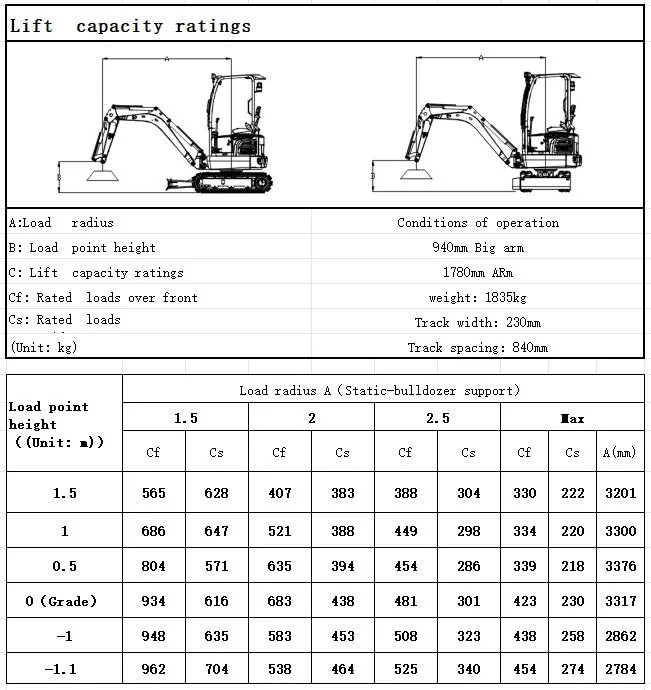

Rippa excavator lift capacity

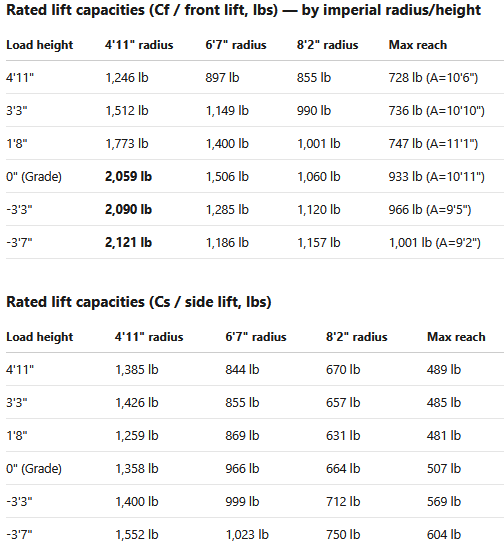

Rippa excavator lift capacity

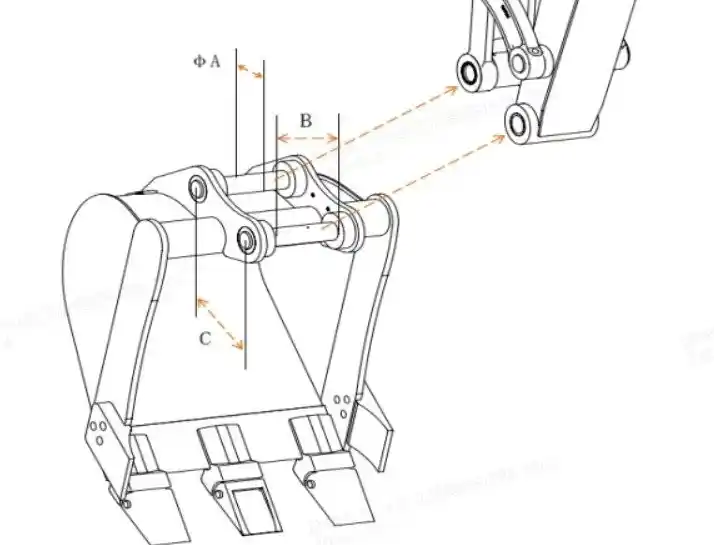

Excavator pin spacing details

Want to know if other attachments will fit? Make sure they align with this:

MachineABC
R1830122130

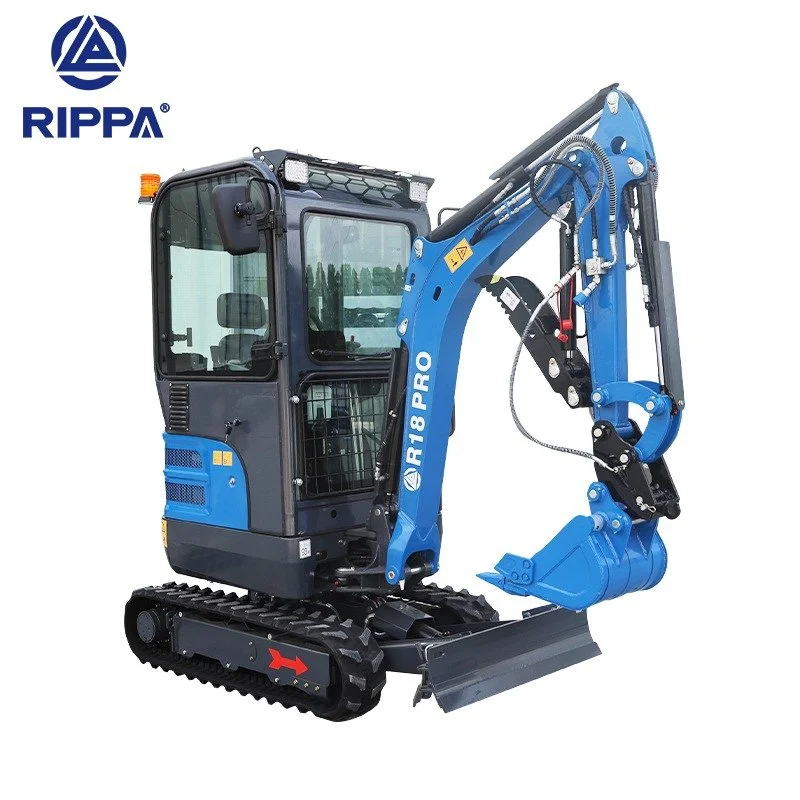

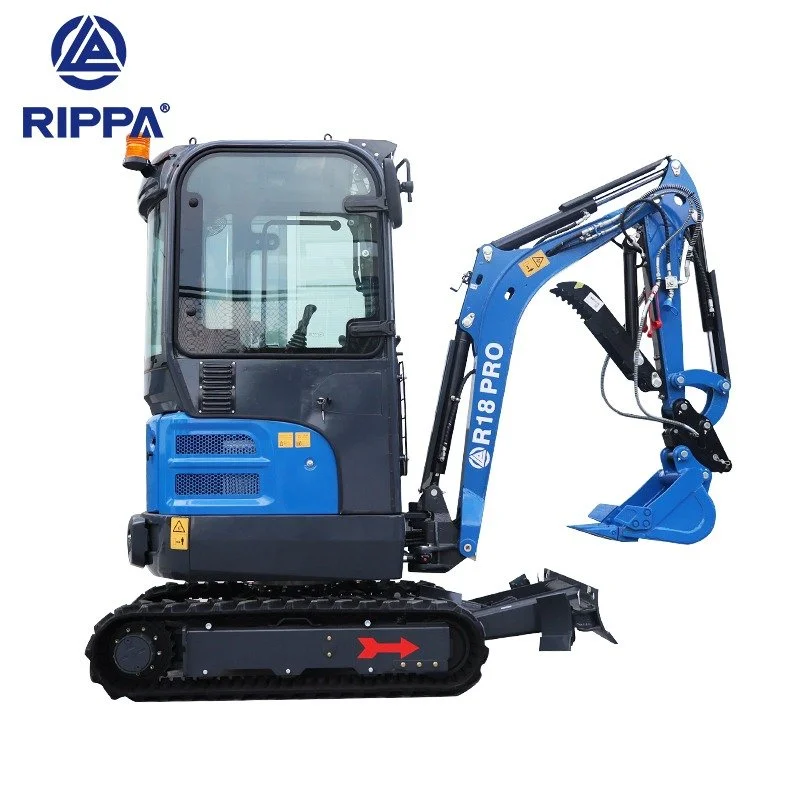

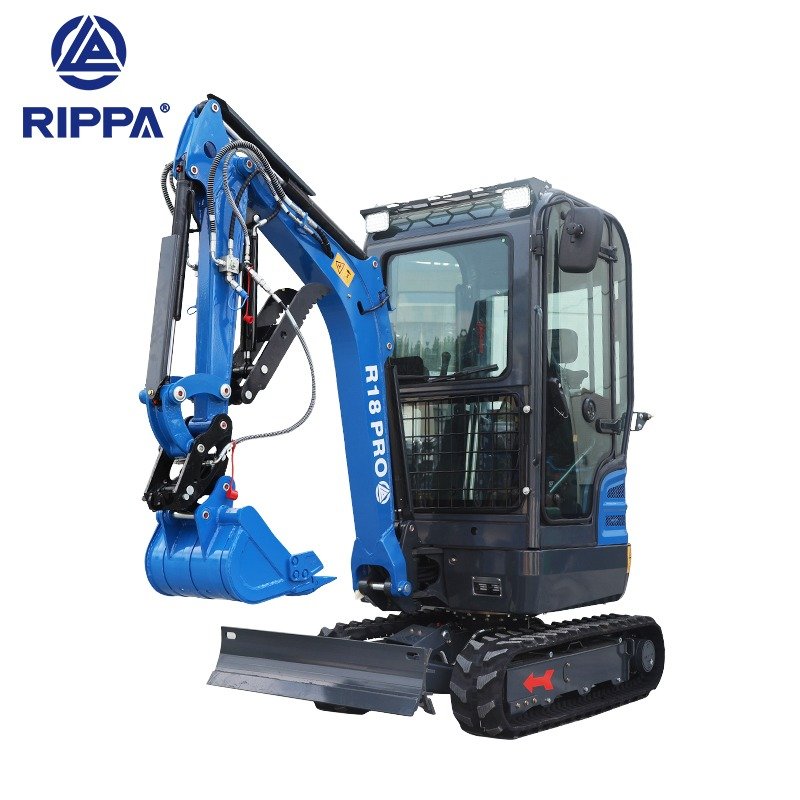

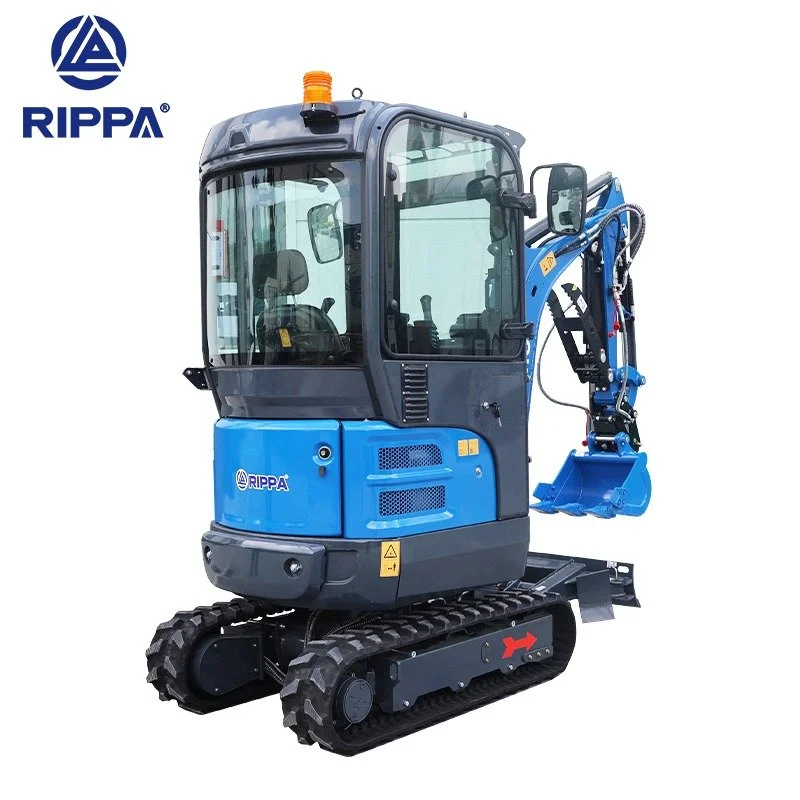

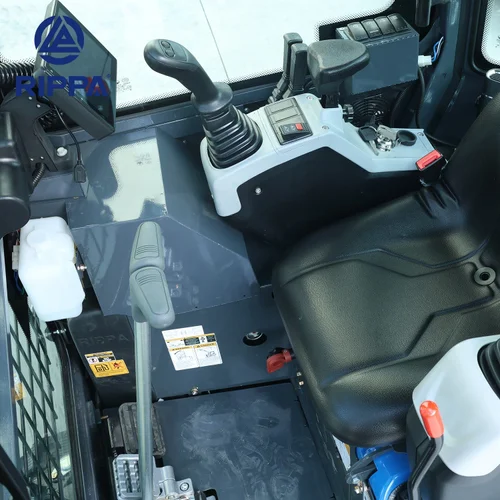

SHOWN ARE PICTURES OF THE R18-5 WITH CAB.
