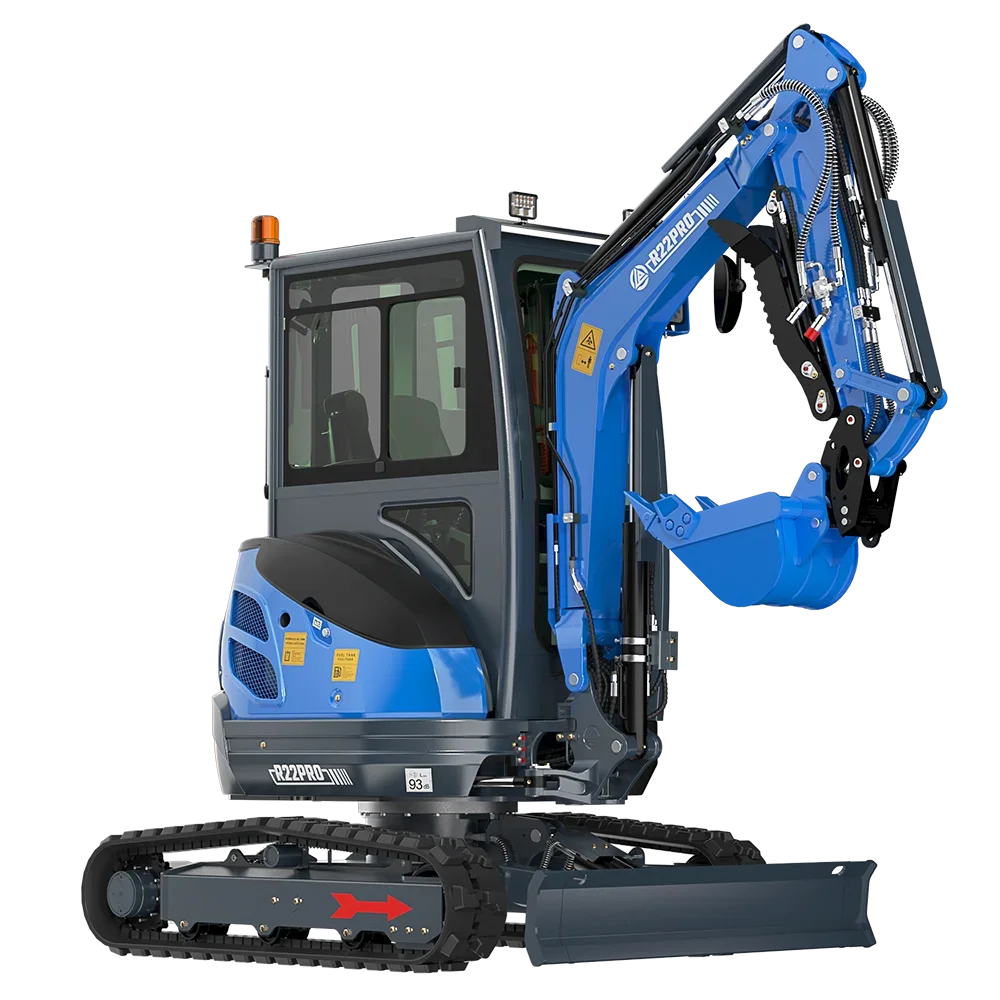

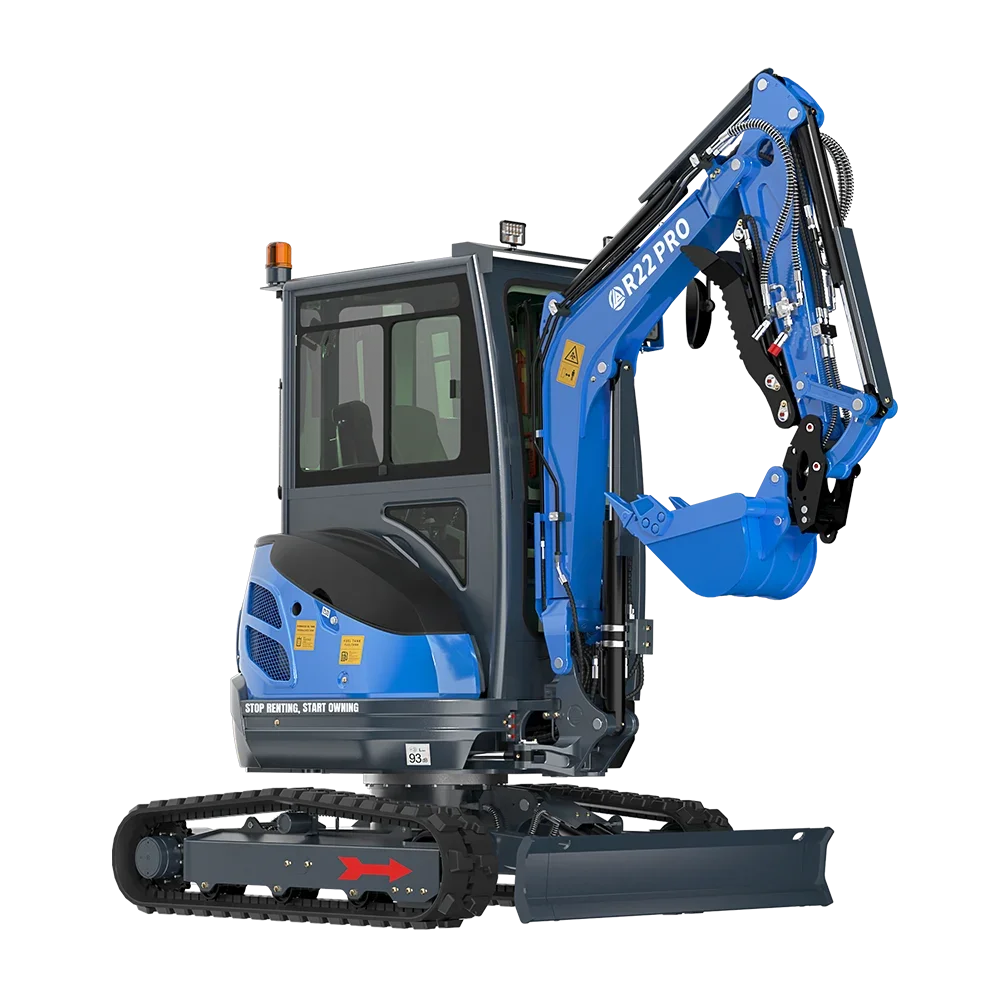

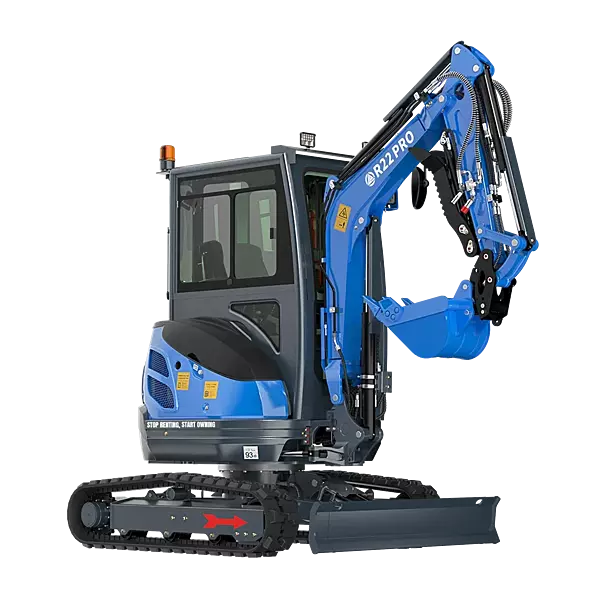

RIPPA R22-4 MINI EXCAVATOR MY2026
Call for price- Its much lower - we are required to follow Rippa’s MAP Pricing
NOTE: above price could change due to tariffs and shipping.
NOTE: if you buy a machine from us, you will receive 50% off the prices below on attachments, whether you buy them with the machine or down the road.
Key Features:
Powered by a Kubota D1105 diesel engine producing 18.5 kW (25 hp).
Automatic idle: when the control lever returns to center, the engine drops to idle on its own, saving about 10% on fuel.
Boom-mounted and cab-mounted work lights.
Enclosed cab with air conditioning, a radio with two speakers, LED dome lights, a back-up camera and a mini computer that displays key data such as RPM and service times. The AC is belt-driven rather than electric, which allows a more powerful unit.
Swing boom: moves at least 45 degrees in either direction without moving the tracks.
3-year factory parts warranty, which Kubota also honors for engine-related issues.
Back-up camera installed.
Welded hydraulic thumb included.
Hydraulic quick-attach coupler included.
Four-way dozer blade.
An optional GPS tracker can be installed by our team for $125. There is a $12.95 monthly fee payable to Land Air Sea, who we partnered with. 30 second updates. (Rippa USA Sales Exclusive)

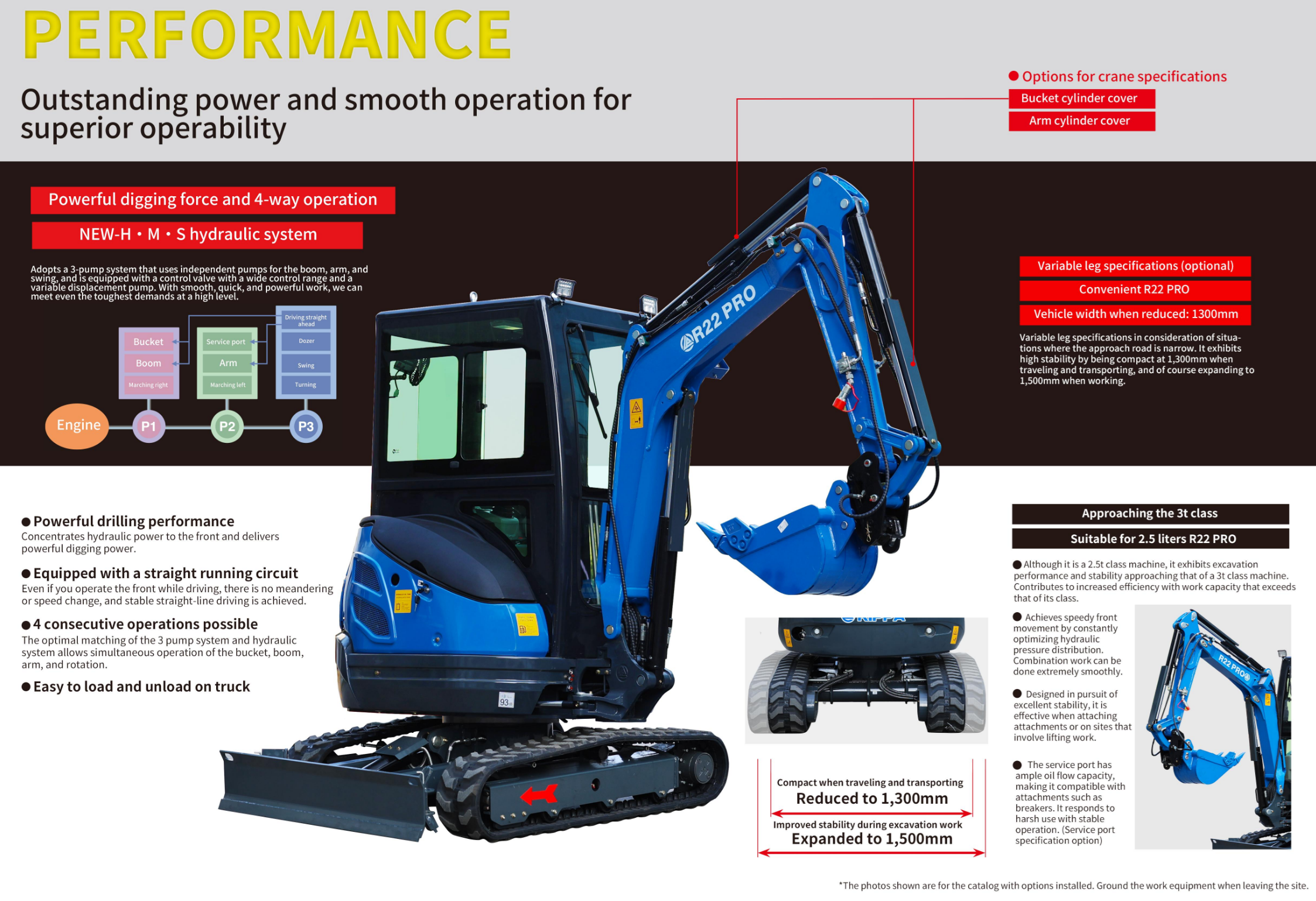

3-Ton Performance From a 2.5-Ton Class Machine
The Rippa R22-4 Pro is built to out-dig its size. It is a 2.5-ton class excavator that delivers digging performance and stability approaching a 3-ton machine, so you get more work capacity than you would expect from its class. A Kubota diesel supplies 24.75 hp (18.5 kW) and a load-sensing hydraulic system keeps combination work smooth.

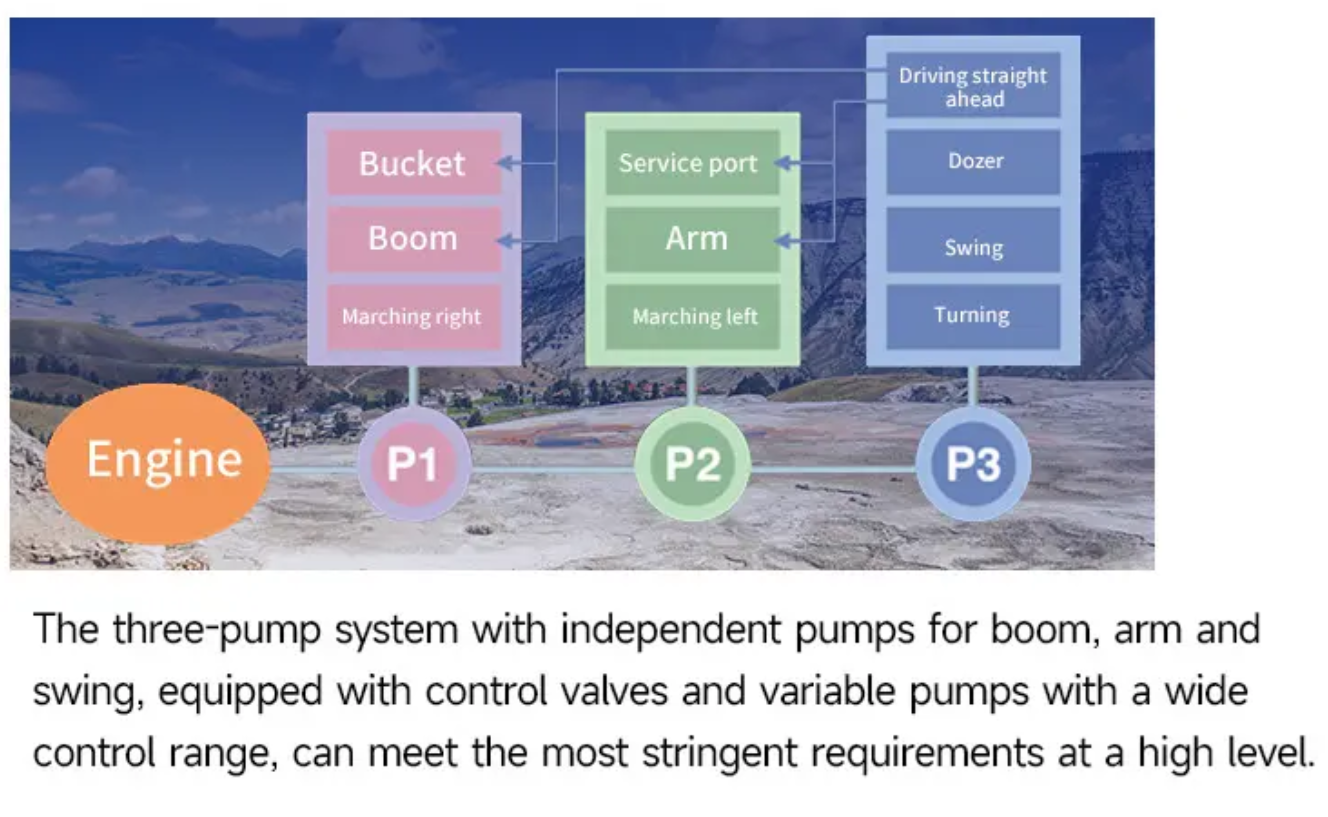

Three-Pump Hydraulics and 4-Way Operation
The NEW-H-M-S hydraulic system gives the boom, arm and swing independent pumps and pairs a wide-range control valve with a variable displacement pump. The result is smooth, quick and powerful work, even on the toughest jobs.
Powerful digging performance
Hydraulic power is concentrated at the front for strong digging force.
Straight running circuit
You can work the front while driving with no meandering or change in speed, so travel stays straight and stable.
4 consecutive operations
The three-pump system matches the hydraulics so the bucket, boom, arm and rotation can all work at the same time.
Easy truck loading
The compact R22 is easy to load and unload from a truck, and the service port has ample oil flow for attachments such as breakers (service port option).

Smart Display and Dual-Button Control Handles

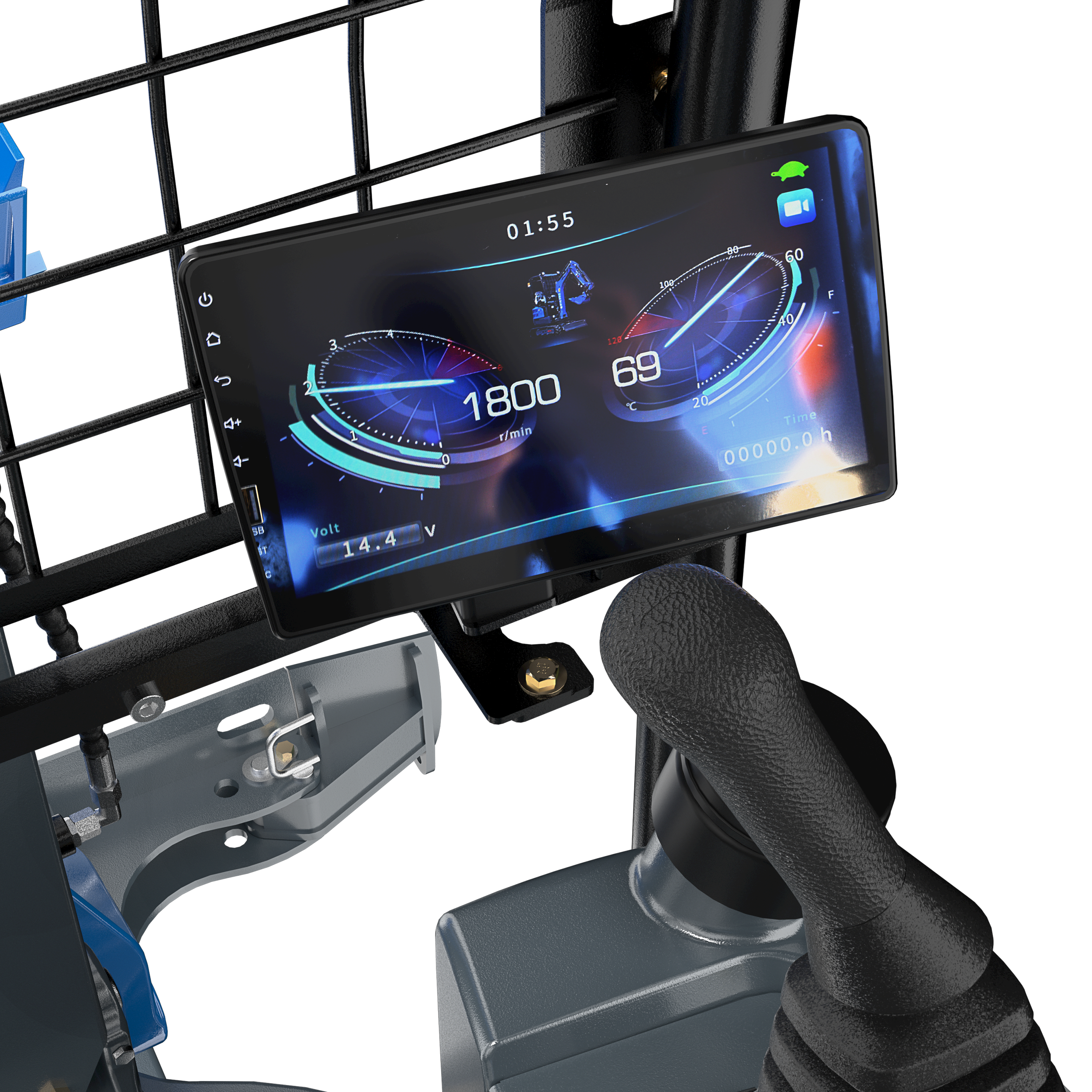

The large smart screen shows operating parameters in real time, including engine status, oil pressure, hydraulic system status, fuel consumption and temperature, so the operator always knows the working status of the machine. Error codes and warning lights flag overheating, hydraulic problems and charging system faults right away.
The dual-button control handles keep operation intuitive: the left button controls articulation and swing while the right activates the horn. Extra buttons are reserved for future function upgrades.

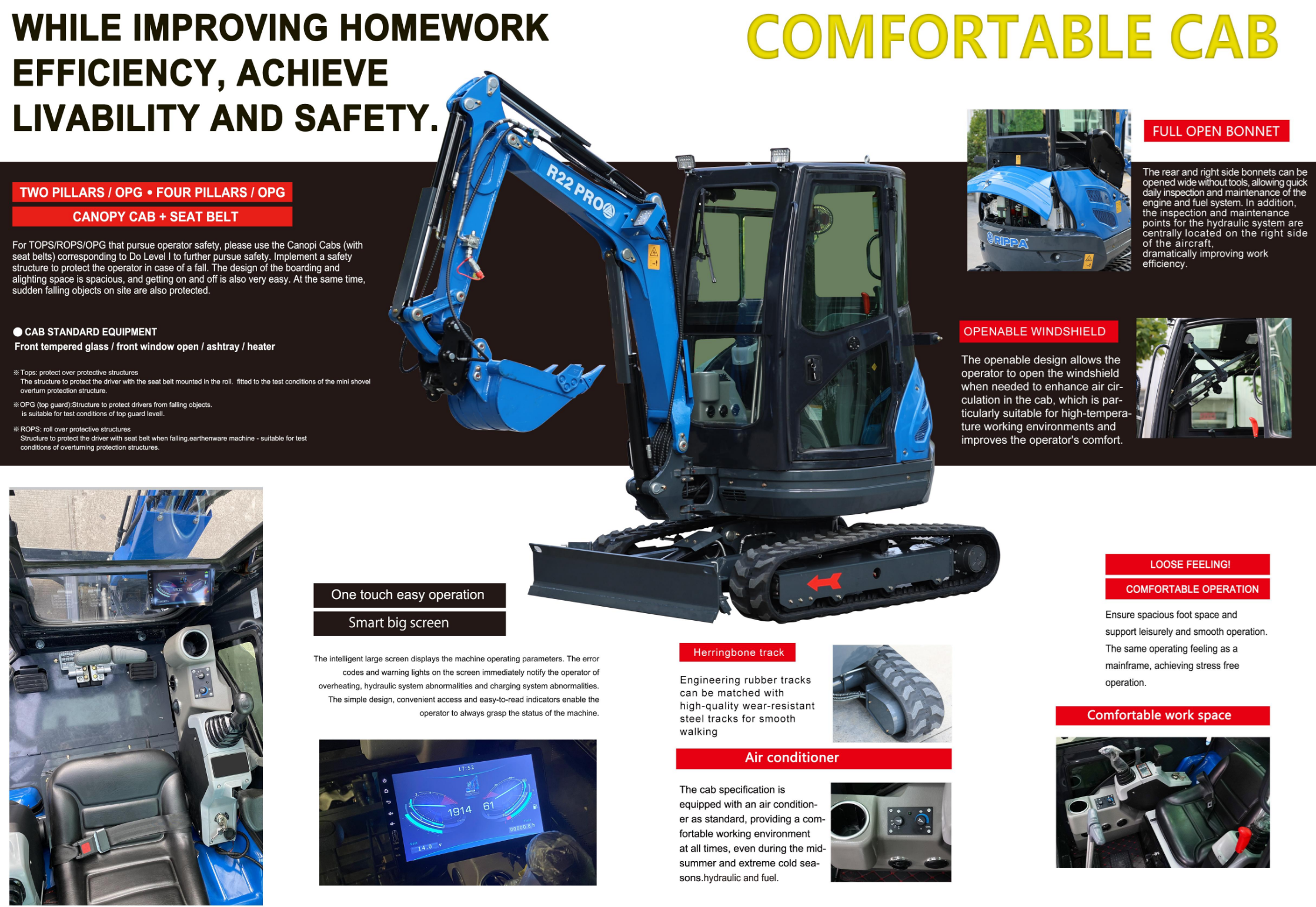

A Comfortable, Protected Cab
Choose a two-post or four-post OPG canopy with a seat belt, or the enclosed cab. Both protect the operator in a fall or from falling objects on site, and the spacious boarding space makes getting on and off easy.
- Cab equipment: front tempered glass, openable front window and a heater, plus standard air conditioning on the cab version for comfort in midsummer and extreme cold.
- Openable windshield: opens when needed to improve air circulation, which is especially welcome in high heat.

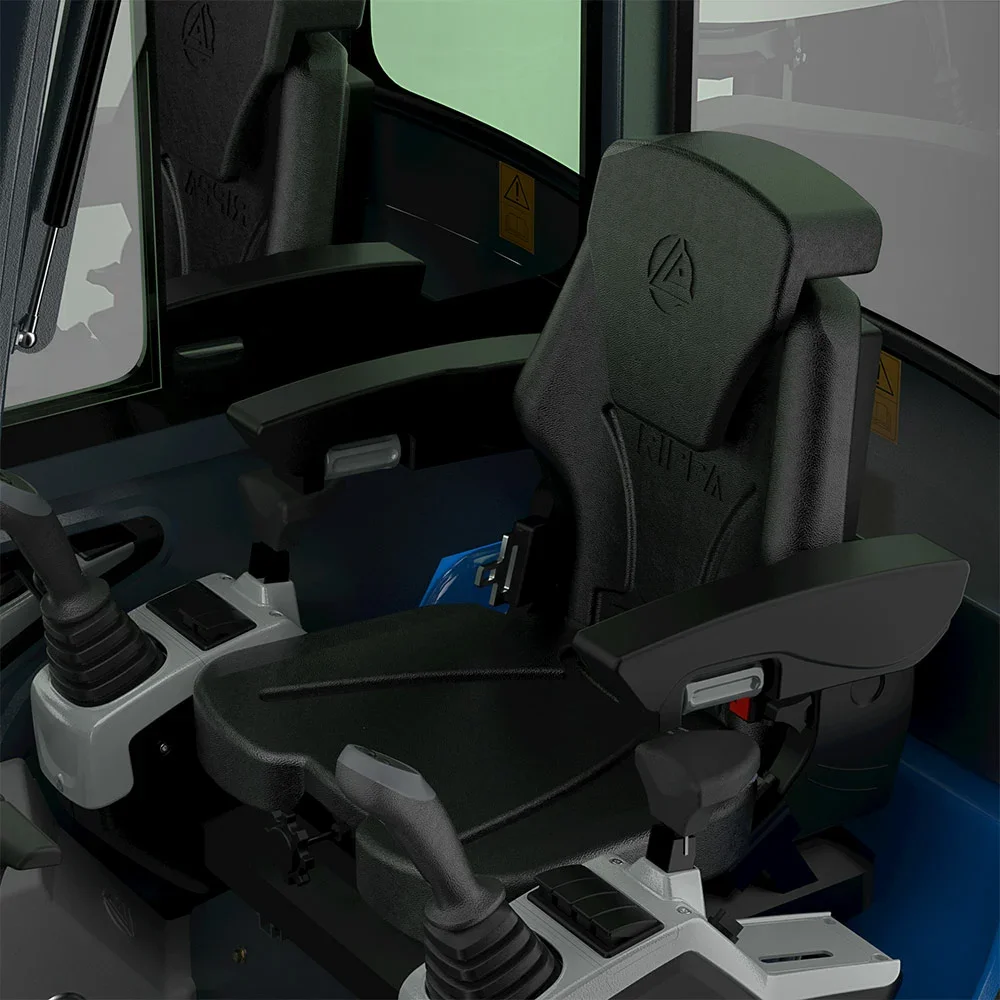

- Comfortable operation: spacious foot room, a comfortable seat, armrest controls and a dash-mounted panel give a mainframe feel with stress-free operation.
- Herringbone tracks: rubber tracks that can be matched with high-quality wear-resistant steel tracks for smooth travel.



Variable Legs and Crane Options
Where the approach road is narrow, the optional variable leg specification reduces the machine to 51.2 in wide for traveling and transport, then expands to 59.1 in for better stability during excavation. A crane specification option adds a bucket cylinder cover and an arm cylinder cover.

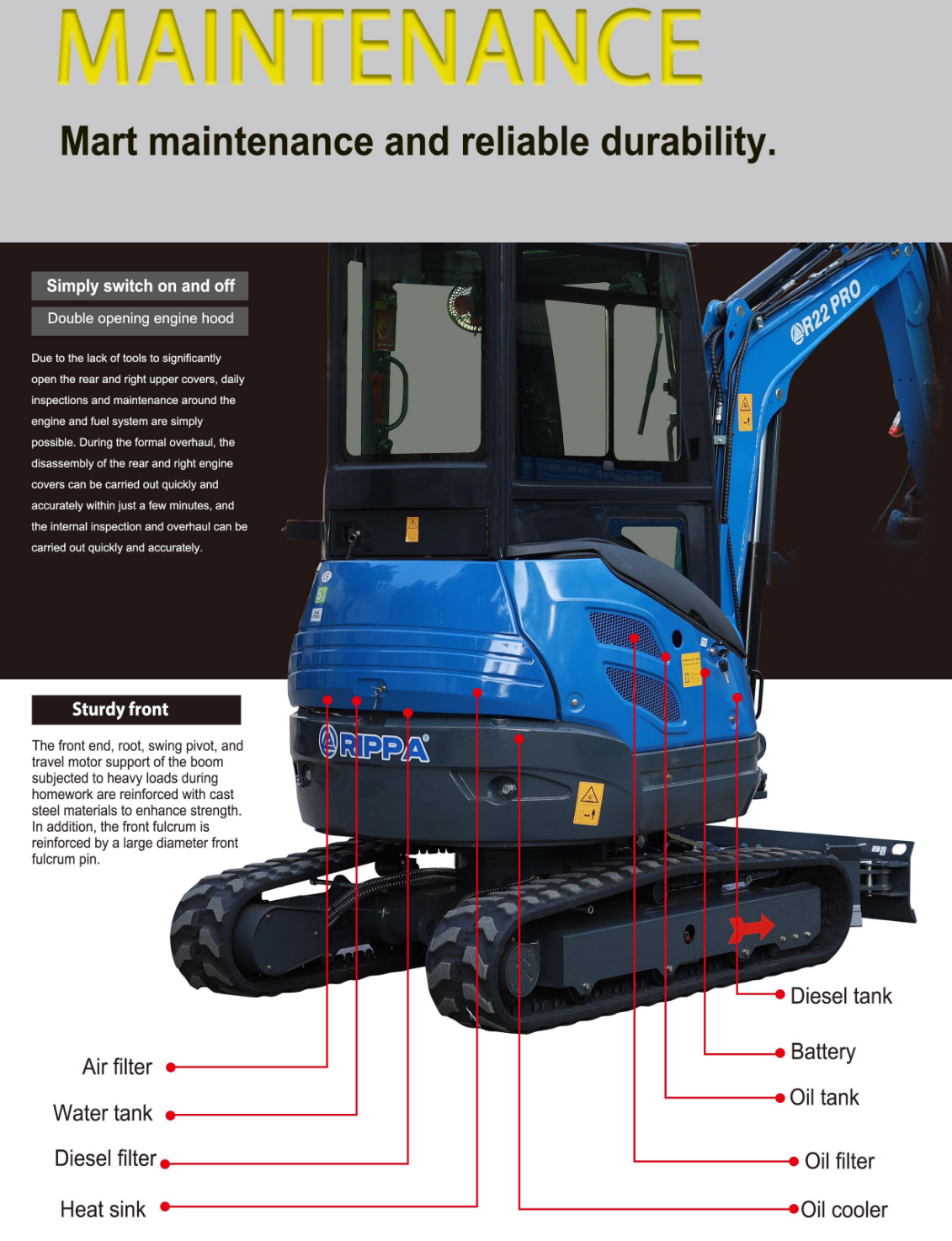

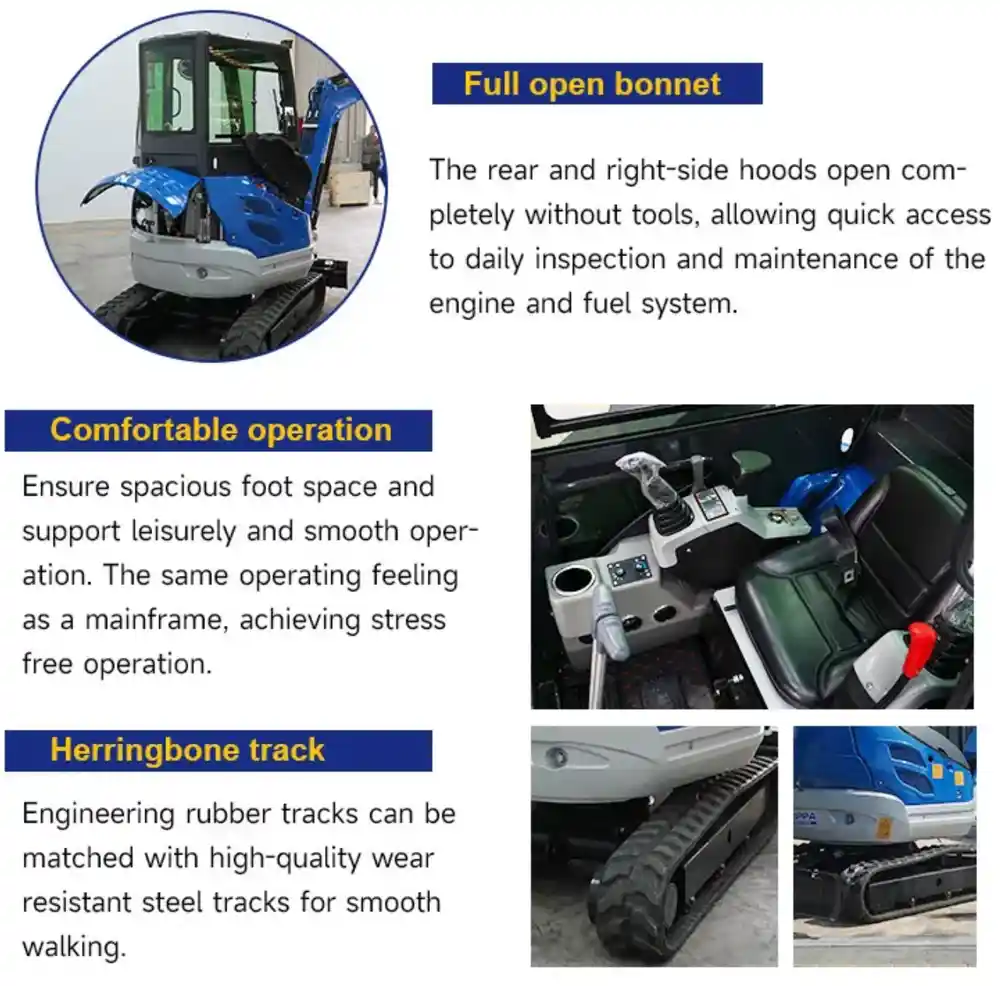

Built to Be Serviced and Built to Last
Double-opening engine hood
The rear and right-side covers open wide without tools, so daily inspection of the engine and fuel system is simple. For overhaul, they come off in minutes.
Sturdy front end
The boom front end, root, swing pivot and travel motor support carry heavy loads, so they are reinforced with cast steel, and a large-diameter front fulcrum pin adds strength.
Centralized service points
The air filter, water tank, diesel filter, radiator, diesel tank, battery, oil tank, oil filter and oil cooler are all located for easy access, with hydraulic checks grouped on the right side.

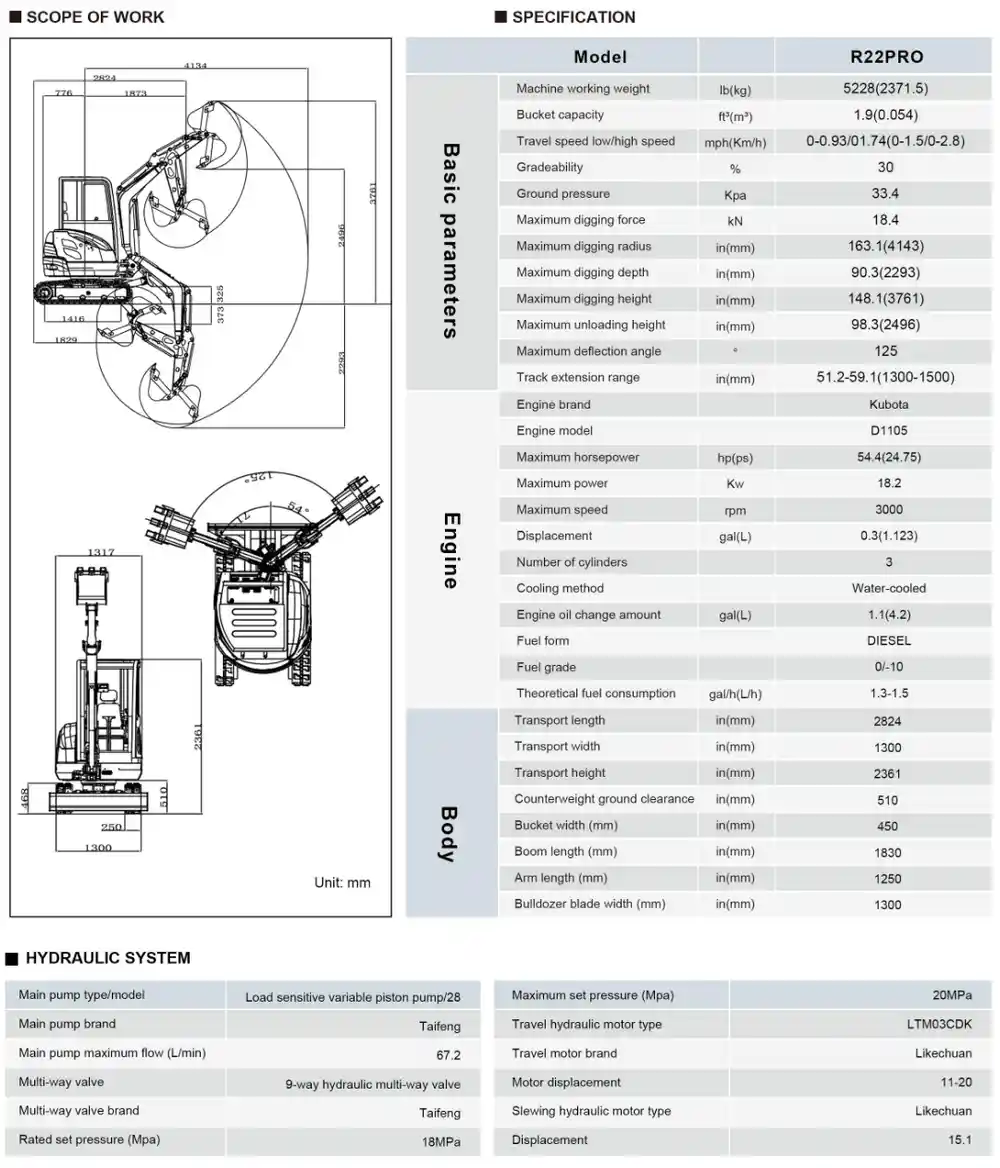

Rippa R22 PRO Technical Specifications
All specifications are shown in imperial units. Metric figures on the manufacturer sheet have been converted.
| Basic Parameters | |
|---|---|
| Machine Working Weight | 5,228 lbs |
| Bucket Capacity | 1.9 cu ft |
| Travel Speed Low / High | 0.93 mph / 1.74 mph |
| Gradeability | 30% |
| Ground Pressure | 4.8 psi |
| Maximum Digging Force | 4,137 lbf |
| Maximum Digging Radius | 163.1" |
| Maximum Digging Depth | 90.3" |
| Maximum Digging Height | 148.1" |
| Maximum Unloading Height | 98.3" |
| Maximum Deflection Angle | 125 degrees |
| Track Extension Range | 51.2"-59.1" |
| Engine | |
|---|---|
| Engine Brand | Kubota |
| Engine Model | D1105 |
| Maximum Horsepower | 24.75 hp |
| Maximum Speed | 3000 rpm |
| Displacement | 0.3 gal |
| Number of Cylinders | 3 |
| Cooling Method | Water-cooled |
| Engine Oil Change Amount | 1.1 gal |
| Fuel Form | Diesel |
| Fuel Grade | 0/-10 |
| Theoretical Fuel Consumption | 0.34-0.40 gal/h |
| Body | |
|---|---|
| Transport Length | 111.2" |
| Transport Width | 51.2" |
| Transport Height | 93" |
| Counterweight Ground Clearance | 20.1" |
| Bucket Width | 17.7" |
| Boom Length | 72" |
| Arm Length | 49.2" |
| Bulldozer Blade Width | 51.2" |
| Hydraulic System | |
|---|---|
| Main Pump Type/Model | Load sensitive variable piston pump/28 |
| Main Pump Brand | Taifeng |
| Main Pump Maximum Flow | 17.75 gpm |
| Multi-Way Valve | 9-way hydraulic multi-way valve |
| Multi-Way Valve Brand | Taifeng |
| Rated Set Pressure | 2,611 psi |
| Maximum Set Pressure | 2,901 psi |
| Travel Hydraulic Motor Type | LTM03CDK |
| Travel Motor Brand | Likechuan |
| Motor Displacement | 11-20 (unit not shown on sheet) |
| Slewing Hydraulic Motor Type | Likechuan |
| Slewing Motor Displacement | 15.1 (unit not shown on sheet) |
| Additional Specs | |
|---|---|
| Compound Motion | Yes |
| Pilot System | 9 Way Pilot Operated |
| Valve Type | Load Sensitive Control Valve |
| Swing Motor Type | Cycloidal with Cushioning |
| Tail Type | Zero Tail |
| Hydraulic Oil Cooler | Standard |
| Smart Display | Standard |
| Track Specs Width x Pitch x # of Links | 9.84" x 1.85" x 84 links |
| Track Type | Rubber Track |
| Warranty Term | 3 Years |
| Cab Options | Cab w/AC or No Cab |
Rippa R22 Excavator demo.



Want to know if other attachments will fit? Make sure they align with this:
| Machine | A | B | C |
|---|---|---|---|
| R22 | 30 | 111 | 140 |
| Brand Model | R10-6 | R13-4 | R15-5 ECO | R18-5 PRO | R22-4 PRO | R32-5 PRO | R57-2 | |
| Engine | Engine Model | Kubota Z482 | Kubota D722 | Kubota D722 | Kubota D902 | Kubota D1105 | Kubota V1505 | Kubota V2607 |
| # of Cylinders | 2 | 3 | 3 | 3 | 3 | 4 | 4 | |
| Rated Power | 10.98HP | 13.68HP | 13.68HP | 15.8HP | 24.37HP | 24.37HP | 68.4HP | |
| Main Pump | Number of Main Pump Types | Gear Pump x 1 | Gear Pump x 3 | Gear Pump x 3 | Variable Displacement Piston Pump x 1 | Variable Displacement Piston Pump x 1 | Variable Displacement Piston Pump x 1 | Variable Displacement Piston Pump x 1 |
| Max Flow Rate | 4.76gpm | 5.71gpm | 5.71gpm | 10.94gpm | 17.74gpm | 26.15gpm | 39.5gpm | |
| Operating System | Compound Motion | N/A | N/A | N/A | 1 | 1 | 1 | 1 |
| Pilot System | N/A | 4 Way Pilot Operated + 4 Way Mechanically Operated | 4 Way Pilot Operated + 4 Way Mechanically Operated | 10 Way Pilot Operated | 9 Way Pilot Operated | 9 Way Pilot Operated | 9 Way Pilot Operated | |
| Valve Info | Valve Type | Mechanical Control Valve | Hydraulic & Mechanical | Hydraulic & Mechanical | Load Sensitive Control Valve | Load Sensitive Control Valve | Load Sensitive Control Valve | Load Sensitive Control Valve |
| Hydraulic Motor Type | Travel Motor Speed | Single Speed | Dual Speed | Dual Speed | Dual Speed | Dual Speed | Dual Speed | Dual Speed |
| Motor Type | Cyclodial | Cyclodial | Cyclodial | Plunger | Plunger | Plunger | Plunger | |
| Swing Motor Type | Cyclodial | Cyclodial | Cyclodial | Cyclodial w/ Cushioning | Cyclodial w/ Cushioning | Cyclodial w/ Cushioning | Cyclodial w/ Cushioning | |
| Basic Parameters | Total Weight | 2151.8 lbs. | 2904 lbs. | 3307 lbs. | 4074 lbs. | 5223.85 lbs. | 7082 lbs. | 12,705 lbs |
| Bucket Size | 11.8" | 15.7" | 15.7" | 15.7" | 15.7" | 23.54" | 23.54" | |
| Max Digging Depth | 72.2" / ~6' | 72.5" / ~6' | 71.2" / ~6' | 95.3" / 7.5' | 90.4" / 8.5' | 111.3" / 10' | 144.8" / 12.4' | |
| Narrowest Transport Width | 35.91" | 33.4" | 38.74" | 38.94" | 51.18" | 61.02" | 74" | |
| Tail Type | Conventional | Zero Tail | Zero Tail | Zero Tail | Zero Tail | Zero Tail | Zero Tail | |
| Total Track Length | 104.84" | 116.14" | 116.14" | 139.3" | 55.47" | 73.62" | 100" | |
| Specs | Smart Display | N/A | N/A | Standard Across All Models | ||||
| Bucket Capacity | .494 cu ft. | .494 cu ft. | .64 cu ft. | 1.59 cu ft. | 1.9 cu ft. | 2.83 cu ft. | 3.2-6.2cu ft. | |
| Hydraulic Oil Cooler | Standard Across All Models | |||||||
| Boom Length | 58.1" | 57.1" | 58.1" | 71.9" | 72.1" | 87.4" | 118.1" | |
| Arm Length | 31.5" | 35.4" | 37.4" | 70.1" | 49.2" | 63.8" | 63" | |
| Track Specs Width x Pitch x # of Links | 7.09"x2.83"x37L | 7.09"x2.83"x41L | 7.09"x2.83"x41L | 9.06"x1.89"x74L | 9.84"x1.85"x84L | 11.81"x2.07"x84L | 15.75"x5.31"x40L | |
| Track Type | Rubber Track | Steel Track /w Rubber Inserts | Rubber Track | Rubber Track | Rubber Track | Rubber Track | Rubber Track | |
| Warranty Term | 2 Years | 2 Years | 2 Years | 3 Years | 3 Years | 3 Years | 3 Years | |
| Cab Options | Cab without AC | Cab without AC | Cab without AC | Cab without AC | Cab w/AC or No Cab | Cab w/AC or No Cab | Cab w/AC or No Cab | |
