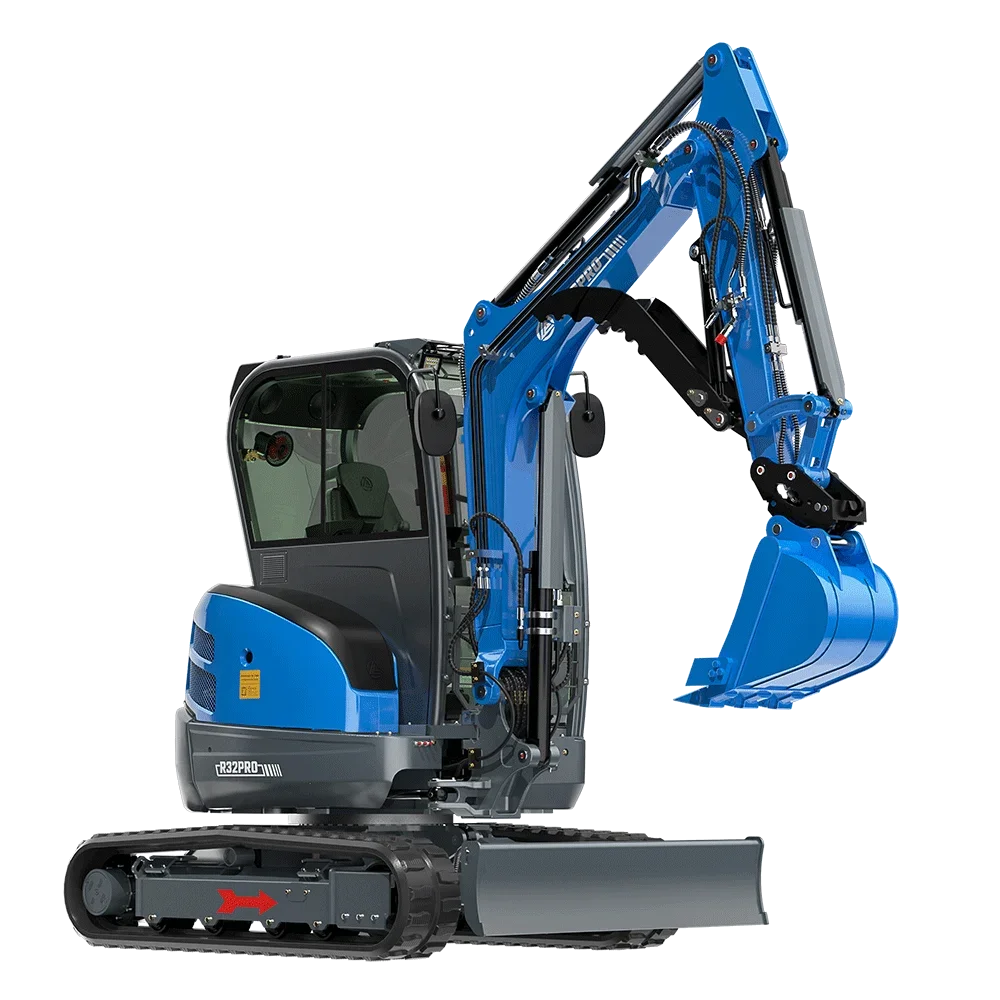

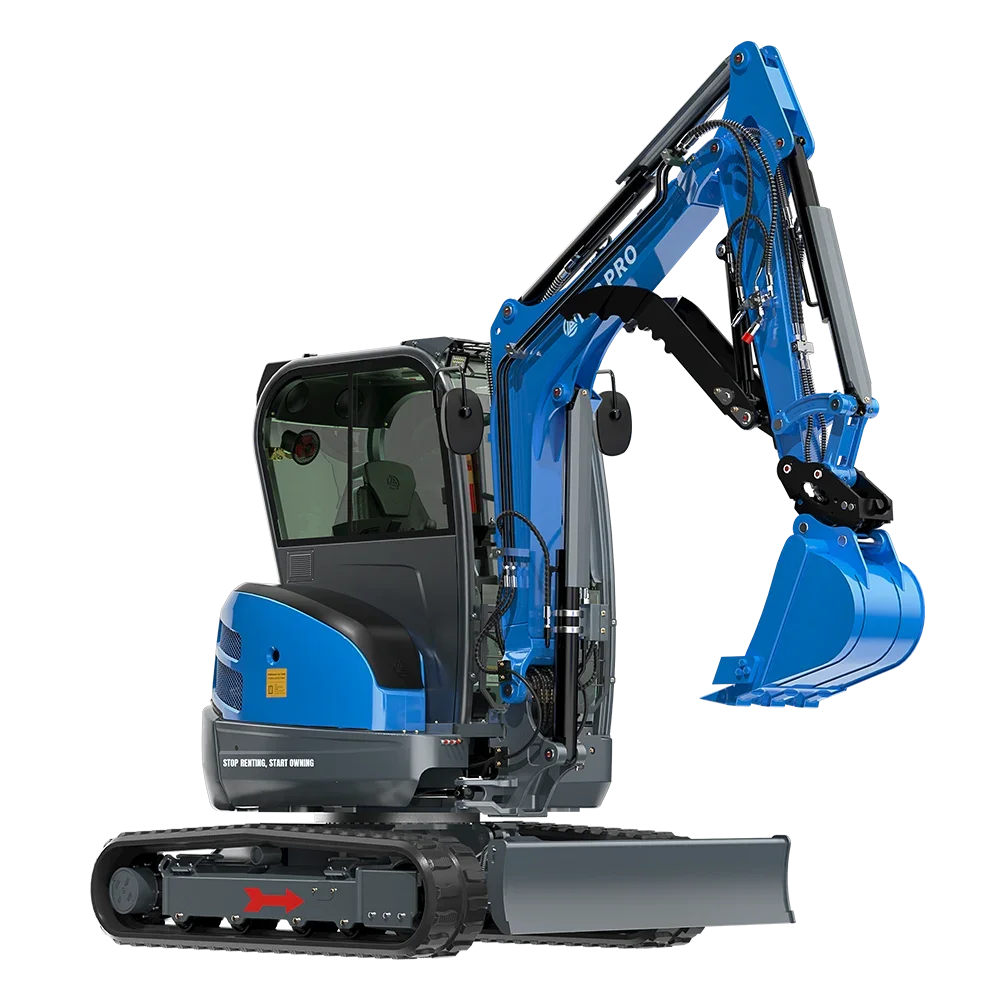

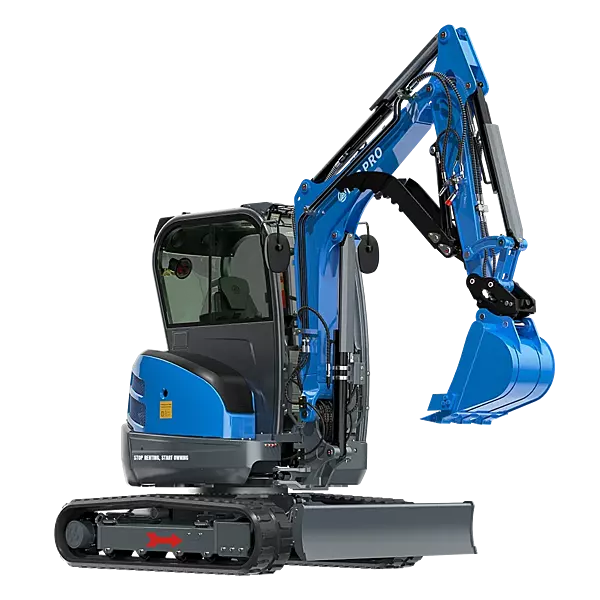

RIPPA R32-5 EXCAVATOR MY2026
Call for price- Its much lower - we are required to follow Rippa’s MAP Pricing
NOTE: above price could change due to tariffs and shipping.
NOTE: if you buy a machine from us, you will receive 50% off the prices below on attachments, whether you buy them with the machine or down the road.
Key Features:
Powered by a Kubota V1505 diesel engine producing 18.5 kW (25 hp).
Automatic idle: when the control lever returns to center, the engine drops to idle on its own, saving about 10% on fuel.
Boom-mounted and cab-mounted work lights.
Enclosed cab with air conditioning, a radio with two speakers, LED dome lights, a back-up camera and a mini computer that displays key data such as RPM and service times. The AC is belt-driven rather than electric, which allows a more powerful unit.
Swing boom: moves at least 45 degrees in either direction without moving the tracks.
3-year factory parts warranty, which Kubota also honors for engine-related issues.
Back-up camera installed.

Welded hydraulic thumb included.
Hydraulic quick-attach coupler included.
Four-way dozer blade.
An optional GPS tracker can be installed by our team for $125. There is a $12.95 monthly fee payable to Land Air Sea, who we partnered with. 30 second updates. (Rippa USA Sales Exclusive)

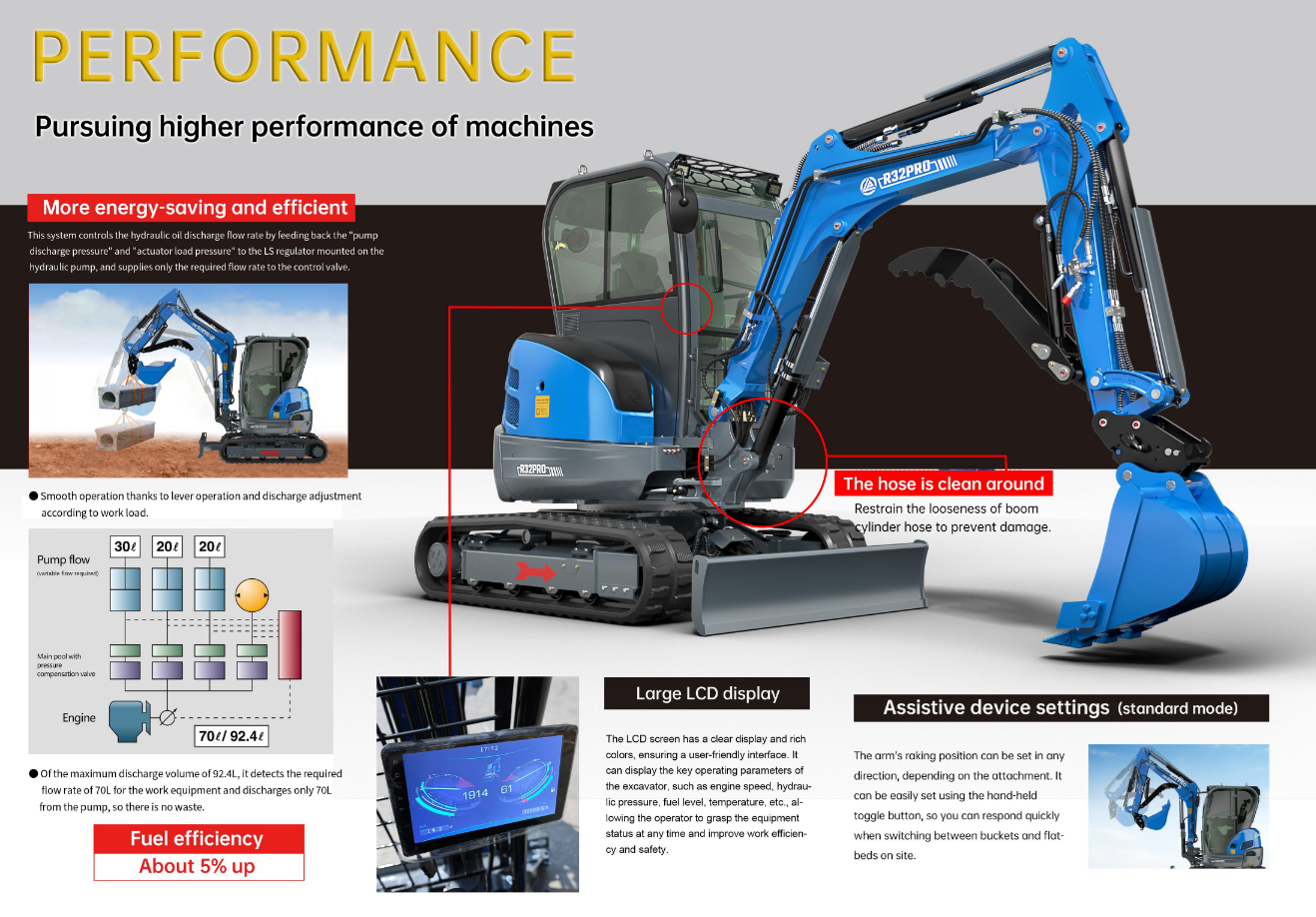

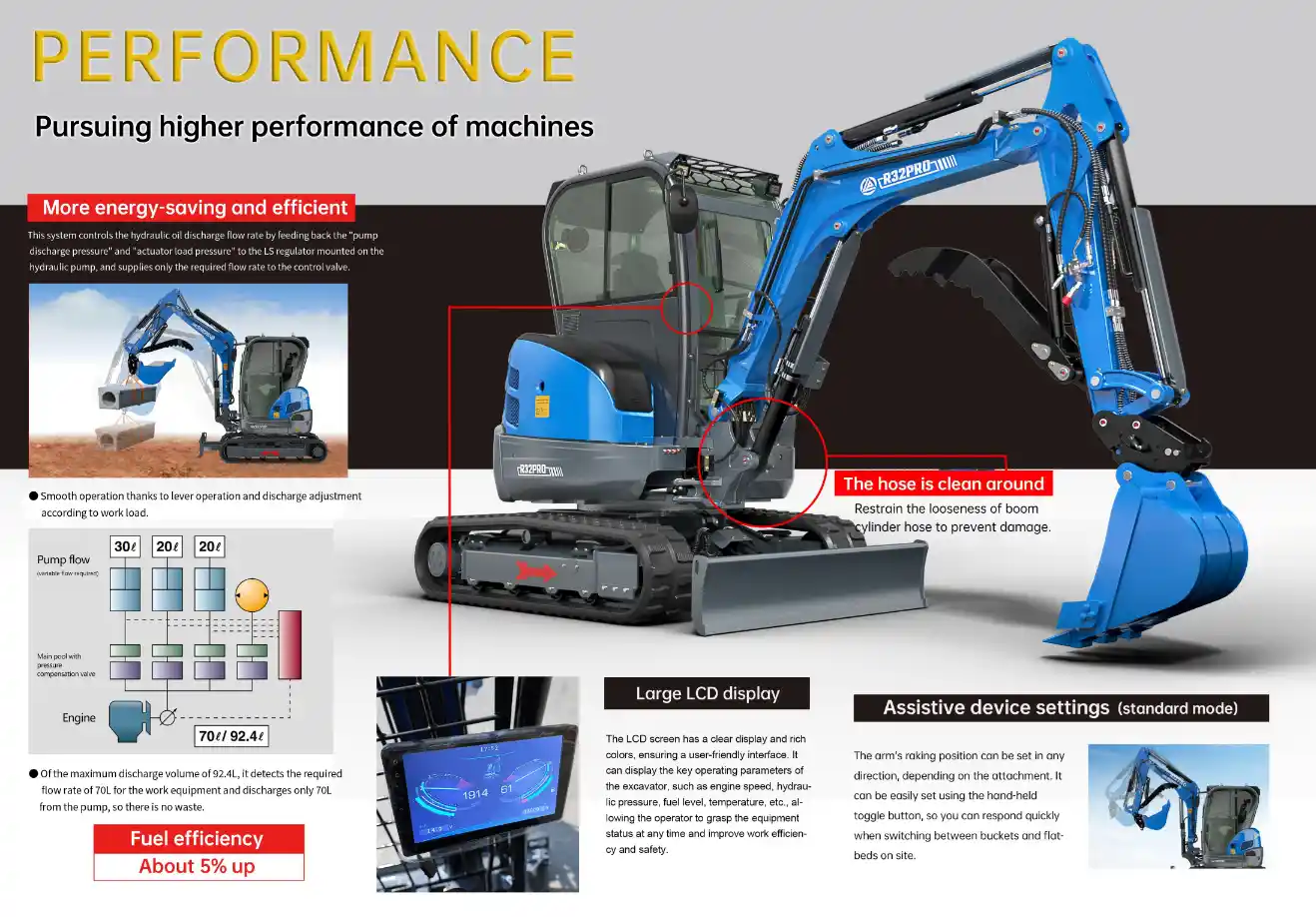

Pursuing Higher Performance
The Rippa R32-5 Pro is built to do more work on less fuel. Its load-sensing hydraulic system feeds pump pressure and actuator load back to the LS regulator, so the pump supplies only the flow the work equipment needs. Lever operation and discharge that adjusts to the work load keep operation smooth.
More energy-saving and efficient
Of the 24.4 gal (92.4 L) maximum pump discharge, the system detects the 18.5 gal (70 L) the work equipment needs and discharges only that amount, so there is no waste.
Clean hose routing
Boom cylinder hoses are restrained to prevent looseness and damage.
Large LCD display
A clear, colorful screen shows engine speed, hydraulic pressure, fuel level, temperature and other key parameters so the operator always knows the machine status.
Assistive device settings
Set the arm raking position in any direction for each attachment with the hand-held toggle button, and switch quickly between buckets and flatbeds on site.
Auto glow
Senses water temperature automatically and starts the engine with the best and shortest glow time.
Walking speed gears
Choose fast or slow travel manually to suit the operating conditions.

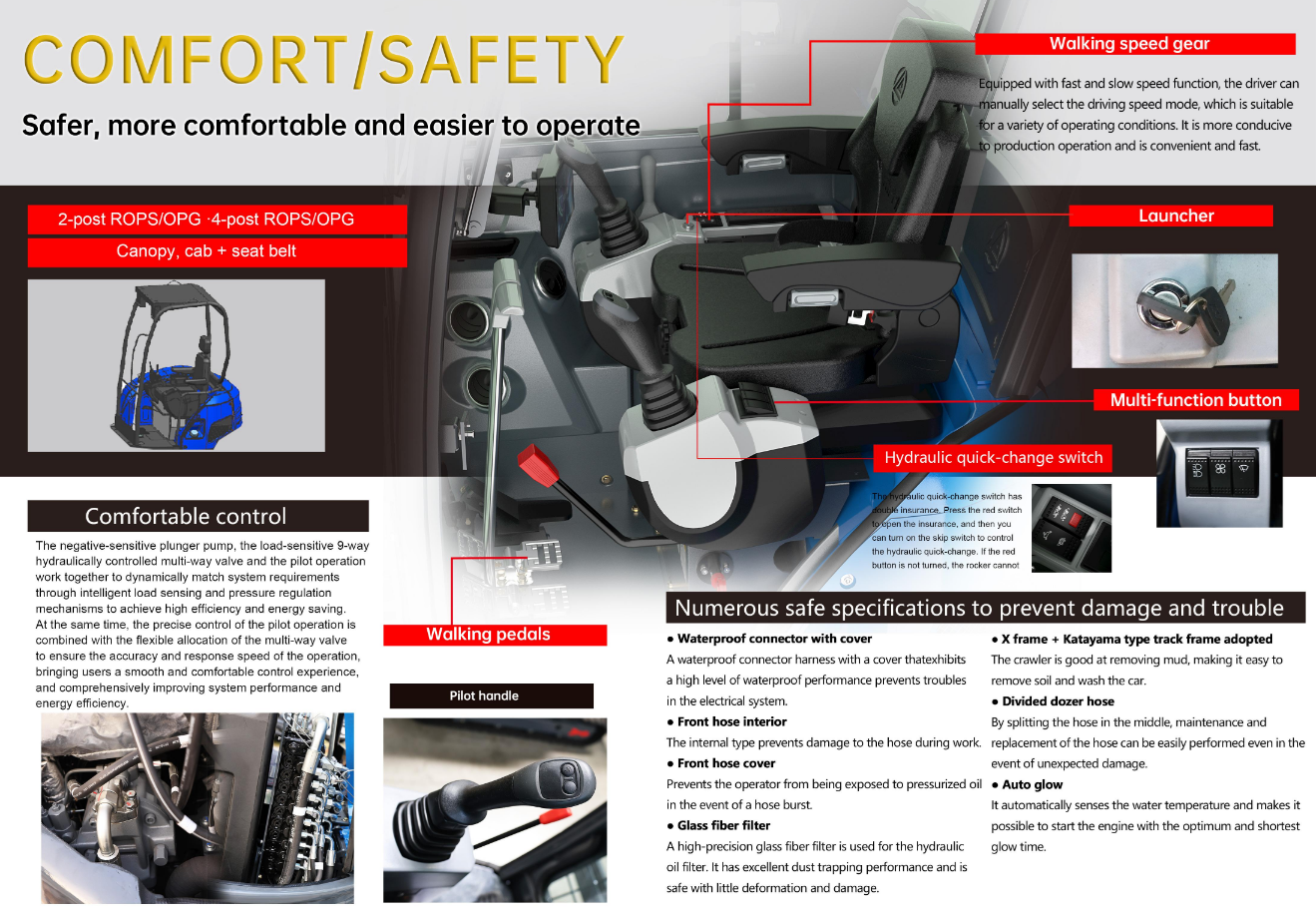

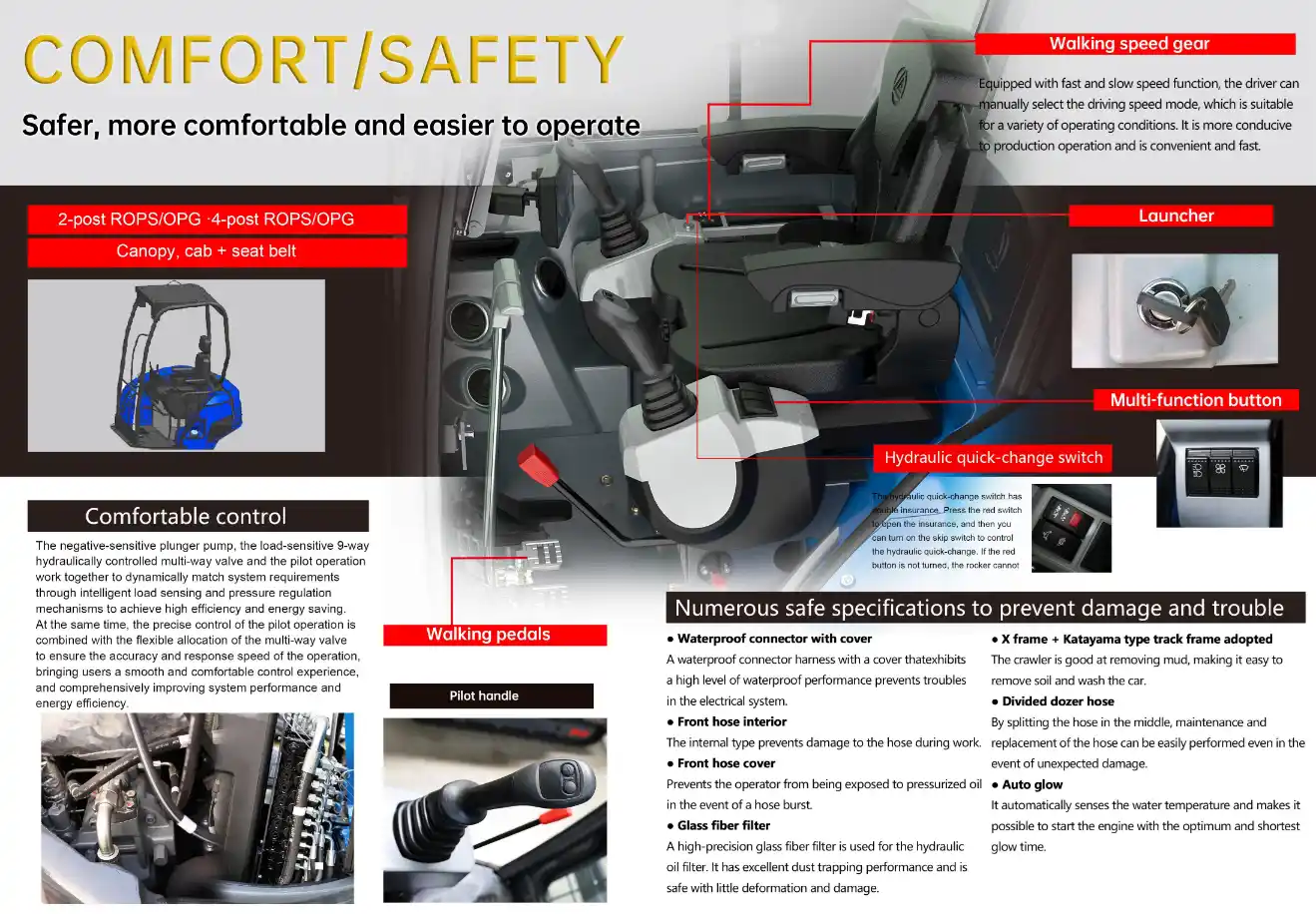

Comfort, Controls and Safety

Air seat: adjustable pneumatic cushioning lets operators set the ideal pressure for their posture and size. Excellent vibration damping and shock absorption reduce fatigue and improve safety during long shifts, with a high-back profile, armrests and a durable finish.
Comfortable workspace: spacious boarding space and large doors make it easy to get on and off, foot visibility is better, and the bright, comfortable cab helps reduce operator stress. Air conditioning, an openable windshield and LED lights come with the cab.
Protection: choose a 2-post or 4-post ROPS/OPG canopy or a cab, with a seat belt.

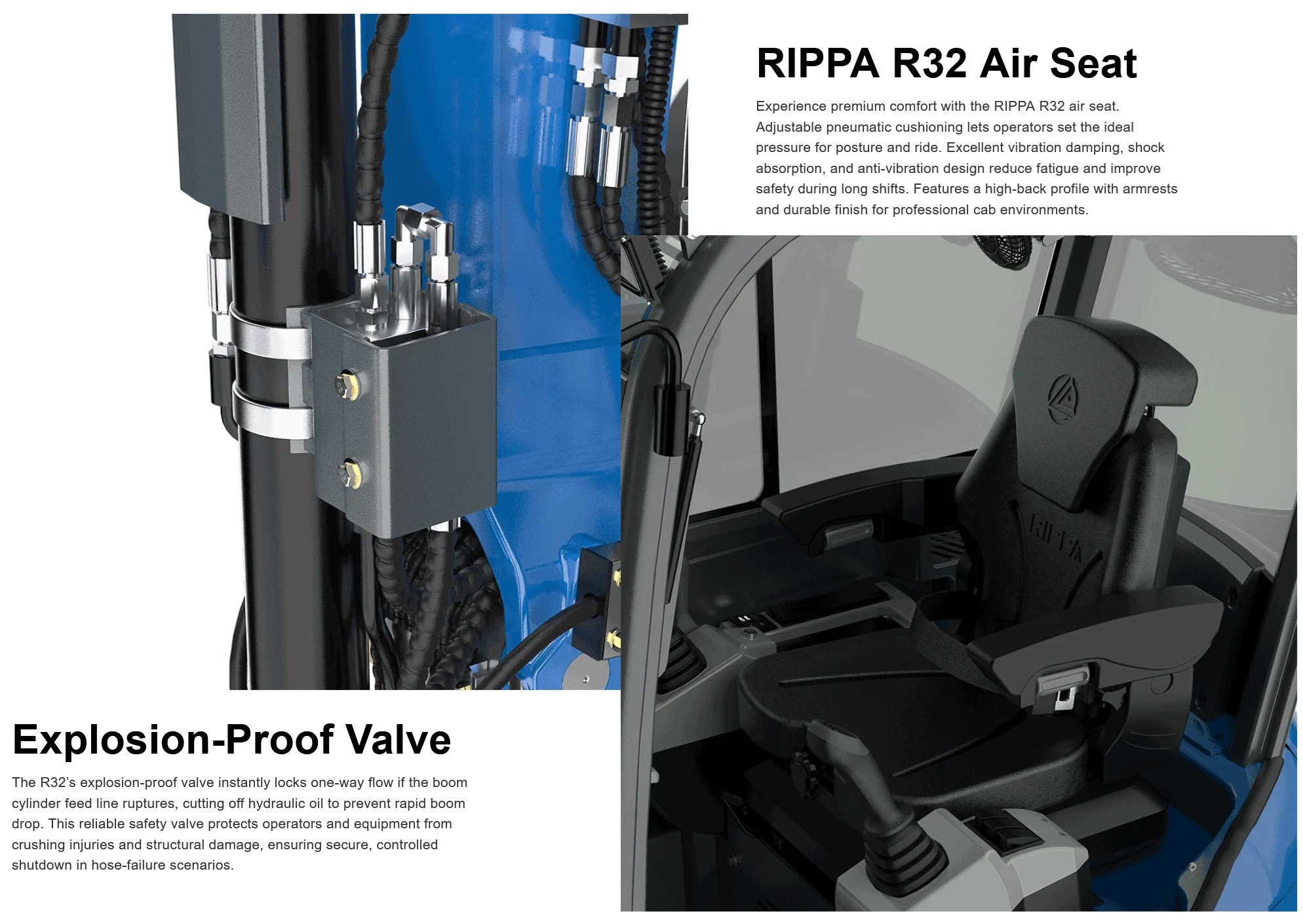

Explosion-Proof Valve
The R32's explosion-proof valve instantly locks one-way flow if the boom or stabilizer feed line ruptures. It cuts off hydraulic oil to prevent rapid boom drop and protects operators and equipment from crushing injuries and structural damage in hose-failure scenarios.
- Quick-change safety: the hydraulic quick-change switch has double insurance. Press the red switch first, then use the rocker to control the quick coupler.
- Start and controls: key start and a multi-function switch panel are within the operator's reach.
- Comfortable control: a load-sensing 9-way hydraulic multi-way valve and pilot operation deliver accurate, responsive and efficient control.

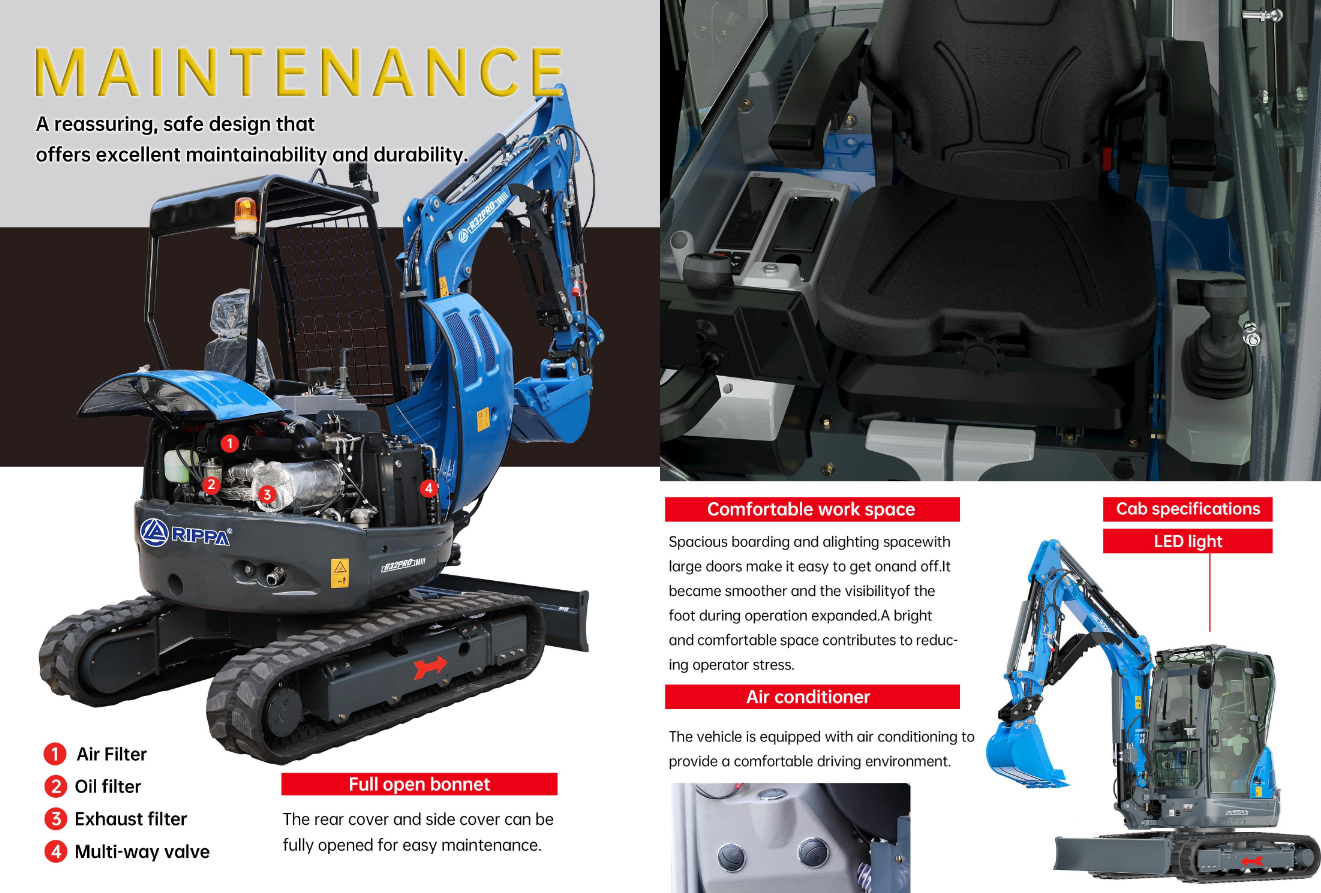

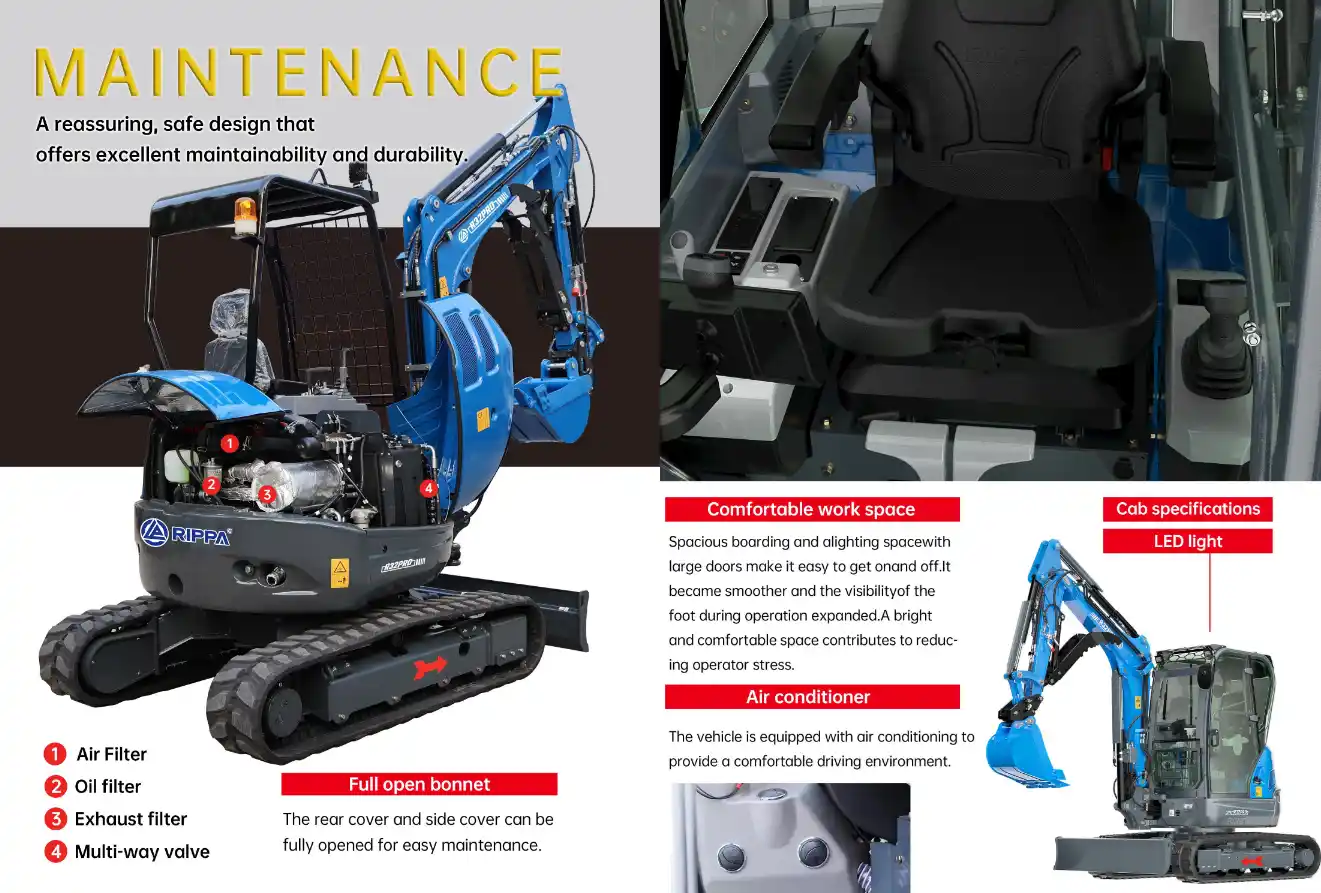

Built for Serviceability
The rear and side covers open fully for easy maintenance. Service points include the air filter, oil filter, exhaust filter and multi-way valve.
- Waterproof connectors with covers protect the electrical system.
- Front hose interior and cover prevent hose damage and protect the operator if a hose bursts.
- Glass fiber hydraulic filter traps dust with high precision.
- Divided dozer hose makes replacement easier after unexpected damage.
- X frame and Katayama-type track frame shed mud so soil washes off easily.

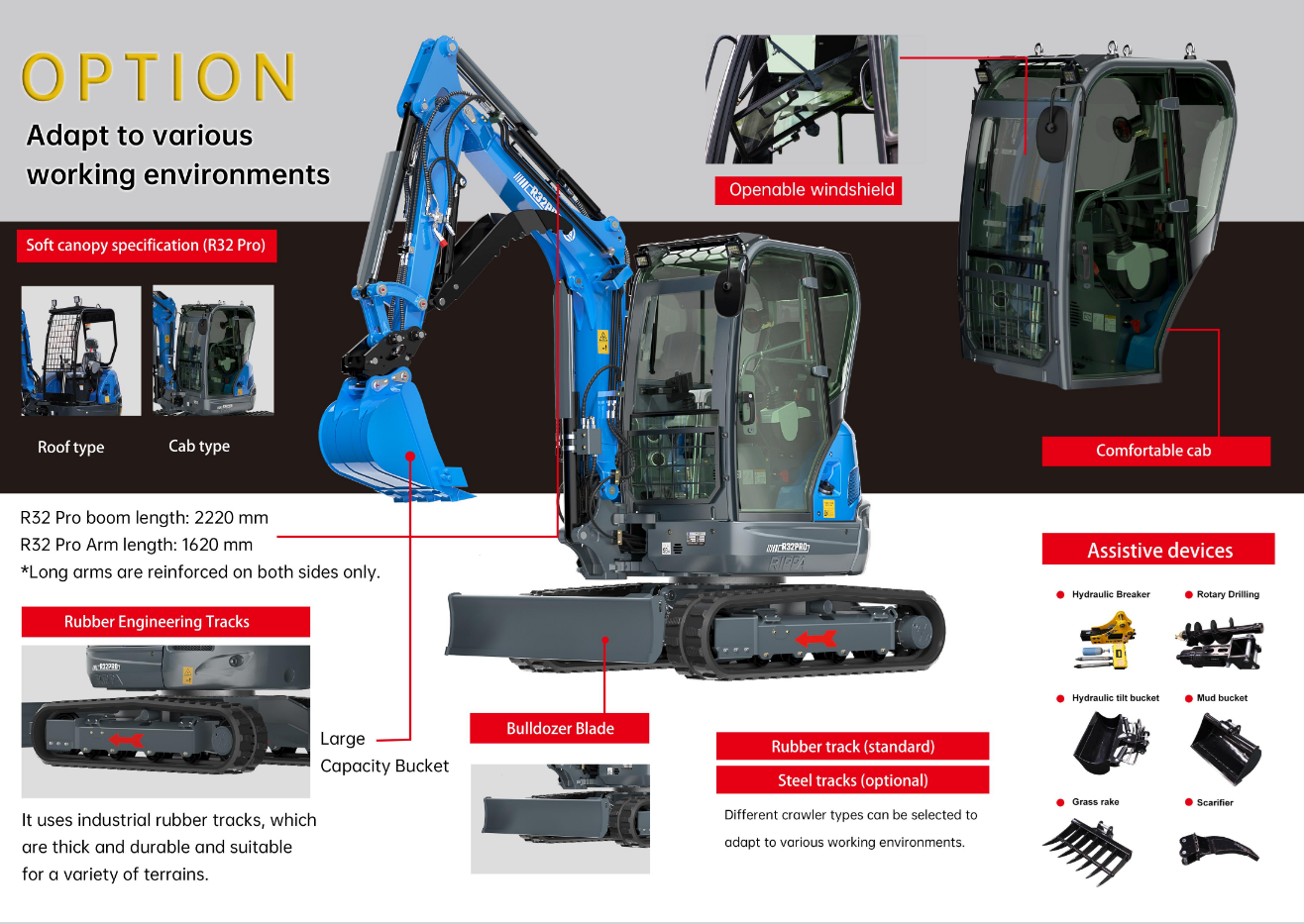

Options and Undercarriage
Cab or soft canopy
The R32 Pro is available in a roof type or a cab type.
Boom and arm
Boom length 87.4 in and arm length 63.8 in. Long arms are reinforced on both sides.
Rubber tracks
Thick, durable industrial rubber tracks are standard. Steel tracks are optional.
Dozer blade and bucket
A standard dozer blade and a large capacity bucket are included.
Assistive devices
Hydraulic breaker, rotary drilling, hydraulic tilt bucket, mud bucket, grass rake and scarifier.
Thumb and quick coupler
A welded hydraulic thumb and hydraulic quick-attach coupler are included.

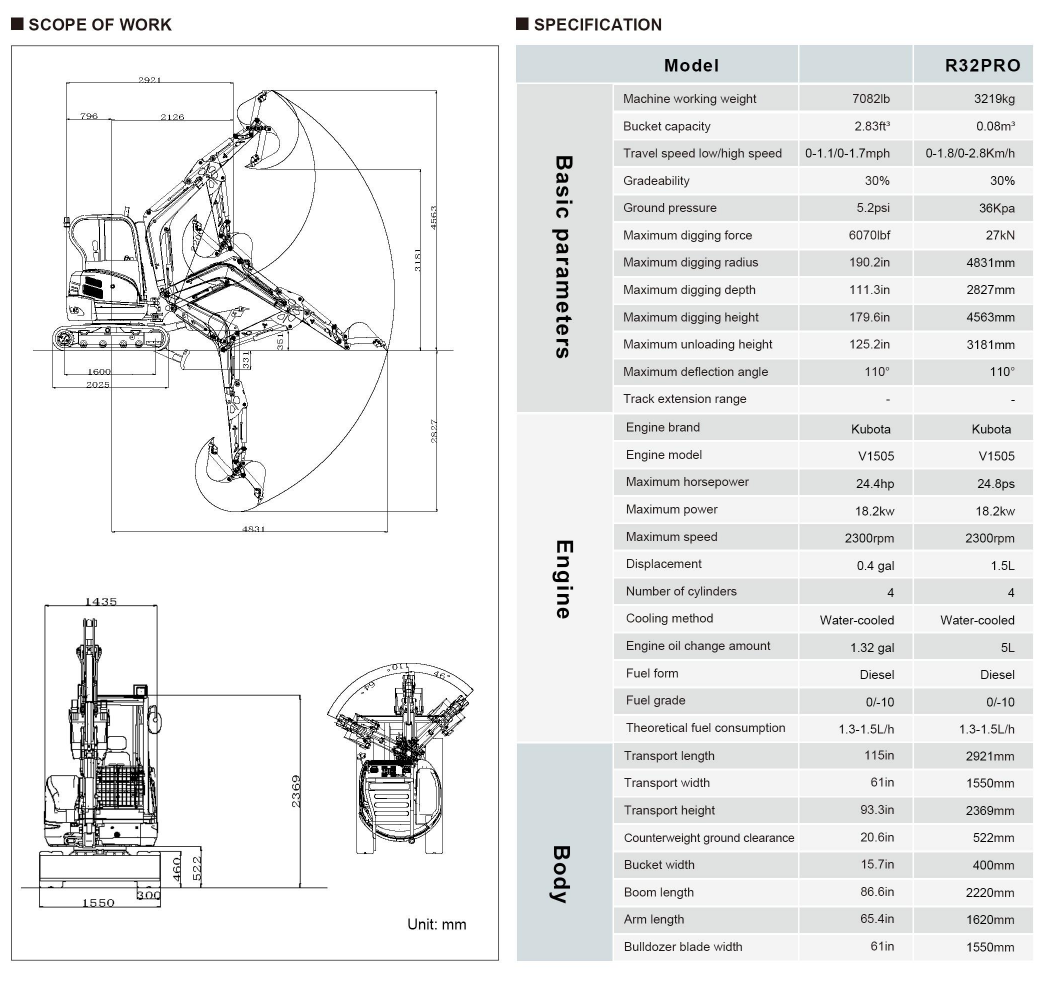

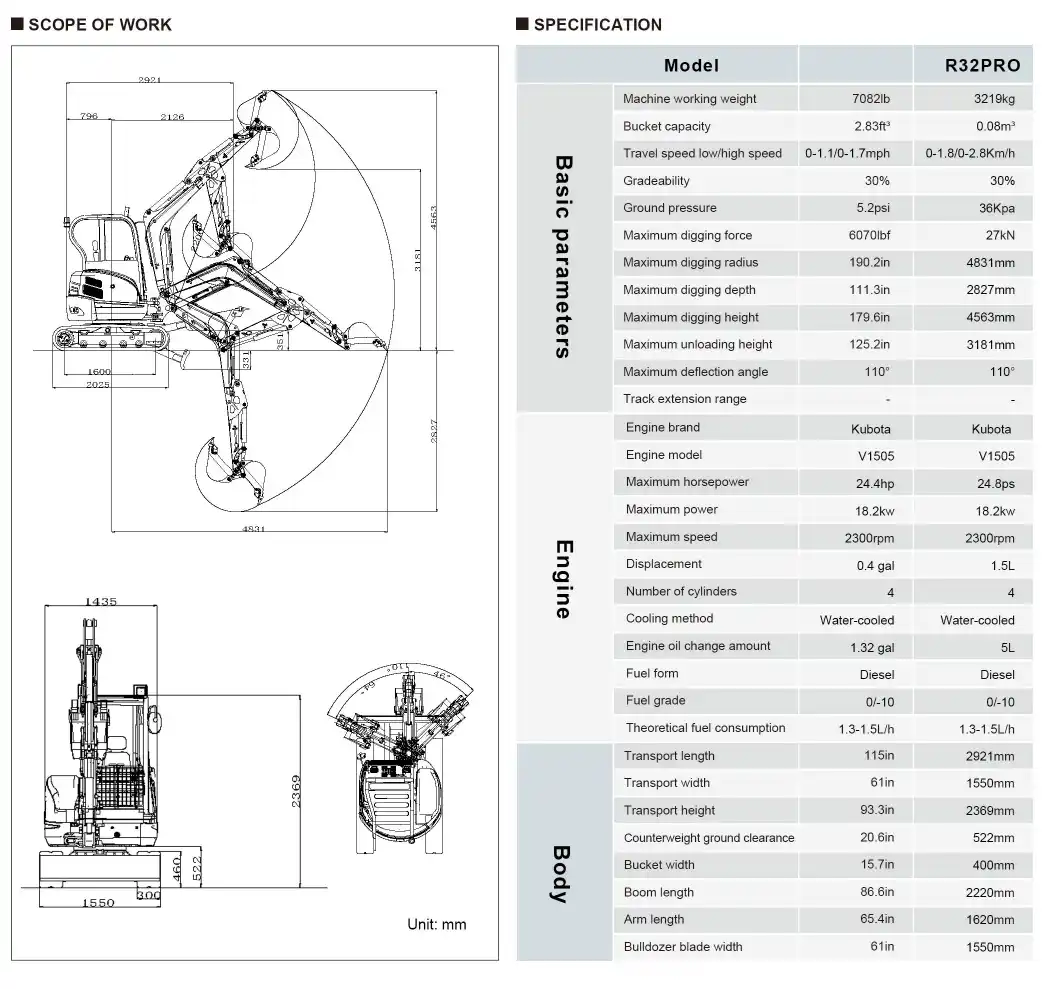

Rippa R32-5 PRO Technical Specifications
All specifications are shown in imperial units. Metric figures on the manufacturer sheet have been converted.
| Basic Parameters | |
|---|---|
| Machine Working Weight | 7,082 lbs |
| Bucket Capacity | 2.83 cu ft |
| Travel Speed Low / High | 1.1 mph / 1.7 mph |
| Gradeability | 30% |
| Ground Pressure | 5.2 psi |
| Maximum Digging Force | 6,070 lbf |
| Maximum Digging Radius | 190.2" |
| Maximum Digging Depth | 111.3" |
| Maximum Digging Height | 179.6" |
| Maximum Unloading Height | 125.2" |
| Maximum Deflection Angle | 110 degrees |
| Engine | |
|---|---|
| Engine Brand | Kubota |
| Engine Model | V1505 |
| Maximum Horsepower | 24.4 hp |
| Maximum Speed | 2300 rpm |
| Displacement | 0.4 gal |
| Number of Cylinders | 4 |
| Cooling Method | Water-cooled |
| Engine Oil Change Amount | 1.32 gal |
| Fuel Form | Diesel |
| Fuel Grade | 0/-10 |
| Theoretical Fuel Consumption | 0.34-0.40 gal/h |
| Body | |
|---|---|
| Transport Length | 115" |
| Transport Width | 61" |
| Transport Height | 93.3" |
| Counterweight Ground Clearance | 20.6" |
| Bucket Width | 15.7" |
| Boom Length | 87.4" |
| Arm Length | 63.8" |
| Bulldozer Blade Width | 61" |

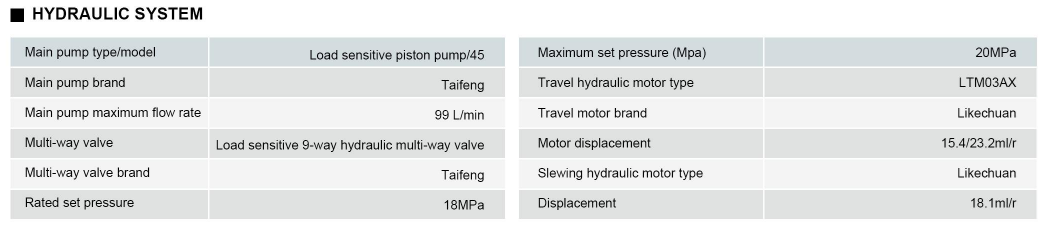

| Hydraulic System | |
|---|---|
| Main Pump Type/Model | Load sensitive piston pump/45 |
| Main Pump Brand | Taifeng |
| Main Pump Maximum Flow | 26.15 gpm |
| Multi-Way Valve | Load sensitive 9-way hydraulic multi-way valve |
| Multi-Way Valve Brand | Taifeng |
| Rated Set Pressure | 2,611 psi |
| Maximum Set Pressure | 2,901 psi |
| Travel Hydraulic Motor Type | LTM03AX |
| Travel Motor Brand | Likechuan |
| Motor Displacement | 15.4/23.2 ml/rev (0.94/1.42 cu in/rev) |
| Slewing Hydraulic Motor Type | Likechuan |
| Slewing Motor Displacement | 18.1 ml/rev (1.10 cu in/rev) |
| Additional Specs | |
|---|---|
| Compound Motion | Yes |
| Pilot System | 9 Way Pilot Operated |
| Valve Type | Load Sensitive Control Valve |
| Swing Motor Type | Cycloidal with Cushioning |
| Tail Type | Zero Tail |
| Total Track Length | 73.62" |
| Hydraulic Oil Cooler | Standard |
| Smart Display | Standard |
| Track Specs Width x Pitch x # of Links | 11.81" x 2.07" x 84 links |
| Track Type | Rubber Track (steel tracks optional) |
| Warranty Term | 3 Years |
| Cab Options | Cab w/AC or No Cab |
Video showing the Rippa R32 Excavator working.

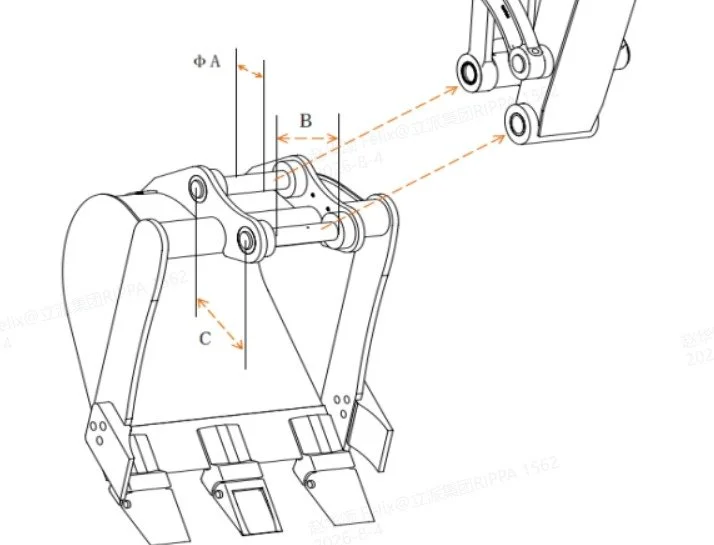

Want to know if other attachments will fit? Make sure they align with this:
| Machine | A | B | C |
|---|---|---|---|
| R32 | 40 | 136 | 185 |
| Brand Model | R10-8 | R13-4 | R15-5 ECO | R18-5 PRO | R22-4 PRO | R32-5 PRO | R57-2 | |
| Engine | Engine Model | Kubota Z482 | Kubota D722 | Kubota D722 | Kubota D902 | Kubota D1105 | Kubota V1505 | Kubota V2607 |
| # of Cylinders | 2 | 3 | 3 | 3 | 3 | 4 | 4 | |
| Rated Power | 10.98HP | 13.68HP | 13.68HP | 15.8HP | 24.37HP | 24.37HP | 68.4HP | |
| Main Pump | Number of Main Pump Types | Gear Pump x 1 | Gear Pump x 3 | Gear Pump x 3 | Variable Displacement Piston Pump x 1 | Variable Displacement Piston Pump x 1 | Variable Displacement Piston Pump x 1 | Variable Displacement Piston Pump x 1 |
| Max Flow Rate | 4.76gpm | 5.71gpm | 5.71gpm | 10.94gpm | 17.74gpm | 26.15gpm | 39.5gpm | |
| Operating System | Compound Motion | N/A | N/A | N/A | 1 | 1 | 1 | 1 |
| Pilot System | N/A | 4 Way Pilot Operated + 4 Way Mechanically Operated | 4 Way Pilot Operated + 4 Way Mechanically Operated | 10 Way Pilot Operated | 9 Way Pilot Operated | 9 Way Pilot Operated | 9 Way Pilot Operated | |
| Valve Info | Valve Type | Mechanical Control Valve | Hydraulic & Mechanical | Hydraulic & Mechanical | Load Sensitive Control Valve | Load Sensitive Control Valve | Load Sensitive Control Valve | Load Sensitive Control Valve |
| Hydraulic Motor Type | Travel Motor Speed | Single Speed | Dual Speed | Dual Speed | Dual Speed | Dual Speed | Dual Speed | Dual Speed |
| Motor Type | Cyclodial | Cyclodial | Cyclodial | Plunger | Plunger | Plunger | Plunger | |
| Swing Motor Type | Cyclodial | Cyclodial | Cyclodial | Cyclodial w/ Cushioning | Cyclodial w/ Cushioning | Cyclodial w/ Cushioning | Cyclodial w/ Cushioning | |
| Basic Parameters | Total Weight | 2151.8 lbs. | 2904 lbs. | 3307 lbs. | 4074 lbs. | 5223.85 lbs. | 7082 lbs. | 12,705 lbs |
| Bucket Size | 11.8" | 15.7" | 15.7" | 15.7" | 15.7" | 23.54" | 23.54" | |
| Max Digging Depth | 72.2" / ~6' | 72.5" / ~6' | 71.2" / ~6' | 95.3" / 7.5' | 90.4" / 8.5' | 111.3" / 10' | 144.8" / 12.4' | |
| Narrowest Transport Width | 35.91" | 33.4" | 38.74" | 38.94" | 51.18" | 61.02" | 74" | |
| Tail Type | Conventional | Zero Tail | Zero Tail | Zero Tail | Zero Tail | Zero Tail | Zero Tail | |
| Total Track Length | 104.84" | 116.14" | 116.14" | 139.3" | 55.47" | 73.62" | 100" | |
| Specs | Smart Display | N/A | N/A | Standard Across All Models | ||||
| Bucket Capacity | .494 cu ft. | .494 cu ft. | .64 cu ft. | 1.59 cu ft. | 1.9 cu ft. | 2.83 cu ft. | 3.2-6.2cu ft. | |
| Hydraulic Oil Cooler | Standard Across All Models | |||||||
| Boom Length | 58.1" | 57.1" | 58.1" | 71.9" | 72.1" | 87.4" | 118.1" | |
| Arm Length | 31.5" | 35.4" | 37.4" | 70.1" | 49.2" | 63.8" | 63" | |
| Track Specs Width x Pitch x # of Links | 7.09"x2.83"x37L | 7.09"x2.83"x41L | 7.09"x2.83"x41L | 9.06"x1.89"x74L | 9.84"x1.85"x84L | 11.81"x2.07"x84L | 15.75"x5.31"x40L | |
| Track Type | Rubber Track | Steel Track w/ Rubber Inserts | Rubber Track | Rubber Track | Rubber Track | Rubber Track | Rubber Track | |
| Warranty Term | 2 Years | 2 Years | 2 Years | 3 Years | 3 Years | 3 Years | 3 Years | |
| Cab Options | Cab without AC | Cab without AC | Cab without AC | Cab without AC | Cab w/AC or No Cab | Cab w/AC or No Cab | Cab w/AC or No Cab | |
