RIPPA R57-2 EXCAVATOR

Rippa R57-2 Pro Mini Excavator
$47,999.00

Call for price- Its much lower - we are required to follow Rippa’s MAP Pricing

NOTE: above price could change due to tariffs and shipping.

NOTE: if you buy a machine from us, you will receive 50% off the prices below on attachments, whether you buy them with the machine or down the road.

Key Features:

Powered by a Kubota V2607 diesel engine producing 51 kW (68.4 hp).

Automatic idle: when the controls return to center, the engine drops to idle on its own, cutting fuel consumption by 10%.

Boom-mounted and cab-mounted work lights.

Enclosed cab with air conditioning and heat, a radio with two speakers, a fan, LED dome lights and a mini computer that displays key data such as RPM and service times.

3-year factory parts warranty, which Kubota honors for engine-related issues.

Ships with rubber tracks. Steel tracks are available for an additional $1,300.

Welded hydraulic thumb included.

Hydraulic quick-attach coupler included.

An optional GPS tracker can be installed by our team for $125. There is a $12.95 monthly fee payable to Land Air Sea, who we partnered with. 30 second updates. (Rippa USA Sales Exclusive)

Machines arriving June 2026 and later include the following updates:

Four-way shredder circuit with a pre-installed return oil line for the brush cutter and a three-way ball valve for controlling the shredder on one side.

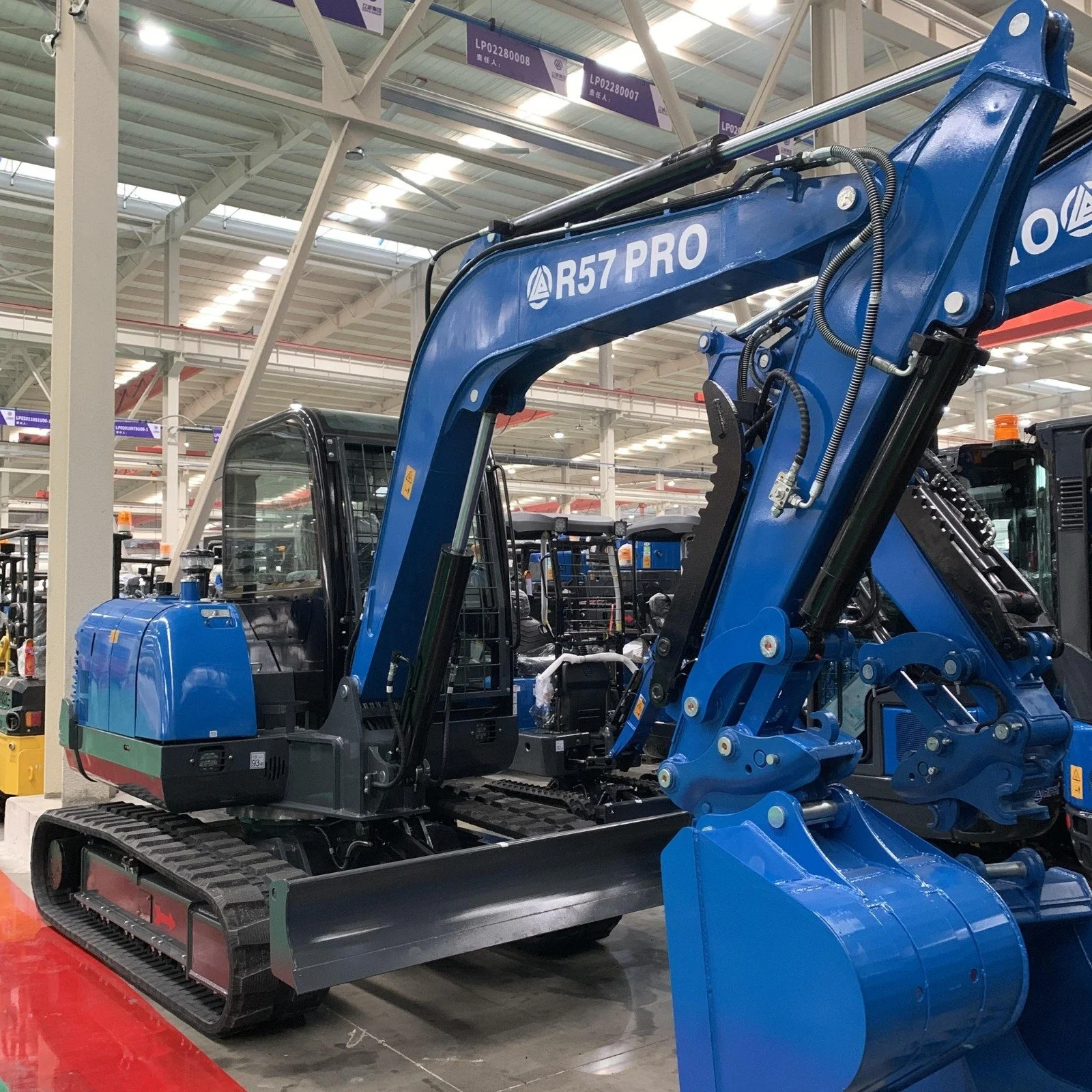

Rippa R57-2 Excavator

Redesigned interior with a fresh-air system, a large LCD screen, a factory back-up camera and newly molded leather floor mats.

Haitek 68 load-sensing variable displacement piston main pump with a maximum flow of 149.6 L/min.

Zhongwei TM07 travel motor.

Re-molded cab with sound-insulation cotton added to the back and underside of the upper plate to keep noise down while you work.

ISO/SAE operating mode switch for customers who prefer different control patterns.

The plunger pump is now mounted horizontally to prevent abnormal wear from low oil levels in the housing.

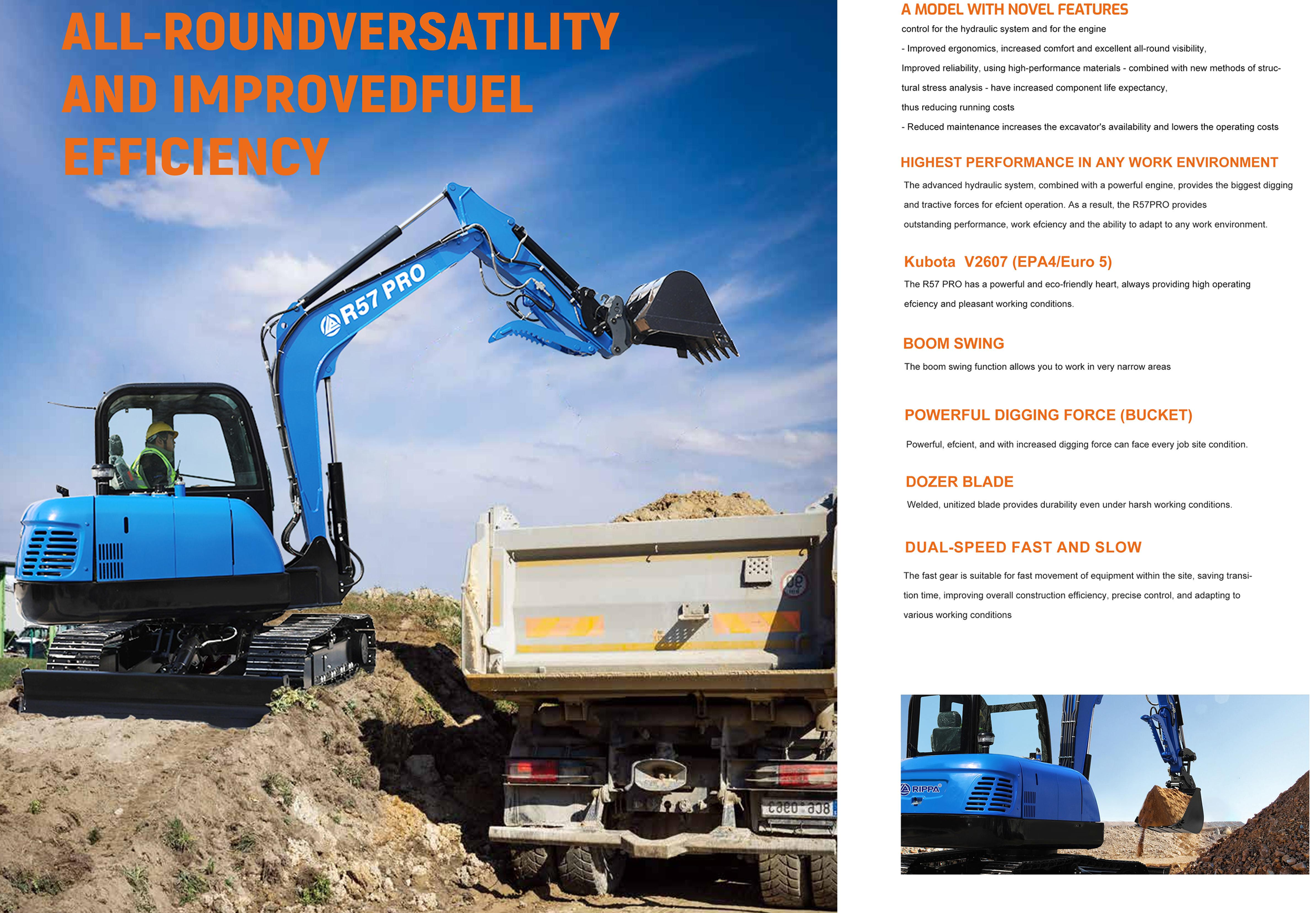

All-Round Versatility and Improved Fuel Efficiency

The Rippa R57 PRO delivers improved ergonomics, more comfort and excellent all-round visibility. High-performance materials combined with new methods of structural stress analysis increase component life and reduce running costs, and reduced maintenance keeps the excavator available and lowers operating costs.

12,705 lbworking weight
7,194 lbfmaximum digging force
149 inmaximum digging depth
39.5 gpmmaximum pump flow

Highest performance in any work environment

The advanced hydraulic system and a powerful engine provide the biggest digging and tractive forces for efficient operation and the ability to adapt to any work environment.

Kubota V2607 (EPA4/Euro 5)

A powerful, eco-friendly heart that always provides high operating efficiency and pleasant working conditions.

Boom swing

The boom swing function lets you work in very narrow areas.

Powerful digging force

Powerful, efficient digging force handles every job site condition.

Dozer blade

A welded, unitized blade provides durability even under harsh working conditions.

Dual-speed travel

The fast gear moves the machine quickly around the site and saves transition time. The slow gear improves overall construction efficiency and gives precise control.

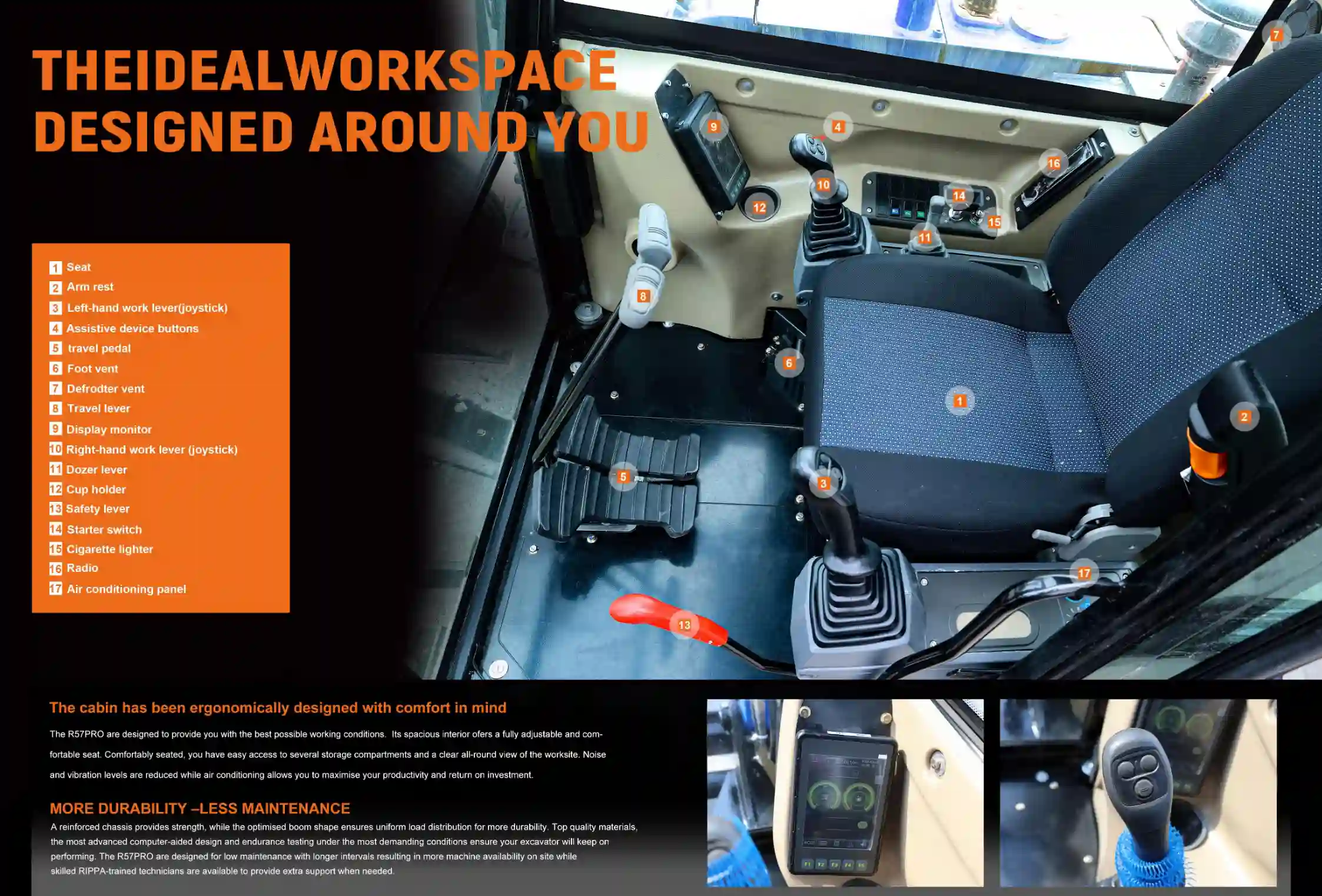

The Ideal Workspace
Designed Around You

The cab is ergonomically designed with comfort in mind to give you the best possible working conditions. A spacious interior offers a fully adjustable, comfortable seat, easy access to several storage compartments and a clear all-round view of the worksite. Noise and vibration are reduced, and air conditioning helps you maximize productivity and return on investment.

Cab controls: seat, arm rest, left- and right-hand work levers (joysticks), assistive device buttons, travel pedal and lever, foot vent, defroster vent, display monitor, dozer lever, cup holder, safety lever, starter switch, cigarette lighter, radio and air conditioning panel.

Operator seat and controls inside the Rippa R57 excavator cab
Spacious cab with adjustable seat
LCD display screen in the Rippa R57 excavator cab
Large LCD display
Joystick work lever in the Rippa R57 excavator cab
Joystick work lever

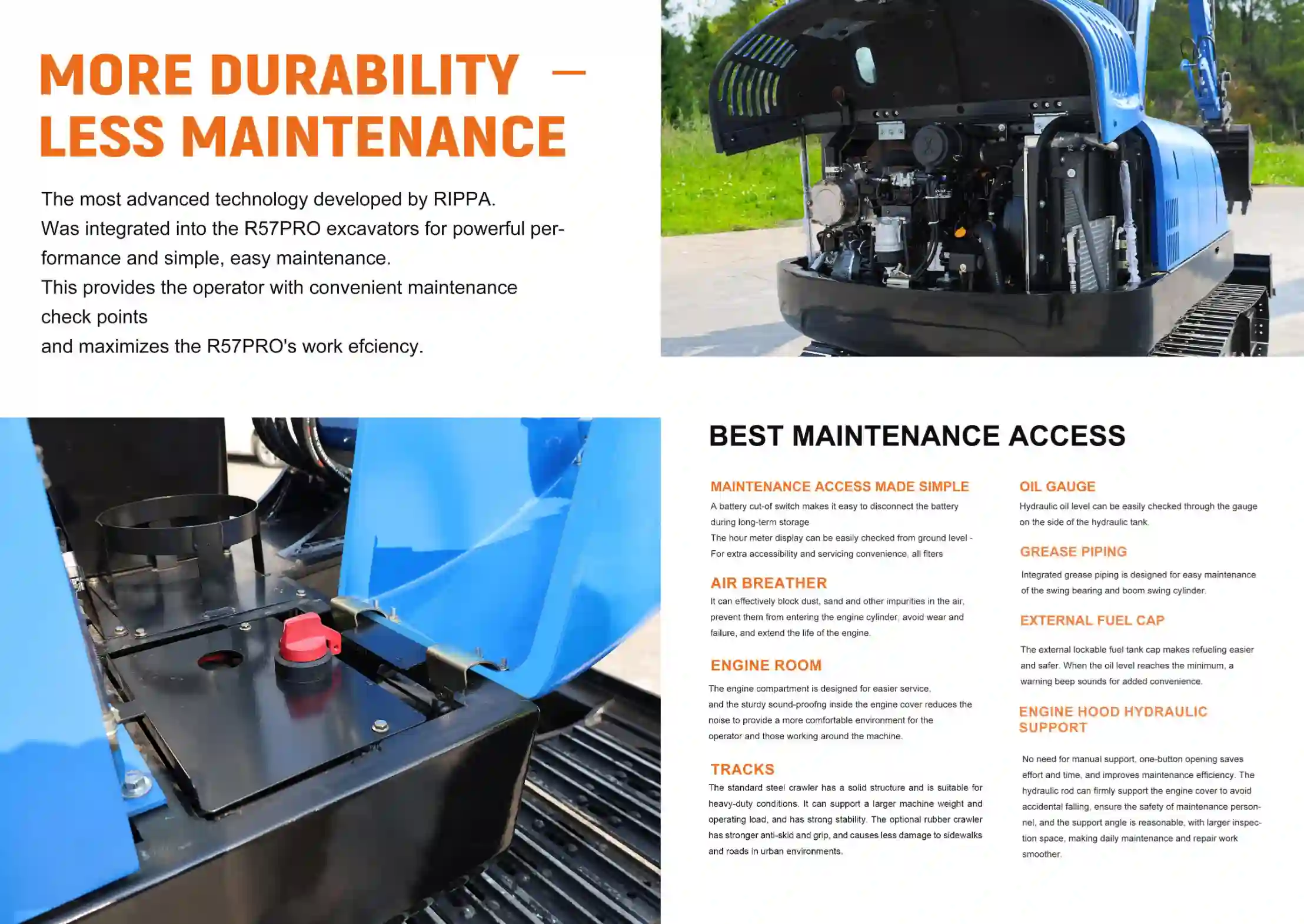

More Durability, Less Maintenance

A reinforced chassis provides strength, while the optimized boom shape spreads load evenly for more durability. Top-quality materials, advanced computer-aided design and endurance testing under demanding conditions keep your excavator performing. The R57 PRO is designed for low maintenance with longer service intervals, and skilled Rippa-trained technicians are available when you need extra support.

Open engine hood showing the engine compartment of the Rippa R57 excavator

Engine room

The engine compartment is designed for easier service, and sturdy sound-proofing inside the engine cover reduces noise for the operator and anyone working around the machine.

Lockable fuel cap and engine hood on the Rippa R57 excavator

External lockable fuel cap

Refueling is easier and safer, and a warning beep sounds when the fuel level reaches the minimum.

Maintenance Access Made Simple

Battery cut-off switch

Disconnect the battery easily during long-term storage.

Hour meter and filters

The hour meter display is easy to check from ground level, and all filters are easy to reach.

Air breather

Blocks dust, sand and other impurities from entering the engine cylinder, avoiding wear and failure and extending engine life.

Oil gauge

Check the hydraulic oil level through the gauge on the side of the hydraulic tank.

Grease piping

Integrated grease piping makes swing bearing and boom swing cylinder maintenance easy.

Engine hood hydraulic support

One-button opening saves time and effort, and the hydraulic rod firmly holds the cover for safety and a large inspection space.

Tracks

Standard steel crawlers have a solid structure for heavy-duty conditions. Optional rubber tracks add grip and cause less damage to sidewalks and roads.

Brand ModelR10-8R13-4R15-5 ECOR18-5 PROR22-4 PROR32-5 PROR57-2
EngineEngine ModelKubota Z482Kubota D722Kubota D722Kubota D902Kubota D1105Kubota V1505Kubota V2607
# of Cylinders2333344
Rated Power10.98HP13.68HP13.68HP15.8HP24.37HP24.37HP68.4HP
Main PumpNumber of Main Pump TypesGear Pump x 1Gear Pump x 3Gear Pump x 3Variable Displacement Piston Pump x 1Variable Displacement Piston Pump x 1Variable Displacement Piston Pump x 1Variable Displacement Piston Pump x 1
Max Flow Rate4.76gpm5.71gpm5.71gpm10.94gpm17.74gpm26.15gpm39.5gpm
Operating SystemCompound MotionN/AN/AN/A1111
Pilot SystemN/A4 Way Pilot Operated + 4 Way Mechanically Operated4 Way Pilot Operated + 4 Way Mechanically Operated10 Way Pilot Operated9 Way Pilot Operated9 Way Pilot Operated9 Way Pilot Operated
Valve InfoValve TypeMechanical Control ValveHydraulic & MechanicalHydraulic & MechanicalLoad Sensitive Control ValveLoad Sensitive Control ValveLoad Sensitive Control ValveLoad Sensitive Control Valve
Hydraulic Motor TypeTravel Motor SpeedSingle SpeedDual SpeedDual SpeedDual SpeedDual SpeedDual SpeedDual Speed
Motor TypeCyclodialCyclodialCyclodialPlungerPlungerPlungerPlunger
Swing Motor TypeCyclodialCyclodialCyclodialCyclodial w/ CushioningCyclodial w/ CushioningCyclodial w/ CushioningCyclodial w/ Cushioning
Basic ParametersTotal Weight2151.8 lbs.2904 lbs.3307 lbs.4074 lbs.5223.85 lbs.7082 lbs.12,705 lbs
Bucket Size11.8"15.7"15.7"15.7"15.7"23.54"23.54"
Max Digging Depth72.2" / ~6'72.5" / ~6'71.2" / ~6'95.3" / 7.5'90.4" / 8.5'111.3" / 10'144.8" / 12.4'
Narrowest Transport Width35.91"33.4"38.74"38.94"51.18"61.02"74"
Tail TypeConventionalZero TailZero TailZero TailZero TailZero TailZero Tail
Total Track Length104.84"116.14"116.14"139.3"55.47"73.62"100"
SpecsSmart DisplayN/AN/AStandard Across All Models
Bucket Capacity.494 cu ft..494 cu ft..64 cu ft.1.59 cu ft.1.9 cu ft.2.83 cu ft.3.2-6.2cu ft.
Hydraulic Oil CoolerStandard Across All Models
Boom Length58.1"57.1"58.1"71.9"72.1"87.4"118.1"
Arm Length31.5"35.4"37.4"70.1"49.2"63.8"63"
Track Specs Width x Pitch x # of Links7.09"x2.83"x37L7.09"x2.83"x41L7.09"x2.83"x41L9.06"x1.89"x74L9.84"x1.85"x84L11.81"x2.07"x84L15.75"x5.31"x40L
Track TypeRubber TrackSteel Track w/ Rubber InsertsRubber TrackRubber TrackRubber TrackRubber TrackRubber Track
Warranty Term2 Years2 Years2 Years3 Years3 Years3 Years3 Years
Cab OptionsCab without ACCab without ACCab without ACCab without ACCab w/AC or No CabCab w/AC or No CabCab w/AC or No Cab

Rippa R57 PRO Technical Specifications

All specifications are shown in imperial units. Metric figures on the manufacturer sheet have been converted.

Basic Information
Machine Working Weight12,705 lbs
Bucket Capacity6.18 cu ft
Travel Speed Low / High1.5 mph / 2.4 mph
Gradeability35%
Ground Pressure5.1 psi
Machine Parameters
Maximum Digging Force7,194 lbf
Maximum Digging Radius242.5"
Maximum Digging Depth149"
Maximum Digging Height228.7"
Maximum Unloading Height160.6"
Engine BrandKubota
Engine ModelV2607 (EPA4/Euro 5)
Maximum Horsepower68.4 hp
Maximum Speed2200 rpm
Displacement0.69 gal
Number of Cylinders4
Cooling MethodWater-cooled
Engine Oil Change Amount1.6 gal
Fuel FormDiesel
Fuel Grade0/-10
Theoretical Fuel Consumption2.57 gal/h
Dimensions
Transport Length230.3"
Transport Width78.7"
Transport Height101.6"
Counterweight Ground Clearance26.3"
Bucket Width23.6"
Boom Length118.16"
Arm Length63"
Bulldozer Blade Width74"
Hydraulic System
Main Pump Type/ModelLoad sensitive variable piston pump/68
Main Pump BrandHYTEK
Main Pump Maximum Flow39.5 gpm
Multi-Way Valve8-way hydraulic multi-way valve
Multi-Way Valve BrandHYTEK
Rated Set Pressure3,263 psi
Maximum Set Pressure3,626 psi
Travel Hydraulic Motor TypeTM07
Travel Motor BrandZHTE
Motor Displacement22-44 ml/rev (1.34-2.69 cu in/rev)
Slewing Hydraulic Motor TypeZHTE DH80
Slewing Motor Displacement43.2 ml/rev (2.64 cu in/rev)
Configuration
CabStandard
ACStandard
Reversing CameraOptional
Control HandlePilot hydraulic
Boom SwingNone
Bulldozer SwingOptional
Change ColorOptional
Steel Track / Rubber TrackOptional
Hydraulic Thumb ClampOptional
Attachments (Optional)
Quick ChangeOptional
BreakerOptional
RipperOptional
RakeOptional
Hydraulic Wood GrabberOptional
MowerOptional
Additional Specs
Compound MotionYes
Pilot System9 Way Pilot Operated
Valve TypeLoad Sensitive Control Valve
Swing Motor TypeCycloidal with Cushioning
Tail TypeZero Tail
Hydraulic Oil CoolerStandard
Smart DisplayStandard
Track Specs Width x Pitch x # of Links15.75" x 5.31" x 40 links
Warranty Term3 Years

Video showing the Rippa R57 Excavator.

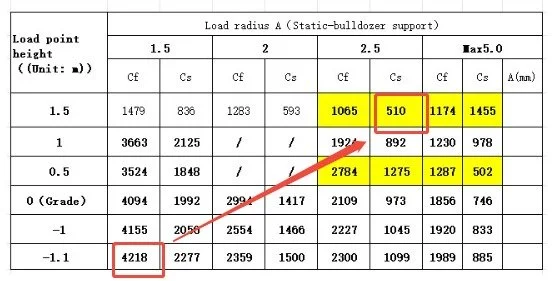

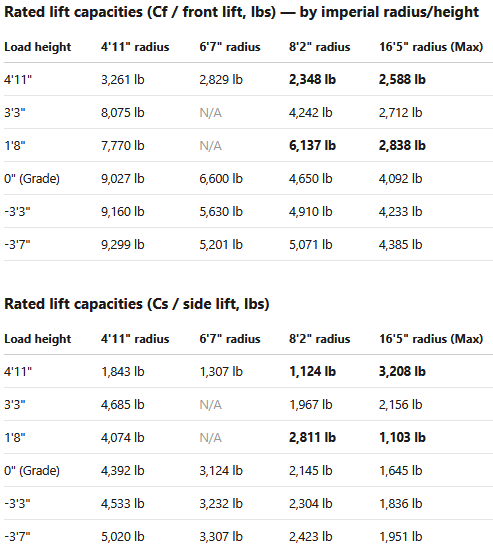

Rippa excavator lift capacity
Rippa excavator lift capacity
Excavator pin spacing details

Want to know if other attachments will fit? Make sure they align with this:

MachineABC
R5745155260
