RIPPA RB06 BACKHOE

Rippa RB06 Backhoe
$23,430.00

Note: the price above may change due to tariffs and shipping.

NOTE: if you buy a machine from us, you will receive 50% off the prices below on attachments, whether you buy them with the machine or down the road.

The Rippa RB06 is a compact backhoe loader built for efficiency and durability. It pairs strong loading capacity and a wide working range with a comfortable operator station, making it a dependable fit for a wide variety of jobs and users.

Powered by a Kubota D1105 diesel engine, the RB06 delivers 18.4 kW (24.7 hp) while keeping fuel consumption, vibration and noise low, balancing environmental responsibility with high efficiency.

An optional GPS tracker can be installed by our team for $125. A $12.95 monthly fee is payable to Land Air Sea, our tracking partner, and provides location updates every 30 seconds. (Rippa USA Sales exclusive)

Rippa RB06 Backhoe

Rippa RB06 Features

Built to dig, load and work all day
01

Uses

Earthwork for highways, railways, construction, hydropower, ports and mines. Shovels bulk materials such as soil, sand, gravel, lime and coal, and handles light digging in ore and hard soil.

02

Cab

A comfortable shock-absorbing safety seat, a fully functional steering wheel and an easy-to-read operation panel. An enclosed cab is available as an option.

03

Climate and comfort

Order the optional enclosed cab for heating, air conditioning and a roomy, secure seat, plus a convenient operating system and rugged hardware built for varied terrain.

04

Front and rear arms

A strong loader arm up front and a backhoe arm at the rear.

05

Controls

A console with dual joystick levers and auxiliary levers.

06

Other

Telescopic arm, protected oil pipes, rearview mirror, roof and strong, durable tires.

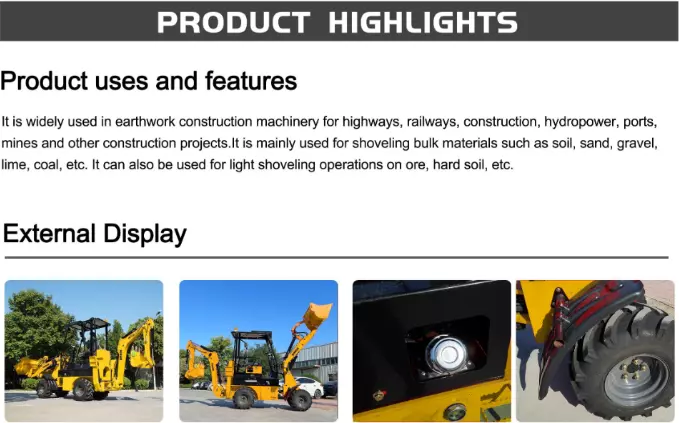

Rippa RB06 Product Highlights

Product uses and features

Widely used in earthwork construction for highways, railways, building projects, hydropower, ports, mines and other jobsites. The RB06 is mainly used to shovel bulk materials such as soil, sand, gravel, lime and coal, and is also suited to light shoveling of ore and hard soil.

External Display

Rippa RB06 backhoe loader external display: side view, raised loader bucket, headlight and tire

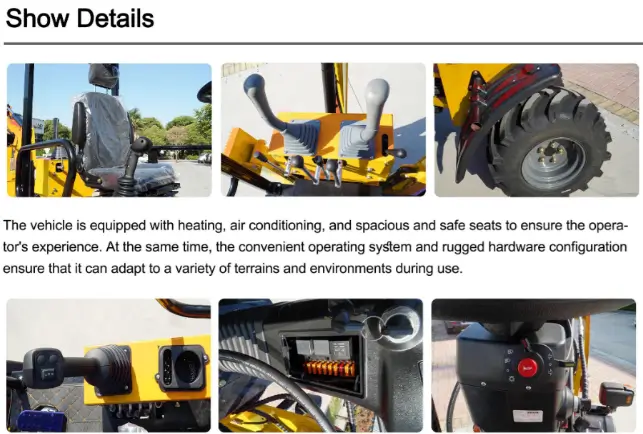

Rippa RB06 Details

Rippa RB06 operator seat, control levers and tire

Able to be ordered with an optional enclosed cab with heating, air conditioning and a spacious, secure seat for operator comfort. A convenient control layout and rugged hardware let the machine adapt to a wide variety of terrains and working conditions.

Rippa RB06 joystick control, electrical panel and ignition switch

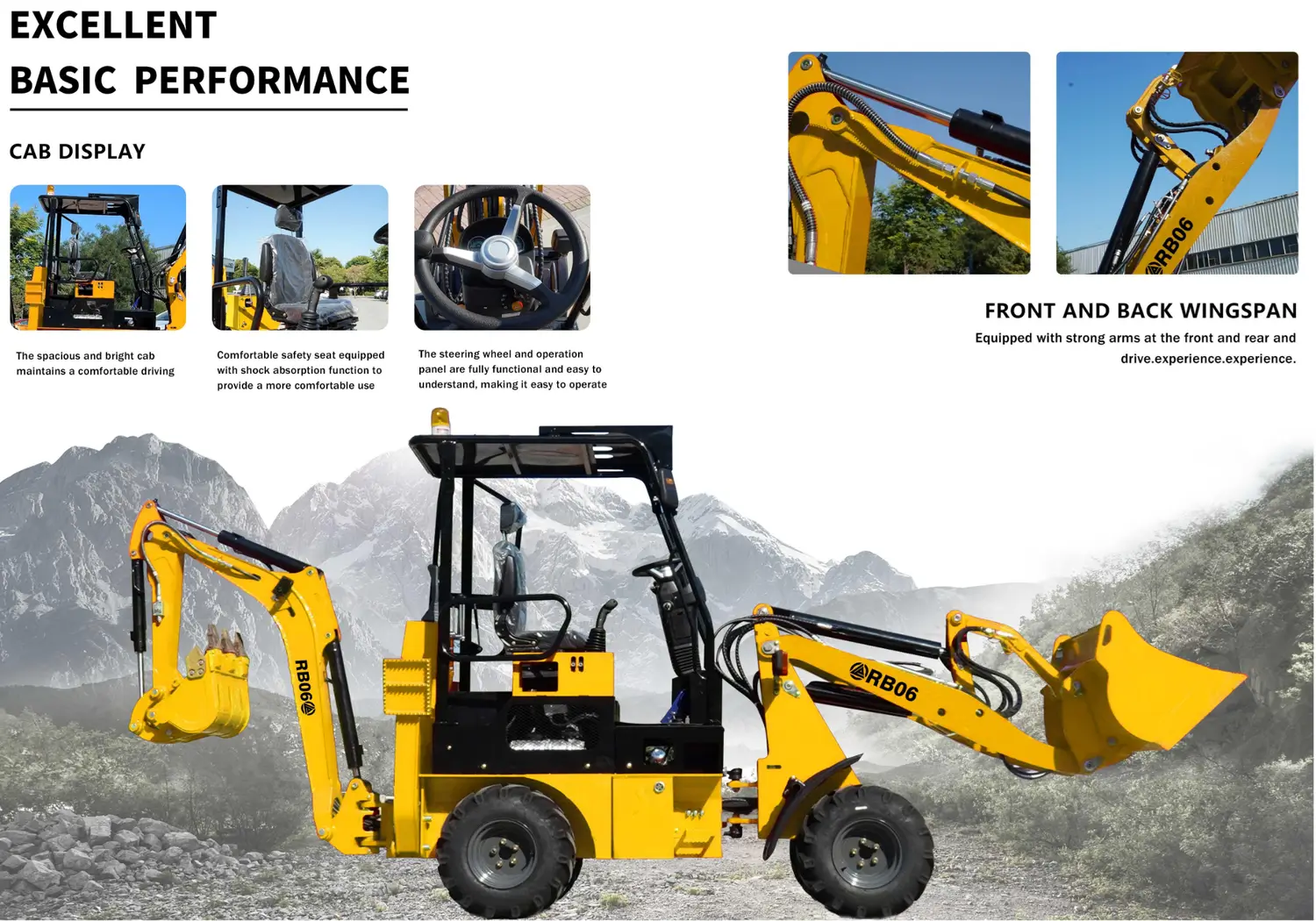

Rippa RB06 Performance

The Operator Station

Rippa RB06 backhoe operator station
A spacious, bright operator station for comfortable driving. An enclosed cab is available as an option.
Rippa RB06 shock-absorbing safety seat
A shock-absorbing safety seat for added comfort.
Rippa RB06 steering wheel and operation panel
A fully functional steering wheel and operation panel that are easy to understand and operate.

Loader and Backhoe Arms

Strong arms at both the front and rear give the RB06 confident digging and loading reach.

Rippa RB06 front loader arm with hydraulic cylinder
Front loader arm
Rippa RB06 rear backhoe arm
Rear backhoe arm
Rippa RB06 backhoe loader with loader bucket raised and backhoe arm folded

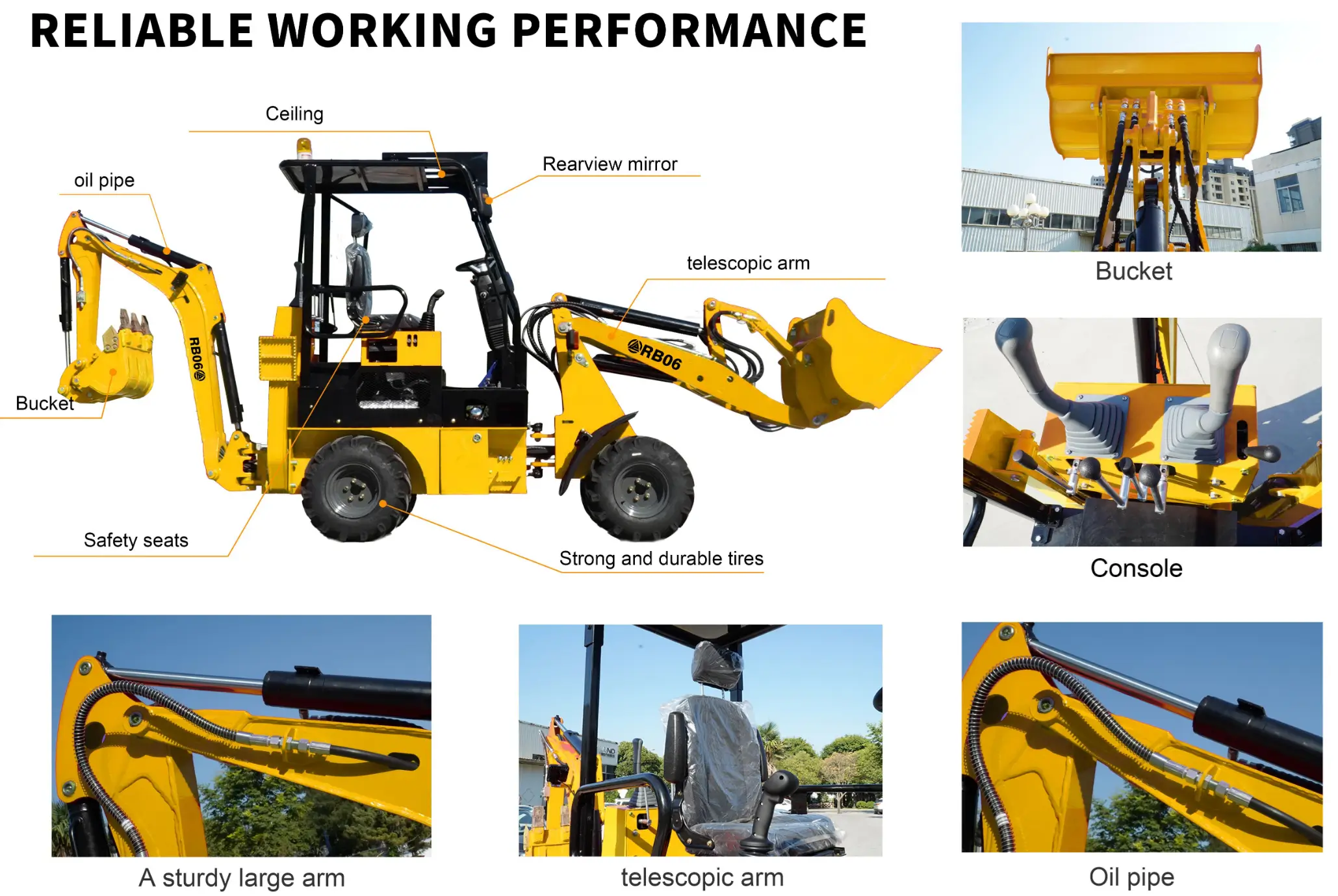

Reliable Working Performance

Built from durable components designed for dependable day-to-day work:

  • Ceiling
  • Rearview mirror
  • Telescopic arm
  • Oil pipe
  • Bucket
  • Safety seats
  • Strong and durable tires
Rippa RB06 loader bucket
Bucket
Rippa RB06 console with dual joystick levers
Console
Rippa RB06 sturdy large arm with hydraulic hose
A sturdy large arm
Rippa RB06 telescopic arm and operator seat
Telescopic arm
Rippa RB06 hydraulic oil pipe
Oil pipe

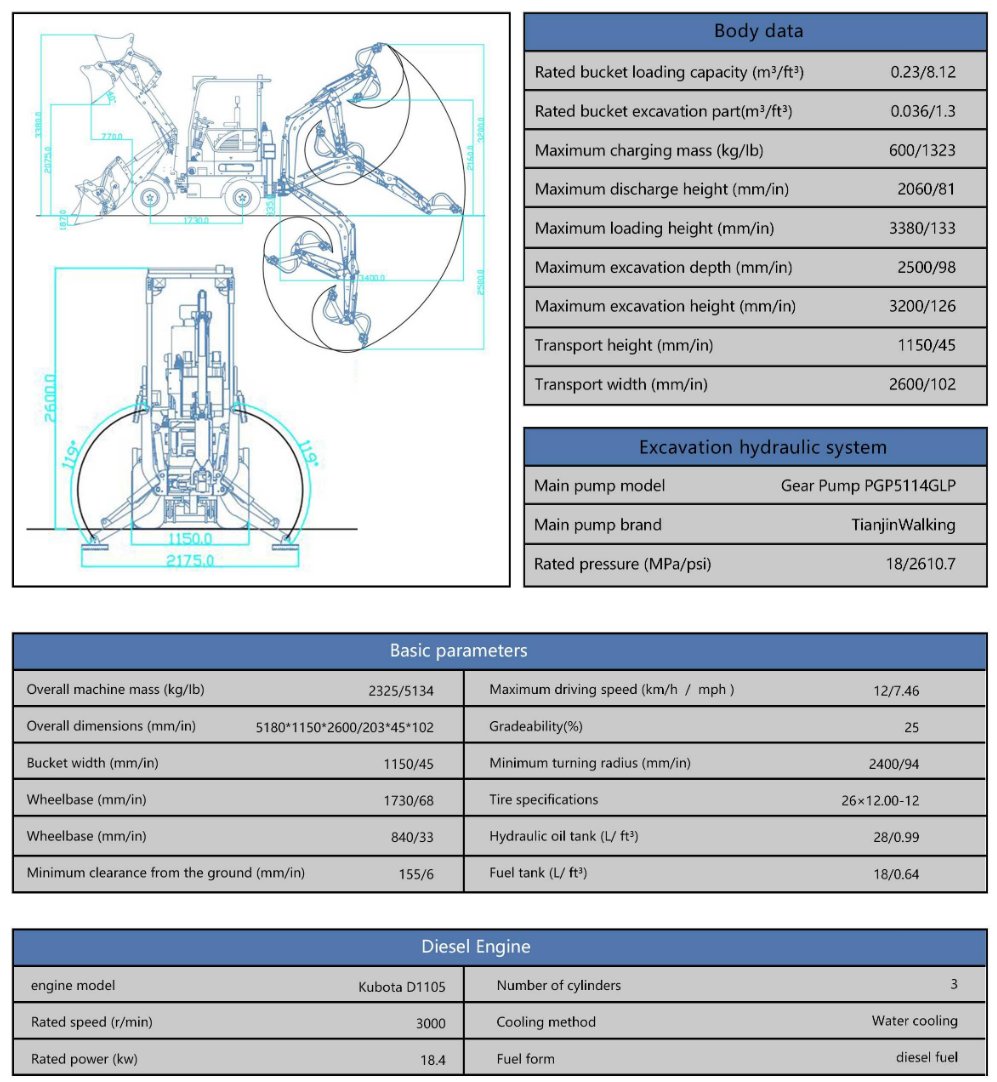

Rippa RB06 Technical Specifications

Rippa RB06 dimensions drawing showing digging reach, height and width
Dimensions drawing
Body data
Rated bucket loading capacity (m³/ft³)0.23/8.12
Rated bucket excavation part (m³/ft³)0.036/1.3
Maximum charging mass (kg/lb)600/1323
Maximum discharge height (mm/in)2060/81
Maximum loading height (mm/in)3380/133
Maximum excavation depth (mm/in)2500/98
Maximum excavation height (mm/in)3200/126
Transport height (mm/in)1150/45
Transport width (mm/in)2600/102
Excavation hydraulic system
Main pump modelGear Pump PGP5114GLP
Main pump brandTianjinWalking
Rated pressure (MPa/psi)18/2610.7
Basic parameters
Overall machine mass (kg/lb)2325/5134Maximum driving speed (km/h / mph)12/7.46
Overall dimensions (mm/in)5180*1150*2600/203*45*102Gradeability (%)25
Bucket width (mm/in)1150/45Minimum turning radius (mm/in)2400/94
Wheelbase (mm/in)1730/68Tire specifications26×12.00-12
Wheelbase (mm/in)840/33Hydraulic oil tank (L/ft³)28/0.99
Minimum clearance from the ground (mm/in)155/6Fuel tank (L/ft³)18/0.64
Diesel Engine
Engine modelKubota D1105Number of cylinders3
Rated speed (r/min)3000Cooling methodWater cooling
Rated power (kW)18.4Fuel formDiesel fuel
