RIPPA RB18 BACKHOE

The Rippa RB18 is a compact, efficient backhoe loader. It lifts 3,968 lb, digs to a depth of 98 in and carries a 28.25 cu ft front bucket, with a heated and air-conditioned cab for the operator. A Kubota D1105 diesel engine delivers 18.4 kW (24.7 hp) while keeping fuel consumption, vibration and noise low.

Rippa RB18 Backhoe
$46,580.00

Ordered from China. Call 817-382-3201 to order.

NOTE: above price could change due to tariffs and shipping.

NOTE: if you buy a machine from us, you will receive 50% off the prices below on attachments, whether you buy them with the machine or down the road.

Rippa RB18 Backhoe

Built for Earthmoving

The RB18 is widely used in earthmoving for highways, railways, construction, hydropower, ports, mines and other building projects. It is mainly used for shoveling bulk materials such as soil, sand, gravel, lime and coal, and it can also handle light shoveling of ore and hard soil.

A stronger, more stable boom, anti-skid, wear-resistant tires, a sturdy chassis and a large-capacity bucket give you excellent control and comfort across a wide range of jobs.

3,968 lbloading lift capacity
98 inmaximum digging depth
28.25 cu ftfront bucket capacity

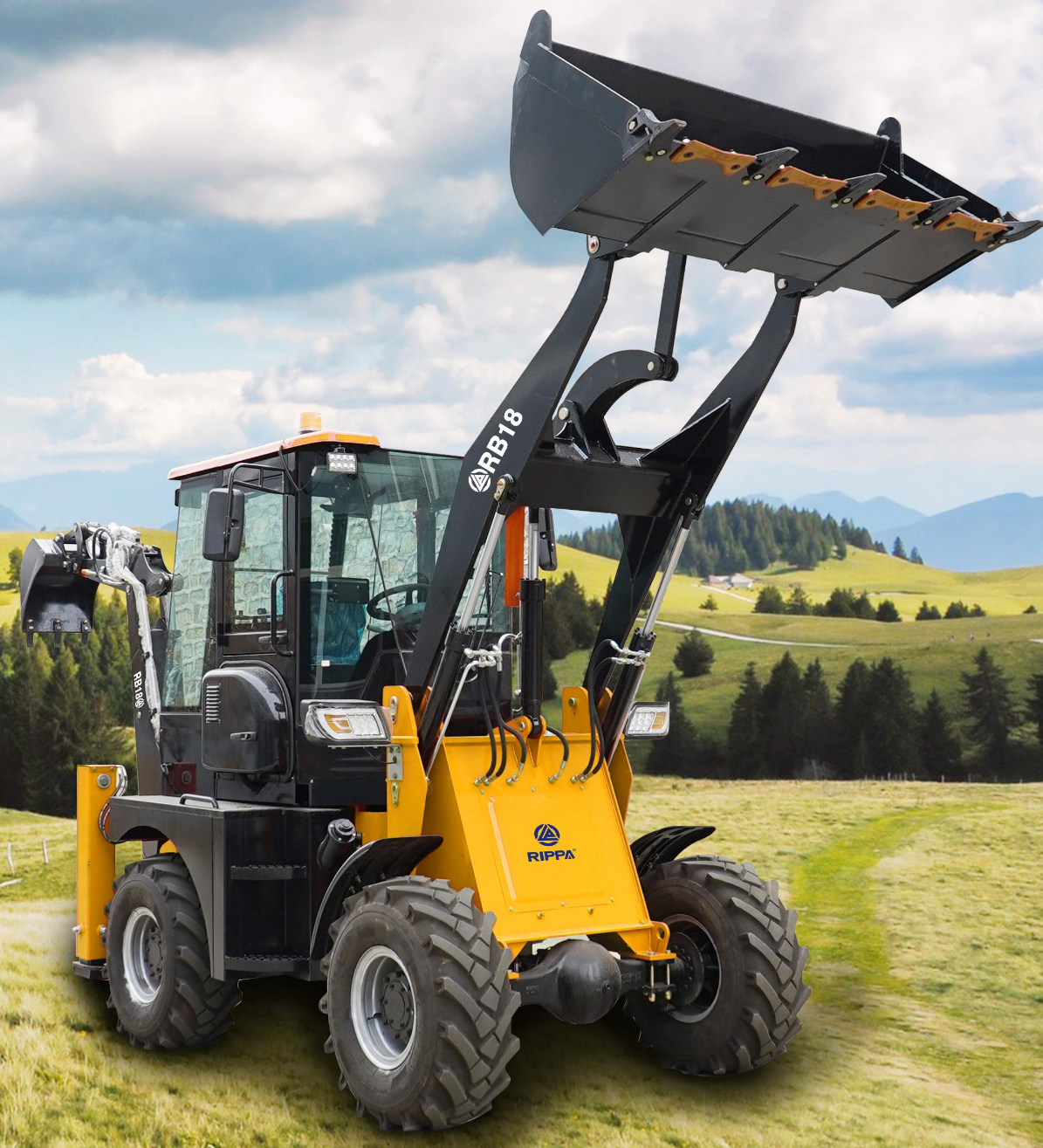

Rippa RB18 backhoe loader with raised front bucket and backhoe arm
Strong arms at the front and rear

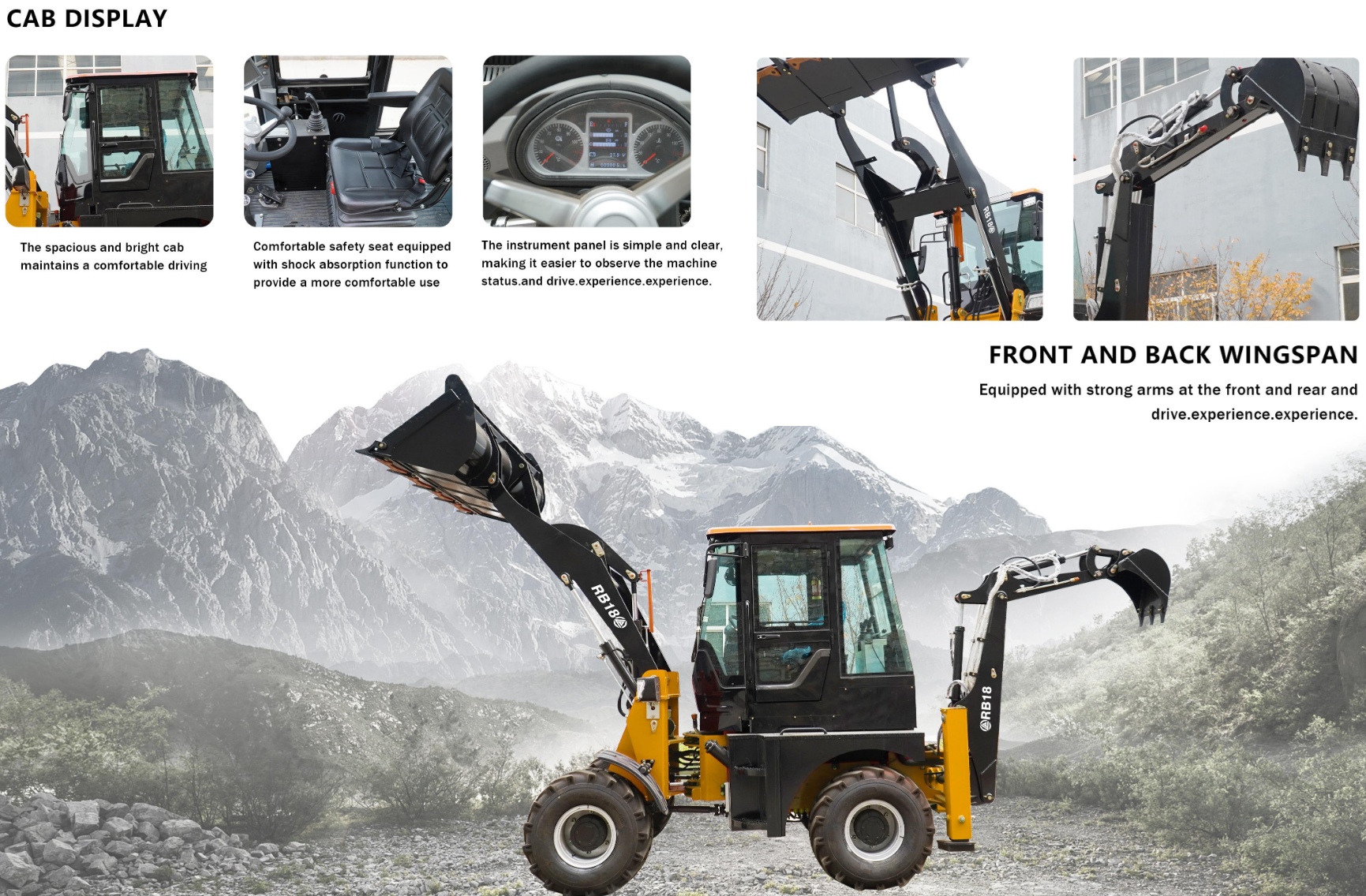

A Comfortable, Easy-to-Read Cab

The cab is spacious and bright, with heating and air conditioning, so you can work comfortably in any season. Everything you need to watch is easy to see.

Adjustable shock-absorbing safety seat in the Rippa RB18

Adjustable safety seat

A shock-absorbing seat that adjusts to you for a more comfortable ride.

Instrument panel of the Rippa RB18

Clear instrument panel

A simple, clear panel makes it easy to watch the machine’s status while you drive.

Rear-view camera monitor in the Rippa RB18

Reversing camera

A cab monitor shows what is behind you when you back up.

Cab fan on the Rippa RB18

Cab fan

Keeps air moving in the cab.

Control levers in the Rippa RB18

Control levers

Backhoe and loader controls within easy reach.

Ignition key switch in the Rippa RB18 cab

Key switch

Ignition and cab switches within easy reach.

Strong Arms, Front and Back

The RB18 has a strong loader arm at the front and a backhoe arm at the rear, with durable, sturdy hydraulic cylinders to power both.

Rippa RB18 front loader arm raised
Front loader arm
Rippa RB18 rear backhoe arm extended
Rear backhoe arm
Front bucket on the Rippa RB18

Front bucket

A large-capacity bucket for loading soil, sand, gravel and similar materials.

Large backhoe arm on the Rippa RB18

Sturdy backhoe arm

A large, strong arm for digging.

Hydraulic tubing on the Rippa RB18

Hydraulic tubing

Hydraulic lines routed along the arm.

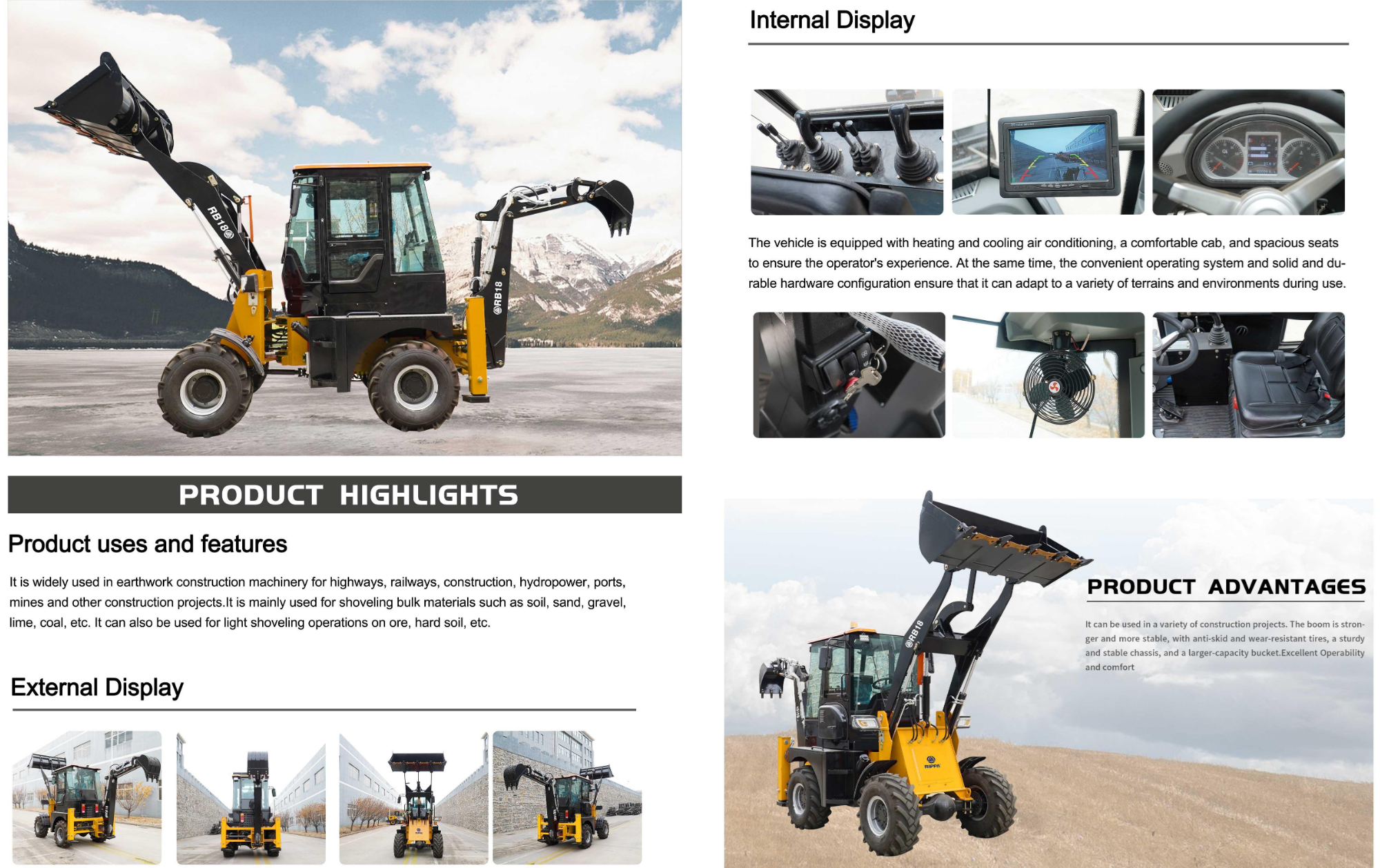

Reliable Working Performance

Operator comfort

A spacious, comfortable cab, heating and air conditioning, an adjustable safety seat and a rear-view mirror.

Built to last

Durable, sturdy oil cylinders, a solid chassis and a durable hardware configuration that adapts to a variety of terrains and environments.

Rippa RB18 backhoe loader on a work site
The RB18 with its loader and backhoe arms raised

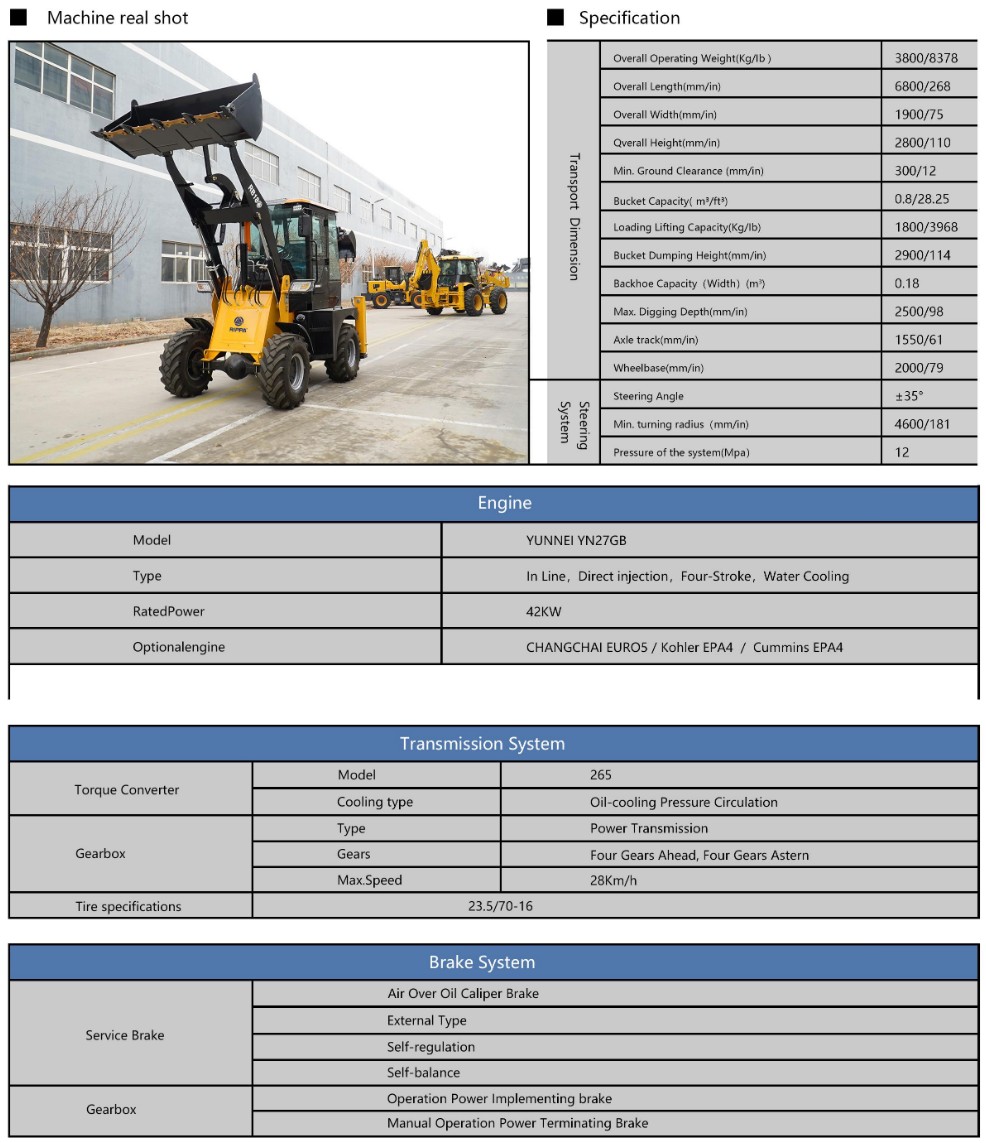

Rippa RB18 Technical Specifications

Specifications are in imperial units, as supplied by the manufacturer. Machine specs and standard equipment can change by model year.

Dimensions and Performance
Operating Weight8,378 lb (3,800 kg)
Overall Length268 in (6,800 mm)
Overall Width75 in (1,900 mm)
Overall Height110 in (2,800 mm)
Min. Ground Clearance12 in (300 mm)
Front Bucket Capacity28.25 cu ft (0.8 m³)
Loading Lift Capacity3,968 lb (1,800 kg)
Bucket Dumping Height114 in (2,900 mm)
Backhoe Bucket Capacity0.18 m³
Max. Digging Depth98 in (2,500 mm)
Axle Track61 in (1,550 mm)
Wheelbase79 in (2,000 mm)
Steering Angle±35°
Min. Turning Radius181 in (4,600 mm)
Engine
ModelKubota D1105 diesel
Rated Power18.4 kW (24.7 hp)
Transmission
Torque Converter Model265
CoolingOil-cooling, pressure circulation
Gearbox TypePower transmission
GearsFour forward, four reverse
Max Speed28 km/h (17.4 mph)
Tires23.5/70-16
Brake System
Service BrakeAir-over-oil caliper brake, external type, self-regulating, self-balancing
Parking BrakePower applied, manual power release
