Rippa Rh35 TeleHandler
$46,620.00

NOTE: above price could change due to tariffs and shipping.

NOTE: if you buy a machine from us, you will receive 50% off the prices below on attachments, whether you buy them with the machine or down the road.

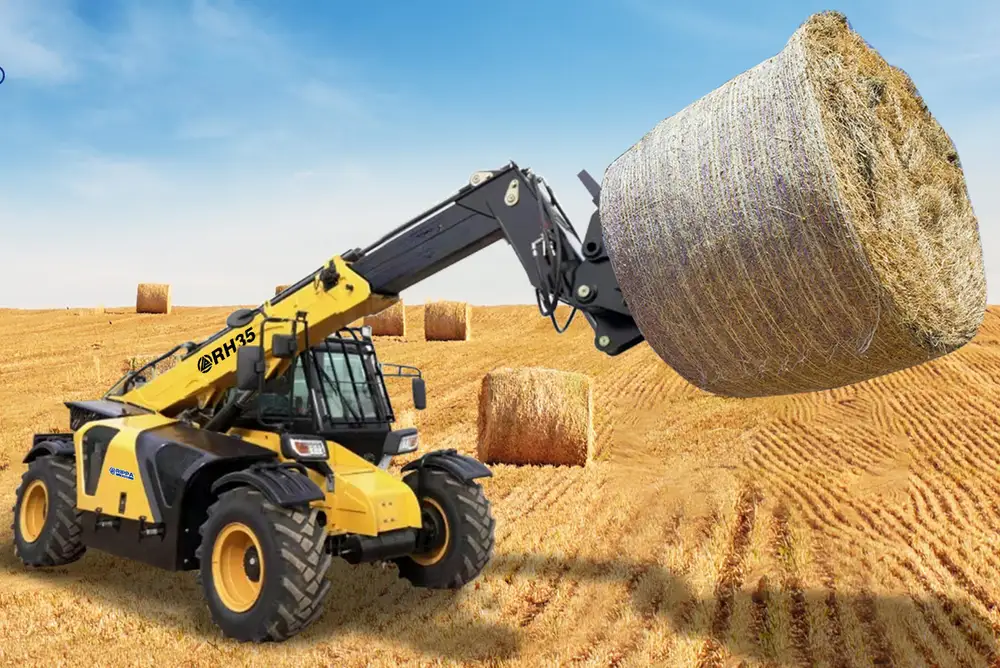

The Rippa RH35 telehandler has a load capacity of 7.2 tons and a lifting height of 22.97 ft, yet it is compact enough to work in small areas.

It is powered by a Cummins diesel engine producing 77.3 kW (103.7 hp), keeping fuel consumption, vibration and noise low for both environmental protection and high efficiency.

Rippa RH35 Technical Specifications

All specifications are shown in imperial units. Metric figures on the manufacturer sheet have been converted.

Lift and Reach
Maximum lift capacity7,700 lb
Lift height275.6 in
Reach at maximum lift height17.7 in
Maximum forward reach141.7 in
Carriage roll back angle42.6 degrees
Carriage dump angle37.5 degrees
Pallet fork length48 in
Weight and Dimensions
Weight, unloaded15,840 lb
Tire16/70-24
Outside turn radius (over tire)167.3 in
Overall height90.6 in
Overall width (over tires)84.6 in
Inside width of cab31.5 in
Front track68.9 in
Wheelbase112.2 in
Overall length to front tires165.4 in
Overall length to front carriage183.1 in
Ground clearance13.8 in
Engine
EngineYuchai YCD4J22T-115 (Euro III)
Rated power113.9 hp (85 kW)
Optional enginesYuchai YCF36110-S500 (Euro 5) / Kohler KDI2503TCR (EPA Tier 4)

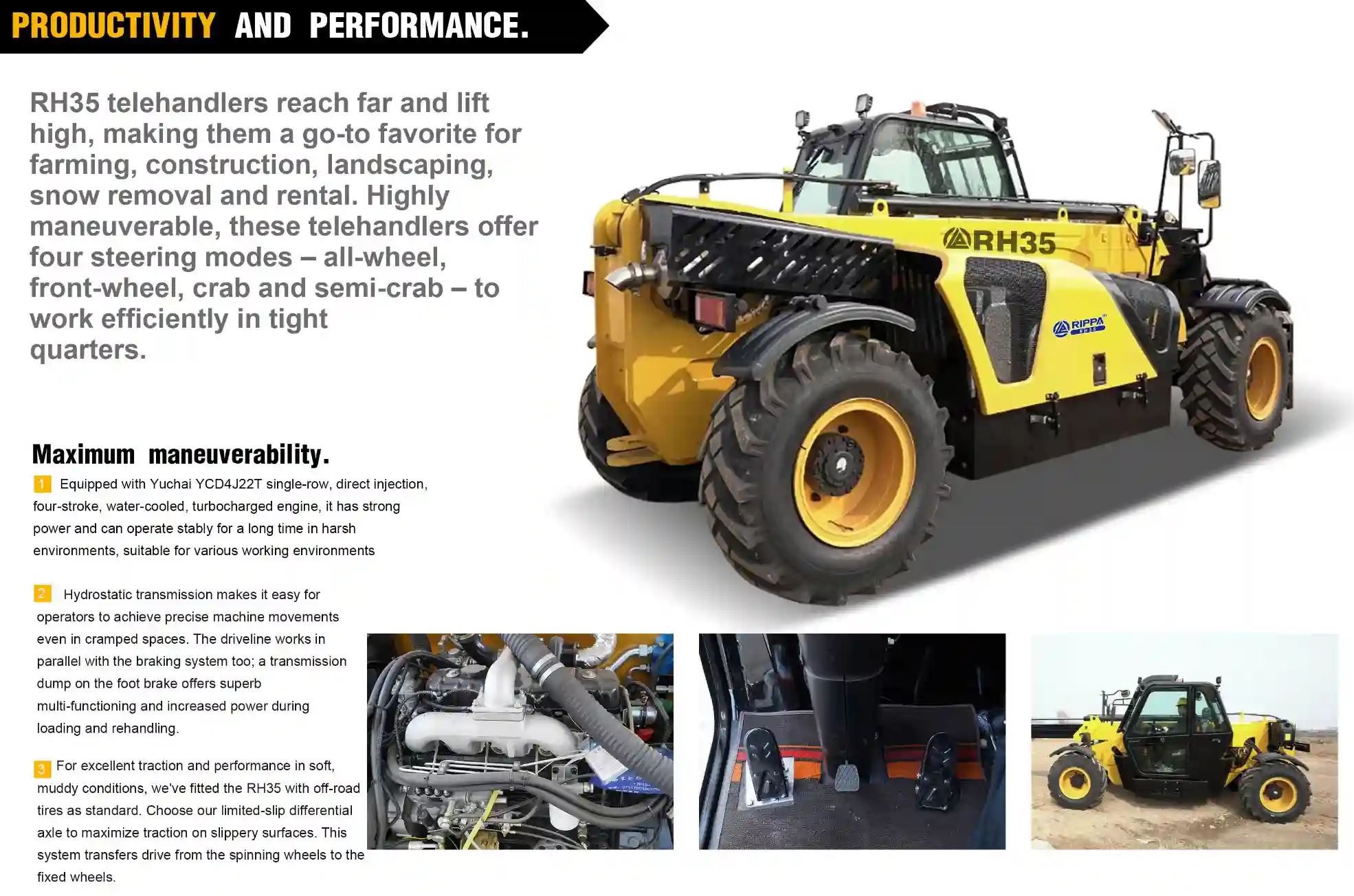

Productivity and Performance

SteeringFour steering modes: all-wheel, front-wheel, crab and semi-crab.EngineYuchai YCD4J22T single-row, direct injection, four-stroke, water-cooled, turbocharged.TransmissionHydrostatic transmission for precise movement in cramped spaces; driveline works in parallel with the braking system; transmission dump on the foot brake.TractionOff-road tires standard; limited-slip differential axle transfers drive from spinning wheels to fixed wheels.

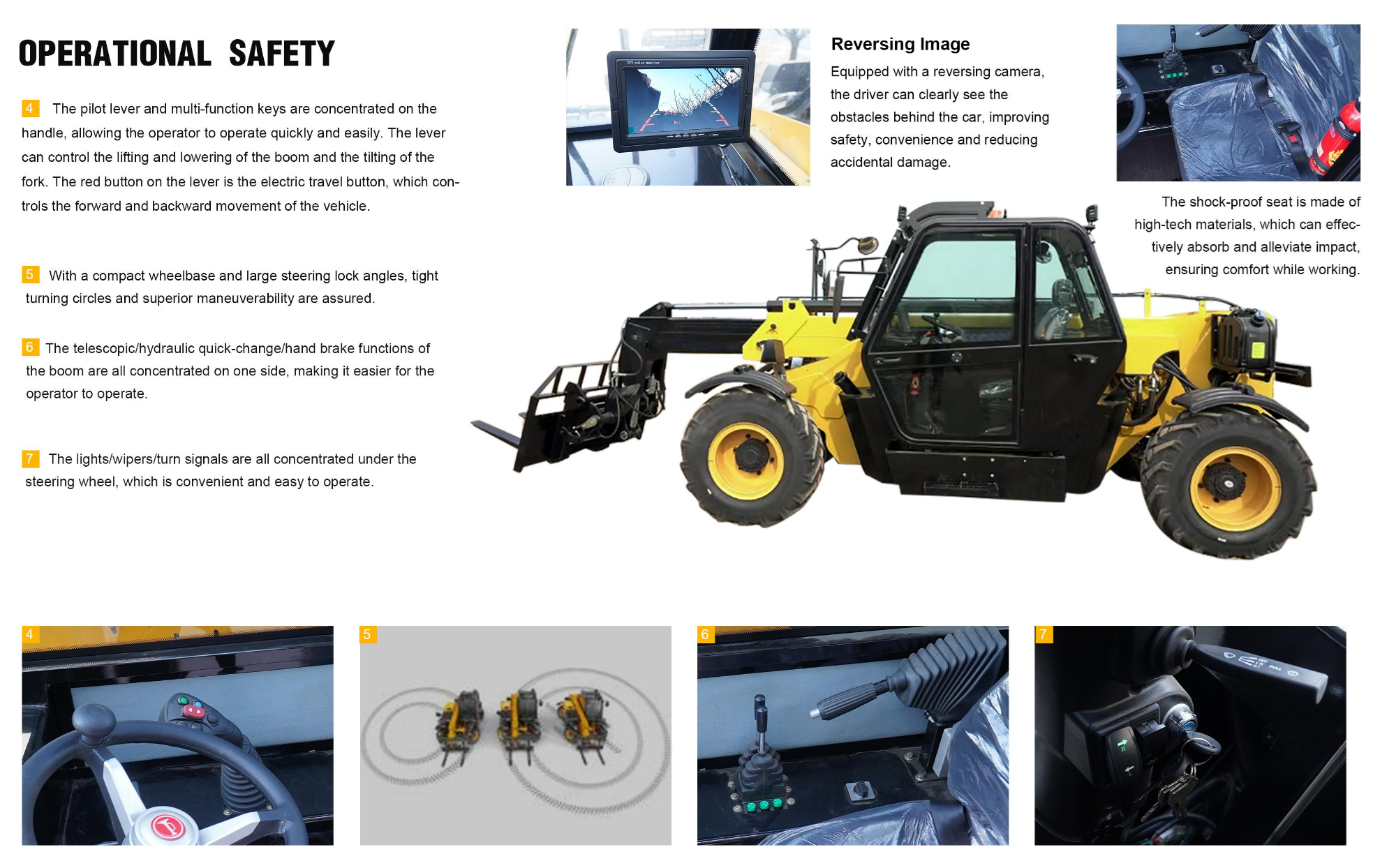

Operational Safety

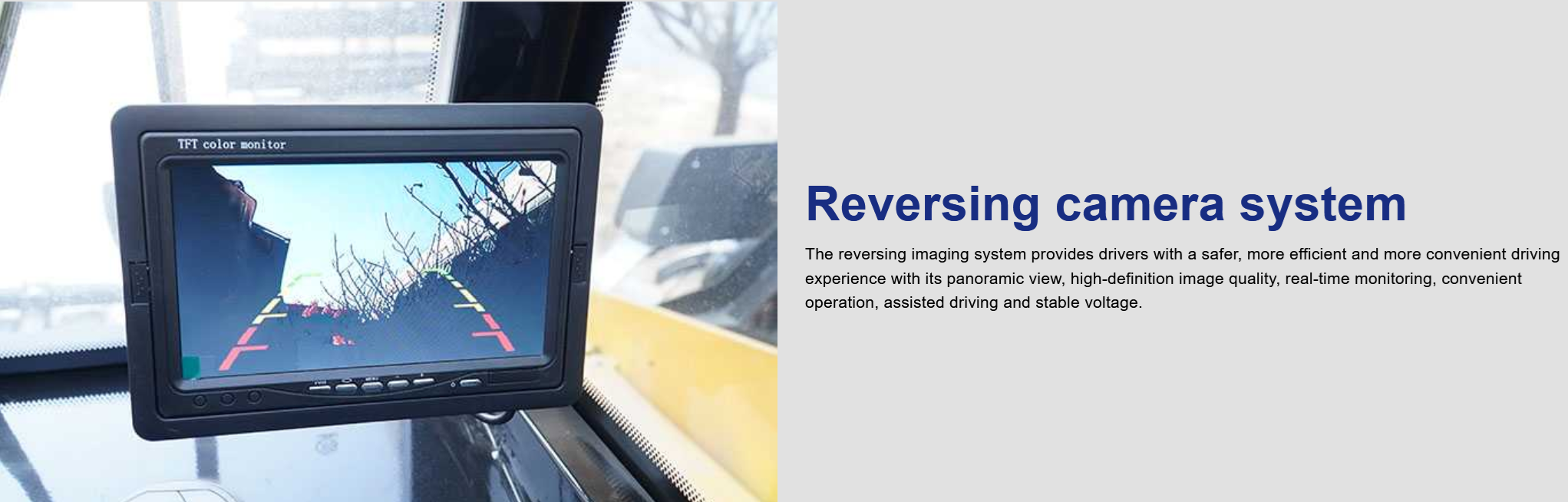

Pilot leverMulti-function keys on the handle control boom lift/lower and fork tilt; red button is the electric travel (forward/reverse) button.ManeuverabilityCompact wheelbase and large steering lock angles for tight turning circles.Boom controlsTelescopic, hydraulic quick-change and hand brake functions on one side.Column controlsLights, wipers and turn signals under the steering wheel.Reversing cameraShows obstacles behind the machine.SeatShock-proof seat absorbs impact.

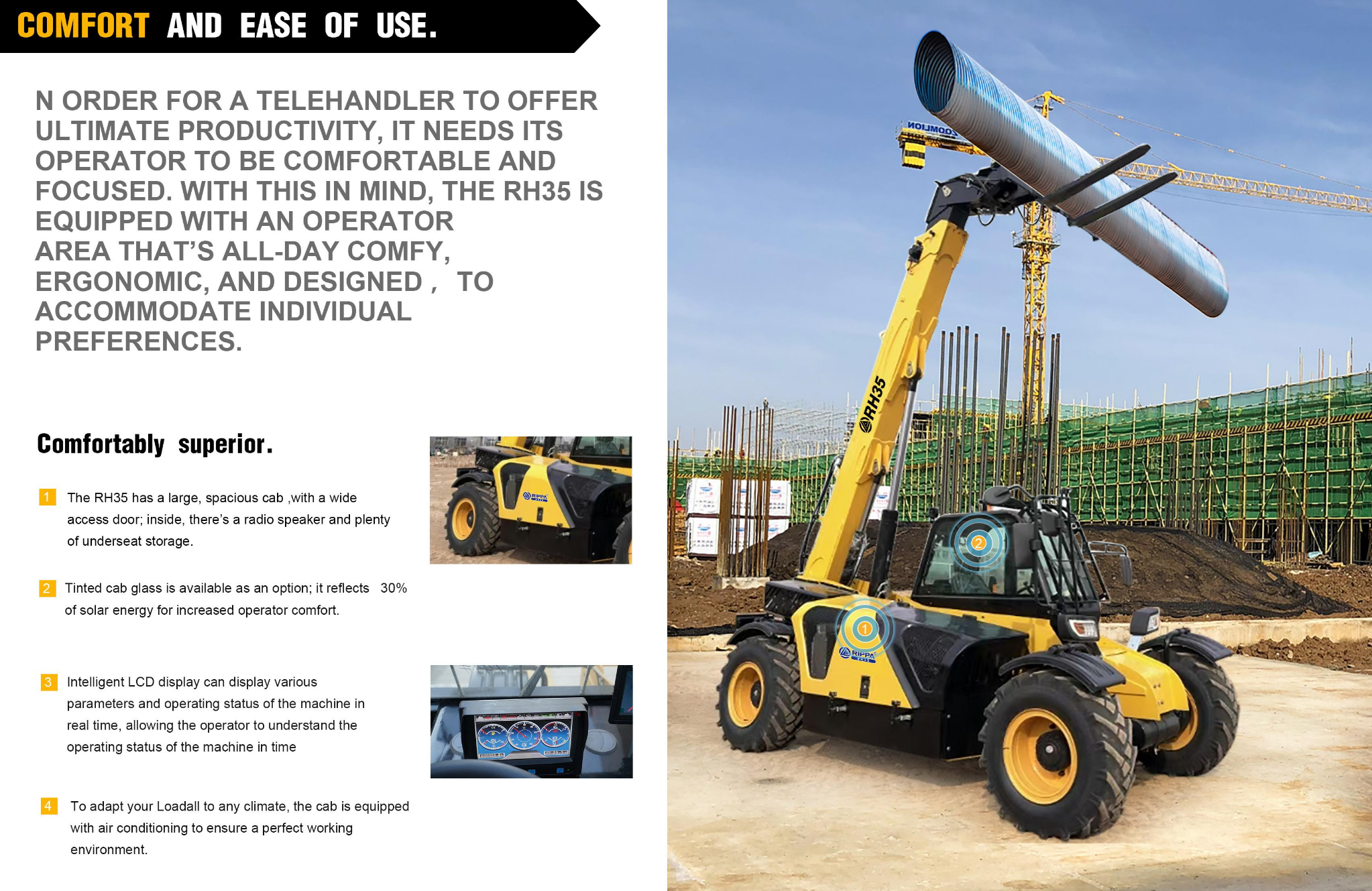

Comfort and Ease of Use

CabLarge cab with wide access door, radio speaker and underseat storage; optional tinted glass reflecting 30% of solar energy.DisplayIntelligent LCD shows machine parameters and operating status in real time.ClimateAir conditioning.
