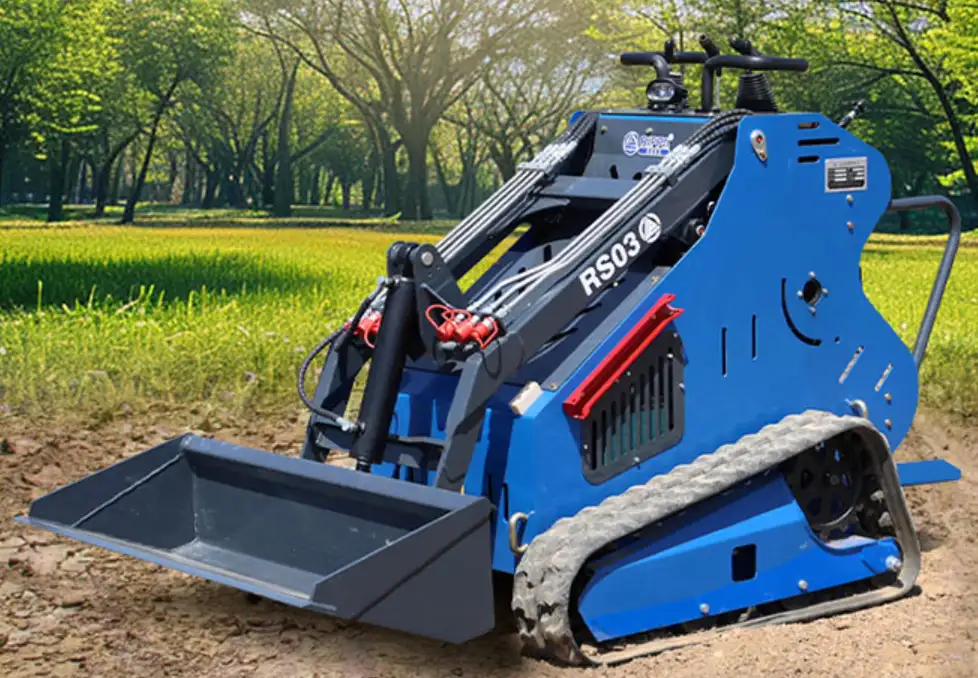

Rippa RS03 Skid steer loader

Rippa RS03 Mini Skid Steer
$5,000.00

Call for price- Its much lower - we are required to follow Rippa’s MAP Pricing

NOTE: above price could change due to tariffs and shipping.

NOTE: if you buy a machine from us, you will receive 50% off the prices below on attachments, whether you buy them with the machine or down the road.

Rippa is doing things others are just starting to: LED headlights, the Briggs & Stratton XR2100 engine and a spring-mounted operator platform stand all add up to a more efficient, higher-quality mini skid steer.

The RS03 has an automatic speed mode adjustment system. Operators switch working modes with a simple push of the control lever, which optimizes engine speed and transmission efficiency for better performance.

Rippa RS03 Skid Steer Loader

An optional GPS tracker can be installed by our team for $125. There is a $12.95 monthly fee payable to Land Air Sea, who we partnered with. 30 second updates. (Rippa USA Sales Exclusive)

Built with exceptional stability across varied terrain, the Rippa RS03 has a low ground pressure of 22.5 kPa (3.3 psi) that keeps it stable on soft or uneven surfaces. With a maximum loading height of 88.9 in and a maximum load of 616 lb, the RS03 is engineered for demanding, high-intensity tasks.

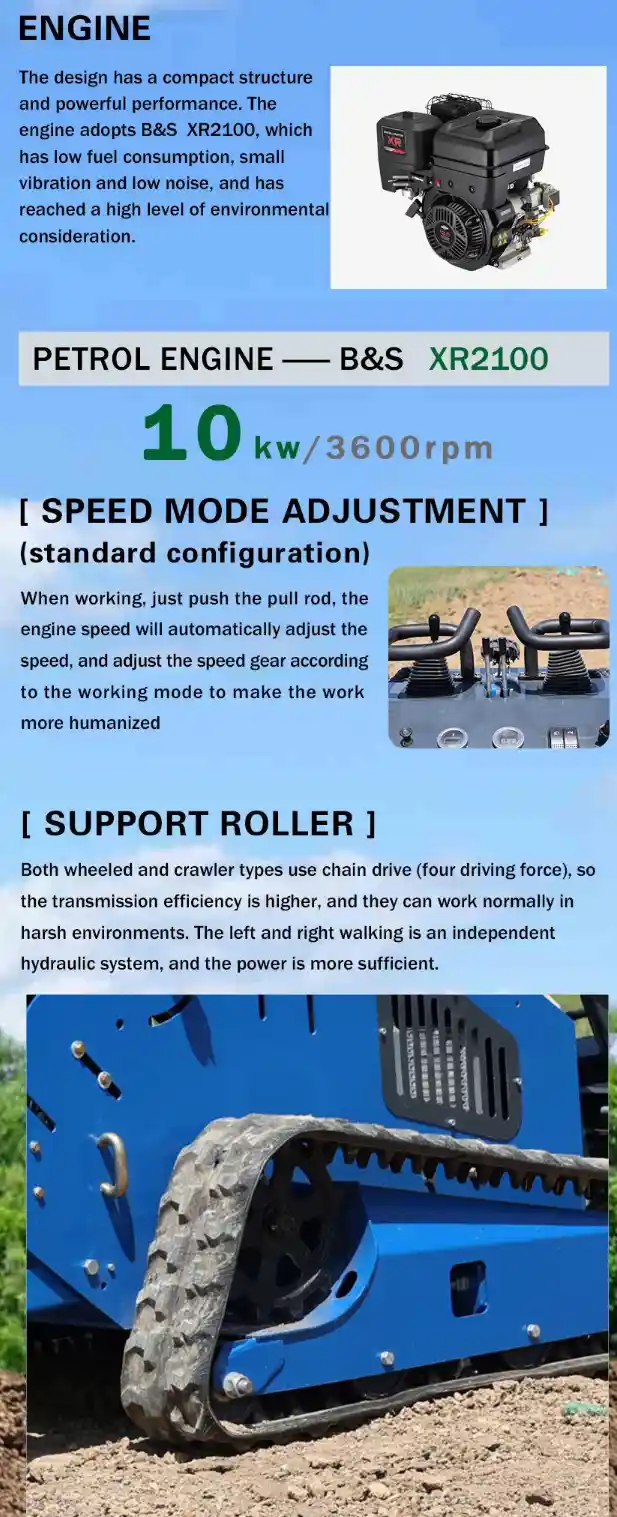

Compact Power from the Briggs & Stratton XR2100

The Rippa RS03 pairs a compact design with strong performance. Its Briggs & Stratton XR2100 gasoline engine delivers low fuel consumption, low vibration and low noise, and it was built with environmental considerations in mind. Chain drive on all four driving positions gives higher transmission efficiency, so the RS03 keeps working in harsh environments on both wheeled and tracked setups.

13.4 hp10 kW B&S XR2100
3,600 rpmmaximum engine speed
616 lbmaximum load
3.3 psiground pressure (22.5 kPa)

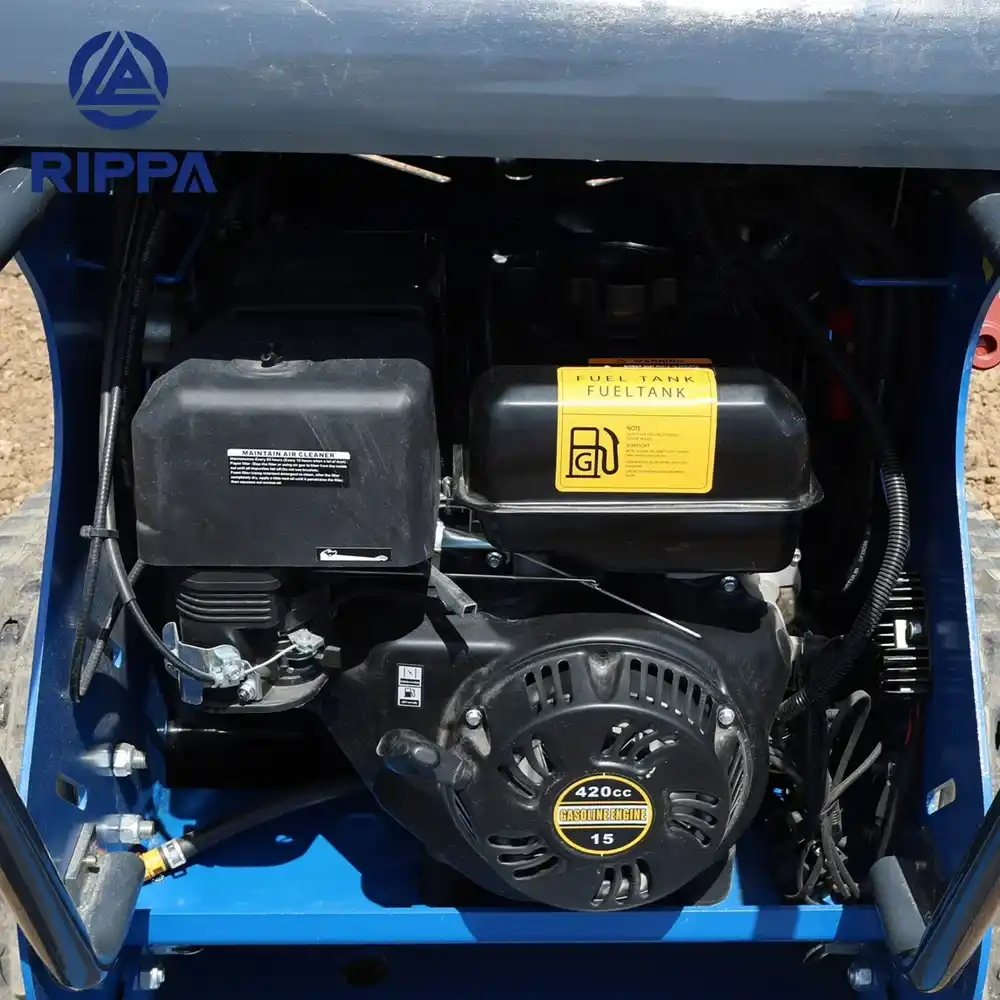

Briggs & Stratton XR2100 gasoline engine in the Rippa RS03 engine bay

B&S XR2100 gasoline engine

A compact, powerful single-cylinder, air-cooled engine with low fuel consumption, small vibration and low noise. It runs on 92 octane gasoline.

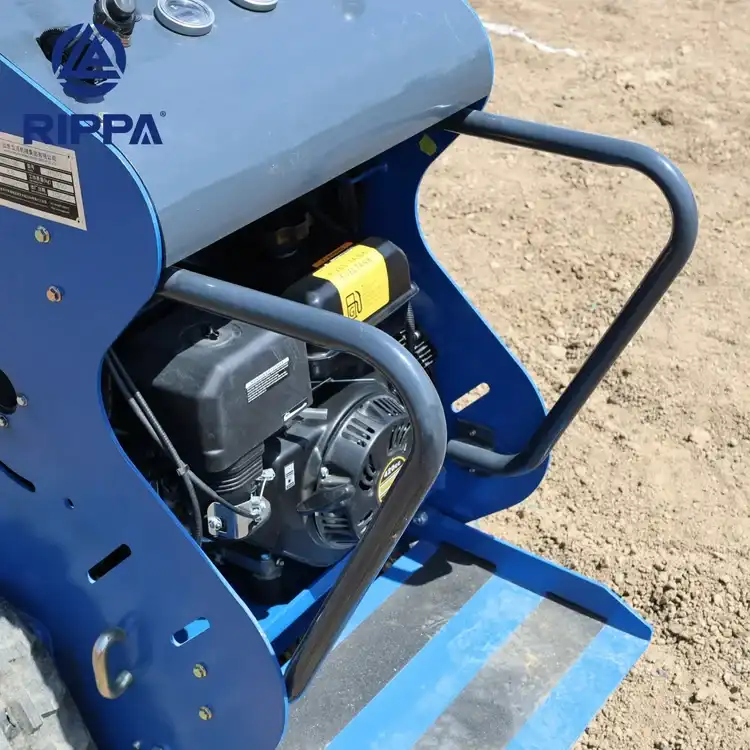

Rear guard and engine compartment of the Rippa RS03

Protected engine compartment

A rugged rear guard surrounds the engine bay. Left and right travel use independent hydraulic systems, with chain drive at all four driving positions.

Speed mode adjustment (standard): when working, push the control lever and the engine speed adjusts automatically, shifting the speed gear to match the working mode for a more natural, comfortable workflow.

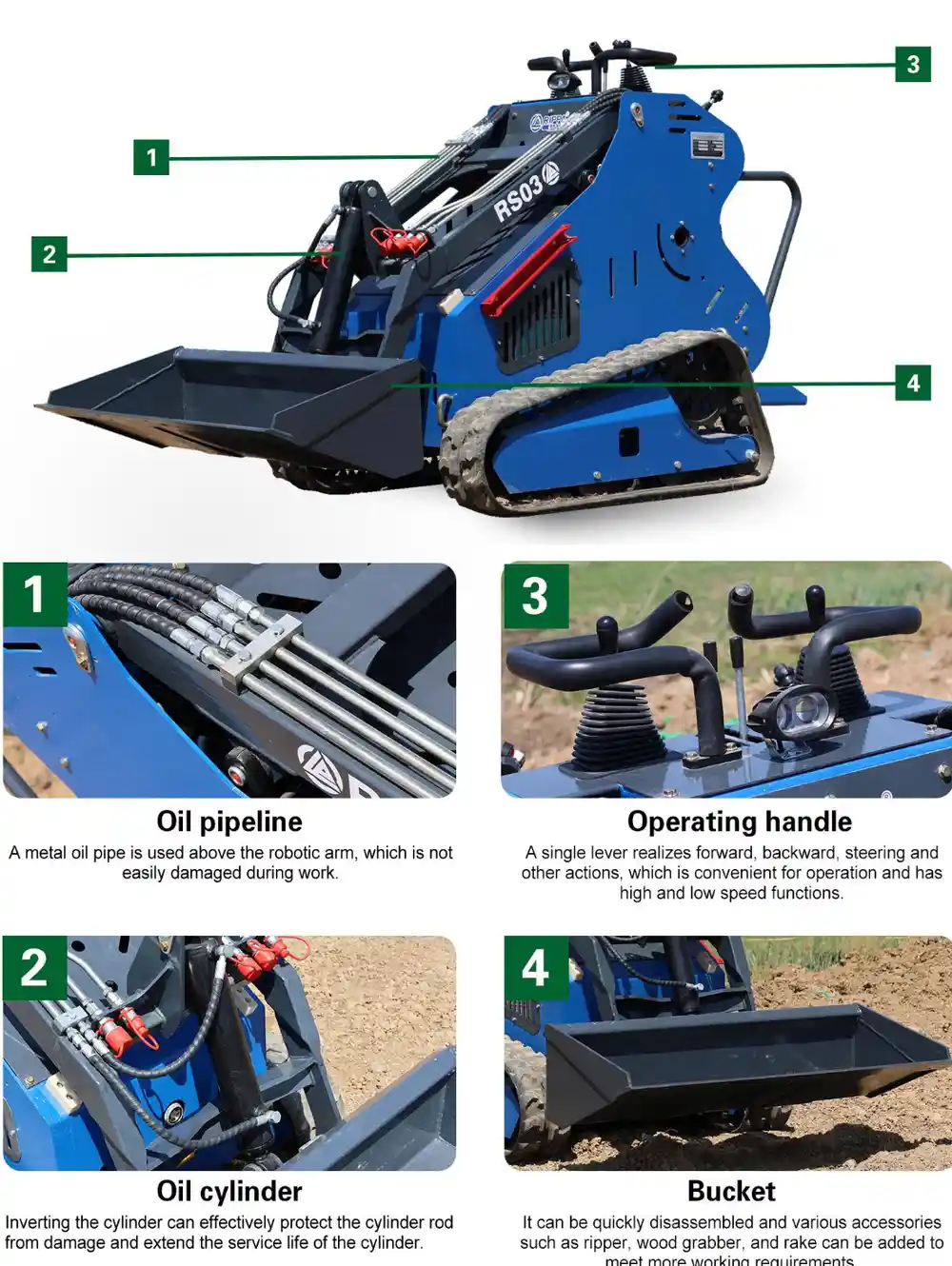

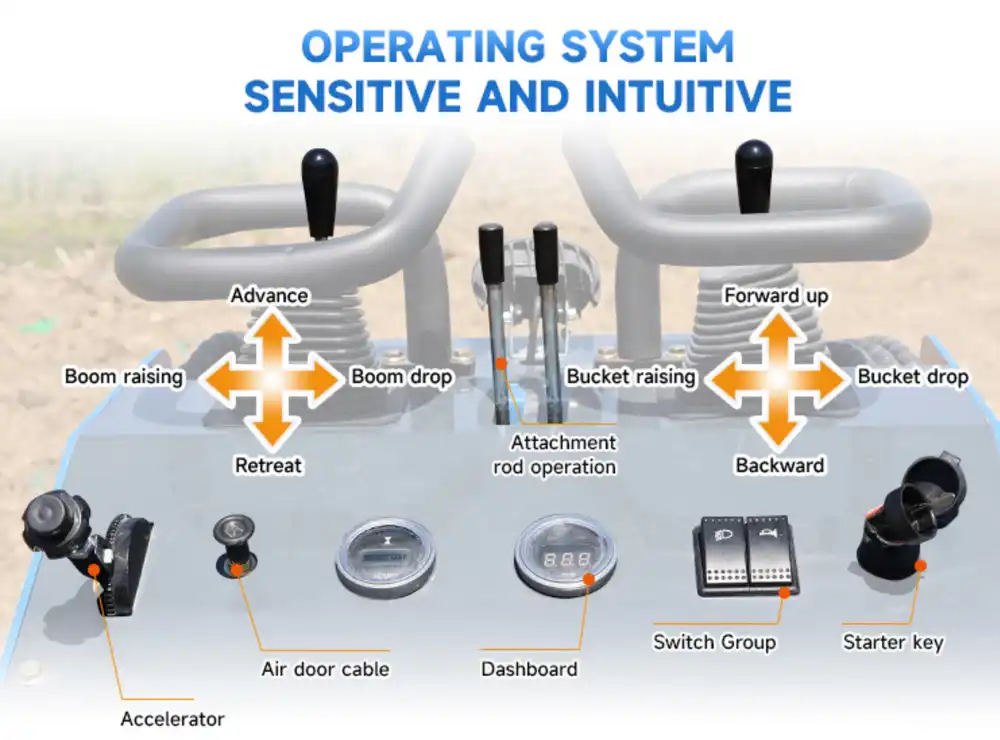

Sensitive and Intuitive Operating System

A single lever handles forward, backward, steering and other actions, with high and low speed functions. Everything the operator needs sits within easy reach on one control deck.

  1. Travel and boomAdvance and retreat on one handle, with boom raising and boom drop on the lever.
  2. Bucket and attachmentsBucket raising and bucket drop, plus a separate attachment rod for auxiliary functions.
  3. Engine and instrumentsAccelerator, air door cable, dashboard, switch group and starter key.

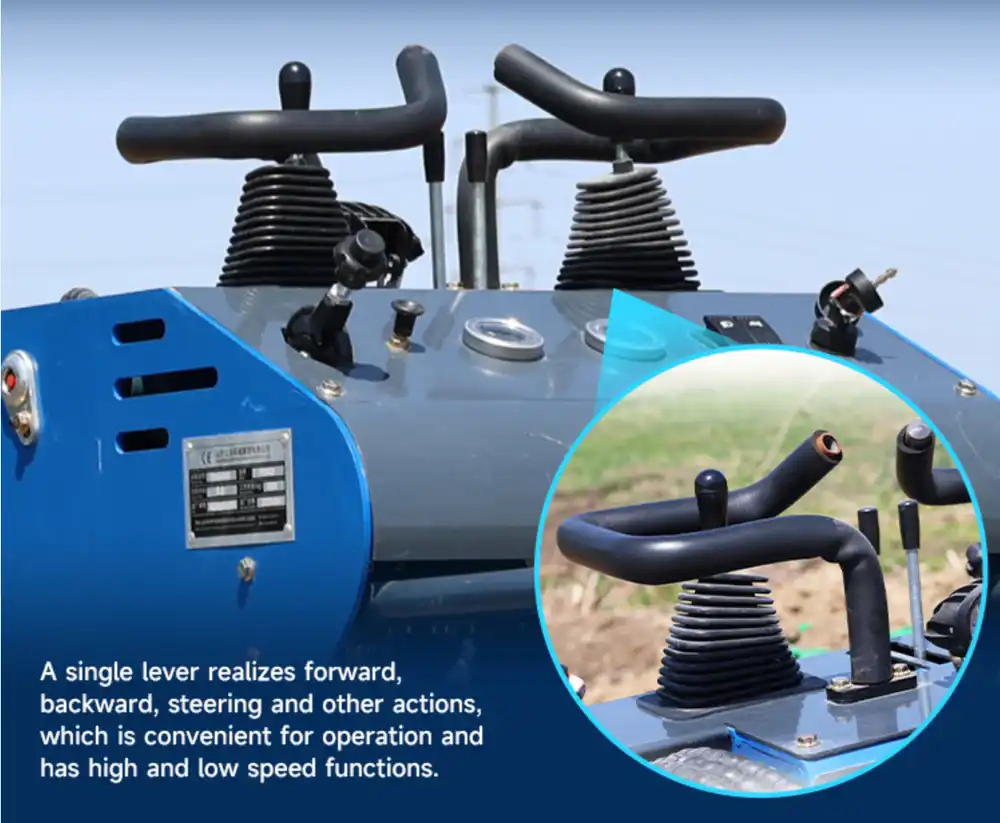

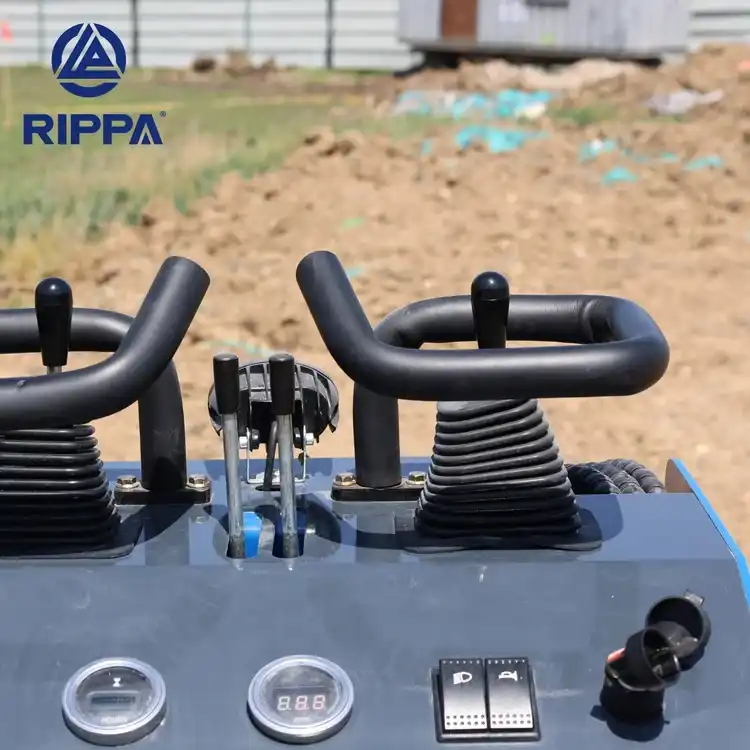

Single-lever control deck with gauges and switches on the Rippa RS03
Single-lever control deck with dashboard and switch group

Protected Hydraulics for Long Service Life

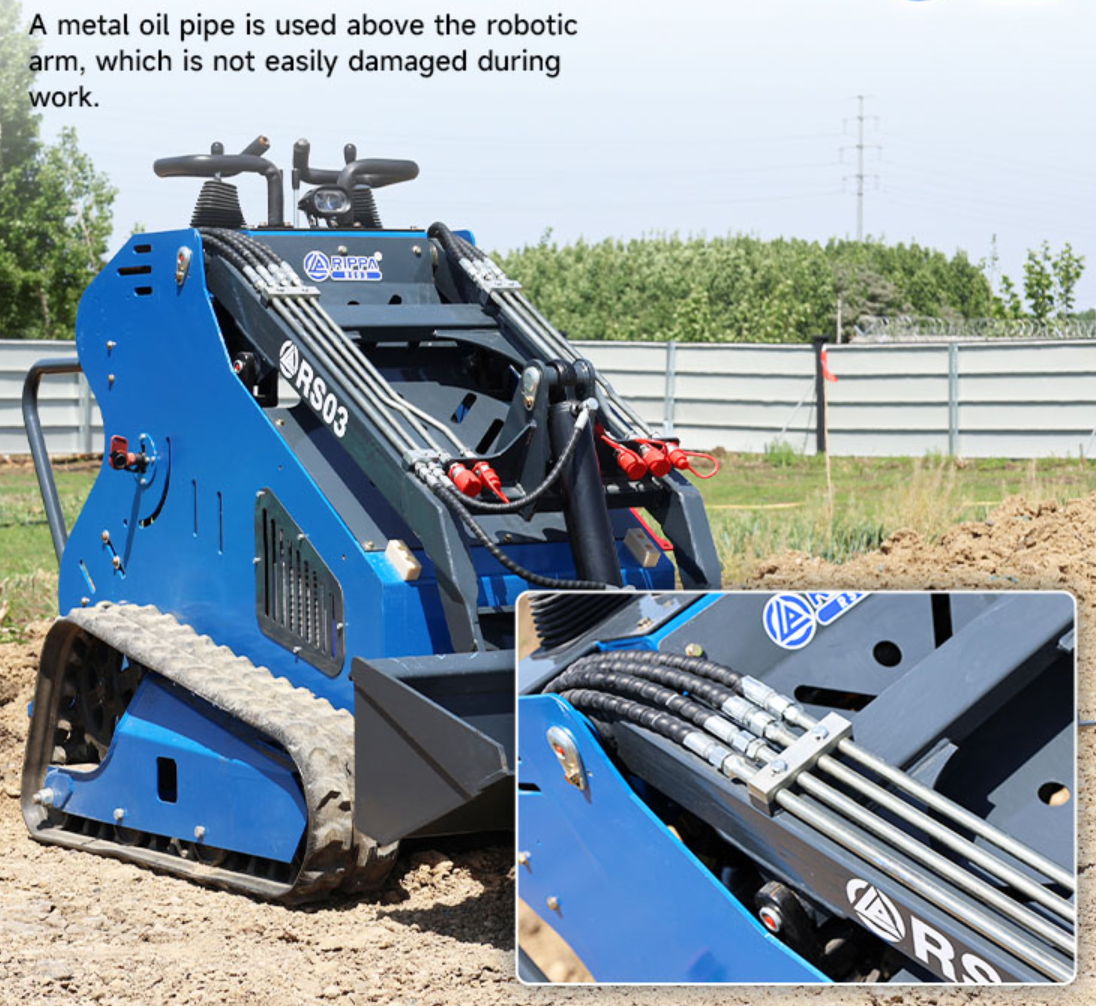

Metal hydraulic oil pipes above the Rippa RS03 boom
Metal oil pipes above the boom

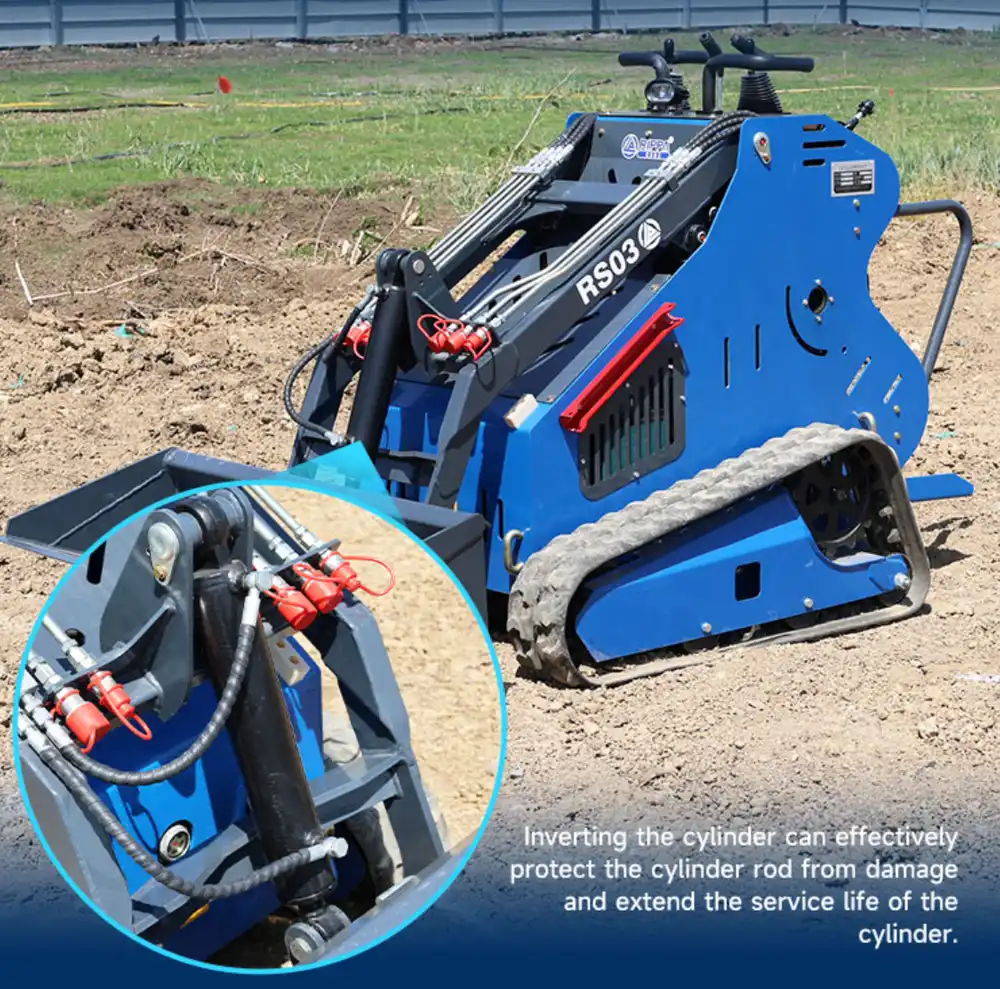

Metal oil pipes run above the robotic arm, so they are not easily damaged during work. An inverted cylinder protects the cylinder rod from damage and extends the cylinder's service life.

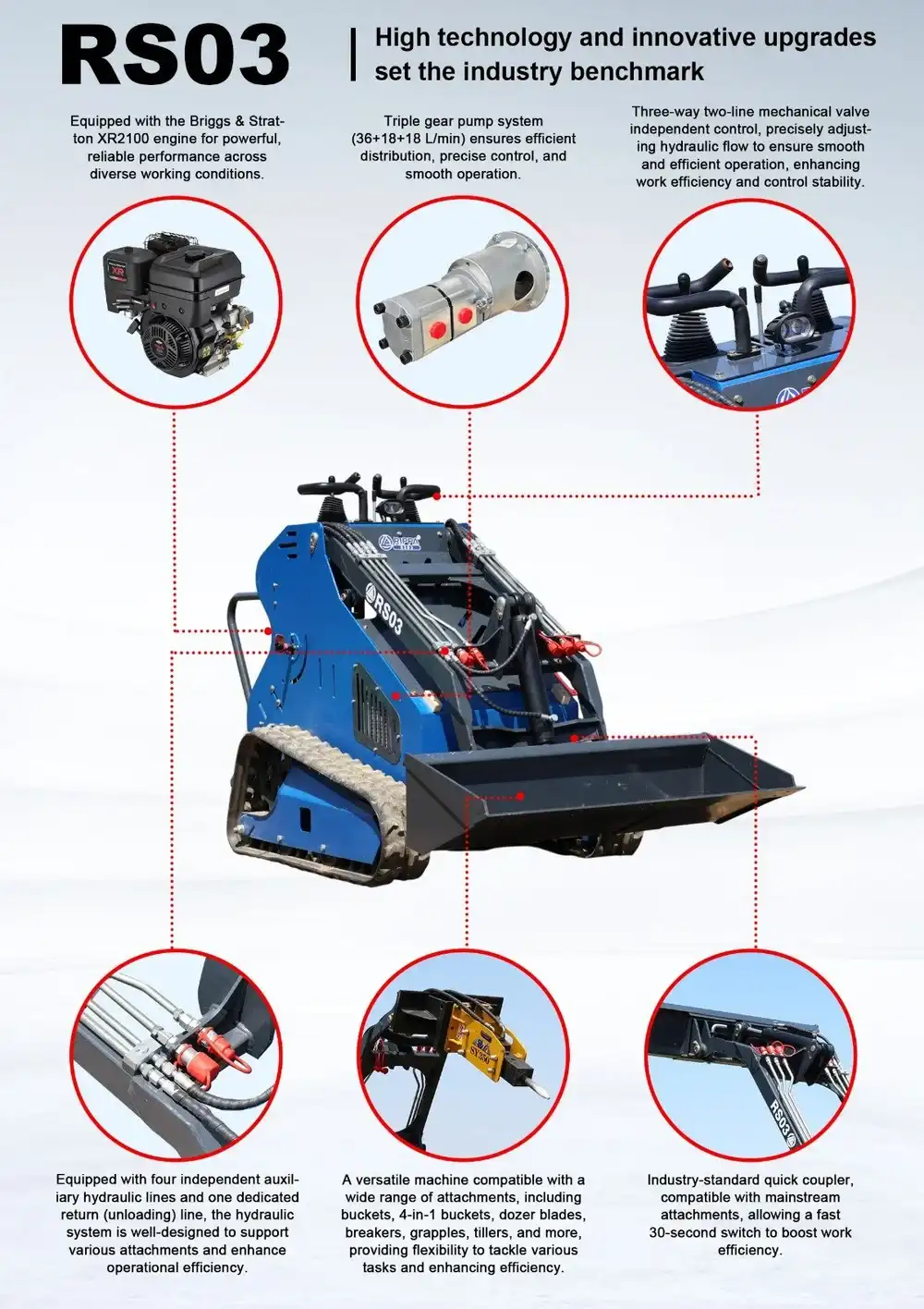

  • Triple gear pump: approximately 9.5 + 4.8 + 4.8 gpm.
  • Multi-way valve: three-way, two-line mechanical valve.
  • Auxiliary hydraulics: four independent lines plus one dedicated return line.

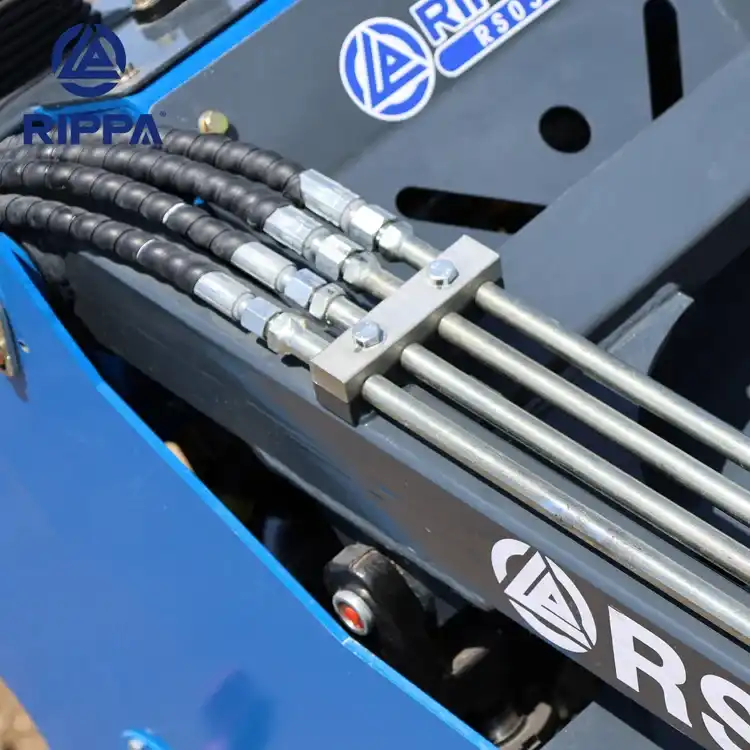

Rippa RS03 mini skid steer with metal hydraulic lines above the boom
Metal hydraulic lines run above the boom, away from damage

Industry-Standard Quick Coupler

The industry-standard quick coupler works with mainstream attachments and makes a change in about 30 seconds. Add a bucket, 4-in-1 bucket, ripper, wood grapple, rake, dozer blade, breaker or tiller to take on a wide range of tasks and get more from the machine.

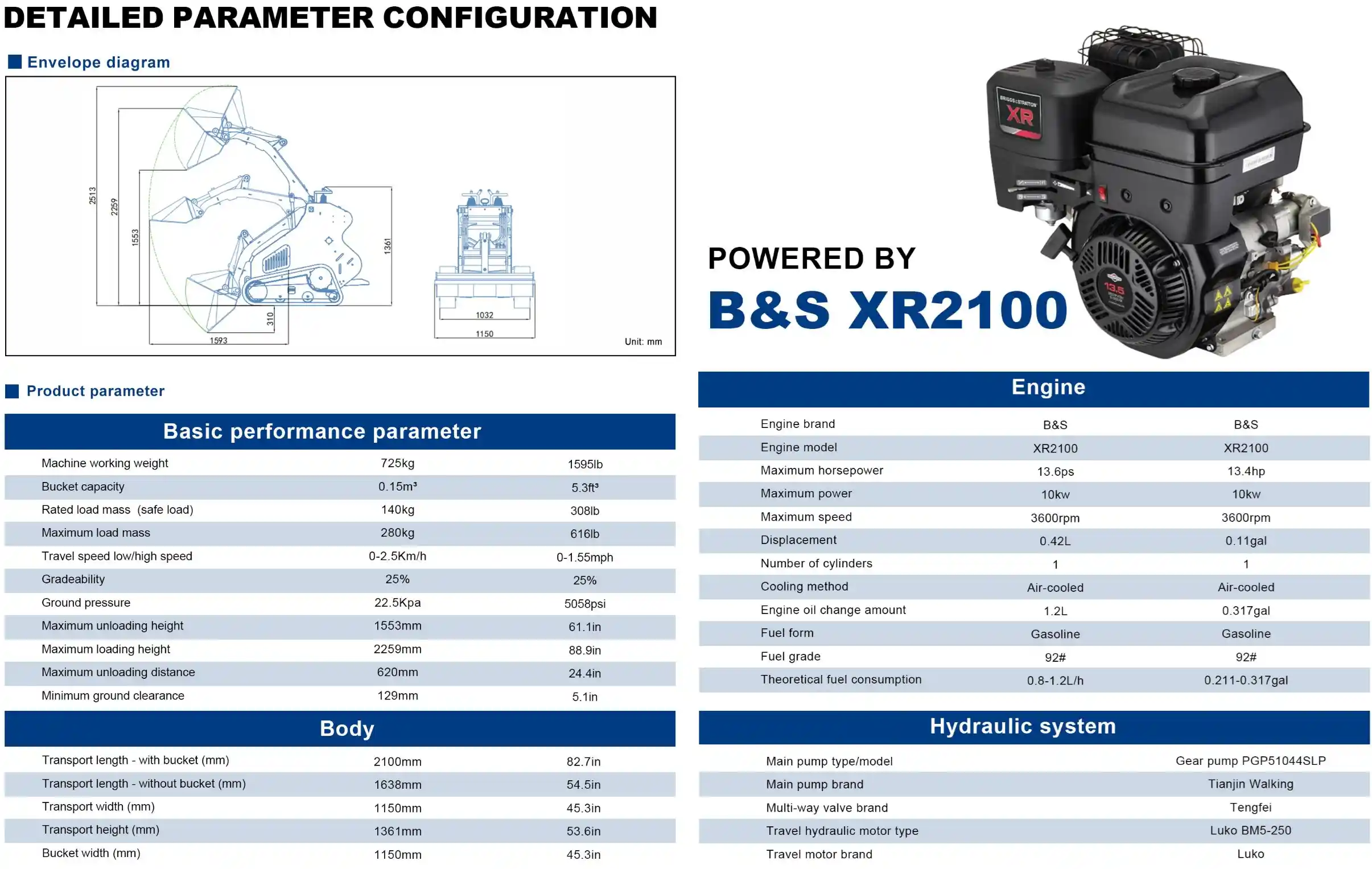

Rippa RS03 Technical Specifications

All specifications are shown in imperial units. Metric figures on the manufacturer sheet have been converted.

Basic Performance
Machine working weight1,595 lb
Bucket capacity5.3 cu ft
Rated load (safe load)308 lb
Maximum load616 lb
Travel speed (low/high)0 - 1.55 mph
Gradeability25%
Ground pressure3.3 psi (converted from 22.5 kPa)
Maximum unloading height61.1 in
Maximum loading height88.9 in
Maximum unloading distance24.4 in
Minimum ground clearance5.1 in
Body / Dimensions
Transport length, with bucket82.7 in
Transport length, without bucket54.5 in
Transport width45.3 in
Transport height53.6 in
Bucket width45.3 in
Overall height, boom raised98.9 in
Track width (overall)40.6 in
Engine
Engine brand / modelBriggs & Stratton XR2100
TypeGasoline, air-cooled, single cylinder
Maximum power13.4 hp (10 kW)
Maximum speed3,600 rpm
Displacement25.6 cu in (0.42 L)
Engine oil change amount0.317 gal
Fuel grade92 octane gasoline
Theoretical fuel consumption0.211 - 0.317 gal/h
Hydraulic System
Main pumpGear pump PGP51044SLP (Tianjin Walking), triple gear pump approx. 9.5 + 4.8 + 4.8 gpm
Multi-way valveTengfei, three-way two-line mechanical valve
Travel hydraulic motorLuko BM5-250
Auxiliary hydraulicsFour independent auxiliary lines plus one dedicated return line
