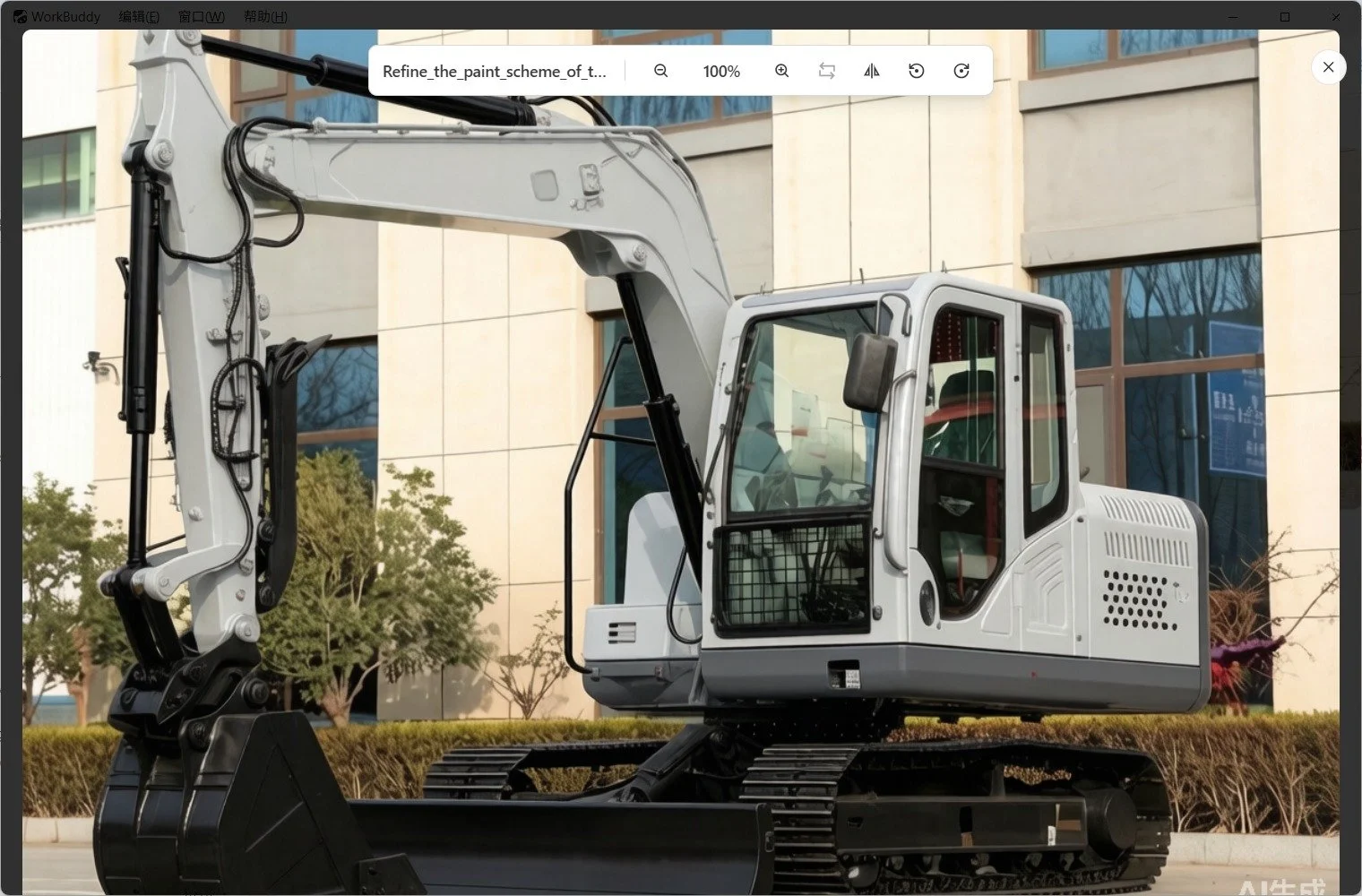

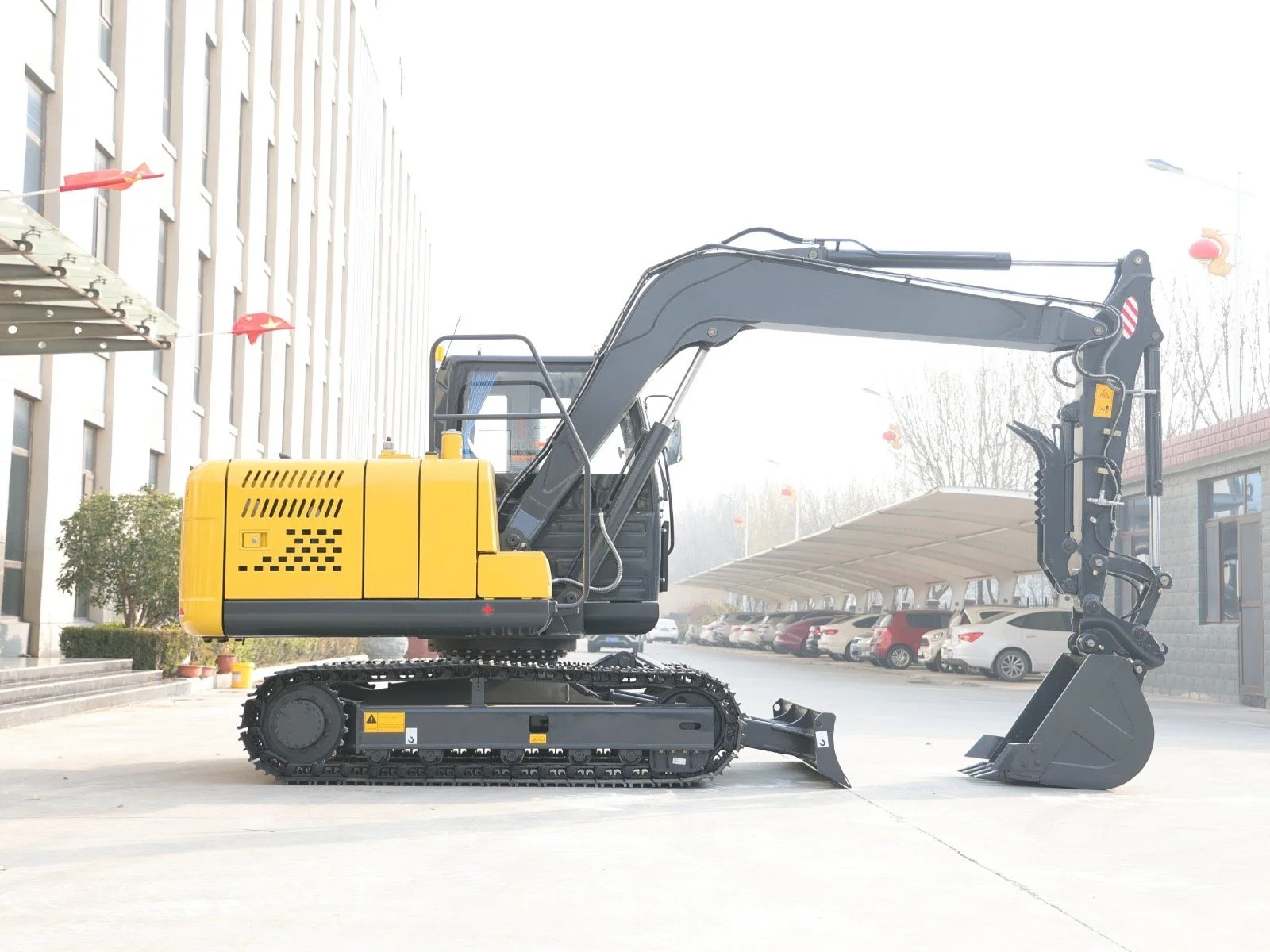

Powston PE80 Excavator

$73,225 (stocK item) MY2026

3 year Service Plan: $10,984

NOTE: above price could change due to tariffs and shipping.

Key Features:

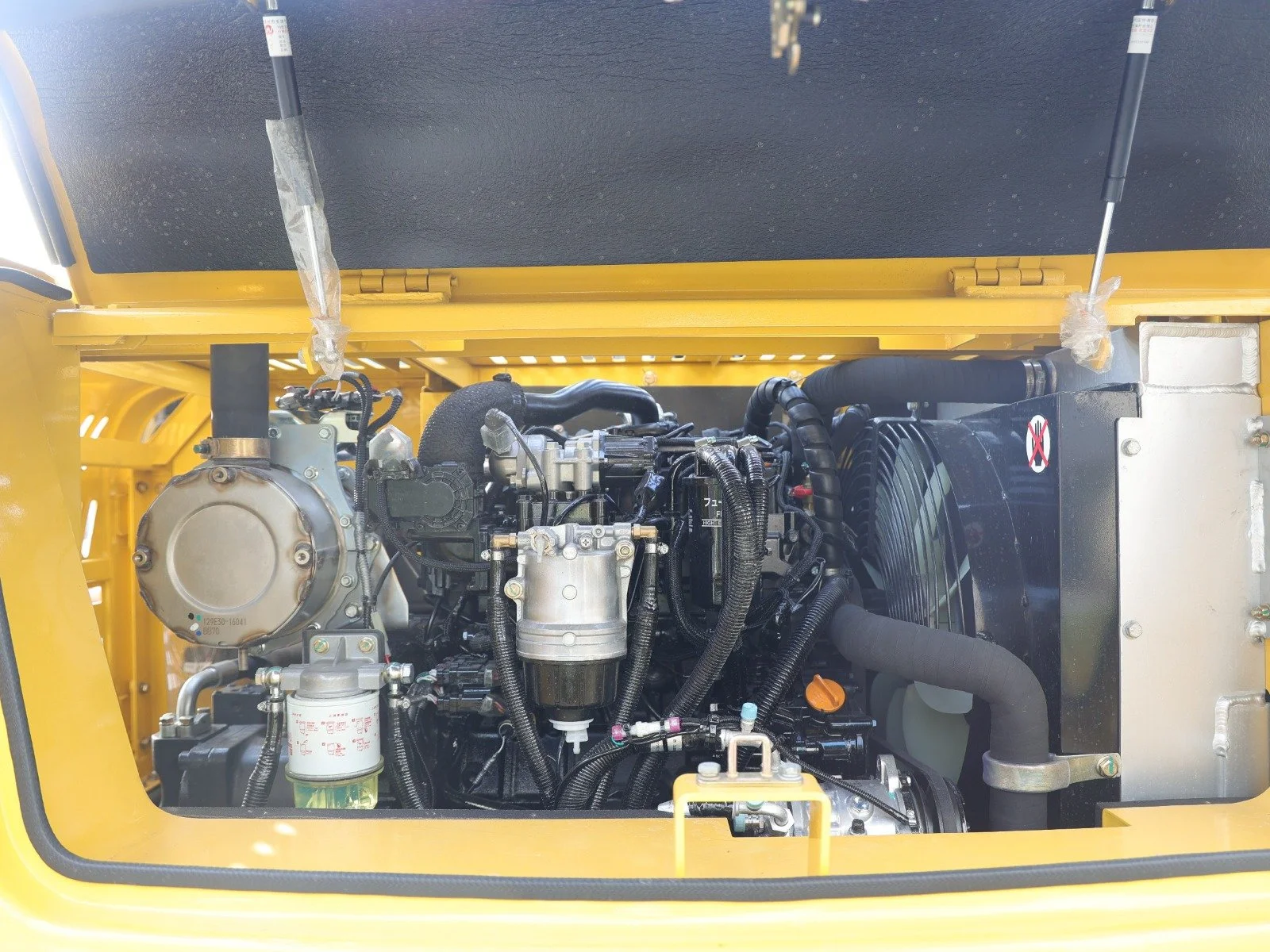

1) Powered by a Yanmar 4TNV98CT-4 diesel engine, which provides 53.7kW (72 horsepower).

2) Operating weight of 18,260lbs. Bucket capacity of .32m3.

3) Boom mounted and cab mounted working lights.

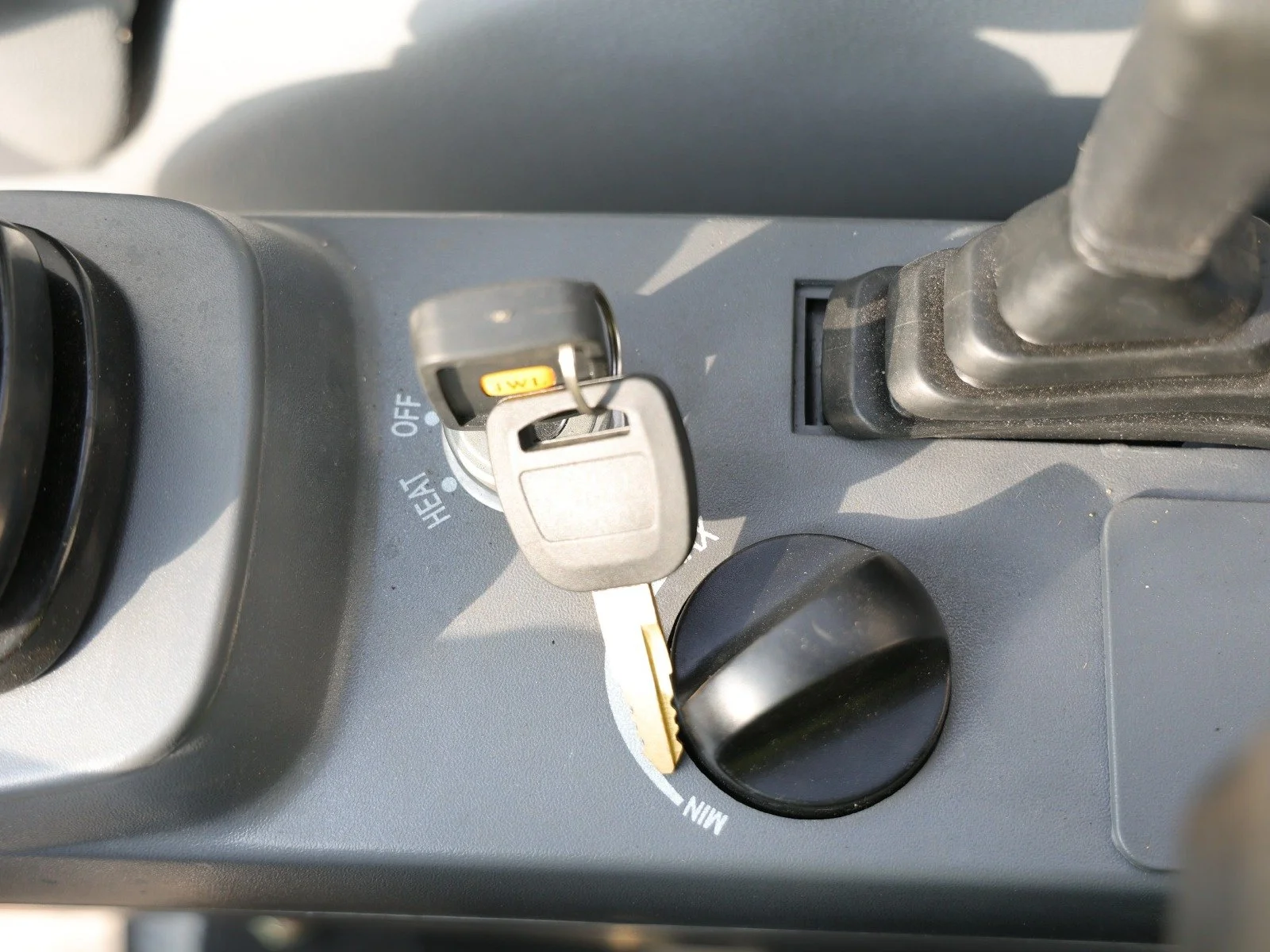

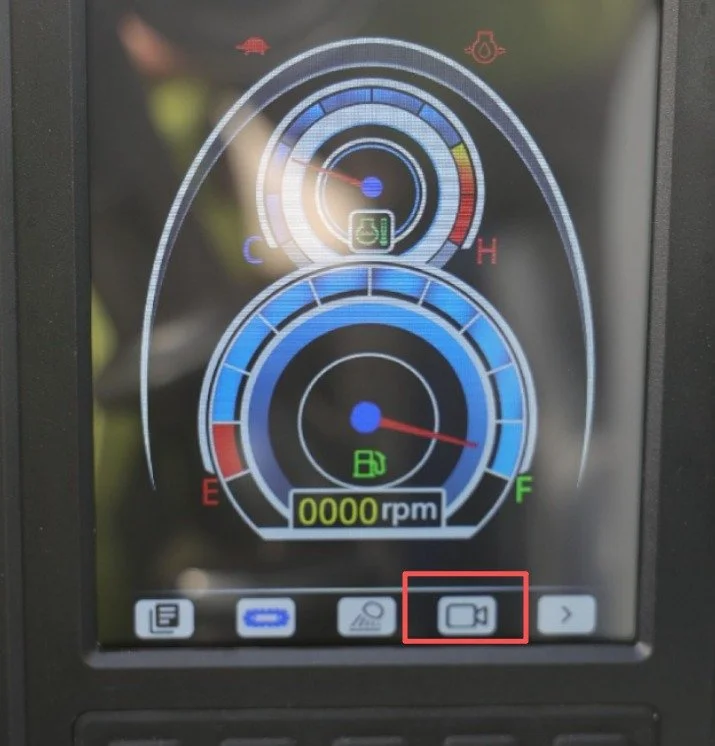

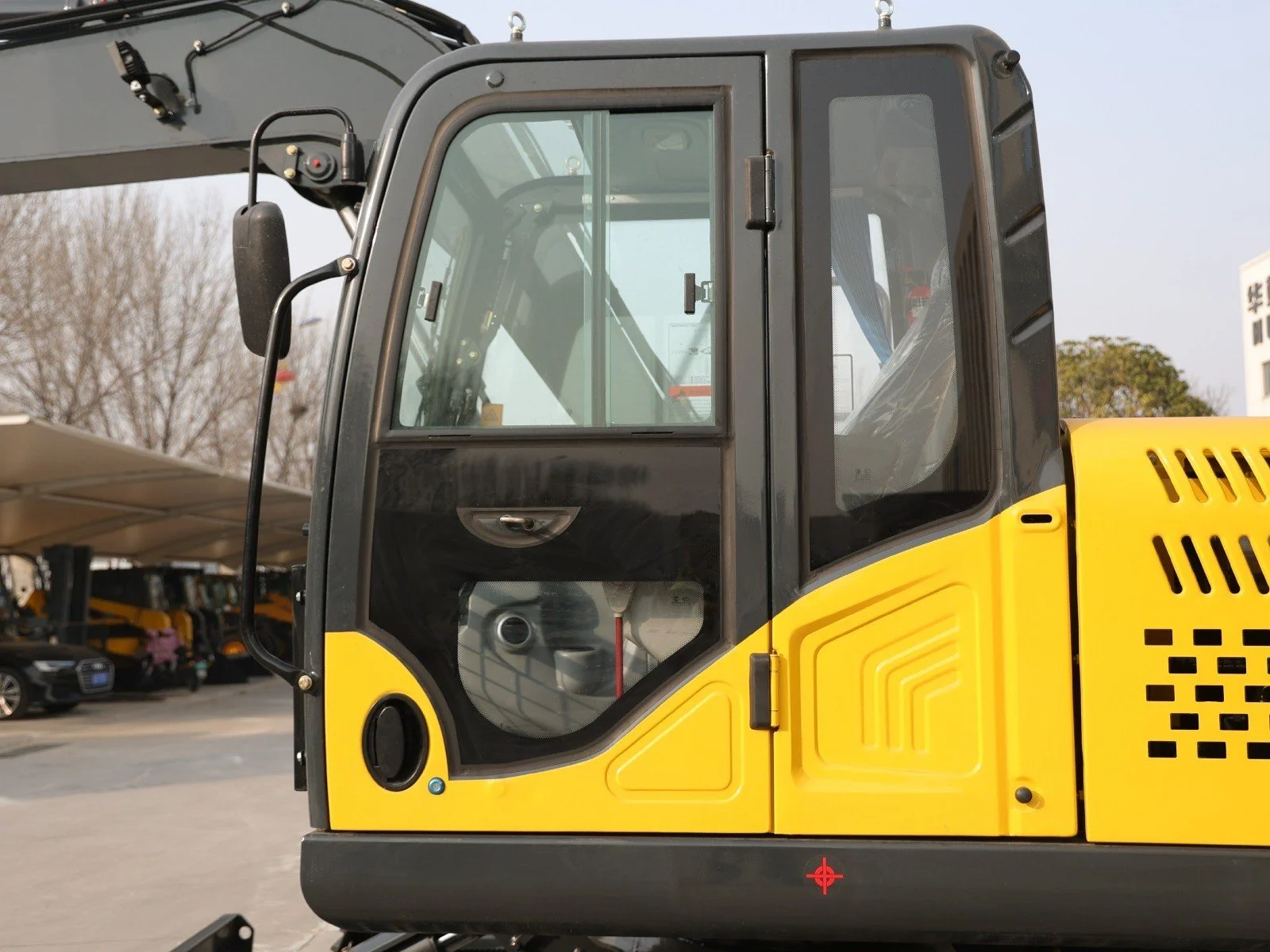

4) Enclosed Cab with AC and heat. Cab has a radio, two speakers, fan, dome LED lights and a mini computer that shows a number of key equipment data points like RPMs, service times.

5) 2 year factory parts warranty that Yanmar honors if there is an engine related issue.

6) Ships with steel tracks. Rubber inserts are available for an additional $1500.

7) Welded hydraulic thumb included. Not shown - photo coming soon.

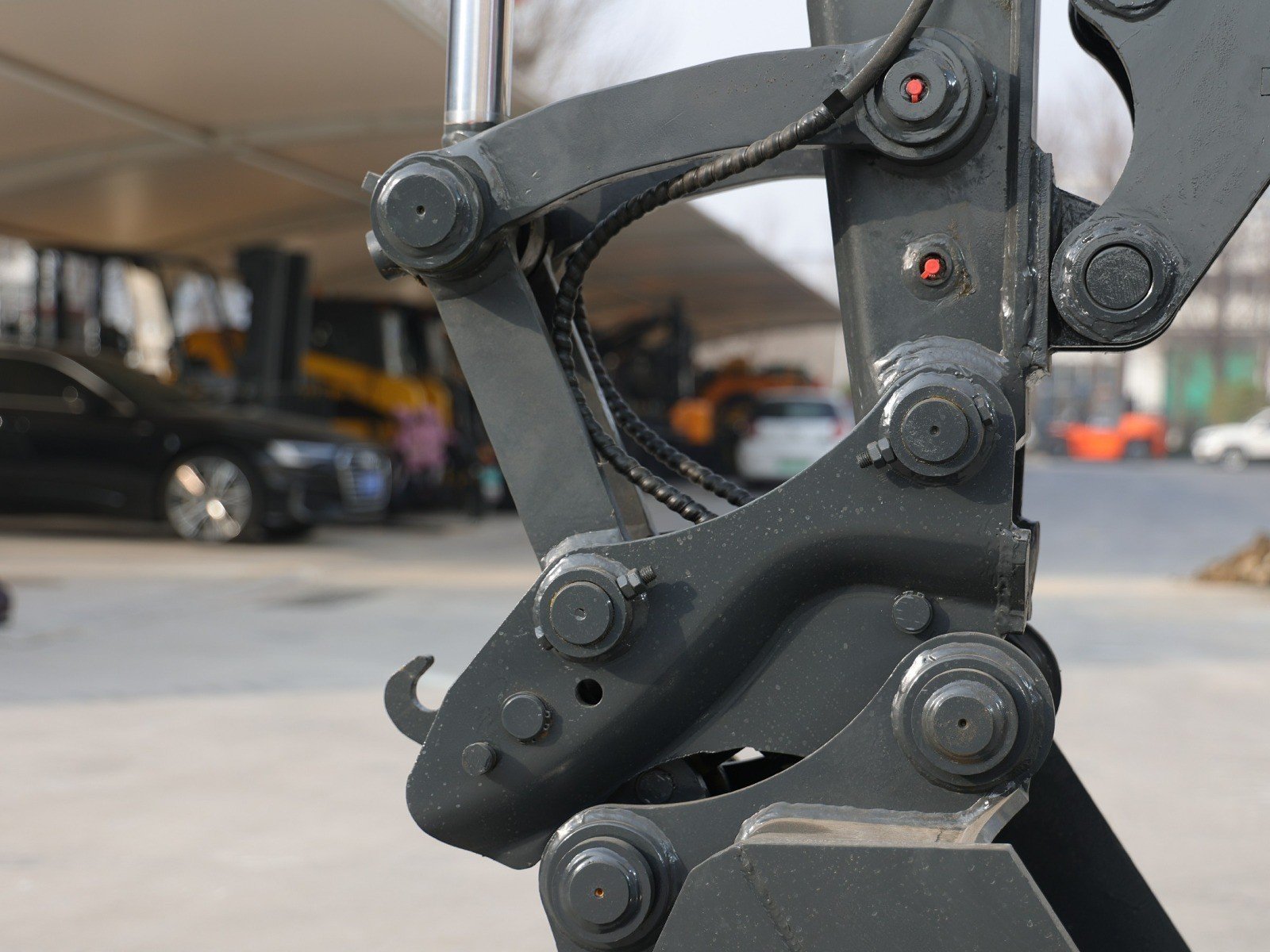

8) Hydraulic quick attach coupler included.

9) GPS tracker is installed by our team. Land Air Sea is who we partnered with. 30 second updates. (Rippa USA Sales exclusive).

10) Japanese NOK hydraulic seals.

This is our checklist. We perform this on every machine before it goes out to a customer. This is part of why we charge what we do. Goes without saying, if we do this, we will definitely be there for you when you have an issue and need to file a warranty claim.

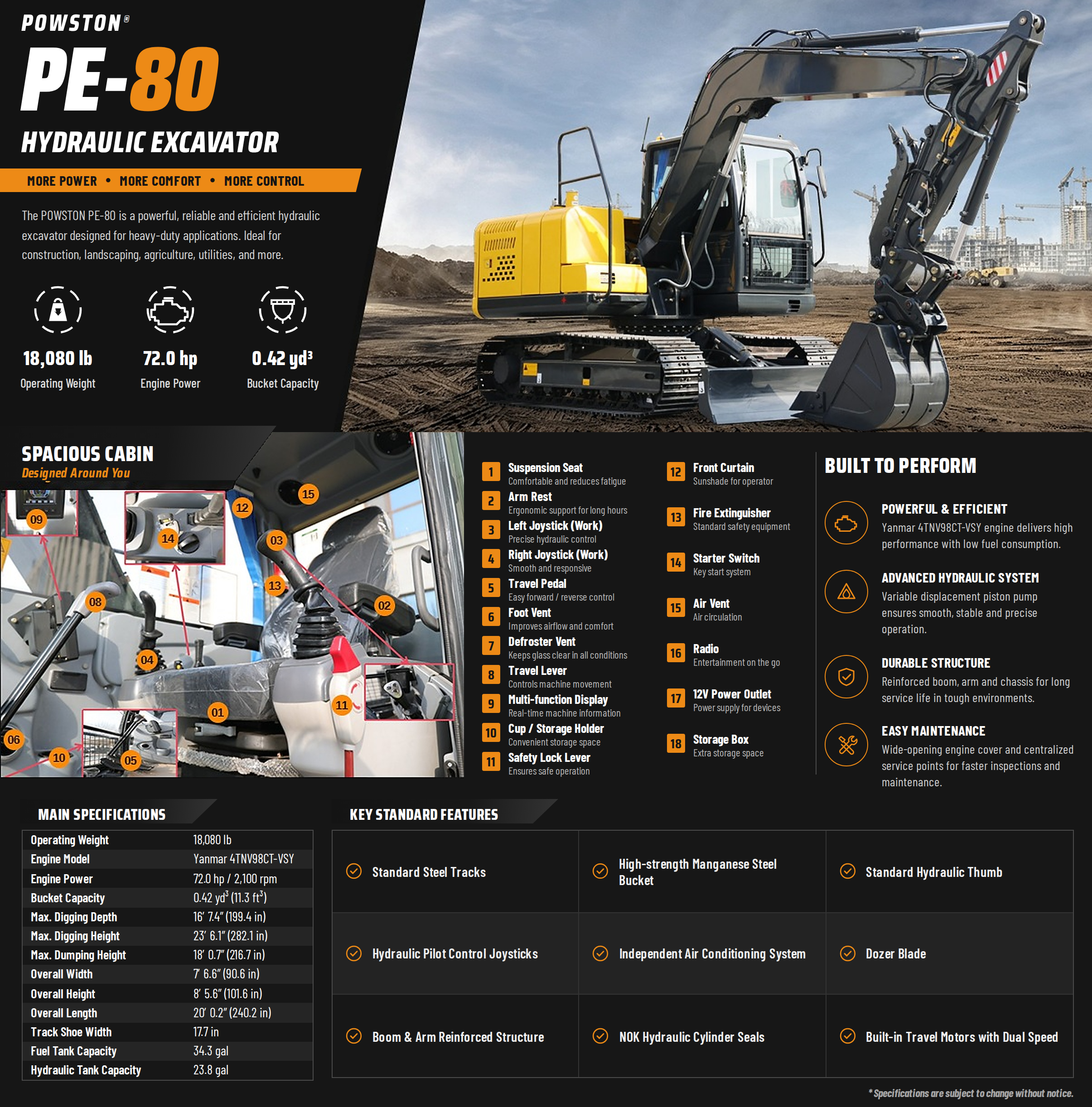

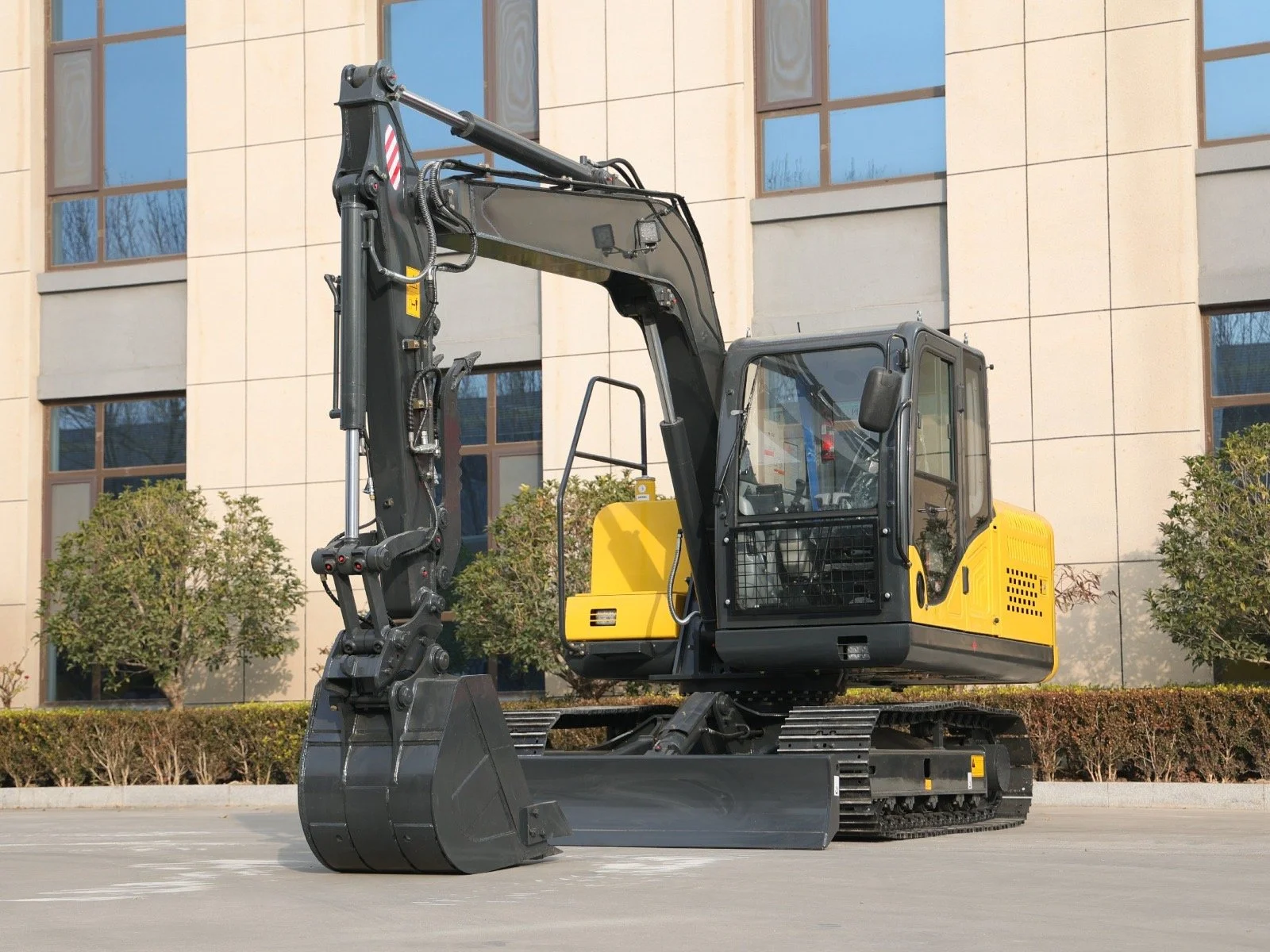

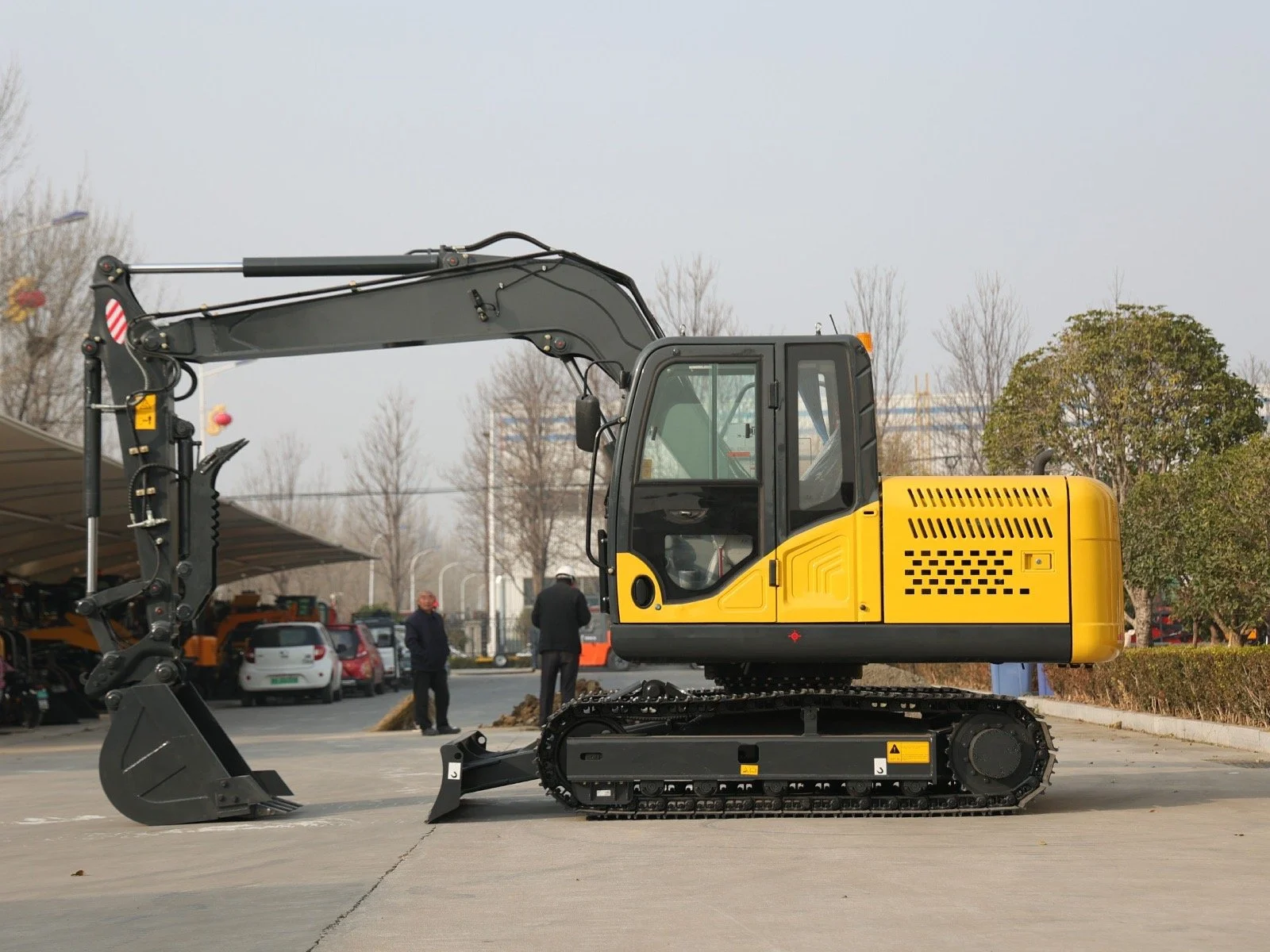

9-Ton Class Crawler Excavator

PE-80 Hydraulic Excavator

18,078 lb operating weight · 72 HP Yanmar turbo · EPA / Euro V

The PE-80 is the largest machine in the line, built for production digging on site work, utilities, and grading. A turbocharged 72 HP Yanmar drives a hydraulic system rated at 43.6 gpm and 3,989 psi, producing 11,690 lbf of bucket digging force. It reaches 20 ft 9.2 in, digs 13 ft 3 in deep, and spreads its weight to just 4.35 psi of ground pressure on 17.7-inch shoes.

18,078 lbOperating weight

72 HPRated power

0.419 yd³Bucket capacity

13' 3"Digging depth

20' 9.2"Digging reach

Engine & Emissions

Engine model: Yanmar 4TNV98CT-VSY
Rated power: 72.0 HP @ 2,100 rpm
Maximum torque: 208.7–227.2 lb-ft @ 1,365 ± 25 rpm
Displacement: 202.5 cu in
Intake type: Turbocharged
Fuel system: Direct injection
Emission standard: EPA / Euro V

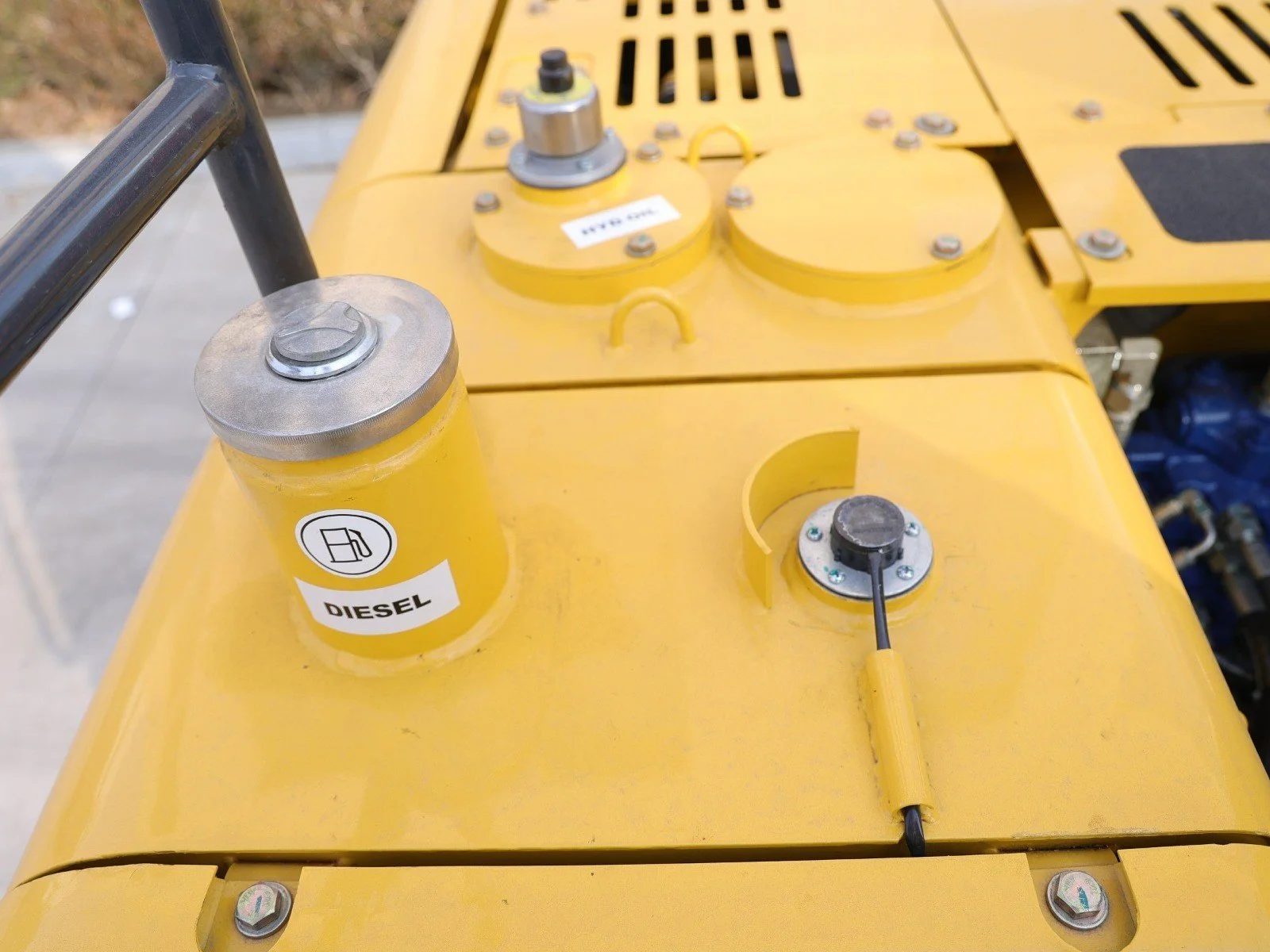

Fuel tank: 34.3 gal

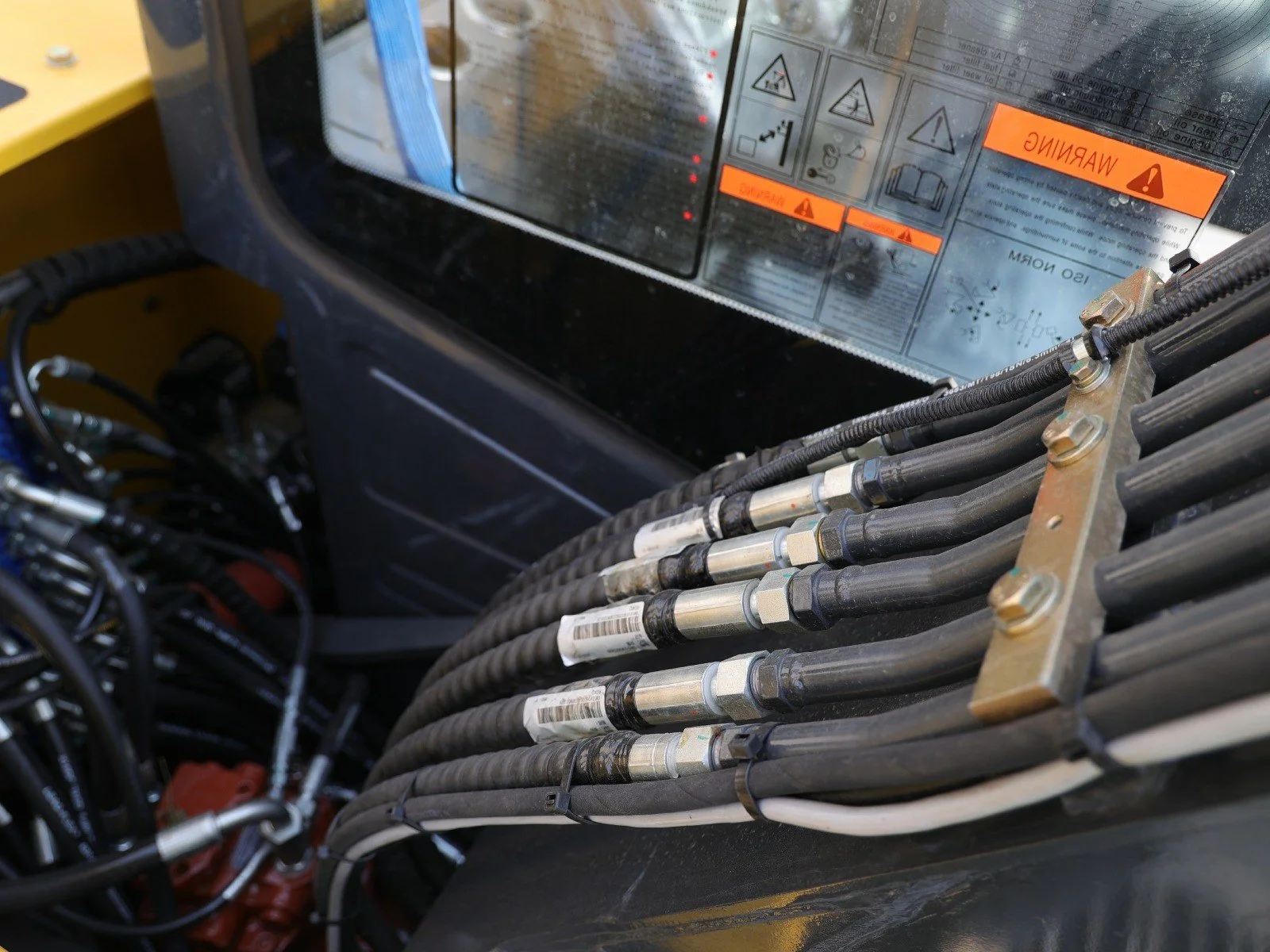

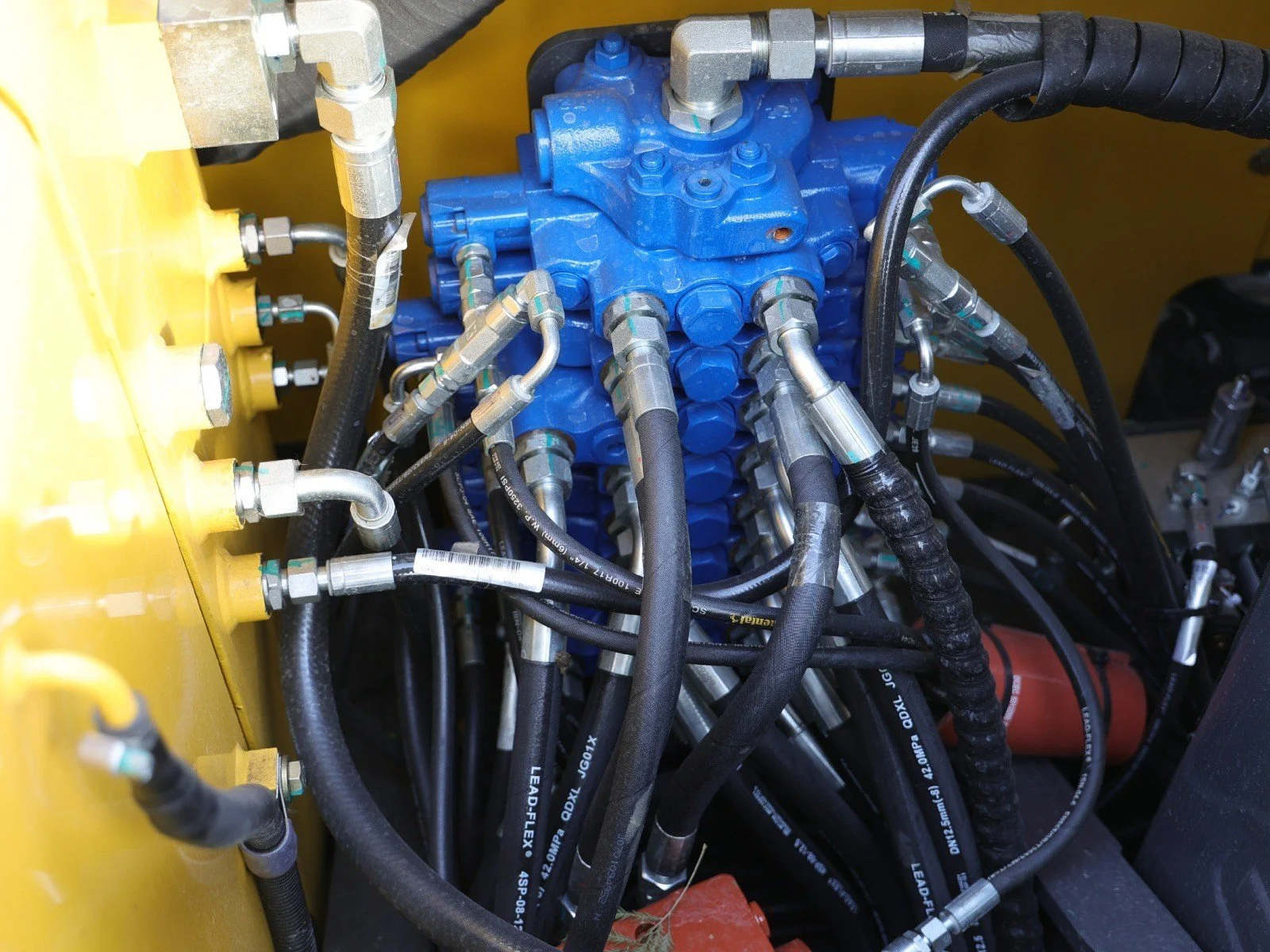

Hydraulics & Performance

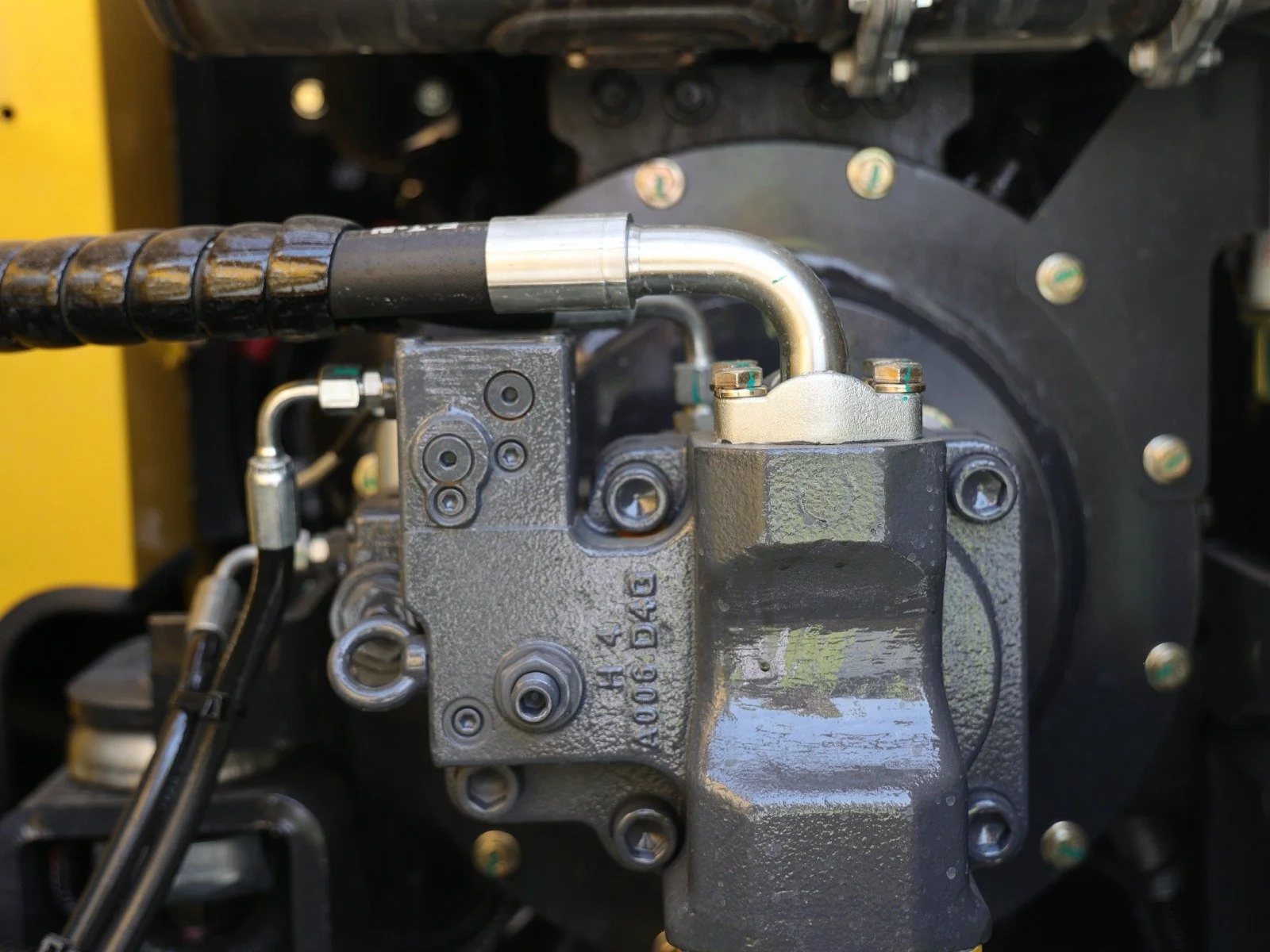

Hydraulic pump: PSVD2-42
Maximum flow: 43.6 gpm
Setting pressure: 3,989 psi
Hydraulic tank: 23.8 gal
Bucket digging force (ISO): 11,690 lbf
Travel speed (high / low): 3.2 / 1.7 mph
Swing speed: 10 rpm
Max. gradeability: 70°
Average ground pressure: 4.35 psi

Working Range

Max. digging height: 282.1 in (23' 6.1")
Max. dumping height: 199.4 in (16' 7.4")
Max. digging depth: 159.0 in (13' 3.0")
Max. vertical wall digging depth: 138.0 in (11' 6.0")
Max. digging depth, 8' 2" level bottom: 144.9 in (12' 0.9")
Max. digging reach: 249.2 in (20' 9.2")
Max. reach at ground level: 243.3 in (20' 3.3")
Min. swing radius: 70.7 in (5' 10.7")
Max. height at min. swing radius: 216.5 in (18' 0.5")
Arm length: 65.0 in (5' 5.0")

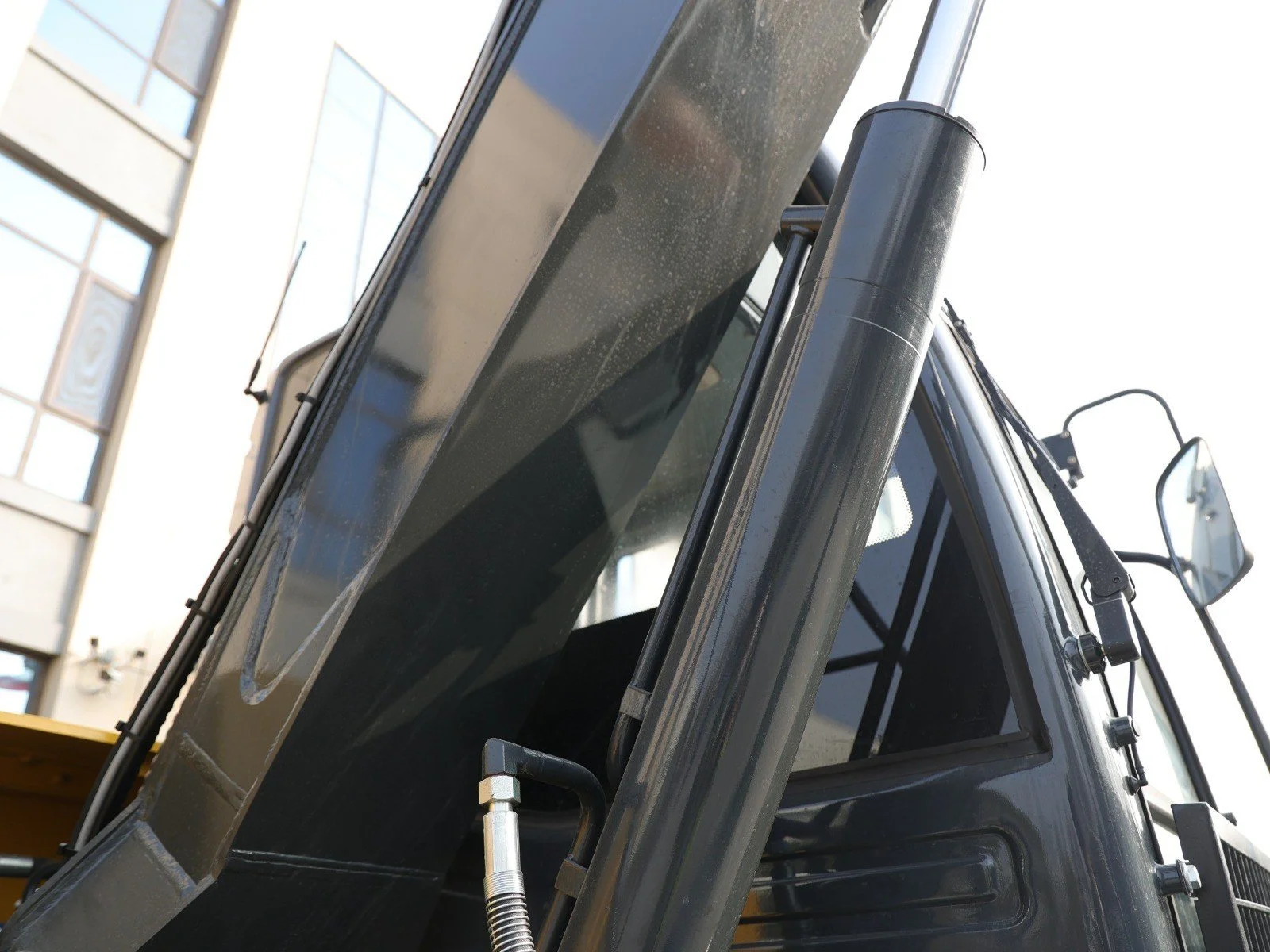

Boom length: 146.1 in (12' 2.1")

Dimensions

Overall length: 240.2 in (20' 0.2")
Overall width: 90.6 in (7' 6.6")
Overall height to top of boom: 103.1 in (8' 7.1")
Overall height to top of cab: 101.6 in (8' 5.6")
Counterweight ground clearance: 29.9 in (2' 5.9")
Min. ground clearance: 15.0 in (1' 3.0")
Tail swing radius: 69.1 in (5' 9.1")
Turntable width: 86.5 in (7' 2.5")
Counterweight height: 67.9 in (5' 7.9")

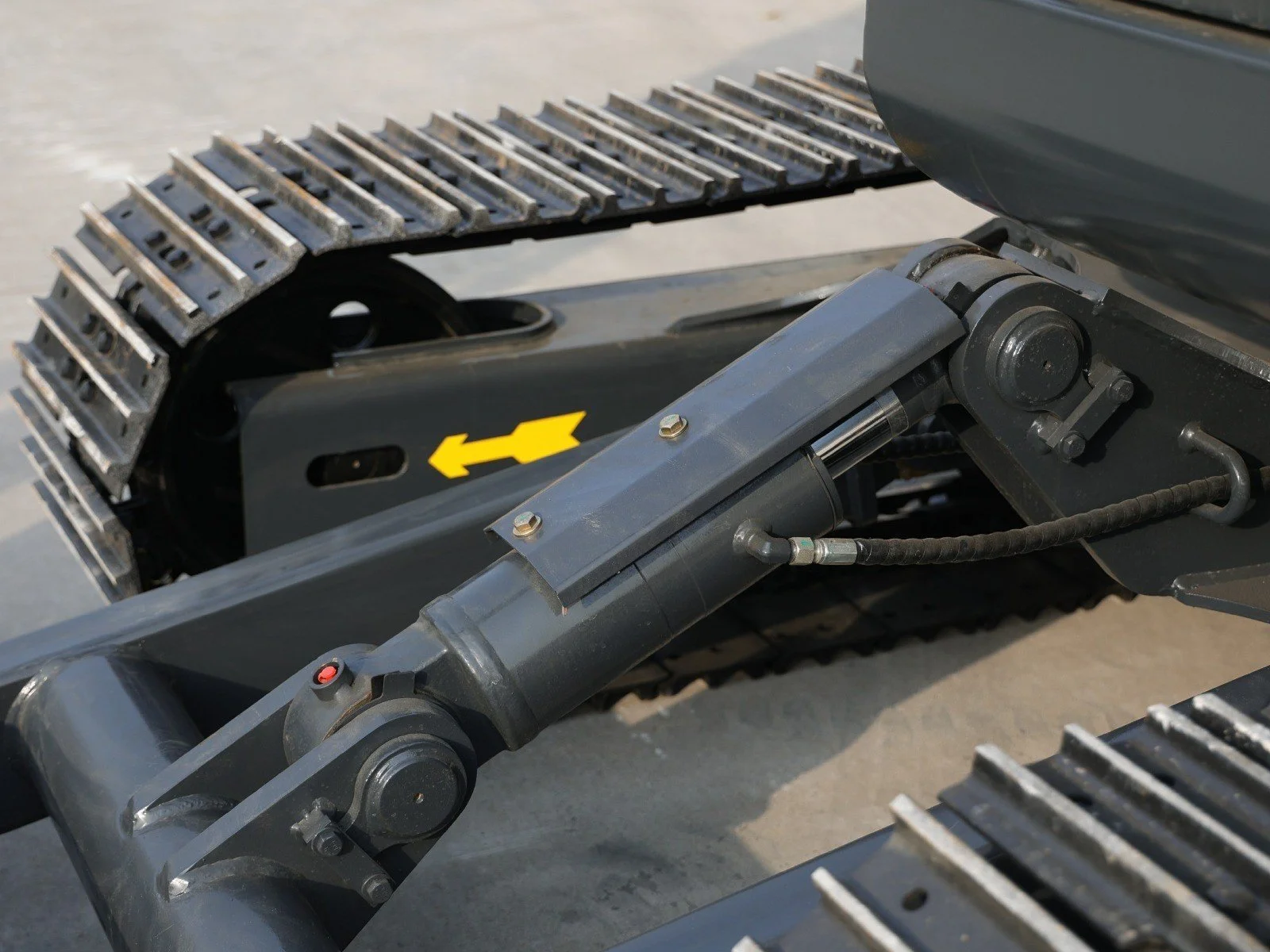

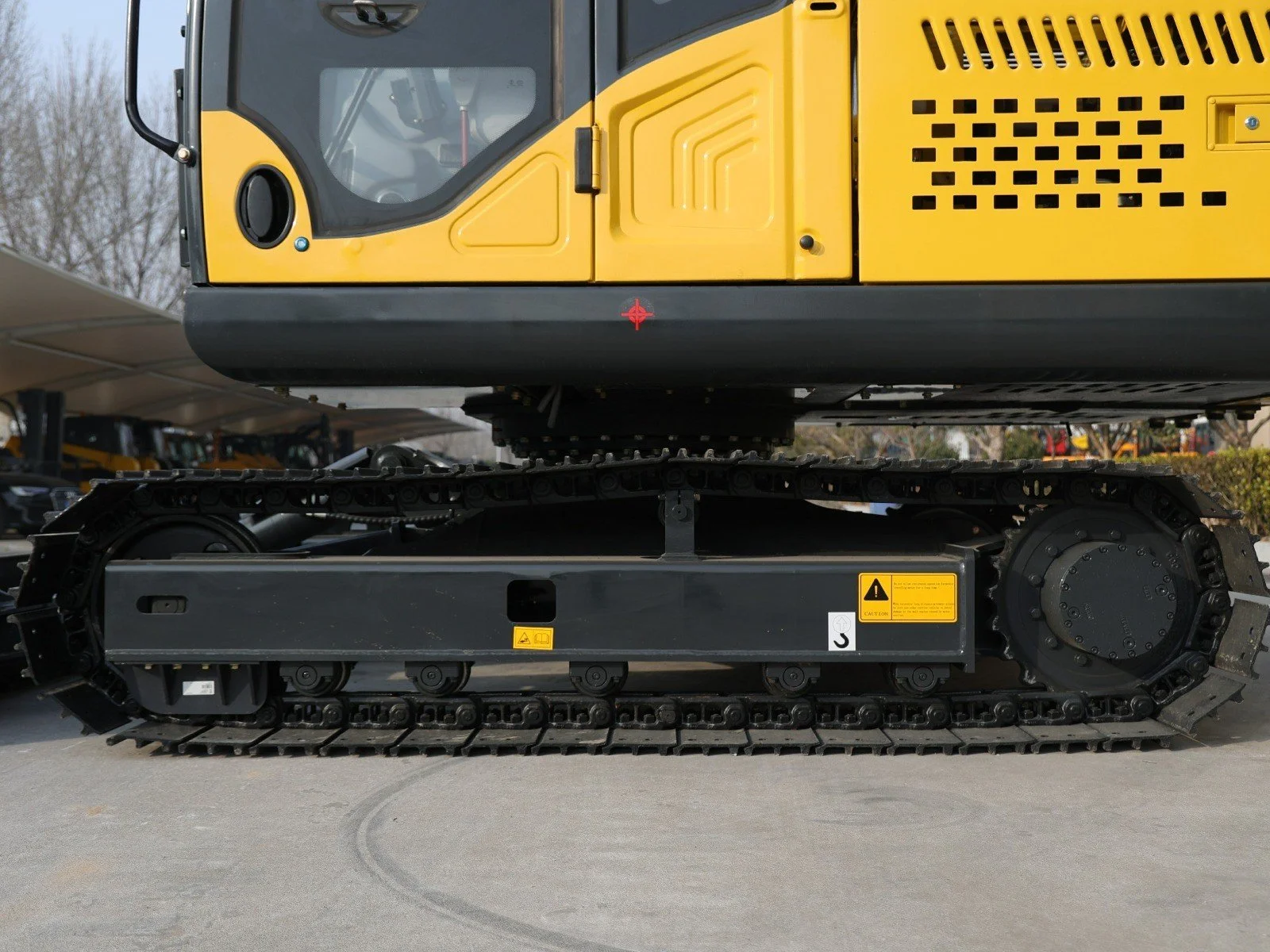

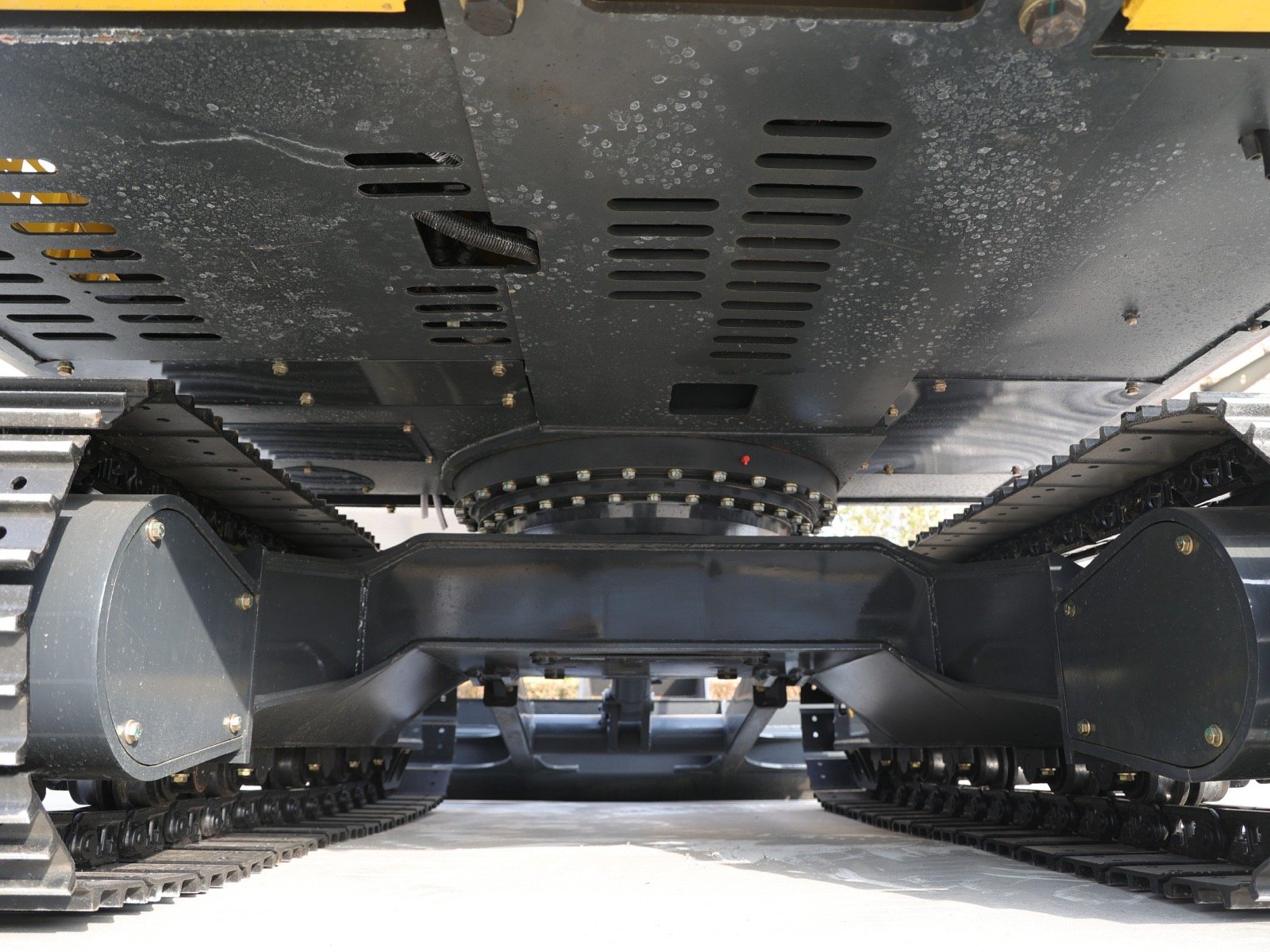

Undercarriage

Track grounding length: 84.6 in (7' 0.6")
Track length: 108.7 in (9' 0.7")
Track gauge: 66.9 in (5' 6.9")
Track width, overall: 84.6 in (7' 0.6")
Track shoe width: 17.7 in (1' 5.7")
Grounding length, transport: 145.7 in (12' 1.7")

Full Specifications

Category	Parameter	Specification
Specs	Model	PE80
Specs	Operating Weight	18,078 lb (9.04 tons)
Specs	Bucket Capacity	0.419 yd³ (11.30 ft³)
Engine	Engine Model	Yanmar 4TNV98CT-VSY
Engine	Rated Power	72.0 HP @ 2,100 rpm
Engine	Max. Torque / Crankshaft Speed	208.7–227.2 lb-ft @ 1,365 ± 25 rpm
Engine	Displacement	202.5 cu in
Engine	Intake Type	Turbocharged
Engine	Fuel System	Direct injection
Engine	Emission Standard	EPA / Euro V
Engine	Fuel Tank Capacity	34.3 gal
Performance	Travel Speed (high / low)	3.2 / 1.7 mph
Performance	Swing Speed	10 rpm
Performance	Max. Gradeability	70°
Performance	Bucket Digging Force at Max. Power (ISO)	11,690 lbf
Performance	Average Ground Pressure	4.35 psi
Hydraulics	Hydraulic Pump Model	PSVD2-42
Hydraulics	Maximum Flow	43.6 gpm
Hydraulics	Setting Pressure	3,989 psi
Hydraulics	Hydraulic Tank Capacity	23.8 gal
Dimensions	A — Overall Length	240.2 in (20' 0.2")
Dimensions	B — Overall Width	90.6 in (7' 6.6")
Dimensions	C — Overall Height (to top of boom)	103.1 in (8' 7.1")
Dimensions	D — Overall Height (to top of cab)	101.6 in (8' 5.6")
Dimensions	E — Counterweight Ground Clearance	29.9 in (2' 5.9")
Dimensions	F — Min. Ground Clearance	15.0 in (1' 3.0")
Dimensions	G — Tail Swing Radius	69.1 in (5' 9.1")
Undercarriage	H — Track Grounding Length	84.6 in (7' 0.6")
Undercarriage	J — Track Length	108.7 in (9' 0.7")
Undercarriage	K — Track Gauge	66.9 in (5' 6.9")
Undercarriage	L — Track Width (overall)	84.6 in (7' 0.6")
Undercarriage	M — Track Shoe Width	17.7 in (1' 5.7")
Dimensions	N — Turntable Width	86.5 in (7' 2.5")
Working Range	O — Max. Digging Height	282.1 in (23' 6.1")
Working Range	P — Max. Dumping Height	199.4 in (16' 7.4")
Working Range	Q — Max. Digging Depth	159.0 in (13' 3.0")
Working Range	R — Max. Vertical Wall Digging Depth	138.0 in (11' 6.0")
Working Range	S — Max. Digging Depth, 8' 2" Level Bottom	144.9 in (12' 0.9")
Working Range	T — Max. Digging Reach	249.2 in (20' 9.2")
Working Range	U — Max. Digging Reach at Ground Level	243.3 in (20' 3.3")
Working Range	V — Min. Swing Radius	70.7 in (5' 10.7")
Working Range	W — Max. Height at Min. Swing Radius	216.5 in (18' 0.5")
Dimensions	X — Swing Center to Rear	69.1 in (5' 9.1")
Dimensions	Z — Counterweight Height	67.9 in (5' 7.9")
Undercarriage	A1 — Grounding Length (transport)	145.7 in (12' 1.7")
Working Range	Arm Length	65.0 in (5' 5.0")
Working Range	Boom Length	146.1 in (12' 2.1")

Letter references (A–A1) correspond to the dimension callouts on the working-range drawing. Weight is given in US short tons. Converted from the original metric specification sheet. Specifications are subject to change without notice as the product is improved; the actual machine takes precedence.
