Call for price- Its much lower - we are required to follow Rippa’s MAP Pricing
2 year Service Plan: $1,943
NOTE: above price could change due to tariffs and shipping.
NOTE: above price could change due to tariffs and shipping.
Non-returnable
$13,999.00 - $14,750.00

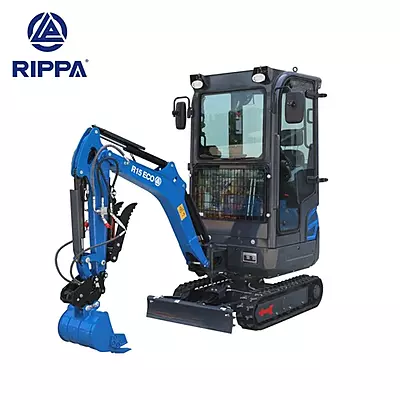

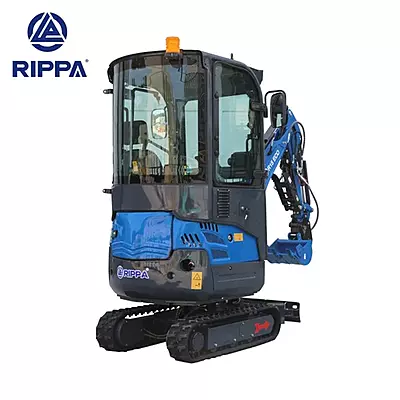

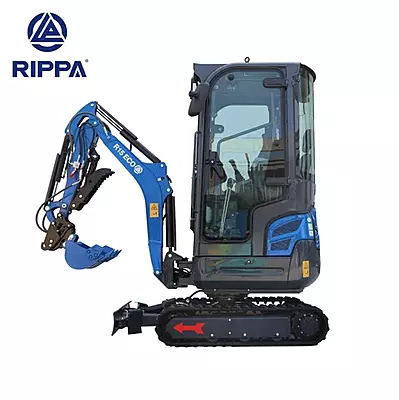

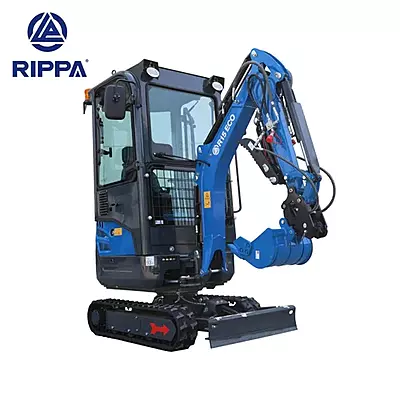

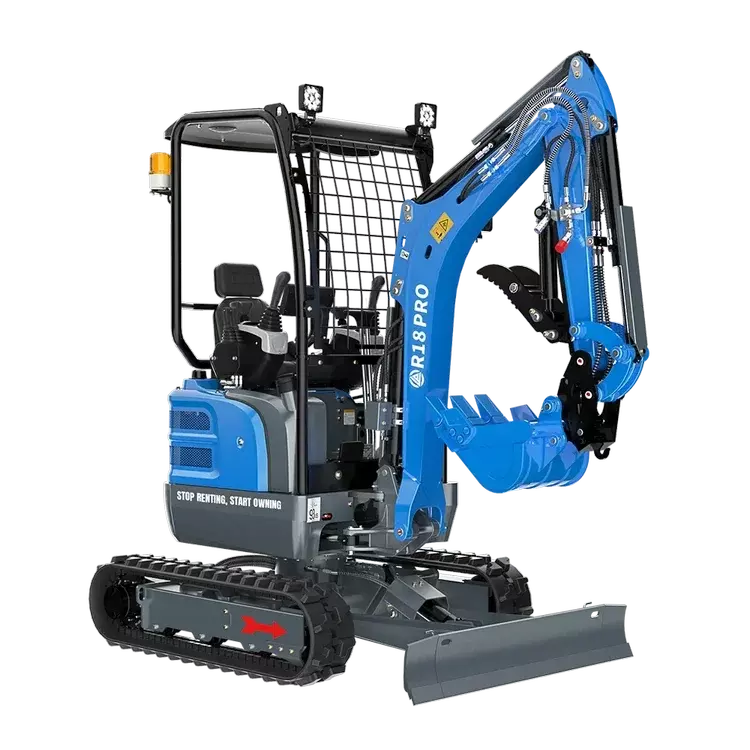

Rippa R18-5 Mini excavator
Product Details
Key Features:
1) It uses a Kubota D722 diesel engine, which provides 10.2kW (13.68 horsepower).
2) 2 speed selection. To get you where you need to dig faster.

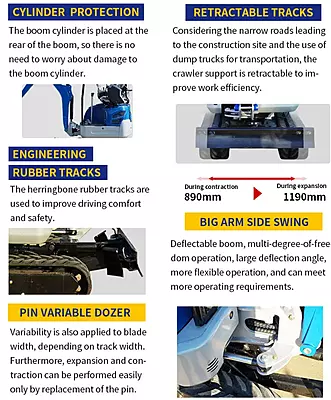

3) Adjustable chassis: The Rippa R15 can adjust from 36” to 48” width with the click of a button.
4) Welded hydraulic thumb pre-installed that lays flat against the boom.
5) Boom mounted light.
6) 2 speed motor for traveling with a variable throttle.
7) Swing boom can move over 45 degrees in either direction.
8) 2 Year factory parts warranty. Kubota honors the warranty at your local Kubota service center for engine related repairs.
9) Hydraulic quick attach coupler included.
10) GPS tracker is installed by our team. Land Air Sea is who we partnered with. 3 second updates. (Rippa USA Sales Exclusive)Sea is who we partnered with. 3 second updates. (Rippa USA Sales Exclusive)
This is our checklist. We perform this on every machine before it goes out to a customer. This is part of why we charge what we do. Goes without saying, if we do this, we will definitely be there for you when you have an issue and need to file a warranty claim.
Can’t decide between the R10, R13 or R15? Watch this video: https://youtu.be/gVLV9ilHcqg
Equipment Specifications

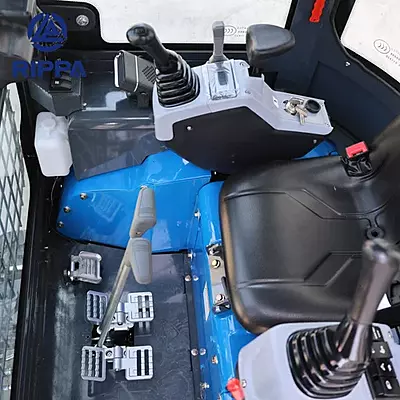

From Pilot controls, ergonomic seating, powerful engines or time tested and proven equipment, the Rippa R15 Mini Excavator leads the pack.
Want to know if other attachments will fit? Make sure they align with this:
Can’t decide between the R10, R13 or R15? Watch this video: https://youtu.be/gVLV9ilHcqg

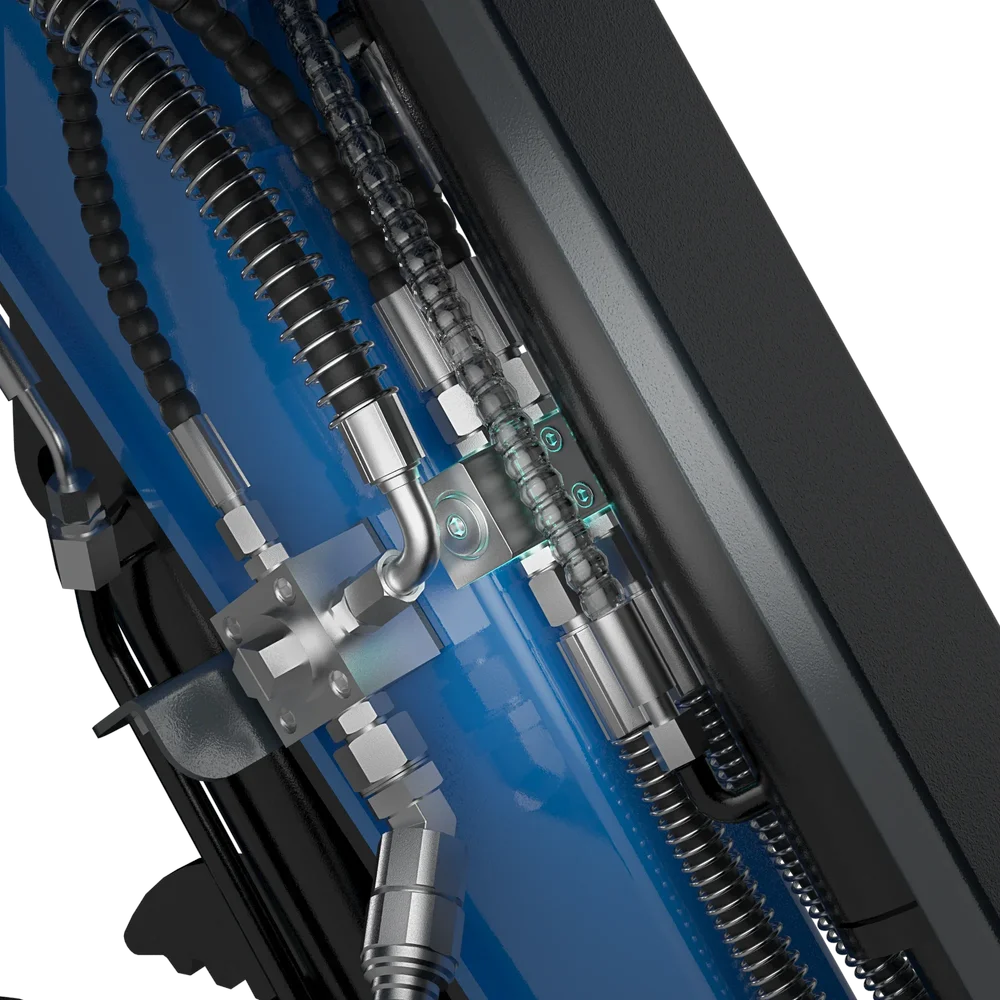

Four-way broken oil pipe with quick connector
Four-way crushing oil pipe, so that the hydraulic thumb clamp, hydraulic quick change and accessories have separate oil circuits and are equipped with quick connectors to improve connection efficiency and operation convenience.

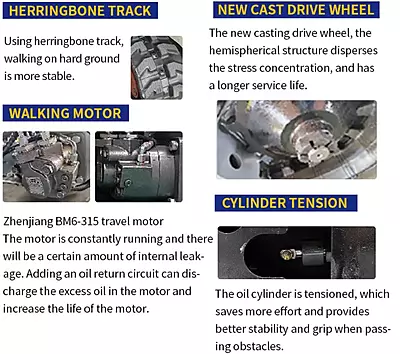

High and low speed walking
The excavator's high- and low-speed travel function is designed to meet the travel speed and traction requirements under different working conditions. Simply put, through the hydraulic system adjustment, the machine can select high or low speed mode when needed.
Equipment Specifications
| Brand Model | R10-8 | R13-4 | R15-6 ECO | R18-6 PRO | R22-4 PRO | R32-6 PRO | R67-2 | |
|---|---|---|---|---|---|---|---|---|
| Engine | Engine Model | Kubota Z482 | Kubota D722 | Kubota D722 | Kubota D902 | Kubota D1105 | Kubota V1505 | Kubota V2607 |
| # of Cylinders | 2 | 3 | 3 | 3 | 3 | 4 | 4 | |
| Rated Power | 10.98HP | 13.68HP | 13.68HP | 15.8HP | 24.37HP | 24.37HP | 68.4HP | |
| Main Pump | Number of Main Pump Types | Gear Pump x 1 | Gear Pump x 3 | Gear Pump x 3 | Variable Displacement Piston Pump x 1 | Variable Displacement Piston Pump x 1 | Variable Displacement Piston Pump x 1 | Variable Displacement Piston Pump x 1 |
| Max Flow Rate | 4.75gpm | 5.71gpm | 5.71gpm | 10.94gpm | 17.74gpm | 26.15gpm | 39.5gpm | |
| Operating System | Compound Motion | N/A | N/A | N/A | 1 | 1 | 1 | 1 |
| Pilot System | N/A | 4 Way Pilot Operated + 4 Way Mechanically Operated | 4 Way Pilot Operated + 4 Way Mechanically Operated | 10 Way Pilot Operated | 9 Way Pilot Operated | 9 Way Pilot Operated | 9 Way Pilot Operated | |
| Valve Info | Valve Type | Mechanical Control Valve | Hydraulic & Mechanical | Hydraulic & Mechanical | Load Sensitive Control Valve | Load Sensitive Control Valve | Load Sensitive Control Valve | Load Sensitive Control Valve |
| Hydraulic Motor Type | Travel Motor Speed | Single Speed | Dual Speed | Dual Speed | Dual Speed | Dual Speed | Dual Speed | Dual Speed |
| Motor Type | Cyclodial | Cyclodial | Cyclodial | Plunger | Plunger | Plunger | Plunger | |
| Swing Motor Type | Cyclodial | Cyclodial | Cyclodial | Cyclodial w/ Cushioning | Cyclodial w/ Cushioning | Cyclodial w/ Cushioning | Cyclodial w/ Cushioning | |
| Basic Parameters | Total Weight | 2151.8 lbs. | 2904 lbs. | 3218.74 lbs. | 4007.7 lbs. | 5223.85 lbs. | 6994.7 lbs. | 12,540 lbs |
| Bucket Size | 11.8" | 15.7" | 15.7" | 15.7" | 15.7" | 23.54" | 23.54" | |
| Max Digging Depth | 72.2" / ~6' | 72.5" / ~6' | 71.2" / ~6' | 95.3" / 7.5' | 90.4" / 8.5' | 111.3" / 10' | 144.8" / 12.4' | |
| Narrowest Transport Width | 35.91" | 33.4" | 38.74" | 38.94" | 51.18" | 61.02" | 74" | |
| Tail Type | Conventional | Zero Tail | Zero Tail | Zero Tail | Zero Tail | Zero Tail | Zero Tail | |
| Total Track Length | 104.84" | 116.14" | 116.14" | 139.3" | 55.47" | 73.62" | 100" | |
| Specs | Smart Display | N/A | N/A | Standard Across All Models | ||||
| Bucket Capacity | .494 cu ft. | .494 cu ft. | .64 cu ft. | 1.59 cu ft. | 1.9 cu ft. | 2.83 cu ft. | 3.2-6.2cu ft. | |
| Hydraulic Oil Cooler | Standard Across All Models | |||||||
| Boom Length | 58.1" | 57.1" | 58.1" | 71.9" | 72.1" | 87.4" | 118.1" | |
| Arm Length | 31.5" | 35.4" | 37.4" | 70.1" | 49.2" | 63.8" | 63" | |
| Track Specs Width x Pitch x # of Links | 7.09"x2.83"x37L | 7.09"x2.83"x41L | 7.09"x2.83"x41L | 9.06"x1.89"x74L | 9.84"x1.85"x84L | 11.81"x2.07"x84L | 15.75"x5.31"x40L | |
| Track Type | Rubber Track | Steel Track /w Rubber Inserts | Rubber Track | Rubber Track | Rubber Track | Rubber Track | Rubber Track | |
| Warranty Term | 2 Years | 2 Years | 2 Years | 3 Years | 3 Years | 3 Years | 3 Years | |
| Cab Options | Cab without AC | Cab without AC | Cab without AC | Cab without AC | Cab w/AC or No Cab | Cab w/AC or No Cab | Cab w/AC or No Cab | |
From Pilot controls, ergonomic seating, powerful engines or time tested and proven equipment, the Rippa R15 Mini Excavator leads the pack.

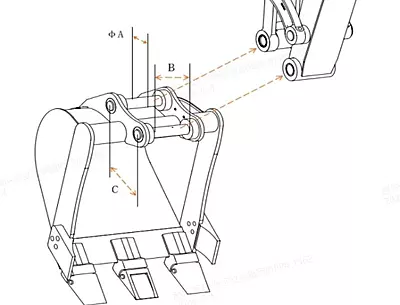

Want to know if other attachments will fit? Make sure they align with this:
Machine A B C
R10/R13/R15 25 92 90
