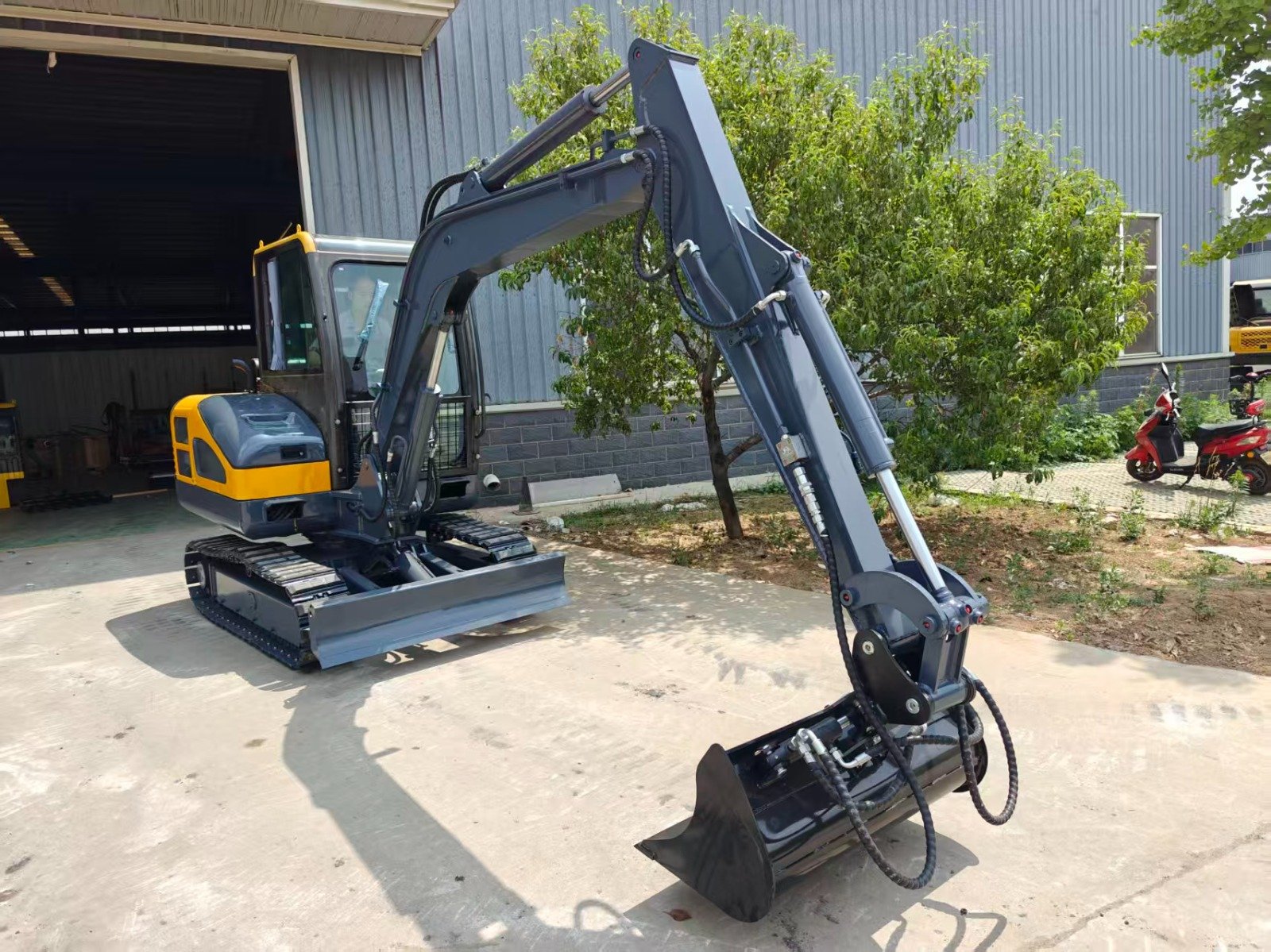

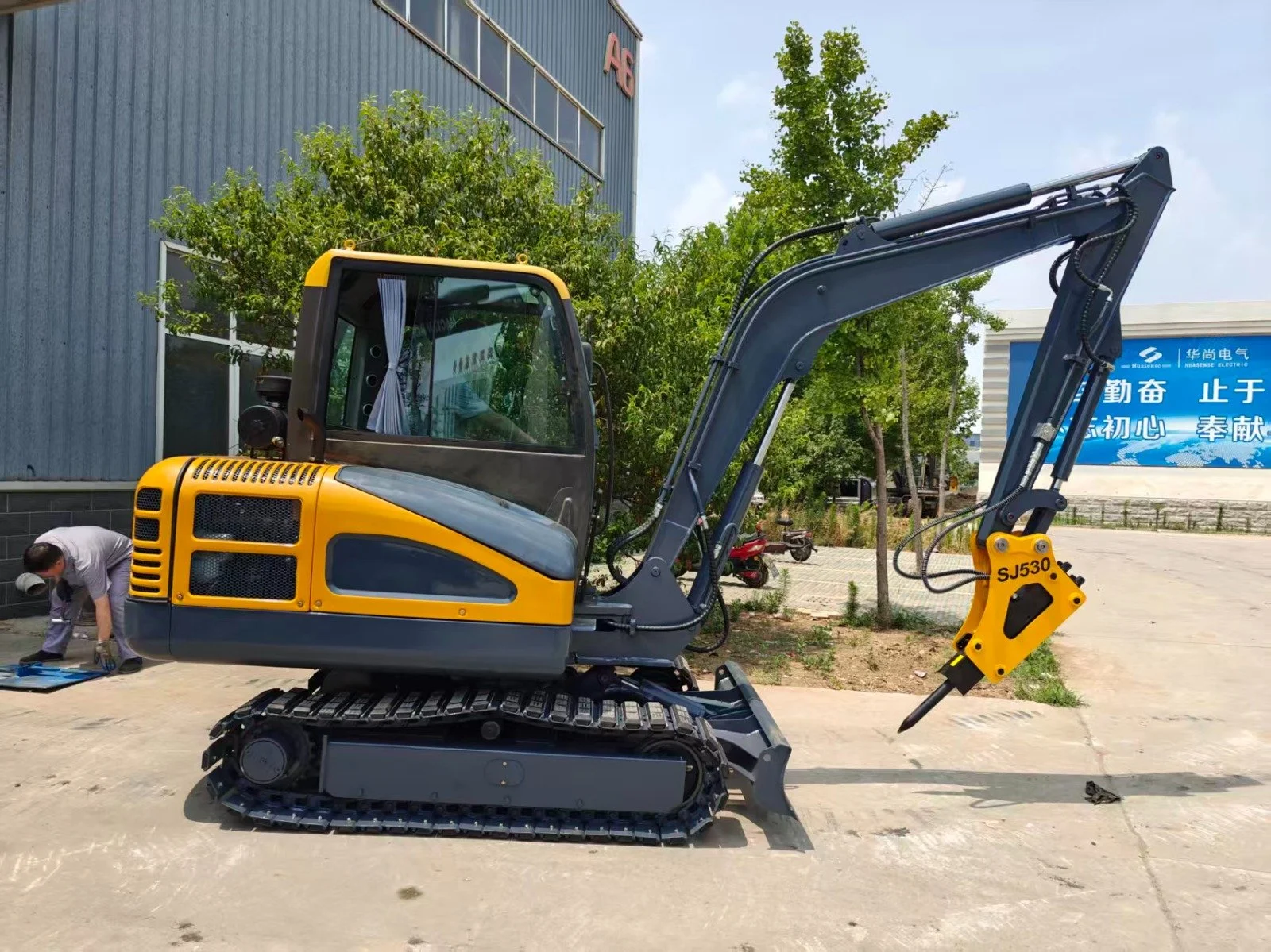

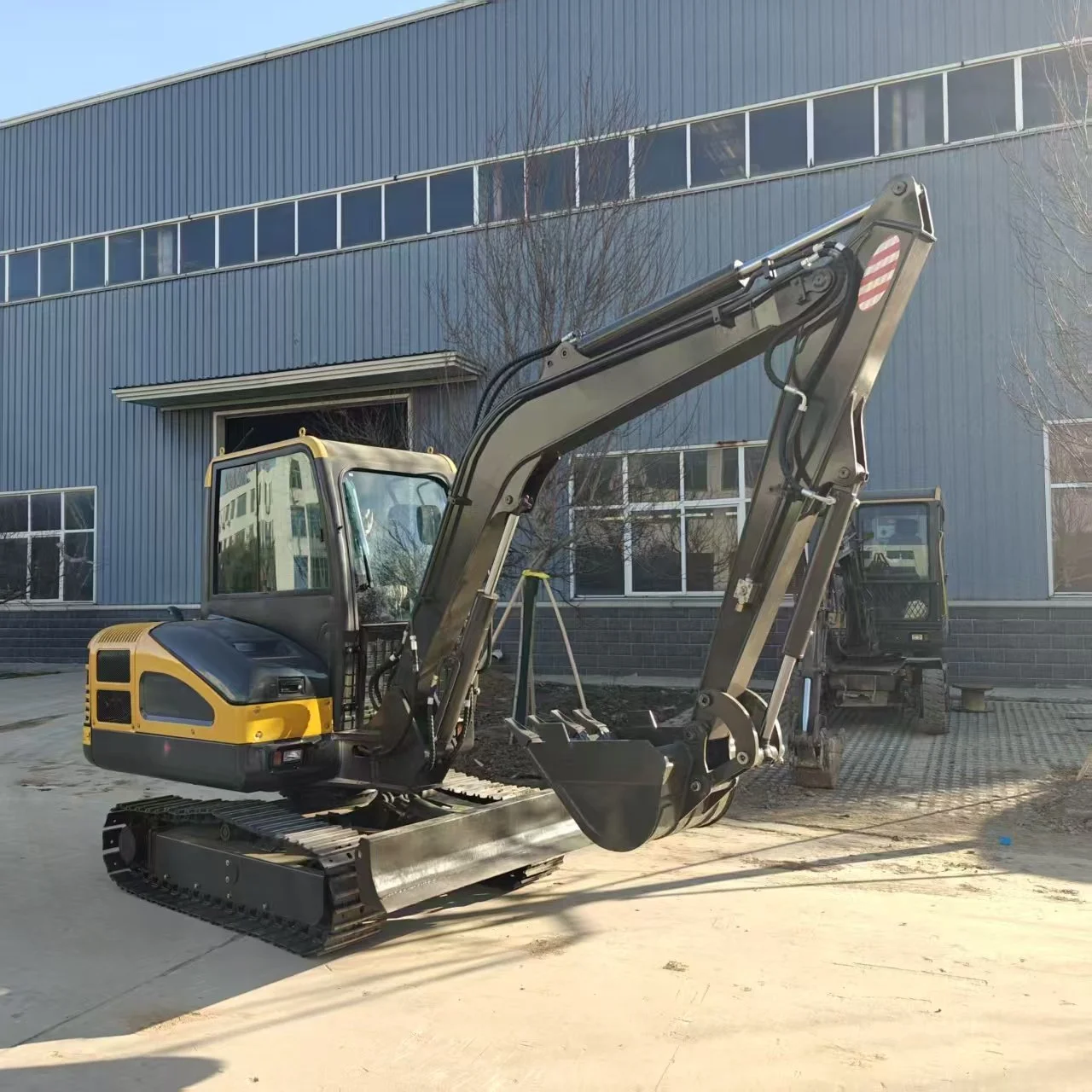

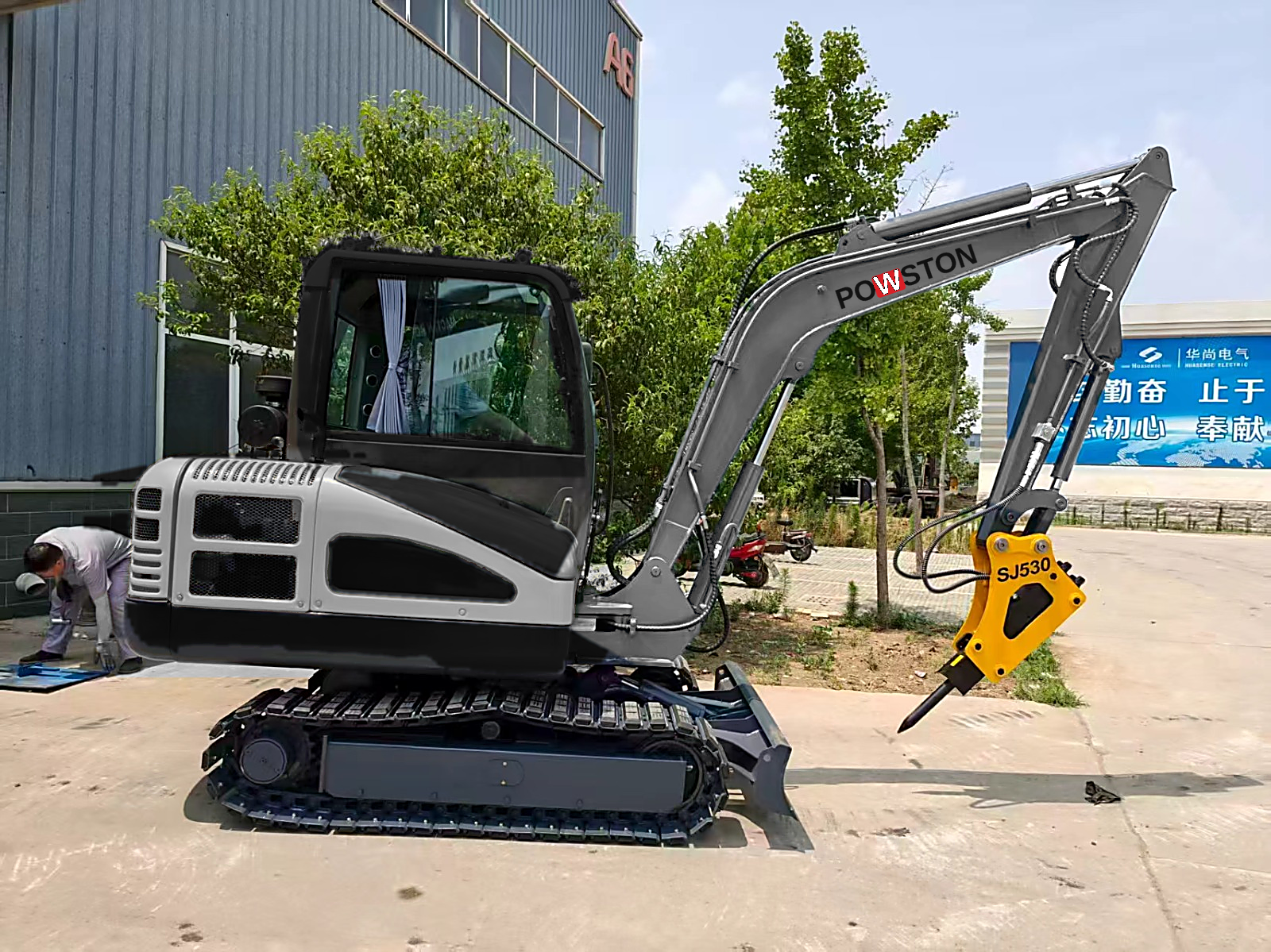

Powston PE50 Excavator

$57,275 (stocK item) MY2026

3 year Service Plan: $8,591

NOTE: above price could change due to tariffs and shipping.

Key Features:

1) Powered by a Yanmar 4TNV86 diesel engine, which provides 42.4kW (56.9 horsepower).

2) Operating weight of 11,000lbs. Bucket capacity of .12m3.

3) Boom mounted and cab mounted working lights.

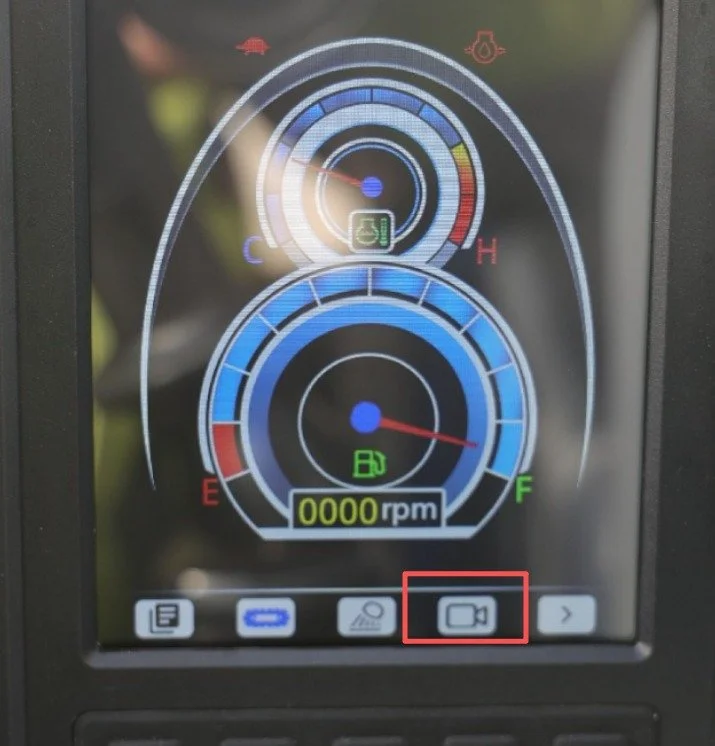

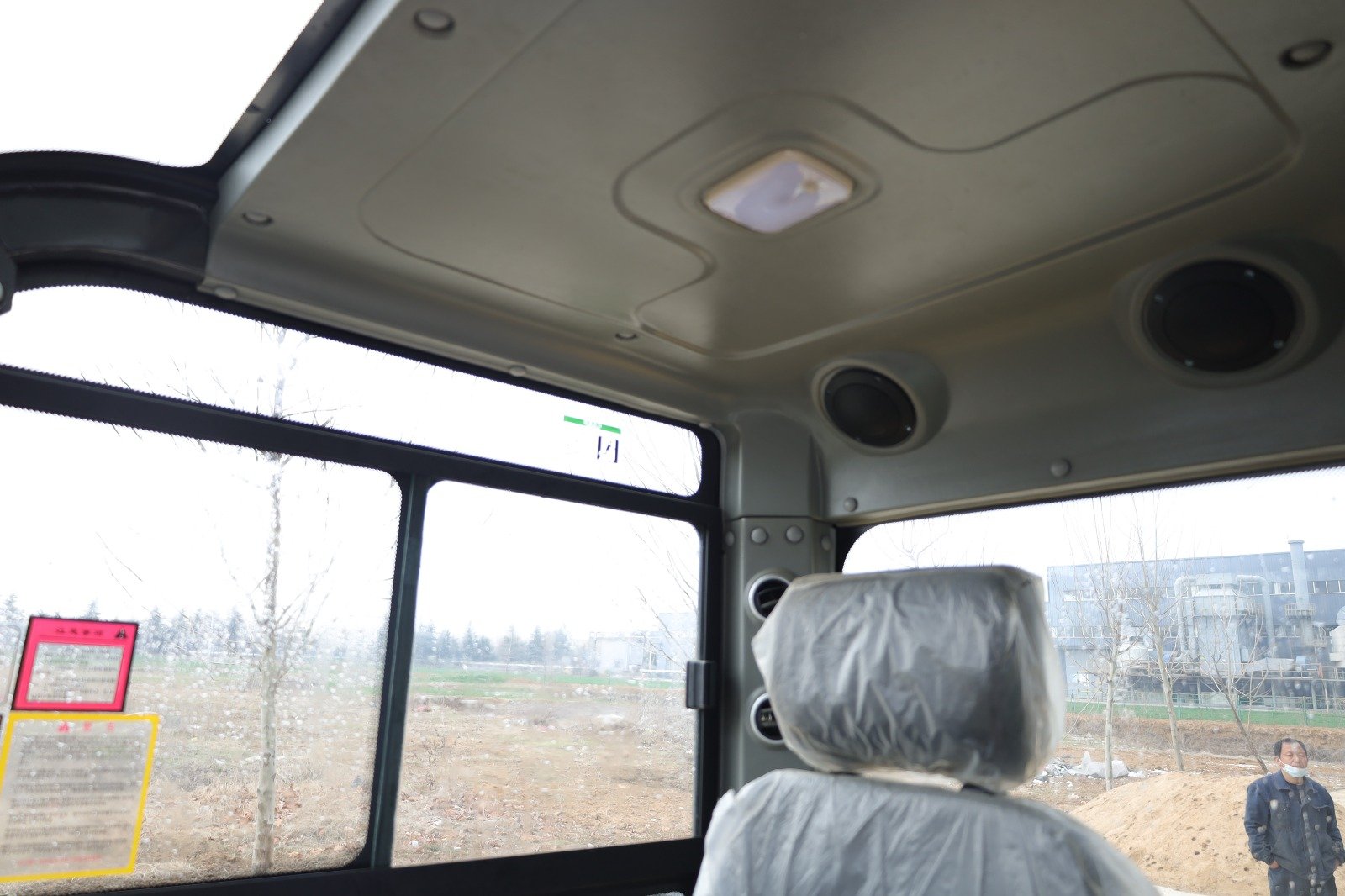

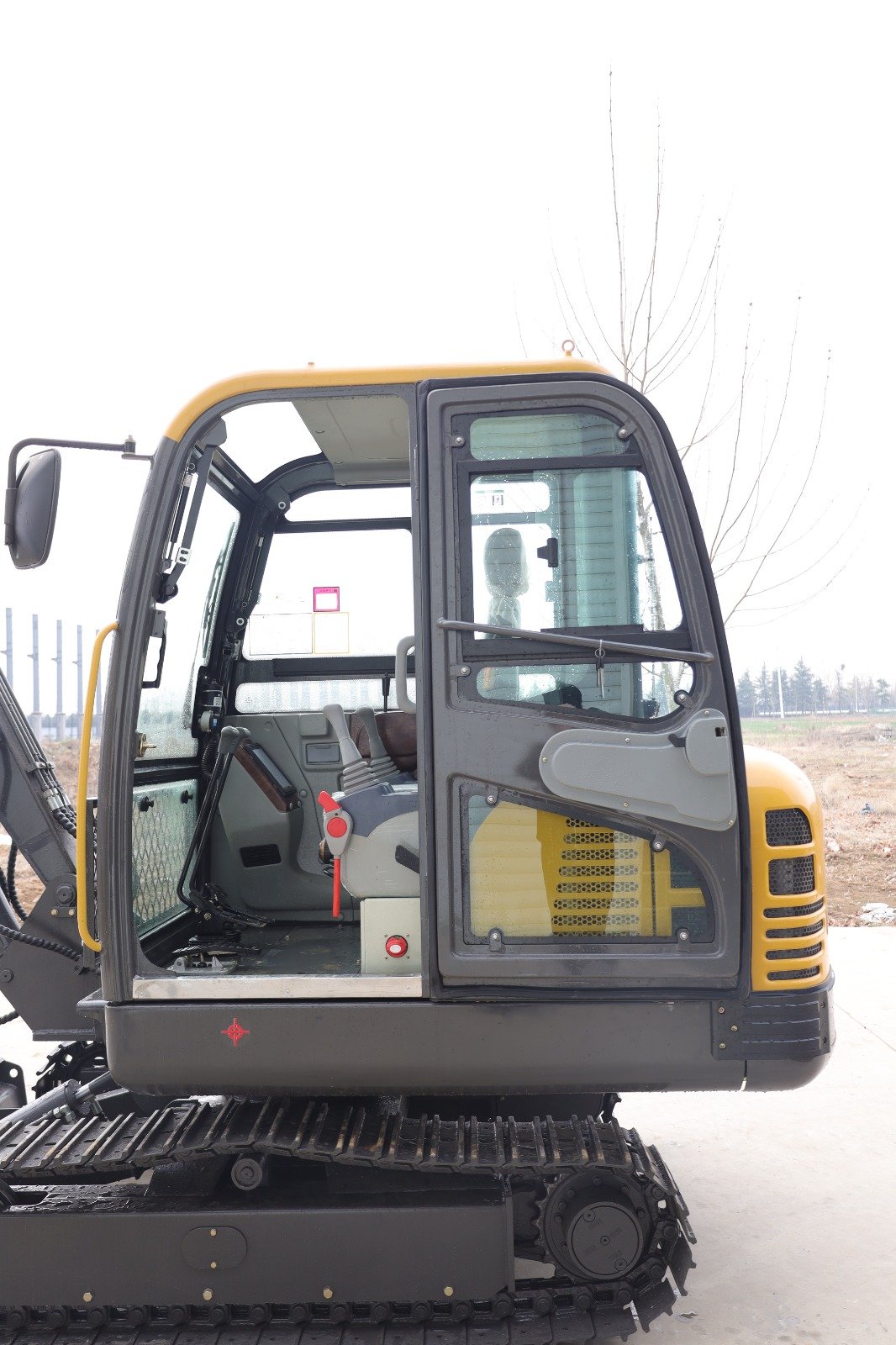

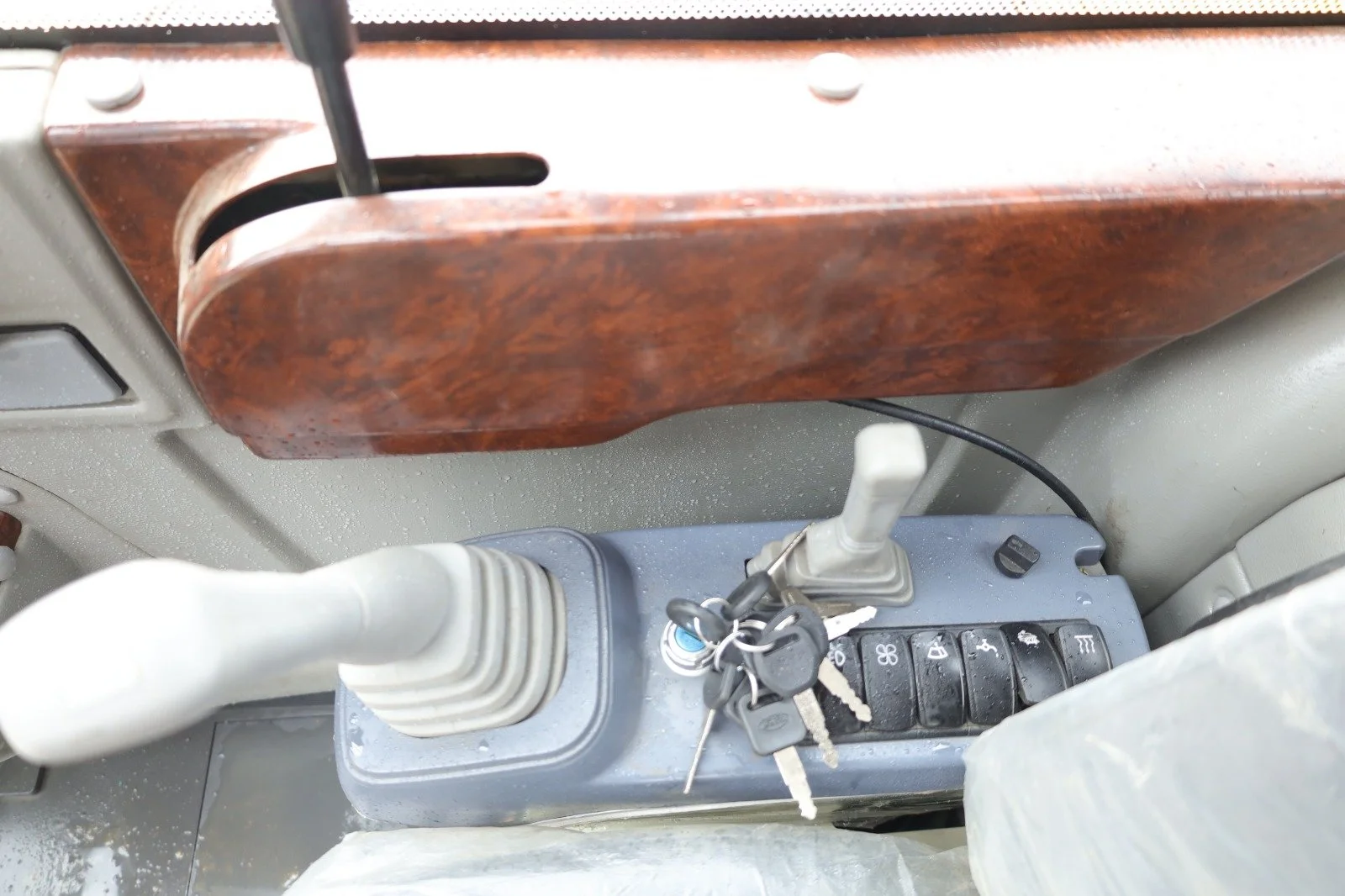

4) Enclosed Cab with AC and heat. Cab has a radio, two speakers, fan, dome LED lights and a mini computer that shows a number of key equipment data points like RPMs, service times.

5) 2 year factory parts warranty that Yanmar honors if there is an engine related issue.

6) Ships with steel tracks. Rubber inserts are available for an additional $1300.

7) Welded hydraulic thumb included. Not shown - photo coming soon.

8) Hydraulic quick attach coupler included.

9) GPS tracker is installed by our team. Land Air Sea is who we partnered with 30 second updates. (Rippa USA Sales exclusive)

10) Japanese NOK hydraulic seals.

This is our checklist. We perform this on every machine before it goes out to a customer. This is part of why we charge what we do. Goes without saying, if we do this, we will definitely be there for you when you have an issue and need to file a warranty claim.

5.5-Ton Class Crawler Excavator

PE-50 Hydraulic Crawler Excavator

11,000 lb operating weight · 56.9 HP · 0.157 yd³ bucket

The PE-50 is built for the work that falls between a mini-ex and a full-size machine: utility trenching, footings, site prep, landscaping, and demolition cleanup. A load-sensing hydraulic system delivers 25.1 gpm at 2,901 psi, and a 60.2-inch track width lets the machine work in tight lots and between structures while still reaching 19 ft 2.6 in and digging 12 ft 3 in deep.

11,000 lbOperating class

56.9 HPEngine power

0.157 yd³Bucket capacity

12' 3"Digging depth

19' 2.6"Digging reach

Engine & Drivetrain

Engine options: Yanmar
Rated power: 56.9 HP
Fuel tank: 21.1 gal
Travel speed (high / low): 2.9 / 1.7 mph
Swing speed: 11.5 rpm

Hydraulic System

Pump type: Load-sensing
Maximum flow: 25.1 gpm
Working pressure: 2,901 psi
Hydraulic oil tank: 15.9 gal
Bucket digging force: 5,440 lbf

Working Range

Max. digging height: 203.6 in (16' 11.6")
Max. dumping height: 141.1 in (11' 9.1")
Max. digging depth: 147.0 in (12' 3.0")
Max. vertical digging depth: 94.8 in (7' 10.8")
Max. digging reach: 230.6 in (19' 2.6")
Max. reach at ground level: 226.3 in (18' 10.3")
Min. swing radius: 84.5 in (7' 0.5")
Max. height at min. swing radius: 156.5 in (13' 0.5")
Arm length: 66.9 in (5' 6.9")
Boom length: 110.2 in (9' 2.2")

Dimensions

Overall length: 214.7 in (17' 10.7")
Overall width: 60.2 in (5' 0.2")
Machine height to boom head: 70.6 in (5' 10.6")
Overall height to cab top: 94.8 in (7' 10.8")
Counterweight ground clearance: 23.8 in (1' 11.8")
Minimum ground clearance: 8.2 in
Tail swing radius: 60.6 in (5' 0.6")
Turntable width: 60.2 in (5' 0.2")

Full Specifications

No.	Parameter	Specification
1	Model	PE-50
2	Bucket Capacity	0.157 yd³ (4.24 ft³)
3	Engine Model	Yanmar
4	Engine Power	56.9 HP
5	Fuel Tank Capacity	21.1 gal
6	Travel Speed (high / low)	2.9 / 1.7 mph
7	Swing Speed	11.5 rpm
8	Bucket Digging Force	5,440 lbf
9	Hydraulic Pump	Load-sensing pump
10	Maximum Flow	25.1 gpm
11	Working Pressure	2,901 psi
12	Hydraulic Oil Tank Capacity	15.9 gal
13	A — Overall Length	214.7 in (17' 10.7")
14	B — Overall Width	60.2 in (5' 0.2")
15	C — Machine Height (to boom head)	70.6 in (5' 10.6")
16	D — Overall Height (to cab top)	94.8 in (7' 10.8")
17	E — Counterweight Ground Clearance	23.8 in (1' 11.8")
18	F — Minimum Ground Clearance	8.2 in
19	G — Tail Swing Radius	60.6 in (5' 0.6")
20	K — Turntable Width	60.2 in (5' 0.2")
21	L — Max. Digging Height	203.6 in (16' 11.6")
22	M — Max. Dumping Height	141.1 in (11' 9.1")
23	N — Max. Digging Depth	147.0 in (12' 3.0")
24	O — Max. Vertical Digging Depth	94.8 in (7' 10.8")
25	P — Max. Digging Reach	230.6 in (19' 2.6")
26	Q — Max. Digging Reach at Ground Level	226.3 in (18' 10.3")
27	R — Min. Swing Radius	84.5 in (7' 0.5")
28	S — Max. Height at Min. Swing Radius	156.5 in (13' 0.5")
29	Arm Length	66.9 in (5' 6.9")
30	Boom Length	110.2 in (9' 2.2")

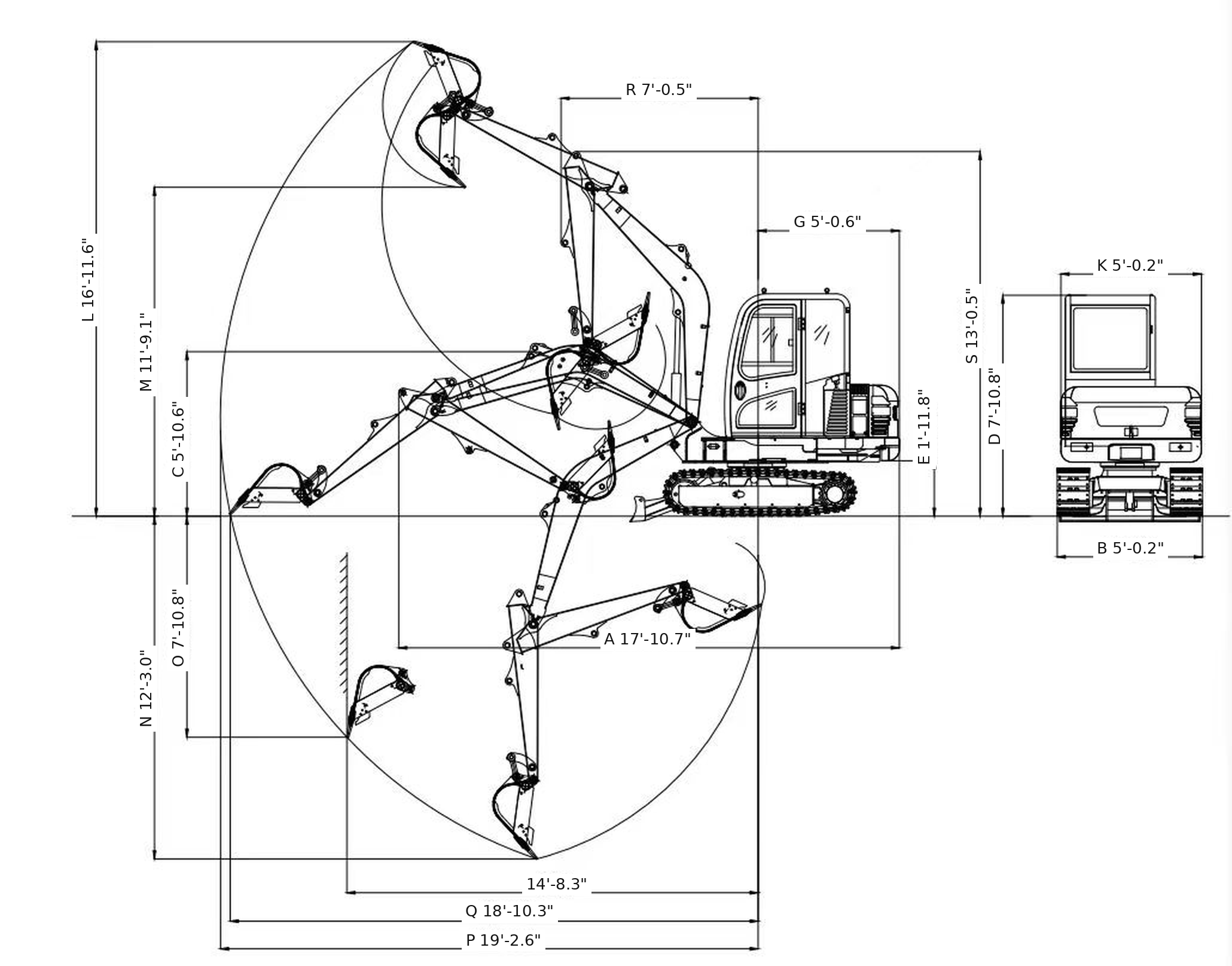

Letter references (A–S) correspond to the dimension callouts on the machine working-range drawing. Converted from the original metric specification sheet. Specifications subject to change without notice.
