Call for price- Its much lower - we are required to follow Rippa’s MAP Pricing
3 year Service Plan: $3,250
NOTE: above price could change due to tariffs and shipping.
NOTE: above price could change due to tariffs and shipping.
Non-returnable
$28,999.00 - $29,999.00
CAB
Product Details
Key Features:
1) It uses a Kubota D1105 diesel engine, which provides 18.2kW (19 horsepower).
2) Welded hydraulic thumb that lays flat against the boom when not in use.
3) Boom and cab mounted LED working lights.
4) Cold AC and a fan to keep it nice and cool. The AC is belt operated not electric, allowing for a more powerful cooling system that is very reliable.
5) 3 year factory parts warranty that Kubota honors if there is an engine related issue.

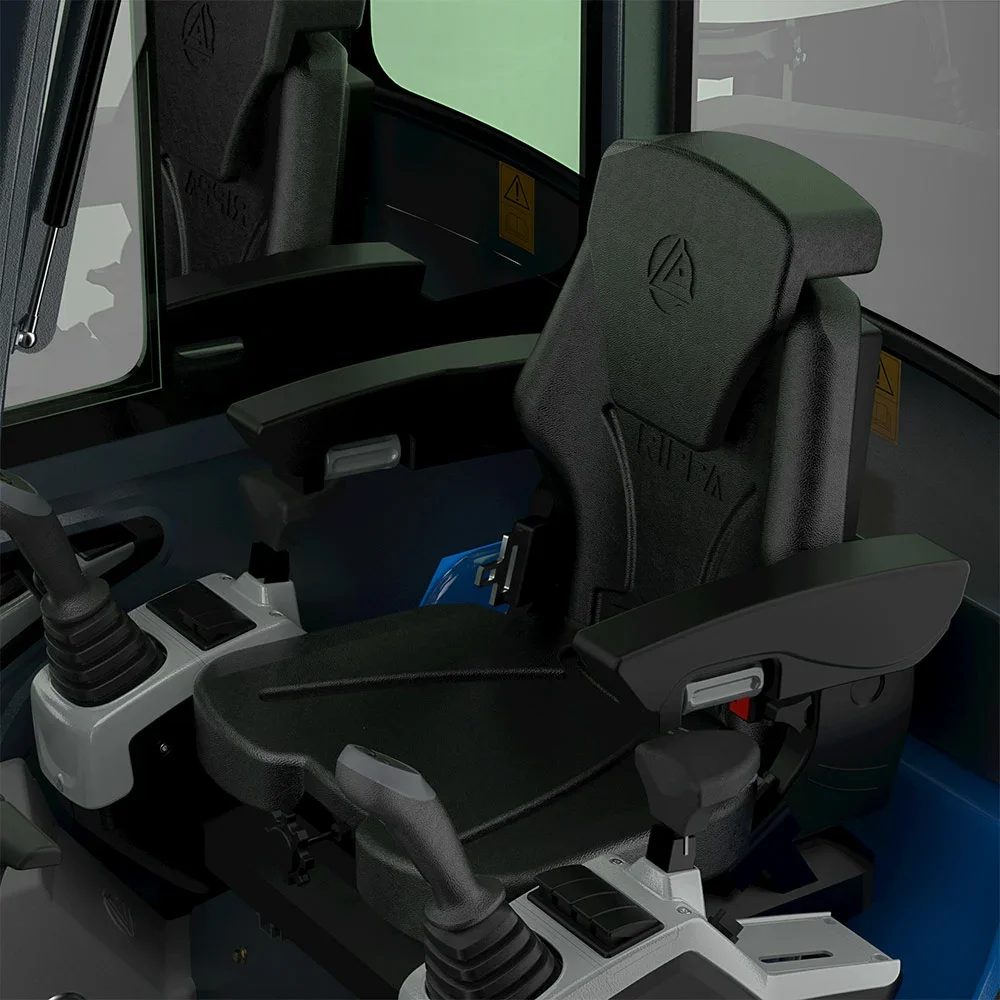

6) Enclosed cab with AC, Radio, speakers and a mini computer that shows a number of key equipment data points like RPMs, service times.
7) With the thumb connected, there is still an auxiliary port for an attachment so no need to swap hoses as often.
8) Back up camera.
9) Hydraulic quick attach coupler included.
10) Adjustable chassis allows for 38.9” to 51.5” width.
11) Swing boom included. Allows for 45 degree movement without the cab or chassis moving.
12) GPS tracker is installed by our team. Land Air Sea is who we partnered with. 3 second updates. (Rippa USA Sales Exclusive)
This is our checklist. We perform this on every machine before it goes out to a customer. This is part of why we charge what we do. Goes without saying, if we do this, we will definitely be there for you when you have an issue and need to file a warranty claim.

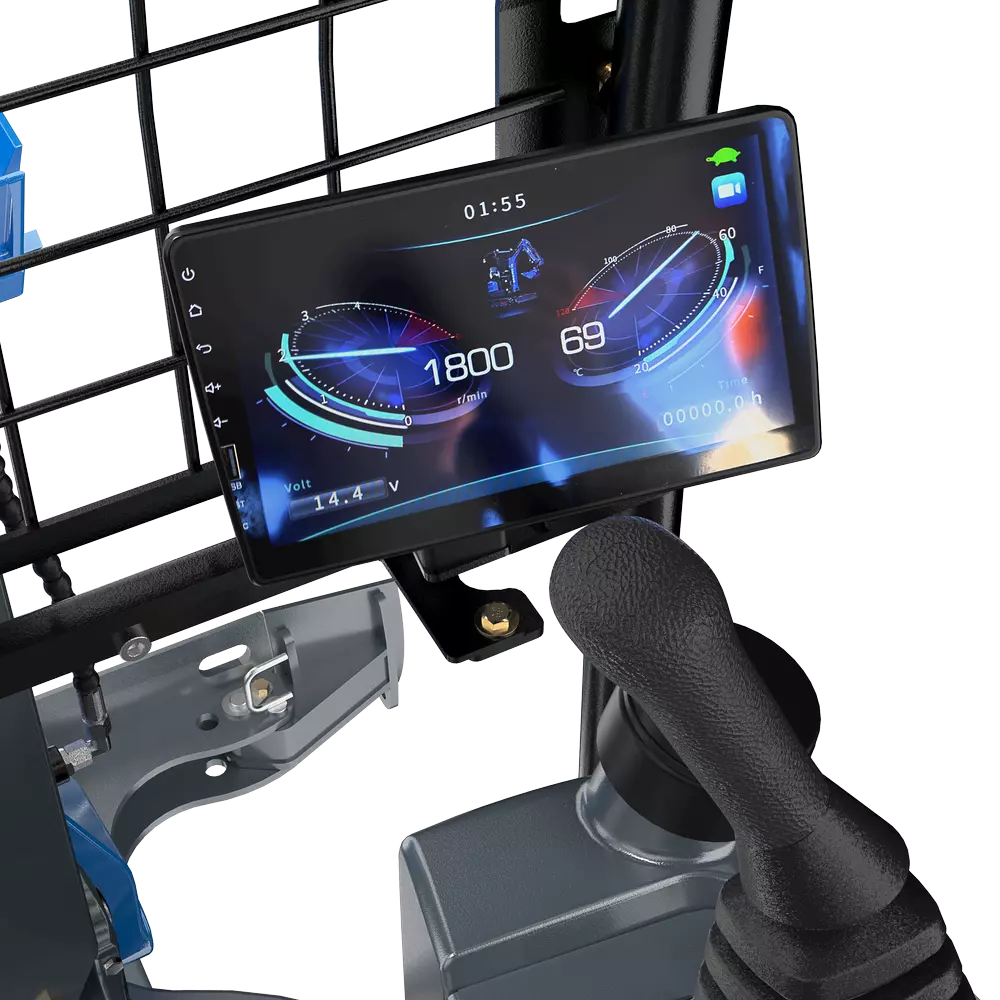

Smart display large screen
The smart large screen can display the various operating parameters of the excavator in real time, such as engine status, oil pressure, hydraulic system status, fuel consumption and temperature, etc., helping the operator to control the working status of the equipment at any time.
Dual-Button control handles
Rippa R22 dual-button control handles provide intuitive operation: the left button controls articulation/swing while the right activates the horn. Extra buttons are reserved for future function upgrades, offering flexible expansion to meet varied job needs.

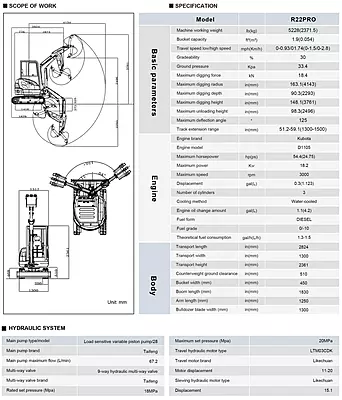

| Brand Model | R10-8 | R13-4 | R15-6 ECO | R18-6 PRO | R22-4 PRO | R32-6 PRO | R67-2 | |
|---|---|---|---|---|---|---|---|---|
| Engine | Engine Model | Kubota Z482 | Kubota D722 | Kubota D722 | Kubota D902 | Kubota D1105 | Kubota V1505 | Kubota V2607 |
| # of Cylinders | 2 | 3 | 3 | 3 | 3 | 4 | 4 | |
| Rated Power | 10.98HP | 13.68HP | 13.68HP | 15.8HP | 24.37HP | 24.37HP | 68.4HP | |
| Main Pump | Number of Main Pump Types | Gear Pump x 1 | Gear Pump x 3 | Gear Pump x 3 | Variable Displacement Piston Pump x 1 | Variable Displacement Piston Pump x 1 | Variable Displacement Piston Pump x 1 | Variable Displacement Piston Pump x 1 |
| Max Flow Rate | 4.75gpm | 5.71gpm | 5.71gpm | 10.94gpm | 17.74gpm | 26.15gpm | 39.5gpm | |
| Operating System | Compound Motion | N/A | N/A | N/A | 1 | 1 | 1 | 1 |
| Pilot System | N/A | 4 Way Pilot Operated + 4 Way Mechanically Operated | 4 Way Pilot Operated + 4 Way Mechanically Operated | 10 Way Pilot Operated | 9 Way Pilot Operated | 9 Way Pilot Operated | 9 Way Pilot Operated | |
| Valve Info | Valve Type | Mechanical Control Valve | Hydraulic & Mechanical | Hydraulic & Mechanical | Load Sensitive Control Valve | Load Sensitive Control Valve | Load Sensitive Control Valve | Load Sensitive Control Valve |
| Hydraulic Motor Type | Travel Motor Speed | Single Speed | Dual Speed | Dual Speed | Dual Speed | Dual Speed | Dual Speed | Dual Speed |
| Motor Type | Cyclodial | Cyclodial | Cyclodial | Plunger | Plunger | Plunger | Plunger | |
| Swing Motor Type | Cyclodial | Cyclodial | Cyclodial | Cyclodial w/ Cushioning | Cyclodial w/ Cushioning | Cyclodial w/ Cushioning | Cyclodial w/ Cushioning | |
| Basic Parameters | Total Weight | 2151.8 lbs. | 2904 lbs. | 3218.74 lbs. | 4007.7 lbs. | 5223.85 lbs. | 6994.7 lbs. | 12,540 lbs |
| Bucket Size | 11.8" | 15.7" | 15.7" | 15.7" | 15.7" | 23.54" | 23.54" | |
| Max Digging Depth | 72.2" / ~6' | 72.5" / ~6' | 71.2" / ~6' | 95.3" / 7.5' | 90.4" / 8.5' | 111.3" / 10' | 144.8" / 12.4' | |
| Narrowest Transport Width | 35.91" | 33.4" | 38.74" | 38.94" | 51.18" | 61.02" | 74" | |
| Tail Type | Conventional | Zero Tail | Zero Tail | Zero Tail | Zero Tail | Zero Tail | Zero Tail | |
| Total Track Length | 104.84" | 116.14" | 116.14" | 139.3" | 55.47" | 73.62" | 100" | |
| Specs | Smart Display | N/A | N/A | Standard Across All Models | ||||
| Bucket Capacity | .494 cu ft. | .494 cu ft. | .64 cu ft. | 1.59 cu ft. | 1.9 cu ft. | 2.83 cu ft. | 3.2-6.2cu ft. | |
| Hydraulic Oil Cooler | Standard Across All Models | |||||||
| Boom Length | 58.1" | 57.1" | 58.1" | 71.9" | 72.1" | 87.4" | 118.1" | |
| Arm Length | 31.5" | 35.4" | 37.4" | 70.1" | 49.2" | 63.8" | 63" | |
| Track Specs Width x Pitch x # of Links | 7.09"x2.83"x37L | 7.09"x2.83"x41L | 7.09"x2.83"x41L | 9.06"x1.89"x74L | 9.84"x1.85"x84L | 11.81"x2.07"x84L | 15.75"x5.31"x40L | |
| Track Type | Rubber Track | Steel Track /w Rubber Inserts | Rubber Track | Rubber Track | Rubber Track | Rubber Track | Rubber Track | |
| Warranty Term | 2 Years | 2 Years | 2 Years | 3 Years | 3 Years | 3 Years | 3 Years | |
| Cab Options | Cab without AC | Cab without AC | Cab without AC | Cab without AC | Cab w/AC or No Cab | Cab w/AC or No Cab | Cab w/AC or No Cab | |

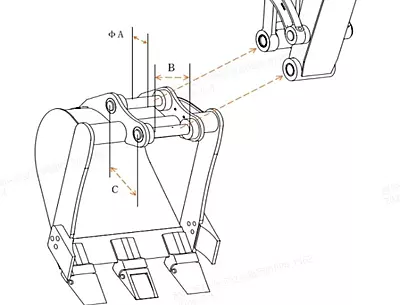

Want to know if other attachments will fit? Make sure they align with this:
Machine A B C
R32 30 111 141
