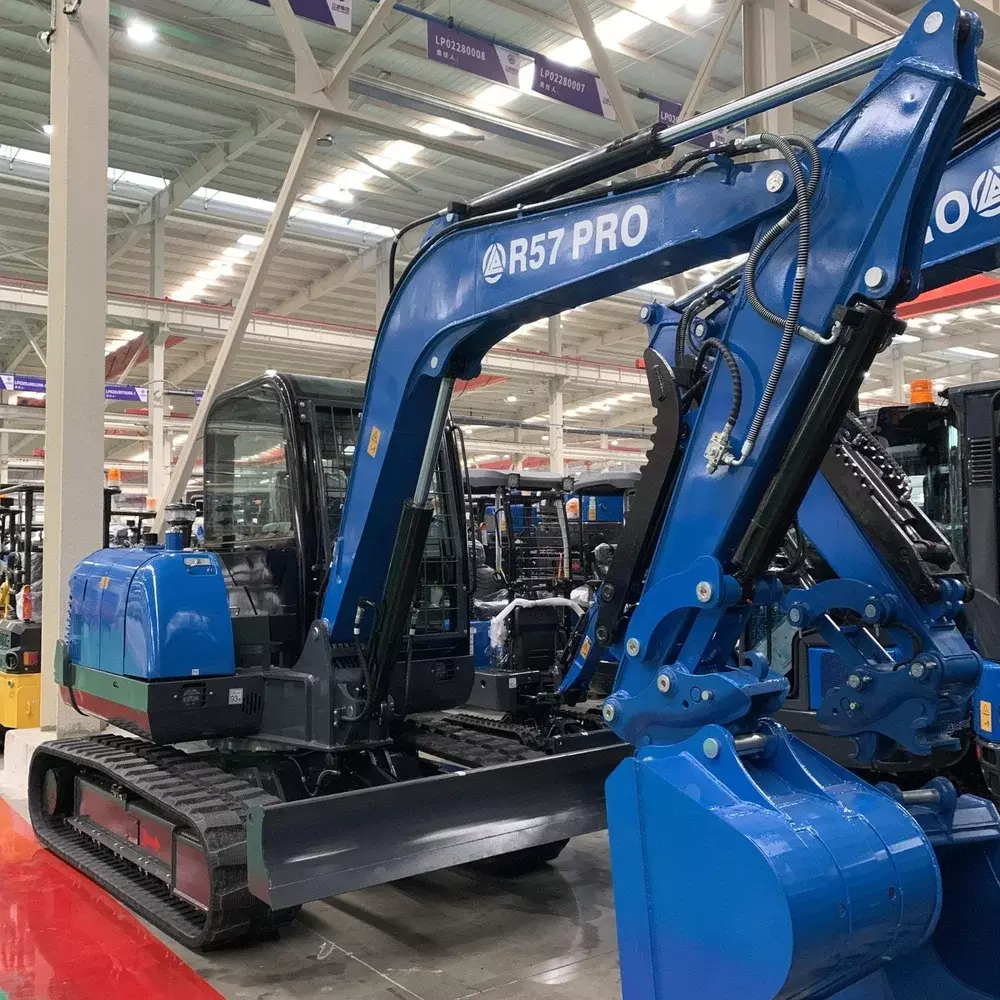

Rippa R57-2 Excavator
Call for price- Its much lower - we are required to follow Rippa’s MAP Pricing
3 year Service Plan: $3,996 / $4,278
NOTE: above price could change due to tariffs and shipping.
NOTE: above price could change due to tariffs and shipping.
Non-returnable
$47,999.00
Share :
Product Details
Key Features:
1) Powered by a Kubota V2607 diesel engine, which provides 38KW (51 horsepower).
2) Automatic idle function: when the controls move back to center, the engine automatically enter an idle state, reduces fuel consumption by 10%.
3) Boom mounted and cab mounted working lights.
4) Enclosed Cab with AC and heat. Cab has a radio, two speakers, fan, dome LED lights and a mini computer that shows a number of key equipment data points like RPMs, service times.
5) 3 year factory parts warranty that Kubota honors if there is an engine related issue.
6) Ships with rubber tracks. Steel tracks are available for an additional $1300.
7) Welded hydraulic thumb included.
8) Hydraulic quick attach coupler included.
9) GPS tracker is installed by our team. Land Air Sea is who we partnered with. 3 second updates. (Rippa USA Sales exclusive)
The new updated machines has a number of changes. This is as of machines arriving June 2026.
4 way shredder, with a pre-installed return oil line for the brush cutter, and a three-way ball valve for cutting the shredder on one side.

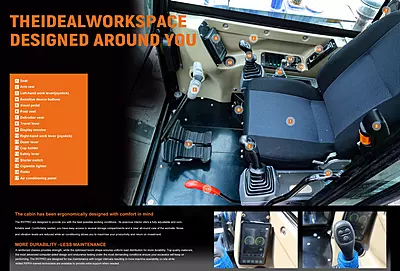

Redesigned interior with a fresh air system, large LCD screen, factory back up camera, and newly molded leather floor mats.
Main pump is a Haitek 68 load-sensitive variable displacement piston pump with a maximum flow rate of 149.6L/min.
Travel motor is a Zhongwei TM07.
The cab was re-molded, and sound insulation cotton was added to the back and bottom of the upper plate to ensure noise control inside the cab during operation.
An ISO/SAE operating mode switch was installed to meet the needs of customers with different operating modes.
The plunger pump was installed horizontally to avoid abnormal wear caused by low lubrication levels in the housing.
This is our checklist. We perform this on every machine before it goes out to a customer. This is part of why we charge what we do. Goes without saying, if we do this, we will definitely be there for you when you have an issue and need to file a warranty claim.

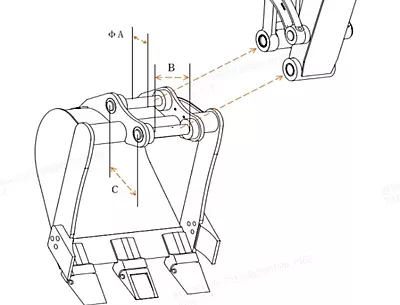

Want to know if other attachments will fit? Make sure they align with this:
Machine A B C
R57 45 155 260
| Brand Model | R10-8 | R13-4 | R15-6 ECO | R18-6 PRO | R22-4 PRO | R32-6 PRO | R67-2 | |
|---|---|---|---|---|---|---|---|---|
| Engine | Engine Model | Kubota Z482 | Kubota D722 | Kubota D722 | Kubota D902 | Kubota D1105 | Kubota V1505 | Kubota V2607 |
| # of Cylinders | 2 | 3 | 3 | 3 | 3 | 4 | 4 | |
| Rated Power | 10.98 HP | 13.68 HP | 13.68 HP | 15.8 HP | 24.37 HP | 24.37 HP | 68.4 HP | |
| Main Pump | Number of Main Pump | 1 | 3 | 3 | 1 | 1 | 1 | 1 |
| Pump Type | Gear Pump × 1 | Gear Pump × 3 | Gear Pump × 3 | Variable Displacement Piston Pump × 1 | Variable Displacement Piston Pump × 1 | Variable Displacement Piston Pump × 1 | Variable Displacement Piston Pump × 1 | |
| Max Flow Rate | 4.76 gpm | 5.71 gpm | 5.71 gpm | 10.94 gpm | 17.74 gpm | 26.15 gpm | 39.59 gpm | |
| Operating System | Compound Motion | N/A | N/A | N/A | 1 | 1 | 1 | 1 |
| Pilot System | N/A | 4 Way Pilot Operated + 4 Way Mechanically Operated | 4 Way Pilot Operated + 4 Way Mechanically Operated | 10 Way Pilot Operated | 9 Way Pilot Operated | 9 Way Pilot Operated | 9 Way Pilot Operated | |
| Valve Info | Valve Type | Mechanical Control Valve | Hydraulic & Mechanical | Hydraulic & Mechanical | Load Sensitive Control Valve | Load Sensitive Control Valve | Load Sensitive Control Valve | Load Sensitive Control Valve |
| Travel Motor Speed | Single Speed | Dual Speed | Dual Speed | Dual Speed | Dual Speed | Dual Speed | Dual Speed | |
| Hydraulic | Motor Type | Cycloidal | Cycloidal | Cycloidal | Plunger | Plunger | Plunger | Plunger |
| Swing Motor Type | Cycloidal | Cycloidal | Cycloidal | Cycloidal w/ Cushioning | Cycloidal w/ Cushioning | Cycloidal w/ Cushioning | Cycloidal w/ Cushioning | |
| Basic Parameters | Total Weight | 2151.8 lbs. | 2904 lbs. | 3218.74 lbs. | 4007.7 lbs. | 5225.85 lbs. | 6594.7 lbs. | 12,540 lbs. |
| Bucket Size | 11.8" | 15.7" | 15.7" | 15.7" | 15.7" | 23.54" | 23.54" | |
| Max Digging Depth | 7.2" / 6" | 7.25" / 6" | 7.1" / 6" | 95.3" / 7.5" | 90.4" / 8.5" | 111.3" / 10" | 148.4" / 12.4" | |
| Transport | Narrowest Transport Width | 35.91" | 33.4" | 38.74" | 38.94" | 51.18" | 61.02" | 74" |
| Tail Type | Conventional | Zero Tail | Zero Tail | Zero Tail | Zero Tail | Zero Tail | Zero Tail | |
| Total Track Length | 104.84" | 116.14" | 116.14" | 139.3" | 55.47" | 73.62" | 100" | |
| Specs | Smart Display | N/A | N/A | N/A | Standard Across All Models | |||
| Bucket Capacity | .494 cu. ft. | .494 cu. ft. | .64 cu. ft. | 1.59 cu. ft. | 1.9 cu. ft. | 2.83 cu. ft. | 3.2-6.2 cu. ft. | |
| Hydraulic Oil Cooler | Standard Across All Models | |||||||
| Boom Length | 58.1" | 57.1" | 58.1" | 71.9" | 72.1" | 87.4" | 118.1" | |
| Arm Length | 31.5" | 35.4" | 37.4" | 70.1" | 49.2" | 63.8" | 63" | |
| Track Specs Width × Pitch × # of Links | 7.09" × 2.83" × 37L | 7.09" × 2.83" × 41L | 7.09" × 2.83" × 41L | 9.06" × 1.89" × 47L | 9.84" × 1.85" × 48L | 11.81" × 2.07" × 48L | 15.75" × 5.31" × 40L | |
| Track Type | Rubber Track | Steel Track w/ Rubber Inserts | Rubber Track | Rubber Track | Rubber Track | Rubber Track | Rubber Track | |
| Warranty Term | 2 Years | 2 Years | 2 Years | 3 Years | 3 Years | 3 Years | 3 Years | |
| Cab Options | Cab without AC | Cab without AC | Cab without AC | Cab w/AC or No Cab | Cab w/AC or No Cab | Cab w/AC or No Cab | Cab w/AC or No Cab | |
Equipment Specifications
R10-8
Engine
Engine Model
Kubota Z482
# of Cylinders
2
Rated Power
10.98 HP
Main Pump
Number of Main Pump
1
Pump Type
Gear Pump × 1
Max Flow Rate
4.76 gpm
Operating System
Compound Motion
N/A
Pilot System
N/A
Valve Info
Valve Type
Mechanical Control Valve
Travel Motor Speed
Single Speed
Hydraulic
Motor Type
Cycloidal
Swing Motor Type
Cycloidal
Basic Parameters
Total Weight
2151.8 lbs.
Bucket Size
11.8"
Max Digging Depth
7.2" / 6"
Transport
Narrowest Transport Width
35.91"
Tail Type
Conventional
Total Track Length
104.84"
Specs
Smart Display
N/A
Bucket Capacity
.494 cu. ft.
Hydraulic Oil Cooler
Standard Across All Models
Boom Length
58.1"
Arm Length
31.5"
Track Specs
7.09" × 2.83" × 37L
Track Type
Rubber Track
Warranty Term
2 Years
Cab Options
Cab without AC
R13-4
Engine
Engine Model
Kubota D722
# of Cylinders
3
Rated Power
13.68 HP
Main Pump
Number of Main Pump
3
Pump Type
Gear Pump × 3
Max Flow Rate
5.71 gpm
Operating System
Compound Motion
N/A
Pilot System
4 Way Pilot Operated + 4 Way Mechanically Operated
Valve Info
Valve Type
Hydraulic & Mechanical
Travel Motor Speed
Dual Speed
Hydraulic
Motor Type
Cycloidal
Swing Motor Type
Cycloidal
Basic Parameters
Total Weight
2904 lbs.
Bucket Size
15.7"
Max Digging Depth
7.25" / 6"
Transport
Narrowest Transport Width
33.4"
Tail Type
Zero Tail
Total Track Length
116.14"
Specs
Smart Display
N/A
Bucket Capacity
.494 cu. ft.
Hydraulic Oil Cooler
Standard Across All Models
Boom Length
57.1"
Arm Length
35.4"
Track Specs
7.09" × 2.83" × 41L
Track Type
Steel Track w/ Rubber Inserts
Warranty Term
2 Years
Cab Options
Cab without AC
R15-6 ECO
Engine
Engine Model
Kubota D722
# of Cylinders
3
Rated Power
13.68 HP
Main Pump
Number of Main Pump
3
Pump Type
Gear Pump × 3
Max Flow Rate
5.71 gpm
Operating System
Compound Motion
N/A
Pilot System
4 Way Pilot Operated + 4 Way Mechanically Operated
Valve Info
Valve Type
Hydraulic & Mechanical
Travel Motor Speed
Dual Speed
Hydraulic
Motor Type
Cycloidal
Swing Motor Type
Cycloidal
Basic Parameters
Total Weight
3218.74 lbs.
Bucket Size
15.7"
Max Digging Depth
7.1" / 6"
Transport
Narrowest Transport Width
38.74"
Tail Type
Zero Tail
Total Track Length
116.14"
Specs
Smart Display
N/A
Bucket Capacity
.64 cu. ft.
Hydraulic Oil Cooler
Standard Across All Models
Boom Length
58.1"
Arm Length
37.4"
Track Specs
7.09" × 2.83" × 41L
Track Type
Rubber Track
Warranty Term
2 Years
Cab Options
Cab without AC
R18-6 PRO
Engine
Engine Model
Kubota D902
# of Cylinders
3
Rated Power
15.8 HP
Main Pump
Number of Main Pump
1
Pump Type
Variable Displacement Piston Pump × 1
Max Flow Rate
10.94 gpm
Operating System
Compound Motion
1
Pilot System
10 Way Pilot Operated
Valve Info
Valve Type
Load Sensitive Control Valve
Travel Motor Speed
Dual Speed
Hydraulic
Motor Type
Plunger
Swing Motor Type
Cycloidal w/ Cushioning
Basic Parameters
Total Weight
4007.7 lbs.
Bucket Size
15.7"
Max Digging Depth
95.3" / 7.5"
Transport
Narrowest Transport Width
38.94"
Tail Type
Zero Tail
Total Track Length
139.3"
Specs
Smart Display
Standard Across All Models
Bucket Capacity
1.59 cu. ft.
Hydraulic Oil Cooler
Standard Across All Models
Boom Length
71.9"
Arm Length
70.1"
Track Specs
9.06" × 1.89" × 47L
Track Type
Rubber Track
Warranty Term
3 Years
Cab Options
Cab w/AC or No Cab
R22-4 PRO
Engine
Engine Model
Kubota D1105
# of Cylinders
3
Rated Power
24.37 HP
Main Pump
Number of Main Pump
1
Pump Type
Variable Displacement Piston Pump × 1
Max Flow Rate
17.74 gpm
Operating System
Compound Motion
1
Pilot System
9 Way Pilot Operated
Valve Info
Valve Type
Load Sensitive Control Valve
Travel Motor Speed
Dual Speed
Hydraulic
Motor Type
Plunger
Swing Motor Type
Cycloidal w/ Cushioning
Basic Parameters
Total Weight
5225.85 lbs.
Bucket Size
15.7"
Max Digging Depth
90.4" / 8.5"
Transport
Narrowest Transport Width
51.18"
Tail Type
Zero Tail
Total Track Length
55.47"
Specs
Smart Display
Standard Across All Models
Bucket Capacity
1.9 cu. ft.
Hydraulic Oil Cooler
Standard Across All Models
Boom Length
72.1"
Arm Length
49.2"
Track Specs
9.84" × 1.85" × 48L
Track Type
Rubber Track
Warranty Term
3 Years
Cab Options
Cab w/AC or No Cab
R32-6 PRO
Engine
Engine Model
Kubota V1505
# of Cylinders
4
Rated Power
24.37 HP
Main Pump
Number of Main Pump
1
Pump Type
Variable Displacement Piston Pump × 1
Max Flow Rate
26.15 gpm
Operating System
Compound Motion
1
Pilot System
9 Way Pilot Operated
Valve Info
Valve Type
Load Sensitive Control Valve
Travel Motor Speed
Dual Speed
Hydraulic
Motor Type
Plunger
Swing Motor Type
Cycloidal w/ Cushioning
Basic Parameters
Total Weight
6594.7 lbs.
Bucket Size
23.54"
Max Digging Depth
111.3" / 10"
Transport
Narrowest Transport Width
61.02"
Tail Type
Zero Tail
Total Track Length
73.62"
Specs
Smart Display
Standard Across All Models
Bucket Capacity
2.83 cu. ft.
Hydraulic Oil Cooler
Standard Across All Models
Boom Length
87.4"
Arm Length
63.8"
Track Specs
11.81" × 2.07" × 48L
Track Type
Rubber Track
Warranty Term
3 Years
Cab Options
Cab w/AC or No Cab
R67-2
Engine
Engine Model
Kubota V2607
# of Cylinders
4
Rated Power
68.4 HP
Main Pump
Number of Main Pump
1
Pump Type
Variable Displacement Piston Pump × 1
Max Flow Rate
39.59 gpm
Operating System
Compound Motion
1
Pilot System
9 Way Pilot Operated
Valve Info
Valve Type
Load Sensitive Control Valve
Travel Motor Speed
Dual Speed
Hydraulic
Motor Type
Plunger
Swing Motor Type
Cycloidal w/ Cushioning
Basic Parameters
Total Weight
12,540 lbs.
Bucket Size
23.54"
Max Digging Depth
148.4" / 12.4"
Transport
Narrowest Transport Width
74"
Tail Type
Zero Tail
Total Track Length
100"
Specs
Smart Display
Standard Across All Models
Bucket Capacity
3.2-6.2 cu. ft.
Hydraulic Oil Cooler
Standard Across All Models
Boom Length
118.1"
Arm Length
63"
Track Specs
15.75" × 5.31" × 40L
Track Type
Rubber Track
Warranty Term
3 Years
Cab Options
Cab w/AC or No Cab
